ansible platform 2.1 install

客户希望安装一套ansible platform，而且是全离线环境，那么我们就按照最简单的单节点模式，来安装一下。整个安装过程，就是用rhel8.5的dvd安装基本操作系统，然后把dvd作为系统的dnf源。接着，导入3个docker镜像，并且本地启动一个docker registry服务。

注意，单节点服务至少要8G内存，不然安装脚本检测不过的。

安装操作系统，配置基础服务


        # install rhel 8.5 using dvd iso

        # reboot, and set dvd iso as dnf source

        blkid | grep sr0

        # /dev/sr0: BLOCK_SIZE="2048" UUID="2021-10-13-03-57-25-00" LABEL="RHEL-8-5-0-BaseOS-x86_64" TYPE="iso9660" PTUUID="4d694e6c" PTTYPE="dos"

        blkid /dev/sr0 -o value | sed -n 2p

        # 2021-10-13-03-57-25-00

        mkdir -p /media/cdrom

        mount /dev/sr0 /media/cdrom

        cat << EOF >> /etc/fstab
        UUID=`blkid /dev/sr0 -o value | sed -n 2p`            /media/cdrom                iso9660 ro,user,auto  0 0
        EOF

        cat << EOF > /etc/yum.repos.d/dvd.repo
        [dvd-base]
        name=dvd-base
        baseurl=file:///media/cdrom/BaseOS
        enabled=1
        gpgcheck=0

        [dvd-app]
        name=dvd-app
        baseurl=file:///media/cdrom/AppStream
        enabled=1
        gpgcheck=0
        EOF

        # we need to setup a docker registry

        # and we need copy docker registry image into the disconnected host

        podman pull docker.io/library/registry:2
        podman save docker.io/library/registry:2 | pigz -c > registry.tgz

        podman load -i registry.tgz

        # Loaded image(s): docker.io/library/registry:2

        # this is testing/demo purpose,

        # do not turn off firewalld on production system

        systemctl disable --now firewalld

        cat << EOF >>  /etc/hosts
        127.0.0.1 registry.redhat.ren
        EOF

        # 配置registry

        mkdir -p /etc/crts/ && cd /etc/crts

        openssl genrsa -out /etc/crts/redhat.ren.ca.key 4096
        openssl req -x509 \
          -new -nodes \
          -key /etc/crts/redhat.ren.ca.key \
          -sha256 \
          -days 36500 \
          -out /etc/crts/redhat.ren.ca.crt \
          -subj /CN="Local Red Hat Ren Signer" \
          -reqexts SAN \
          -extensions SAN \
          -config <(cat /etc/pki/tls/openssl.cnf \
              <(printf '[SAN]\nbasicConstraints=critical, CA:TRUE\nkeyUsage=keyCertSign, cRLSign, digitalSignature'))

        openssl genrsa -out /etc/crts/redhat.ren.key 2048

        openssl req -new -sha256 \
            -key /etc/crts/redhat.ren.key \
            -subj "/O=Local Red Hat Ren /CN=*.ocp4.redhat.ren" \
            -reqexts SAN \
            -config <(cat /etc/pki/tls/openssl.cnf \
                <(printf "\n[SAN]\nsubjectAltName=DNS:*.ocp4.redhat.ren,DNS:*.apps.ocp4.redhat.ren,DNS:*.redhat.ren\nbasicConstraints=critical, CA:FALSE\nkeyUsage=digitalSignature, keyEncipherment, keyAgreement, dataEncipherment\nextendedKeyUsage=serverAuth")) \
            -out /etc/crts/redhat.ren.csr

        openssl x509 \
            -req \
            -sha256 \
            -extfile <(printf "subjectAltName=DNS:*.ocp4.redhat.ren,DNS:*.apps.ocp4.redhat.ren,DNS:*.redhat.ren\nbasicConstraints=critical, CA:FALSE\nkeyUsage=digitalSignature, keyEncipherment, keyAgreement, dataEncipherment\nextendedKeyUsage=serverAuth") \
            -days 36500 \
            -in /etc/crts/redhat.ren.csr \
            -CA /etc/crts/redhat.ren.ca.crt \
            -CAkey /etc/crts/redhat.ren.ca.key \
            -CAcreateserial -out /etc/crts/redhat.ren.crt

        openssl x509 -in /etc/crts/redhat.ren.crt -text

        /bin/cp -f /etc/crts/redhat.ren.ca.crt /etc/pki/ca-trust/source/anchors/
        update-ca-trust extract

        cd /data/ocp4

        # systemctl stop docker-distribution

        /bin/rm -rf /data/registry
        mkdir -p /data/registry

        podman run --restart always --name local-registry -p 5443:5443 \
          -d --restart=always \
          -v /data/registry/:/var/lib/registry:z \
          -v /etc/crts:/certs:z \
          -e REGISTRY_HTTP_ADDR=0.0.0.0:5443 \
          -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/redhat.ren.crt \
          -e REGISTRY_HTTP_TLS_KEY=/certs/redhat.ren.key \
          docker.io/library/registry:2

安装ansible platform

官方文档写的非常清晰，我们安装官方文档做就好。只不过官方文档里面，对全离线的时候，docker image怎么处理，似乎没讲的很详细，我们补充一下。


        # document is here

        # https://access.redhat.com/documentation/en-us/red_hat_ansible_automation_platform/2.1/pdf/red_hat_ansible_automation_platform_installation_guide/red_hat_ansible_automation_platform-2.1-red_hat_ansible_automation_platform_installation_guide-en-us.pdf

        # goto https://access.redhat.com/downloads/content/480

        # to download Ansible Automation Platform 2.1.0 Setup Bundle

        mkdir -p /data
        cd /data

        tar zvxf ansible-automation-platform-setup-bundle-2.1.0-1.tar.gz
        cd /data/ansible-automation-platform-setup-bundle-2.1.0-1

        podman load -i images/ee-29-rhel8.tgz

        # Loaded image(s): registry.redhat.io/ansible-automation-platform-21/ee-29-rhel8:latest

        podman load -i images/ee-minimal-rhel8.tgz

        # Loaded image(s): registry.redhat.io/ansible-automation-platform-21/ee-minimal-rhel8:latest

        podman load -i images/ee-supported-rhel8.tgz

        # Loaded image(s): registry.redhat.io/ansible-automation-platform-21/ee-supported-rhel8:latest

        podman tag registry.redhat.io/ansible-automation-platform-21/ee-29-rhel8:latest registry.redhat.ren:5443/ansible-automation-platform-21/ee-29-rhel8:latest
        podman push registry.redhat.ren:5443/ansible-automation-platform-21/ee-29-rhel8:latest

        podman tag registry.redhat.io/ansible-automation-platform-21/ee-minimal-rhel8:latest registry.redhat.ren:5443/ansible-automation-platform-21/ee-minimal-rhel8:latest
        podman push registry.redhat.ren:5443/ansible-automation-platform-21/ee-minimal-rhel8:latest

        podman tag registry.redhat.io/ansible-automation-platform-21/ee-supported-rhel8:latest registry.redhat.ren:5443/ansible-automation-platform-21/ee-supported-rhel8:latest
        podman push registry.redhat.ren:5443/ansible-automation-platform-21/ee-supported-rhel8:latest

        /bin/cp -f inventory inventory.bak

        cat << EOF > inventory
        [automationcontroller]
        127.0.0.1 ansible_connection=local

        [database]

        [all:vars]
        admin_password='password'
        pg_host=''
        pg_port=''
        pg_database='awx'
        pg_username='awx'
        pg_password='password'
        registry_url='registry.redhat.ren:5443'

        EOF

        ./setup.sh -e gpgcheck=0

        # login using admin / password

        # open browser to https://172.16.218.2/

安装到此结束，打开浏览器，访问 https://

并使用用户名 admin 密码 password 登录就可以了。

激活订阅

初始安装，第一次登录，会要求用订阅激活。而我们是离线安装模式，所以这里有一个在红帽官网导出离线证书的过程。

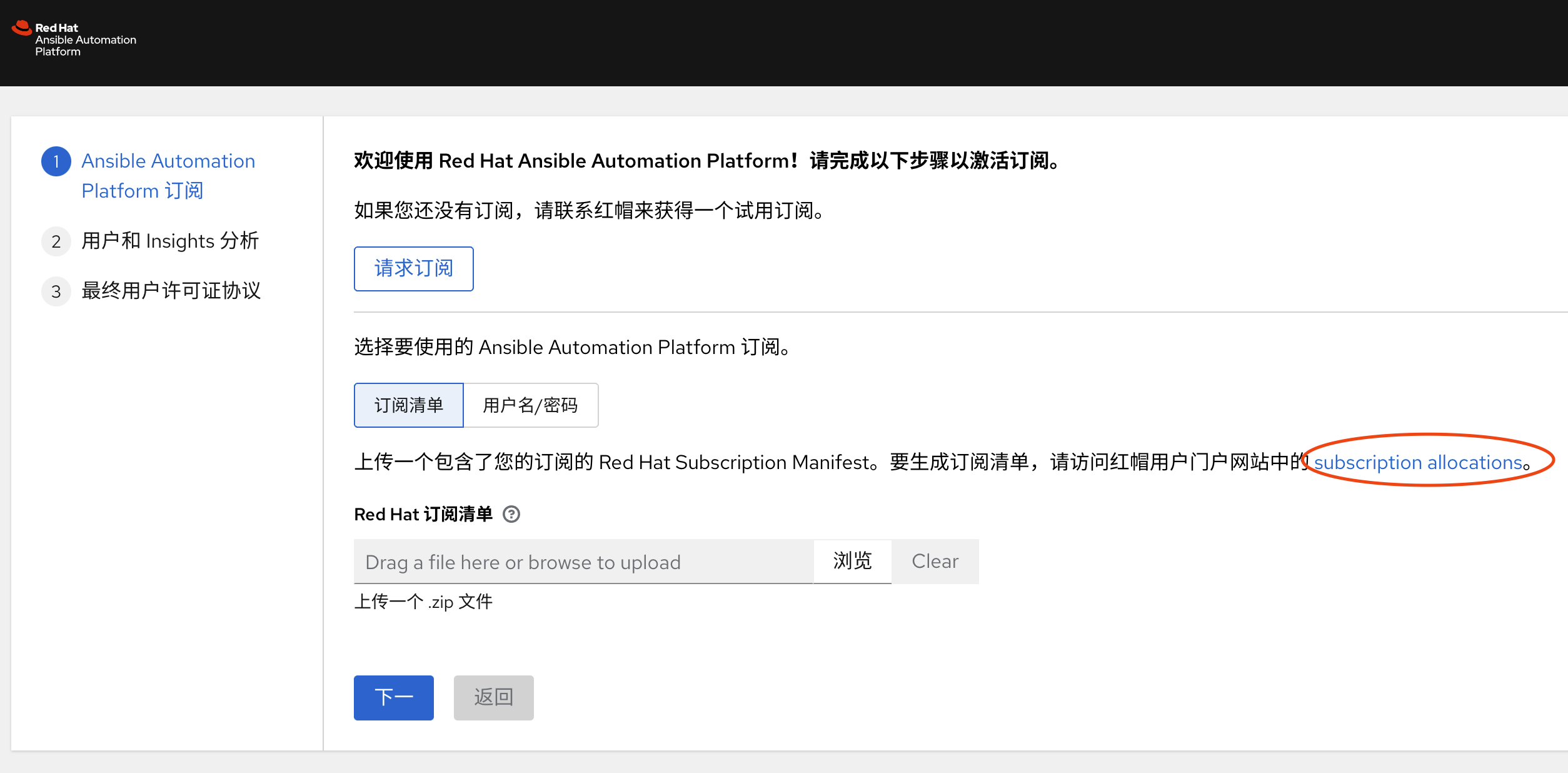

首先我们登录到ansible platform里面后，看到激活界面，点击链接，访问红帽官网。

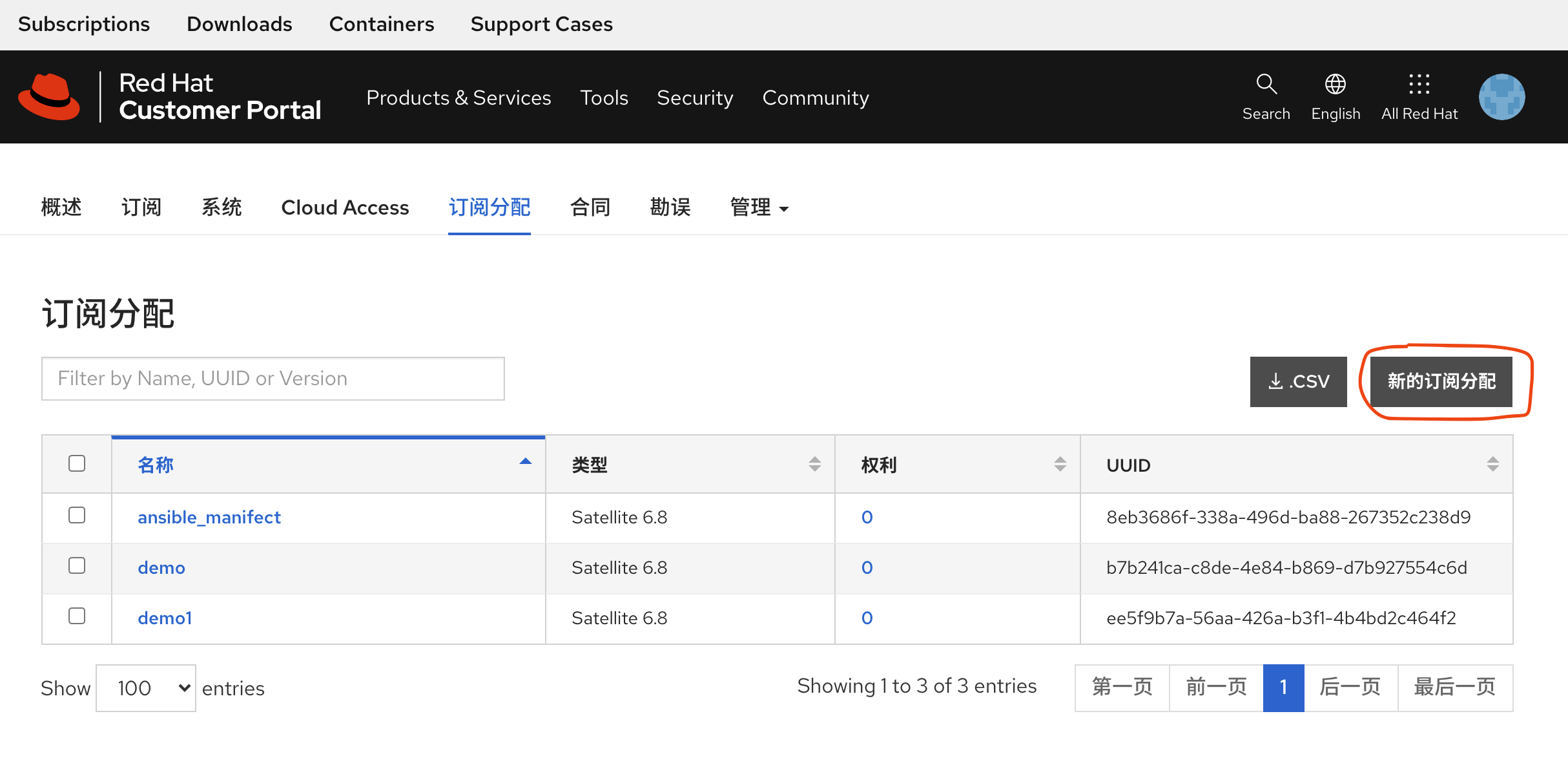

访问到红帽官网以后，点击新的订阅分配

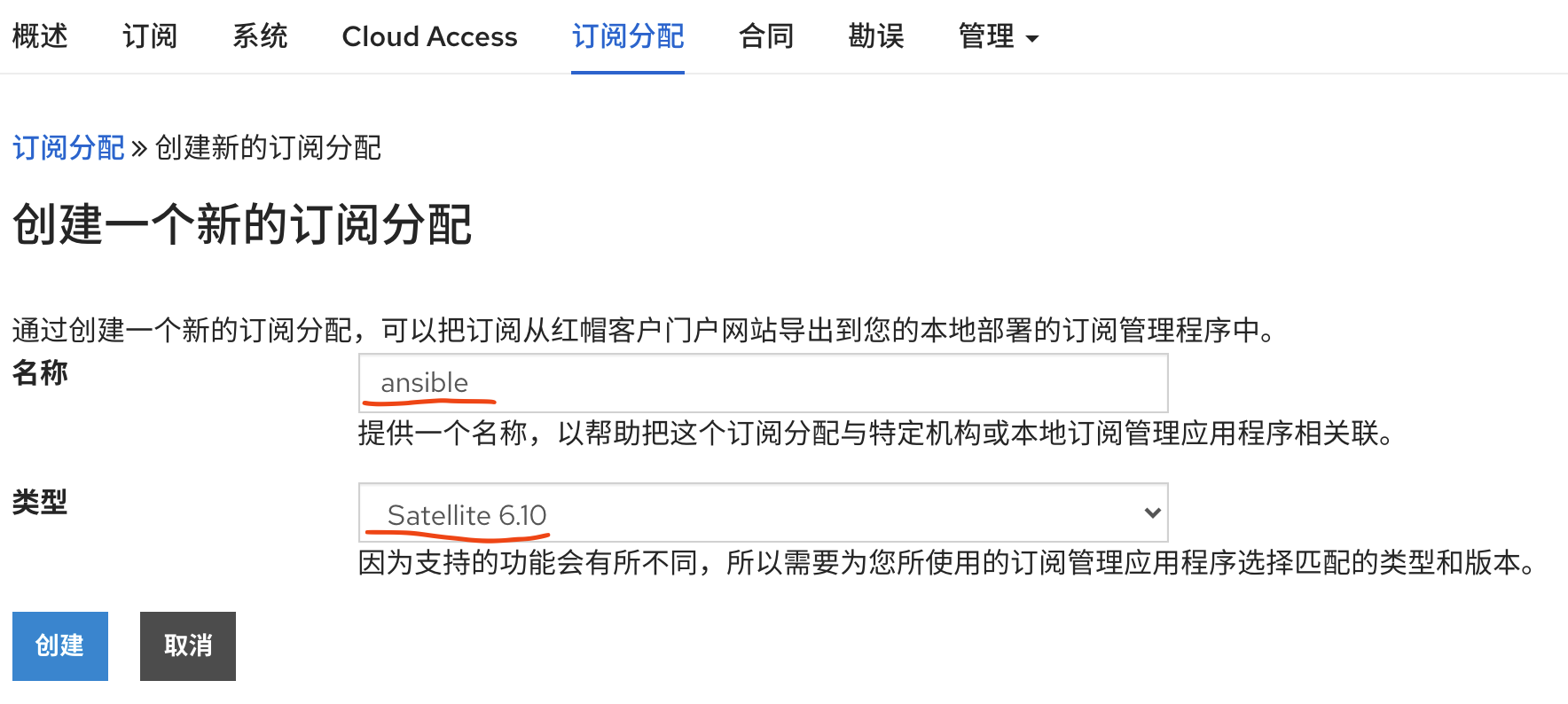

给新的订阅取个容易记忆的名字。订阅分配其实是一个订阅证书分发的机制，我们创建了这个订阅分配以后，就可以往里面添加购买的产品，比如买了ansible, rhel等，然后就会统一的下一个zip文件，都给你打包好，很方便。

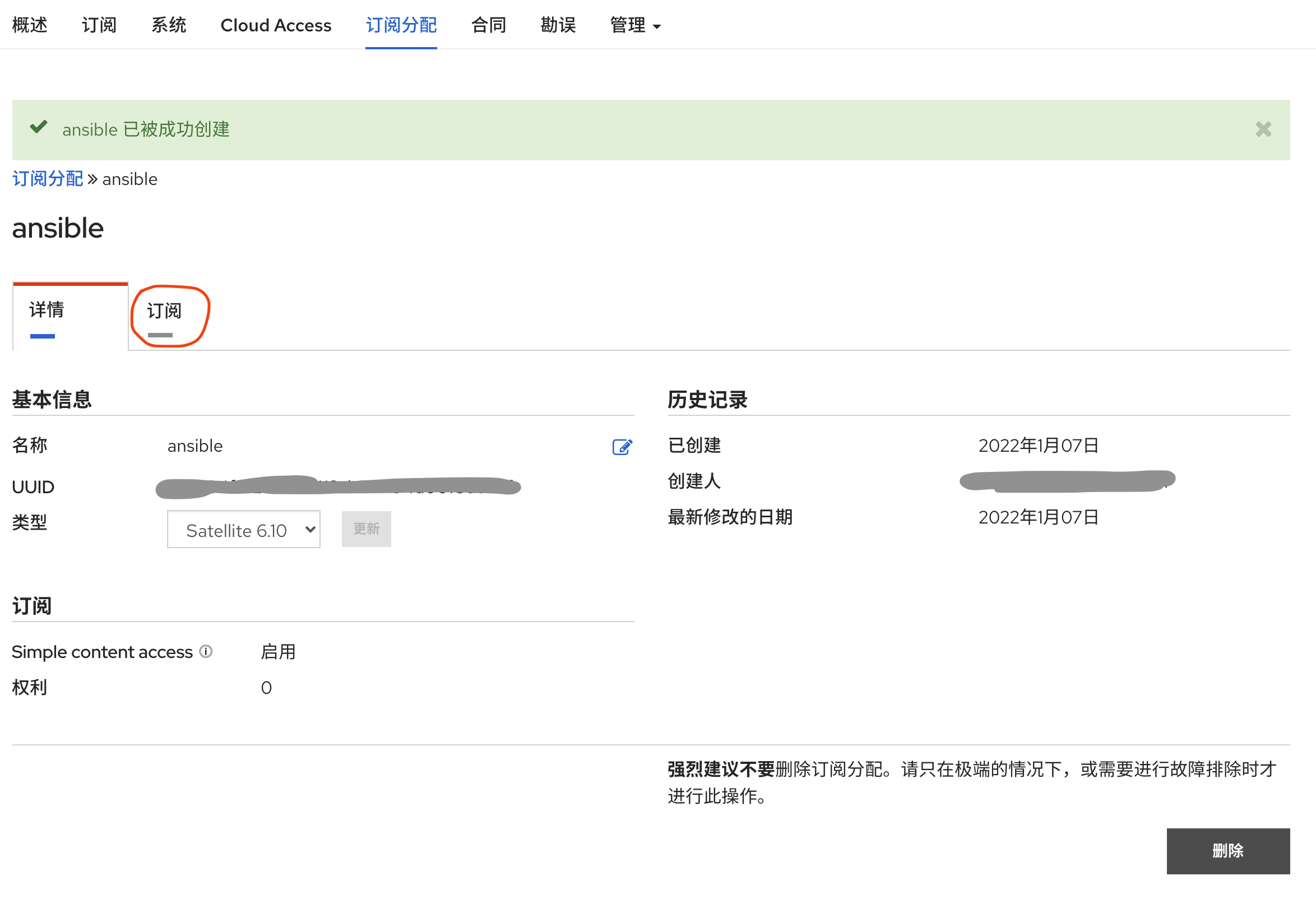

创建好订阅分配后，点击订阅。

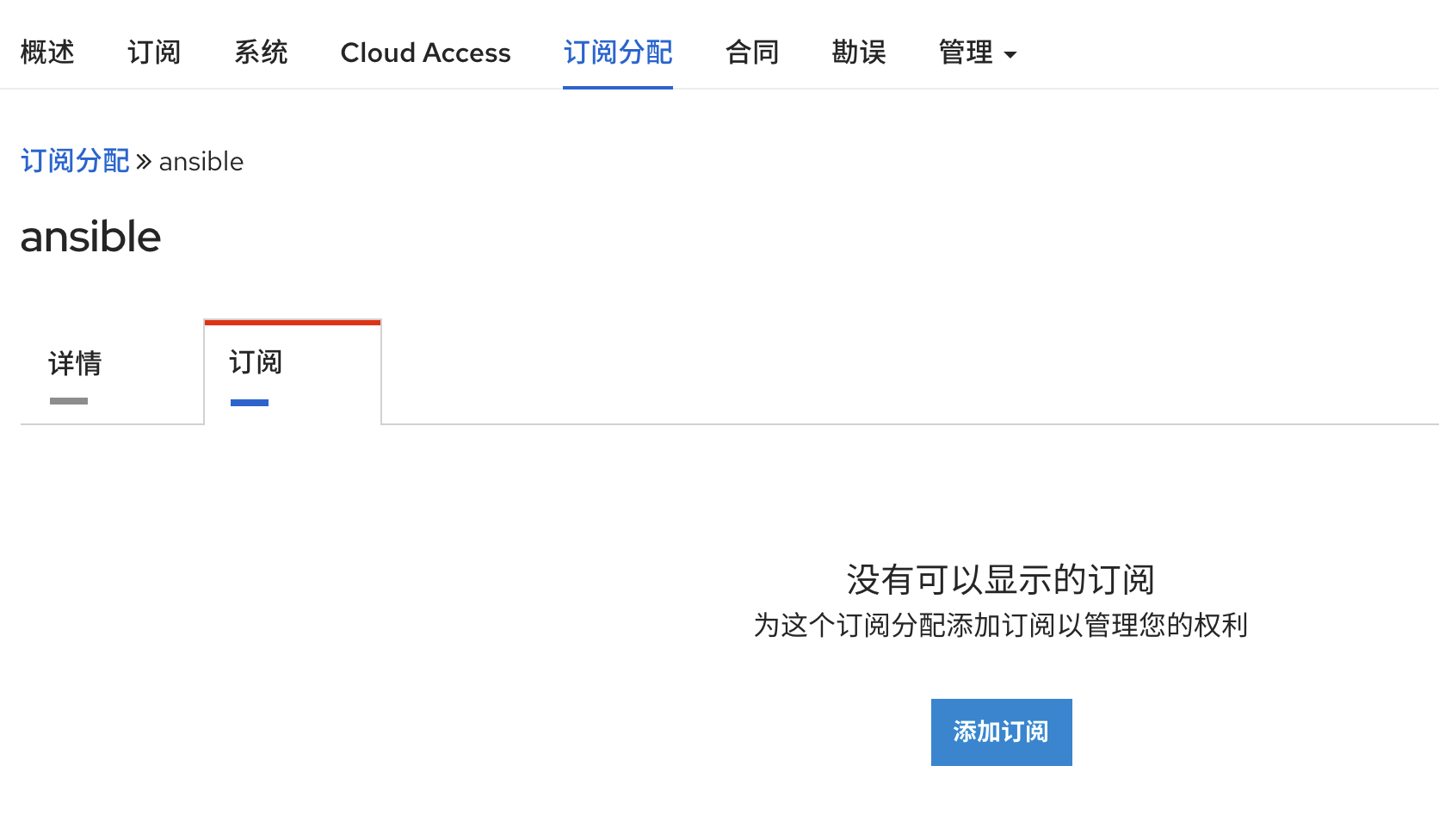

然后点击添加订阅

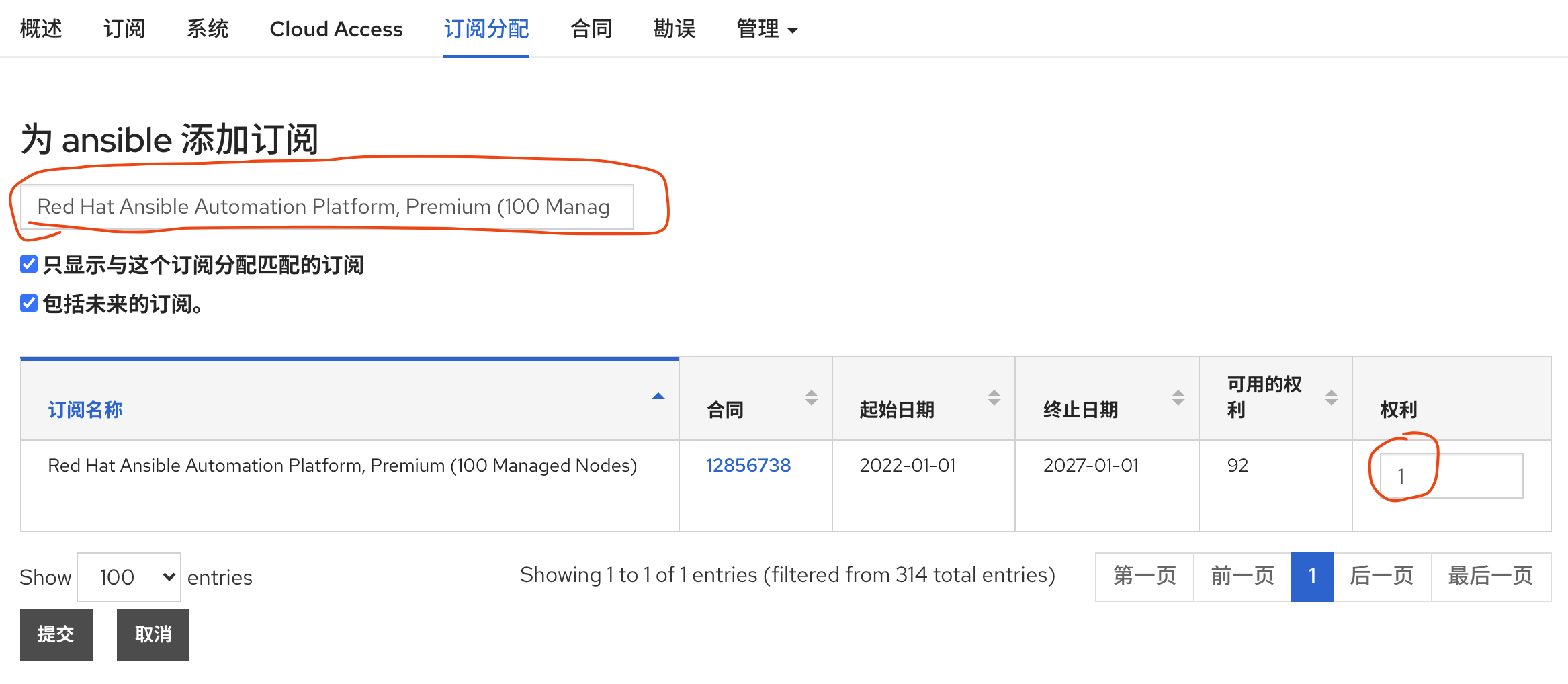

用关键字搜索产品，如果我们购买的产品少，那么就不用搜索，直接在列表中选择就可以，在要购买的产品后面，调整权利，比如我们要激活一个系统，就设置权利为1就可以了。

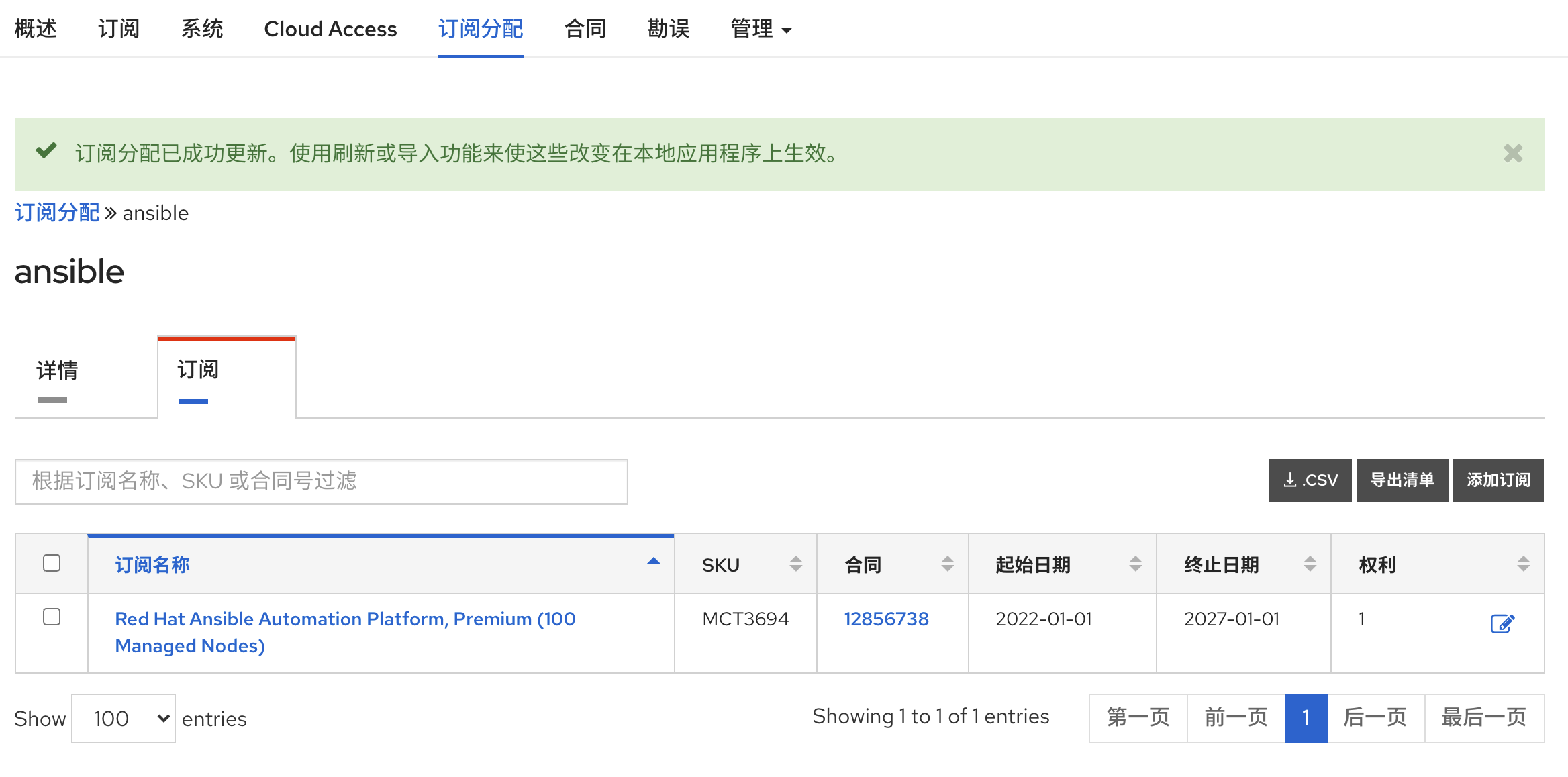

点击提交以后，我们就看到订阅添加成功了

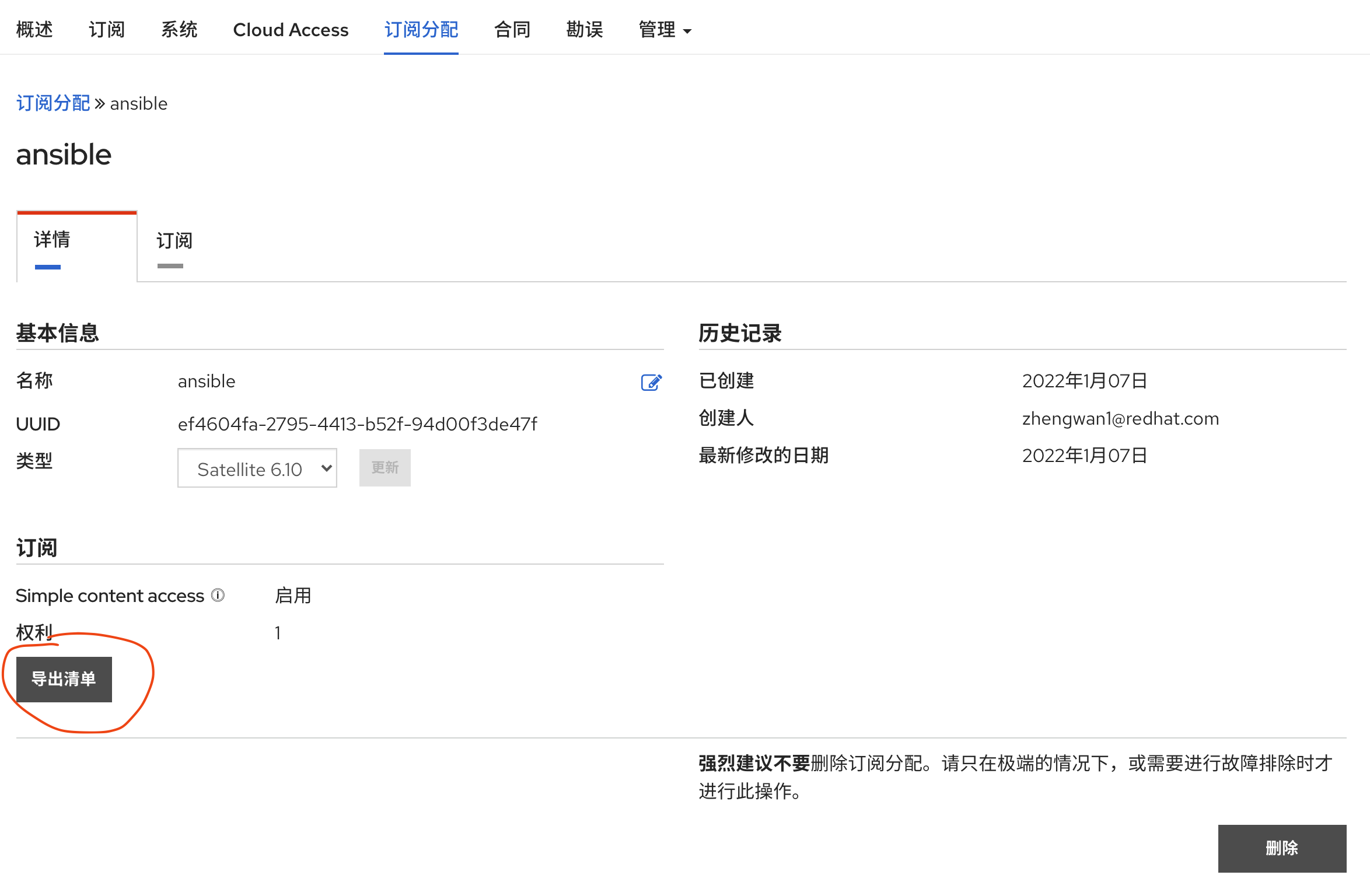

我们点击导出清单，就可以到处订阅证书了

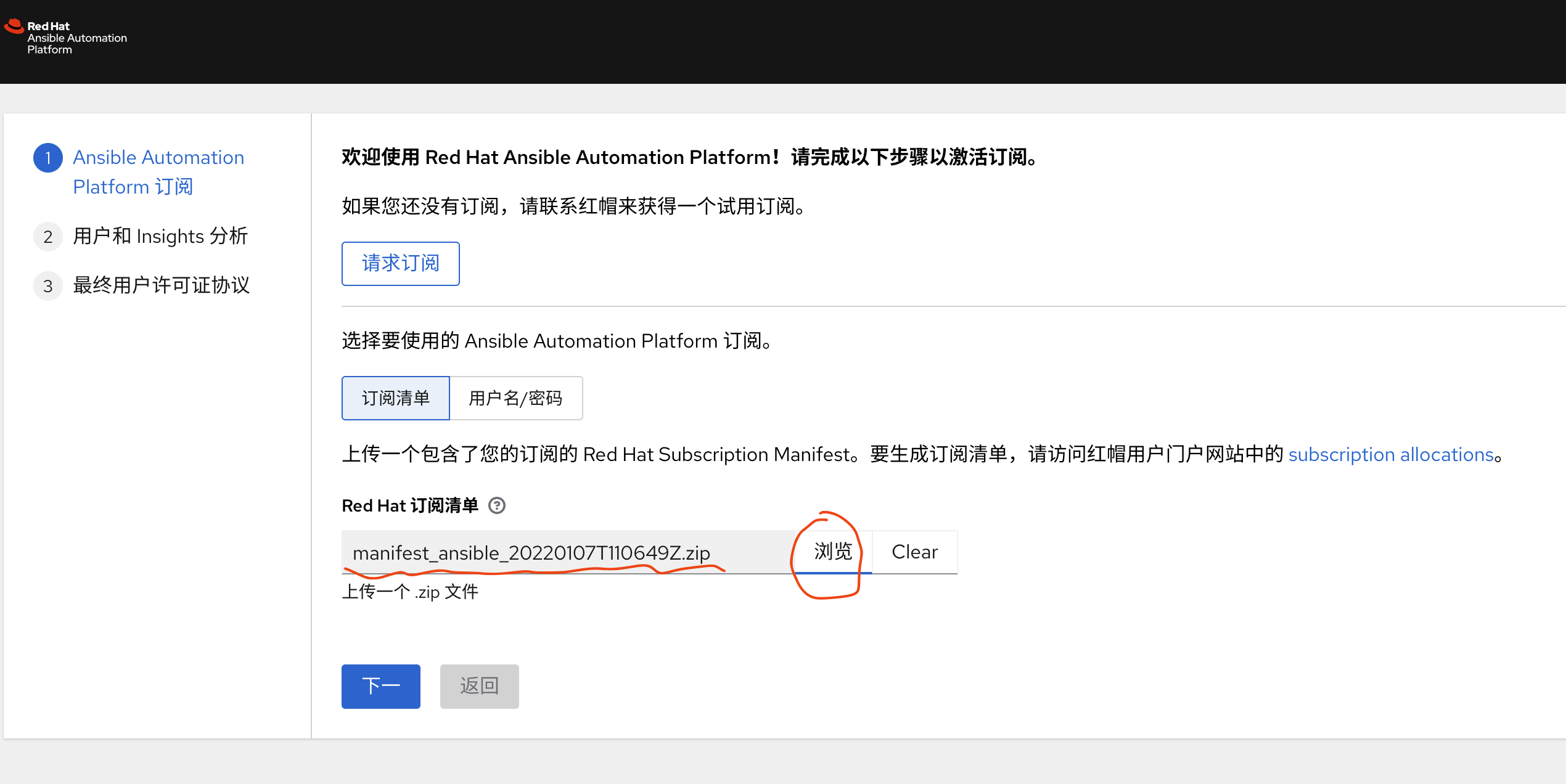

你会得到一个类似这样文件名的文件： manifest_ansible_20220107T110649Z.zip 。把这个文件，导入到ansible platform中。

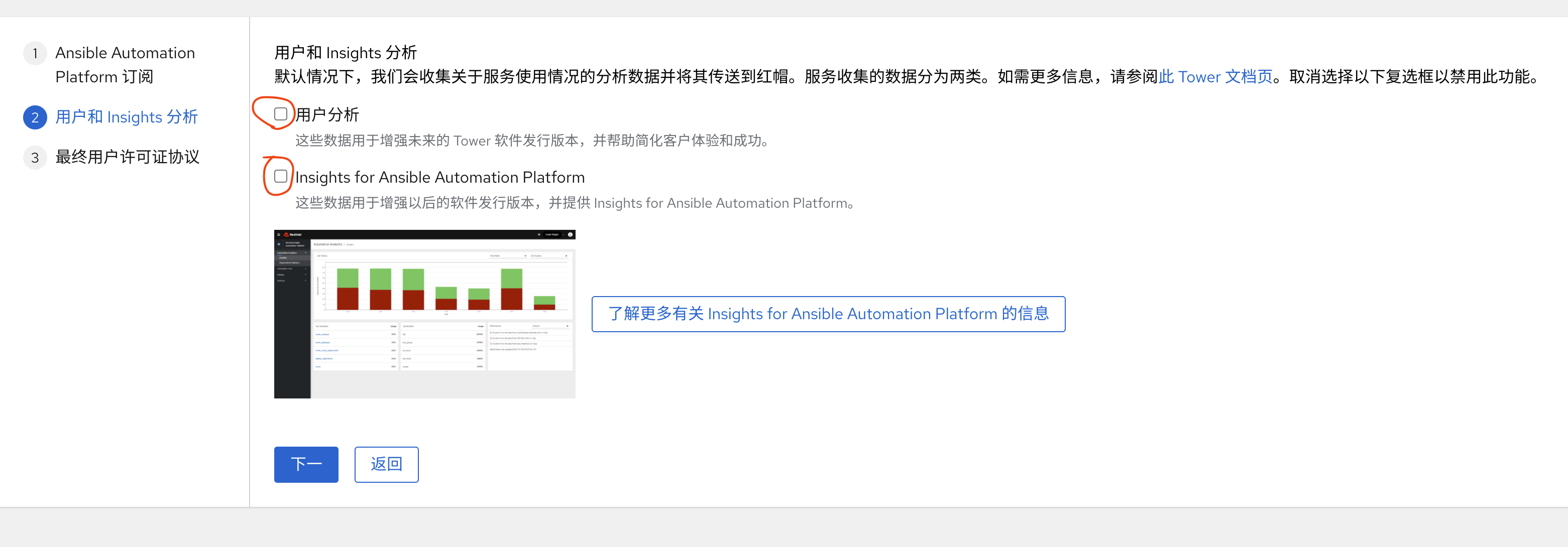

在用户数据反馈中，取消点击，因为我们是离线的，访问不到红帽的公网系统。

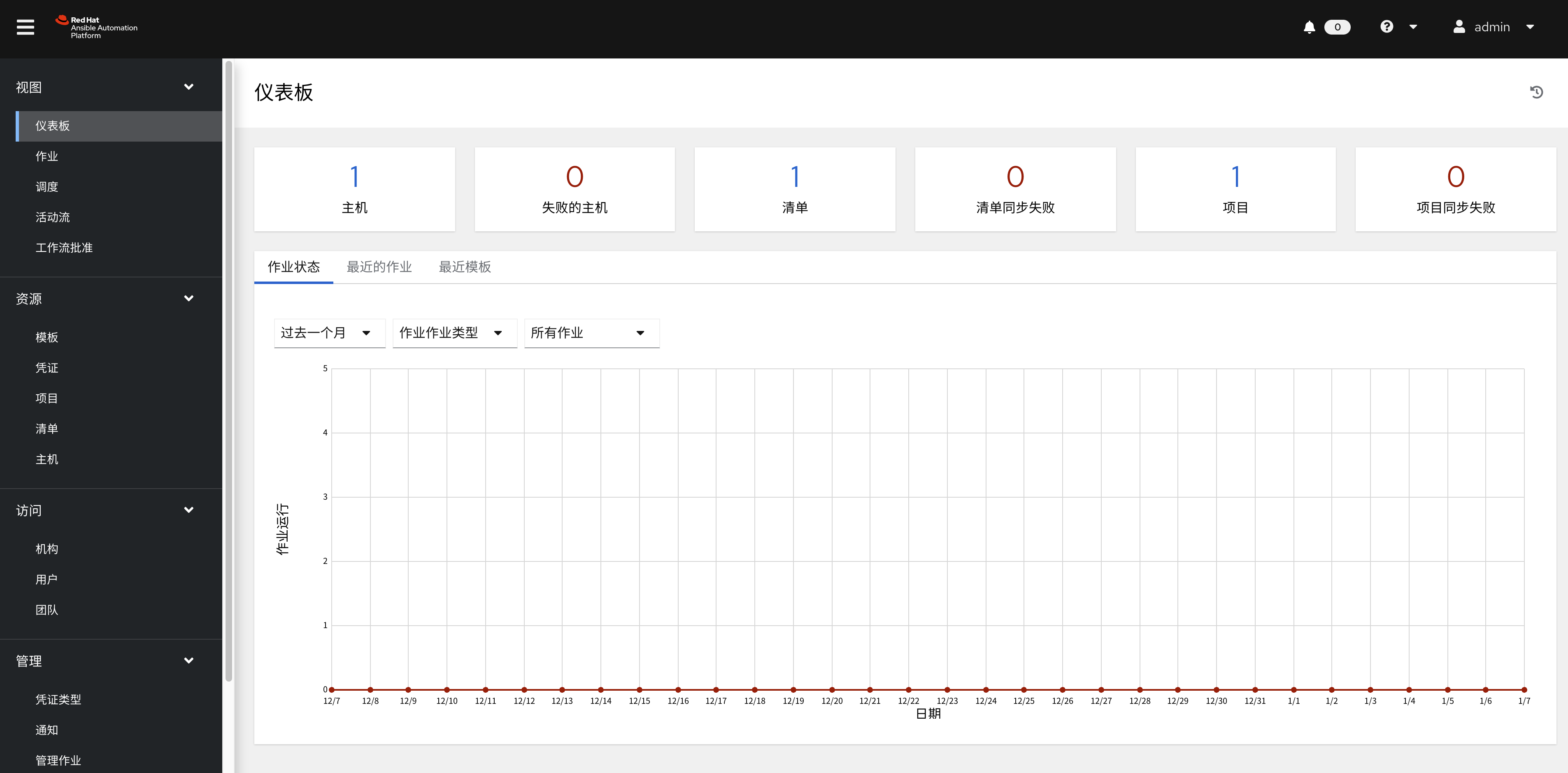

提交后，我们就进入ansible platform的首页界面啦。
