openshift 4.10 ACM with observ user case

By default, the observability is disabled, here we will enable it, and see what it looks like.

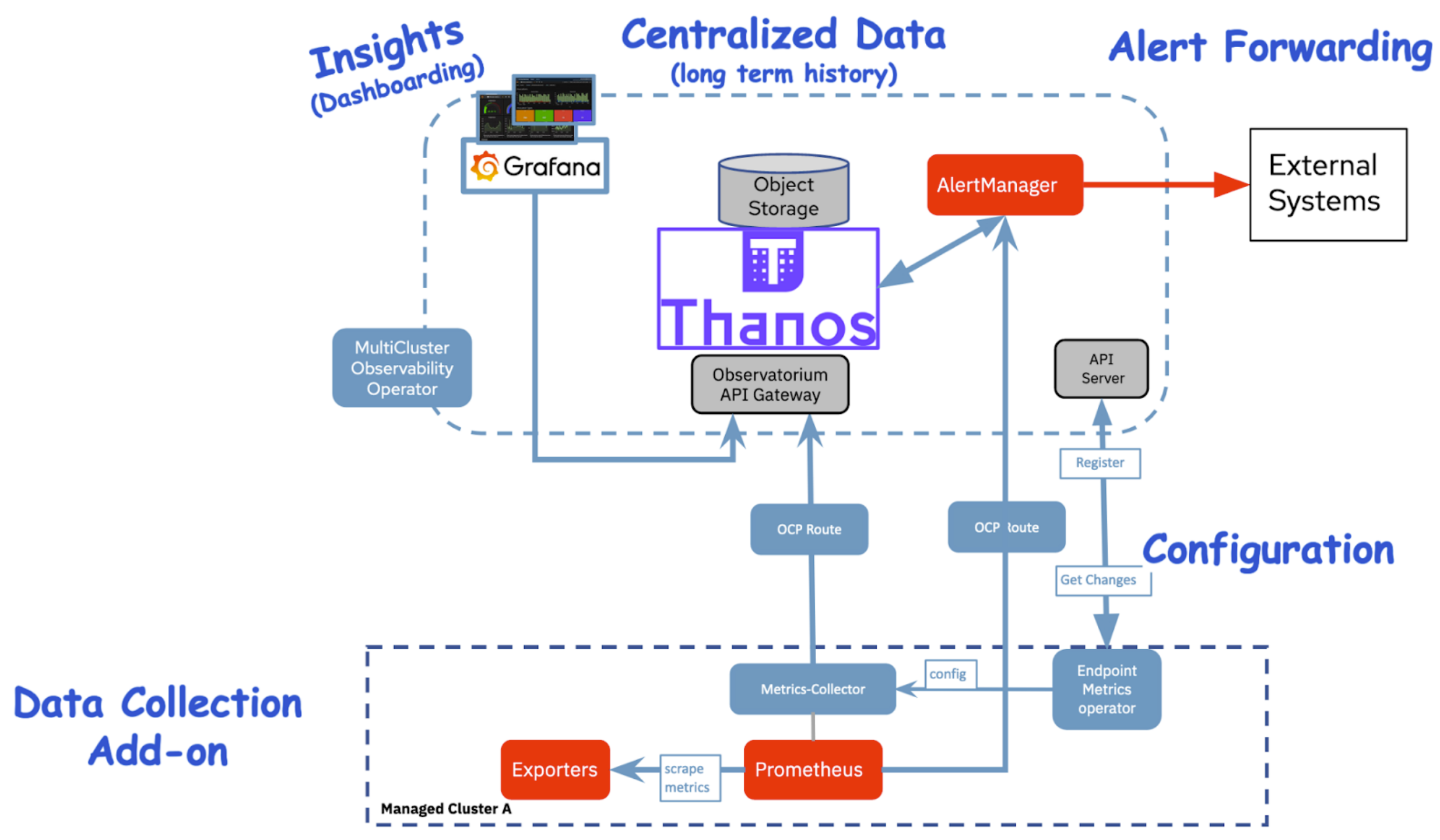

Here is the architecture of the acm observability:

create the acm hub cluster

install a sno cluster with 16C, 64GB memory, and 2 100GB disks
install ODF from operator hub, and create a ceph following steps here.
install ACM from operator hub
install multiclusterhub with default setting

create the managed cluster

install a sno cluster with 16C, 32GB memory.


        NODE_SSH_KEY="$(cat ~/.ssh/id_rsa.pub)"
        INSTALL_IMAGE_REGISTRY=quaylab.infra.redhat.ren:8443

        PULL_SECRET='{"auths":{"registry.redhat.io": {"auth": "ZHVtbXk6ZHVtbXk=","email": "noemail@localhost"},"registry.ocp4.redhat.ren:5443": {"auth": "ZHVtbXk6ZHVtbXk=","email": "noemail@localhost"},"'${INSTALL_IMAGE_REGISTRY}'": {"auth": "'$( echo -n 'admin:shadowman' | openssl base64 )'","email": "noemail@localhost"}}}'

        NTP_SERVER=192.168.7.11
        HELP_SERVER=192.168.7.11
        KVM_HOST=192.168.7.11
        API_VIP=192.168.7.100
        INGRESS_VIP=192.168.7.101
        CLUSTER_PROVISION_IP=192.168.7.103
        BOOTSTRAP_IP=192.168.7.12

        ACM_DEMO_MNGED_CLUSTER=acm-demo-man01
        ACM_DEMO_MNGED_SNO_IP=192.168.7.23

        # 定义单节点集群的节点信息

        SNO_CLUSTER_NAME=acm-demo-man01
        SNO_BASE_DOMAIN=redhat.ren
        SNO_IP=192.168.7.23
        SNO_GW=192.168.7.11
        SNO_NETMAST=255.255.255.0
        SNO_NETMAST_S=24
        SNO_HOSTNAME=acm-demo-man01-master
        SNO_IF=enp1s0
        SNO_IF_MAC=`printf '00:60:2F:%02X:%02X:%02X' $[RANDOM%256] $[RANDOM%256] $[RANDOM%256]`
        SNO_DNS=192.168.7.11
        SNO_DISK=/dev/vda
        SNO_CORE_PWD=redhat

        echo ${SNO_IF_MAC} > /data/sno/sno.mac

        # goto kvm host ( 103 )

        scp root@192.168.7.11:/data/install/sno.iso /data/kvm/

        virsh destroy ocp4-acm-man01
        virsh undefine ocp4-acm-man01

        create_lv() {
            var_vg=$1
            var_pool=$2
            var_lv=$3
            var_size=$4
            var_action=$5
            lvremove -f $var_vg/$var_lv
            # lvcreate -y -L $var_size -n $var_lv $var_vg
            if [ "$var_action" == "recreate" ]; then
              lvcreate --type thin -n $var_lv -V $var_size --thinpool $var_vg/$var_pool
              wipefs --all --force /dev/$var_vg/$var_lv
            fi
        }

        create_lv vgdata poolA lvacm-man01 100G recreate
        create_lv vgdata poolA lvacm-man01-data 100G recreate

        SNO_MEM=32

        virt-install --name=ocp4-acm-man01-master01 --vcpus=16 --ram=$(($SNO_MEM*1024)) \
          --cpu=host-model \
          --disk path=/dev/vgdata/lvacm-man01,device=disk,bus=virtio,format=raw \
          --disk path=/dev/vgdata/lvacm-man01-data,device=disk,bus=virtio,format=raw \
          --os-variant rhel8.3 --network bridge=baremetal,model=virtio \
          --graphics vnc,port=59003 \
          --boot menu=on --cdrom /data/kvm/sno.iso


        # INFO Install complete!

        # INFO To access the cluster as the system:admin user when using 'oc', run 'export KUBECONFIG=/data/install/auth/kubeconfig'

        # INFO Access the OpenShift web-console here: https://console-openshift-console.apps.acm-demo-man01.redhat.ren

        # INFO Login to the console with user: "kubeadmin", and password: "FohuH-IwyJe-3UQPL-AakHm"

        # INFO Time elapsed: 0s

enable acm observ in acm hub cluster

offical document: acm observ enable, it will enable observ in managed cluster automatically.


        # try to install acm observ

        # https://access.redhat.com/documentation/en-us/red_hat_advanced_cluster_management_for_kubernetes/2.4/html-single/observability/index

        oc create namespace open-cluster-management-observability

        DOCKER_CONFIG_JSON=`oc extract secret/pull-secret -n openshift-config --to=-`

        oc create secret generic multiclusterhub-operator-pull-secret \
            -n open-cluster-management-observability \
            --from-literal=.dockerconfigjson="$DOCKER_CONFIG_JSON" \
            --type=kubernetes.io/dockerconfigjson

        cat << EOF > /data/install/acm.observ.secret.yaml
        ---
        apiVersion: v1
        kind: Secret
        metadata:
          name: thanos-object-storage
          namespace: open-cluster-management-observability
        type: Opaque
        stringData:
          thanos.yaml: |
            type: s3
            config:
              bucket: $BUCKET_NAME
              endpoint: $AWS_HOST
              insecure: true
              access_key: $AWS_ACCESS_KEY_ID
              secret_key: $AWS_SECRET_ACCESS_KEY
        EOF
        oc create -f /data/install/acm.observ.secret.yaml

        # oc delete -f /data/install/acm.observ.secret.yaml

        cat << EOF > /data/install/acm.observ.yaml
        ---
        apiVersion: observability.open-cluster-management.io/v1beta2
        kind: MultiClusterObservability
        metadata:
          name: observability
        spec:
          observabilityAddonSpec: {}
          storageConfig:
            metricObjectStorage:
              name: thanos-object-storage
              key: thanos.yaml
        ---
        EOF
        oc create -f /data/install/acm.observ.yaml -n open-cluster-management

        # oc delete -f /data/install/acm.observ.yaml -n open-cluster-management

import second cluster into acm, by using kubeconfig file

click ‘Grafana’ on top right, you will see the grafana dashboard

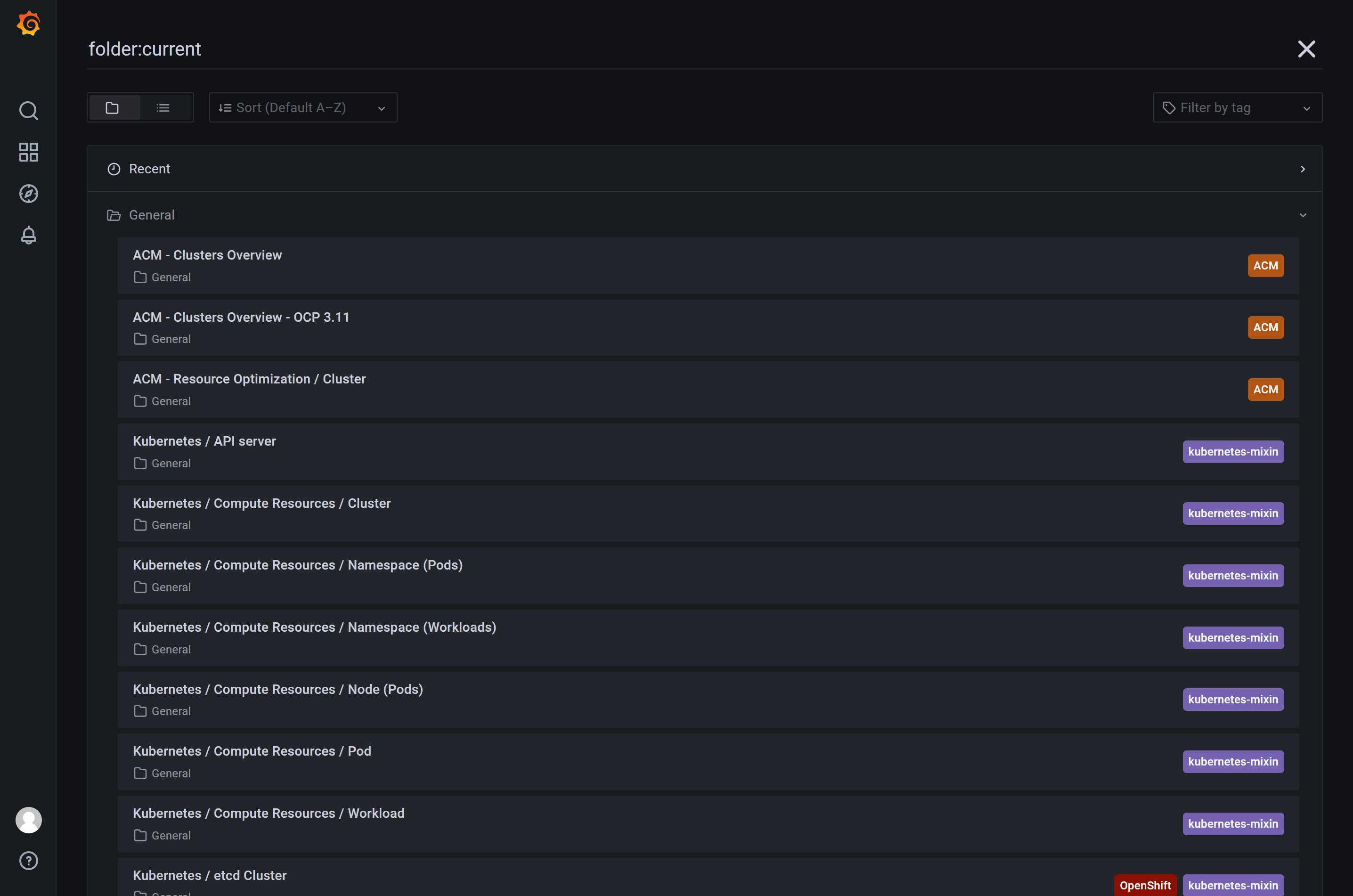

you can see there are 3 default dashboard included with acm, 2 of them are usable for ocp4

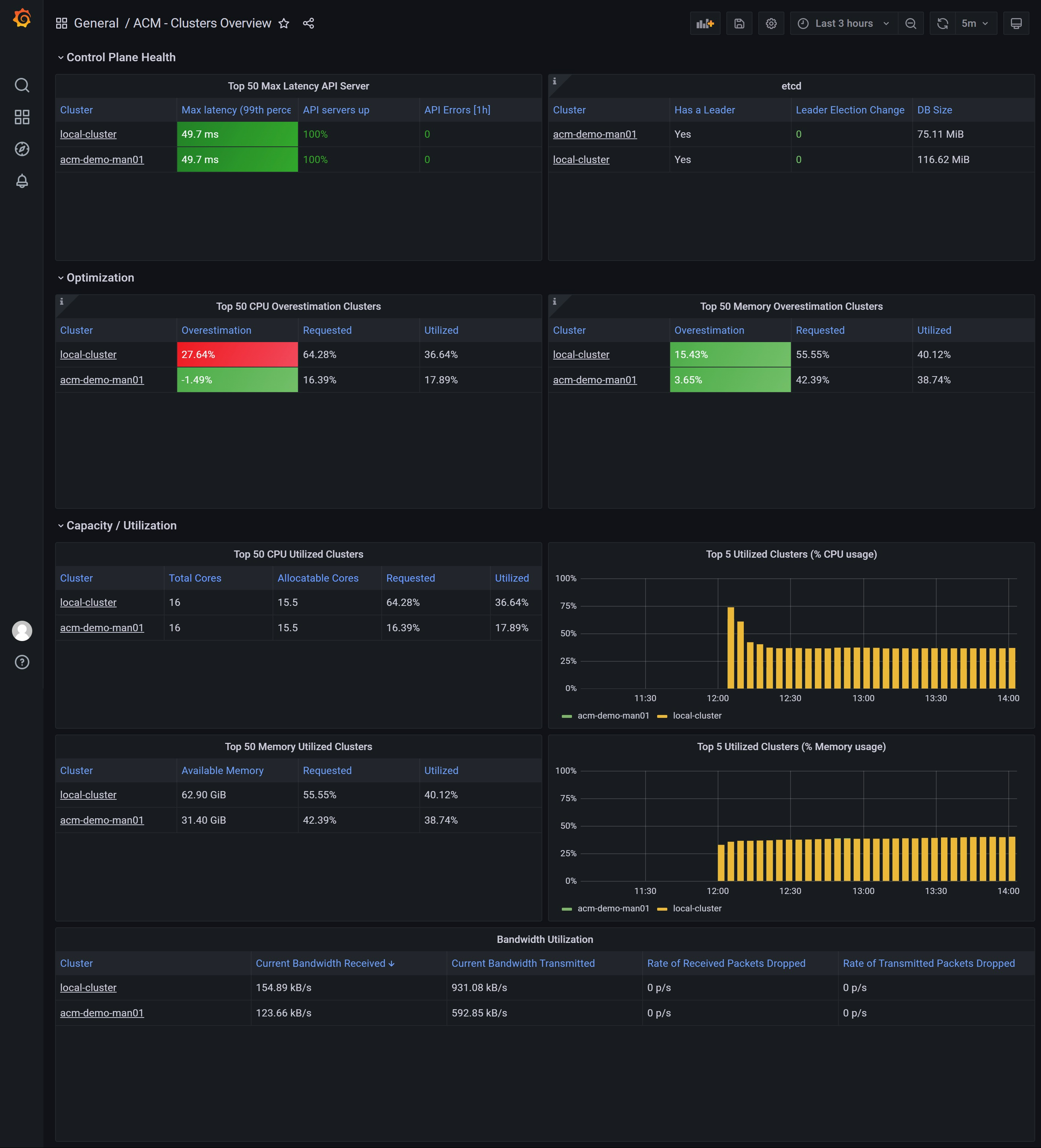

look at the ‘ACM - Clusters Overview’ dashboard

look at the ‘ACM - Resource Optimization / Cluster’ dashboard

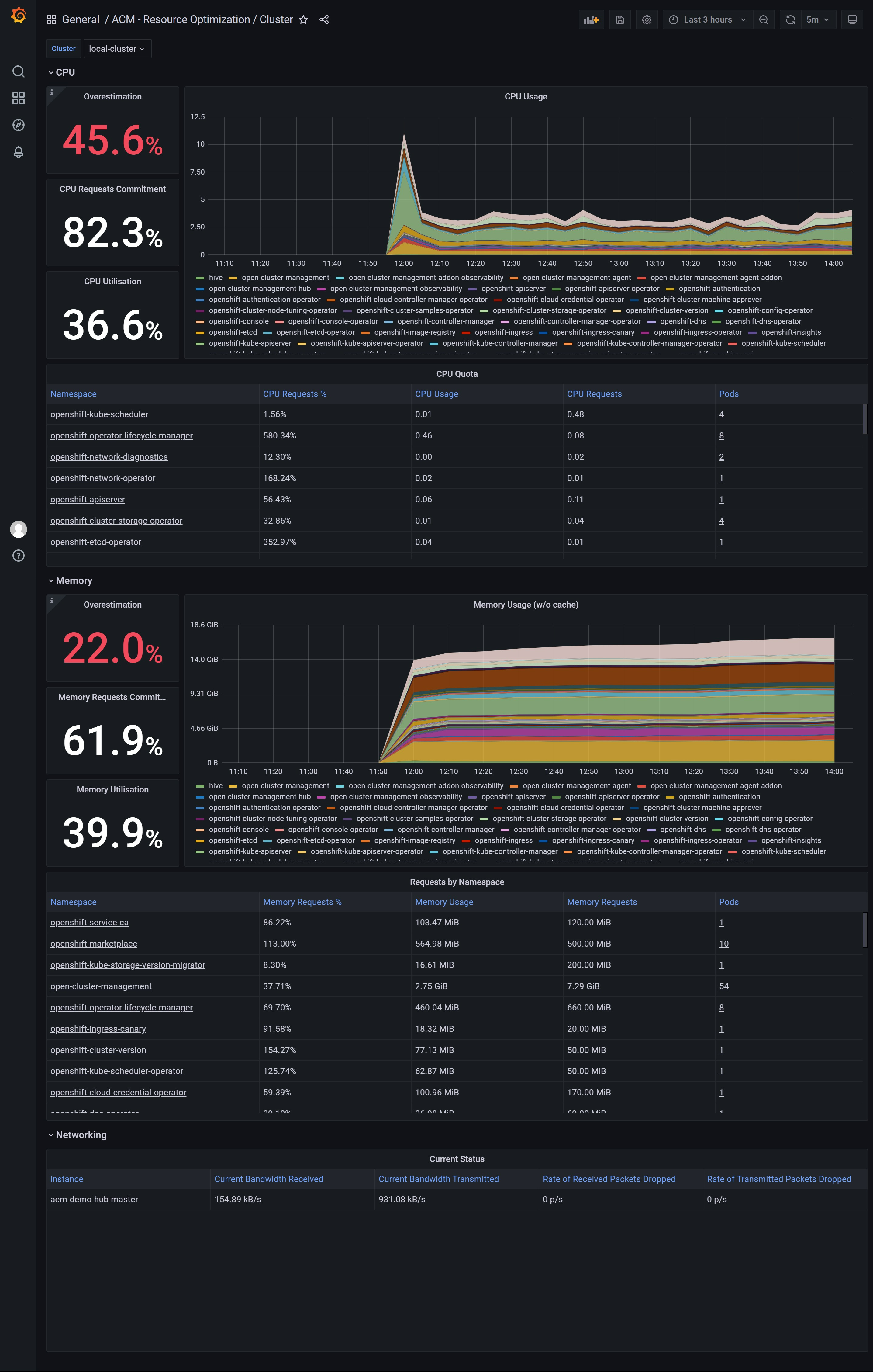

for acm hub cluster:

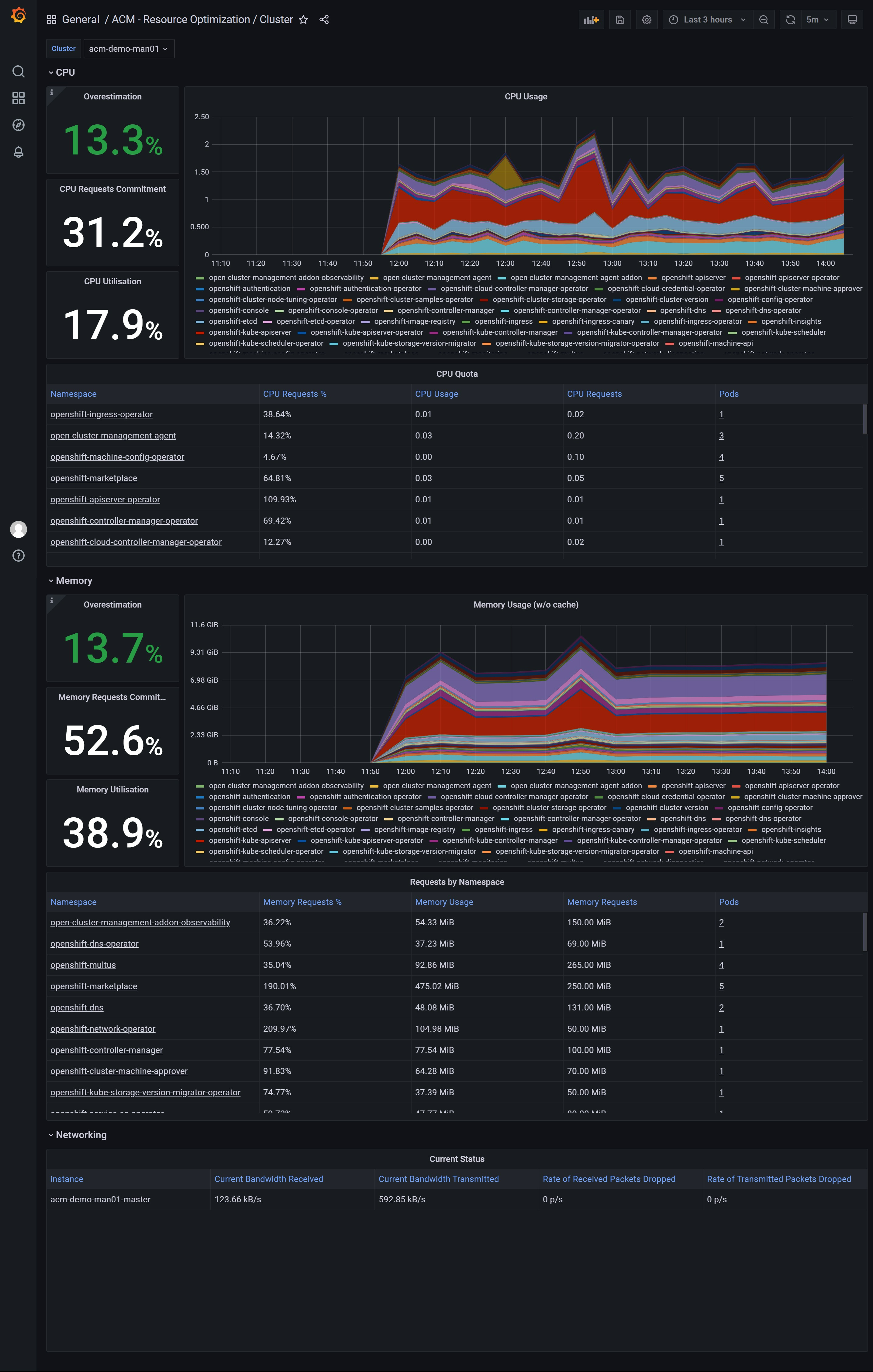

for managed cluster:
