FlexRAN 20.11 enable on ocp4, pf mode, option 7.2
本文描述，如何把 intel 的 oran 解决方案 flexran (版本 20.11) ，移植到 openshift 平台之上。
This article describes how to port Intel’s oran solution flexran (version 20.11) to the openshift platform.
本运行环境，是在openshift 4.9.5 上，硬件包含了intel e810网卡， ACC100 加速卡。 由于软件的限制，网卡开启了VF模式，但是ACC100没有开启VF模式，使用的PF模式。 PTP 组件没有使用openshift自带的ptp operator，而是使用了升级的自定义版本。 容器运行的时候，和operator以及硬件的关系结构图：
This operating environment is based on openshift 4.9.5, and the hardware includes intel e810 network card and ACC100 accelerator card. Due to software limitations, the network card enables the VF mode, but the ACC100 does not enable the VF mode and uses the PF mode. The PTP component does not use the ptp operator that comes with openshift, but uses an upgraded custom version. When the container is running, the structure diagram of the relationship with the operator and hardware:
本次实验整体网络架构图： The overall network architecture diagram of this experiment:

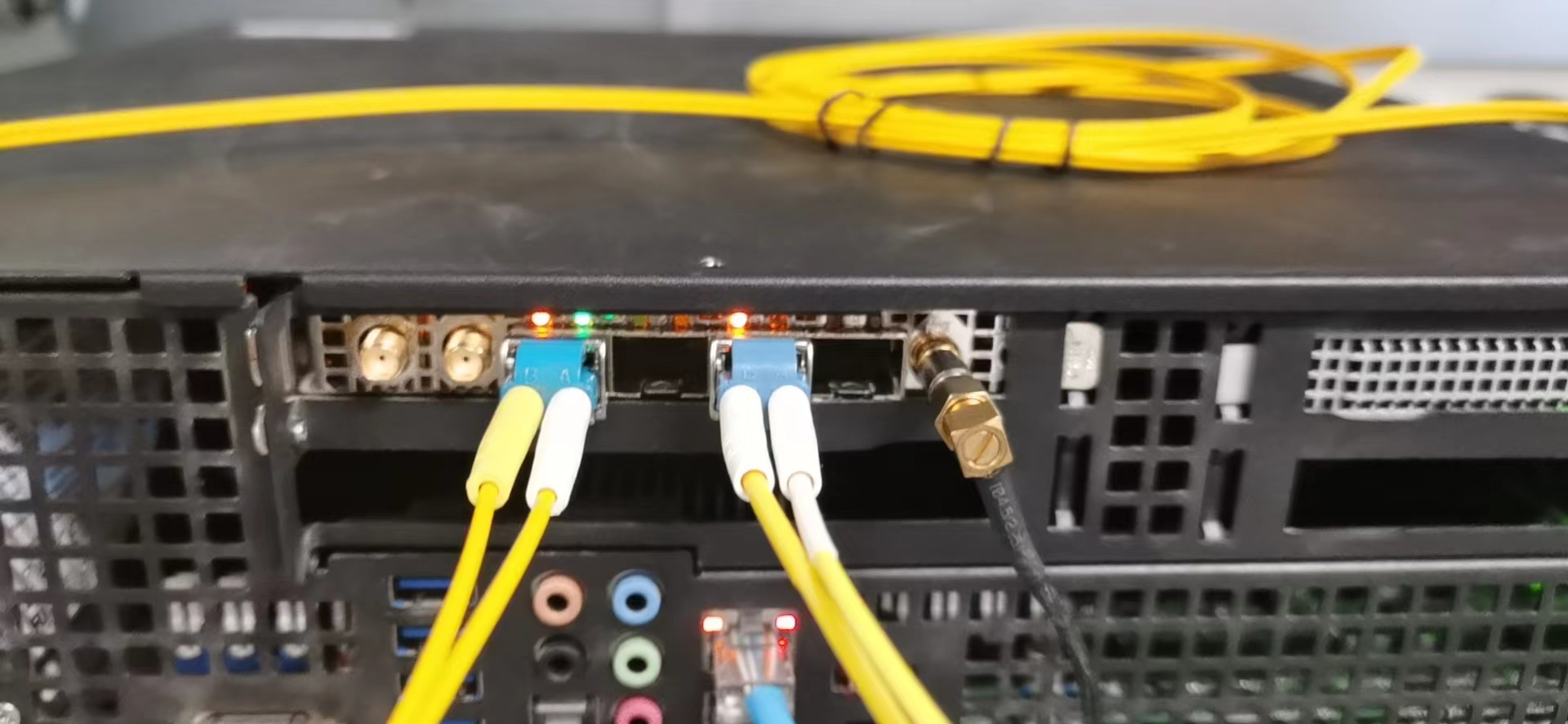

intel E810 Nic 的样子：

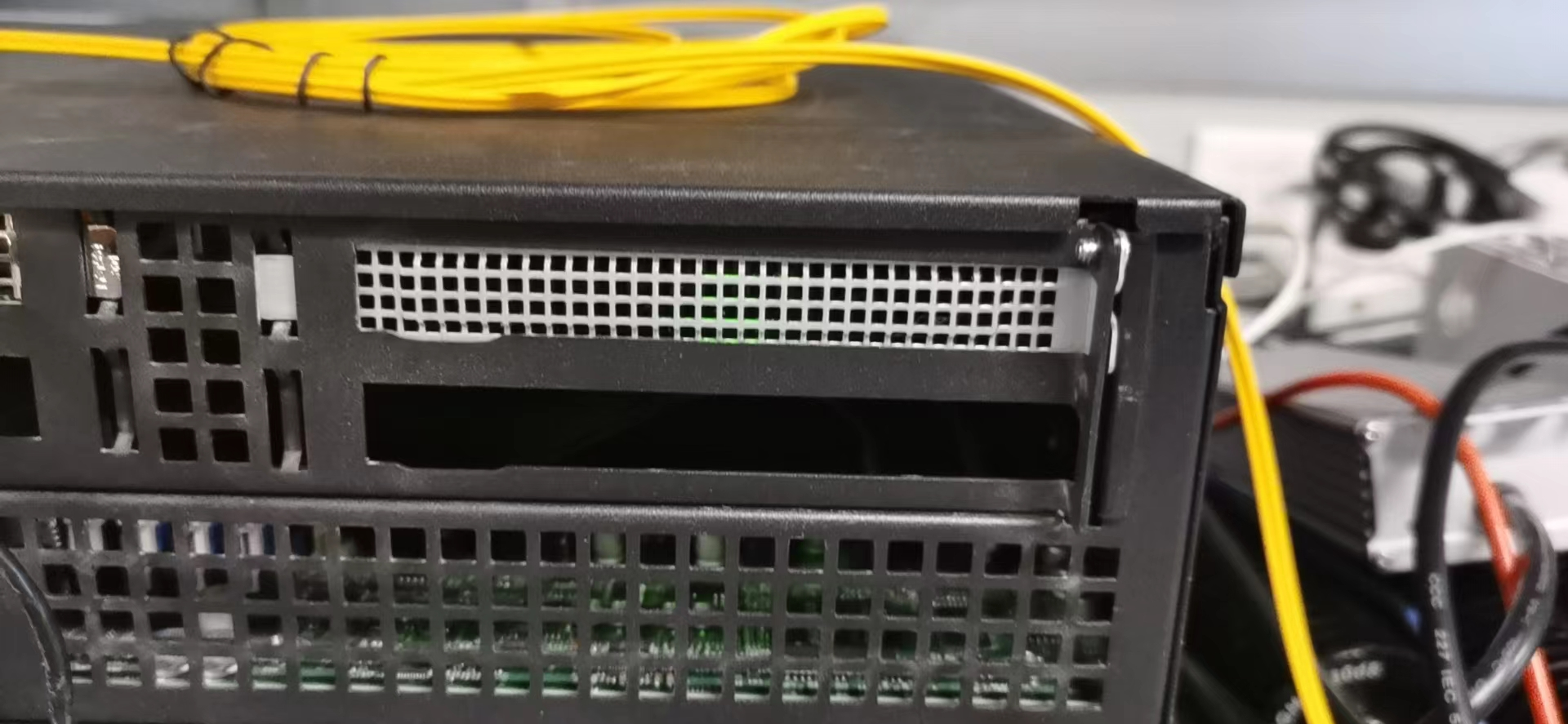

intel ACC100 是这个样子的

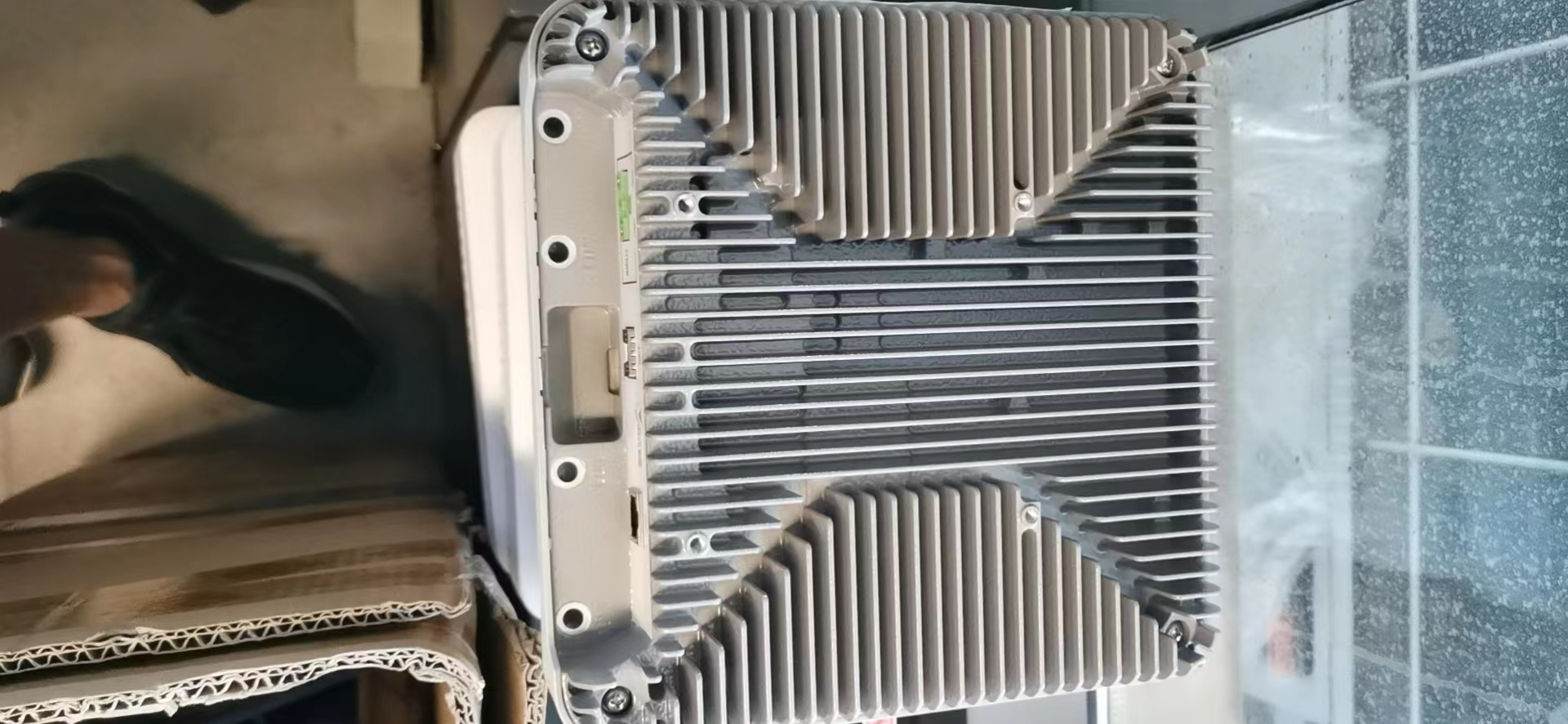

实验用的RU 长这个样子 The RU used for the experiment looks like this
视频讲解
如何编译相关的基础镜像，请参考环境开发文档 。
How to compile the relevant basic image, please refer to Environmental Development Documentation 。
应用镜像编译
我们已经制作好了一个基础镜像，quay.io/nepdemo/flexran_vdu:flexran-20.11-dpdk-19.11-ocp4.9.5-ubi-8.4-core-conf ，镜像很大（>5G)， 项目现场有一个镜像仓库，就很有必要了。在项目现场，我们需要调整bbu应用参数的，这个是通过一个config map，注入一个脚本实现的。
核配置
bbu应用是大型的dpdk应用，而dpdk应用，cpu绑定配置，非常重要，配置不善，直接导致dpdk应用core dump，甚至物理机死机，这里，我们就提供一个 16 核配置的模板。他使用 1-16 core，实际测试证明，稳定性还是可以接受的。
demo bbu 应用的特点，是物理层使用8个core，l2, l3使用剩下的8个core，这些core如果相互冲突，物理层就会coredump.
制作镜像
上游镜像是一个包含systemd的ubi-init镜像，里面是有一个set_ip.sh的脚本，并且配置了对应的system service。 但是在项目实际过程中，发现通过systemd 启动服务的方式，启动bbu等应用，有莫名其妙的退出问题，于是我们还是用这个 ubi-init 的镜像，但是启动的时候，就不去用默认的init了，而是指定脚本运行。
既然指定脚本运行了，那我们就在这个脚本里面，做环境初始化，并且把bbu的核绑定参数也放进去。最后，在k8s的配置里面，启动bbu应用。
具体的制作镜像步骤，非常繁琐，参见这个文档。
deploy on ocp 4.9.5
镜像都准备好了，我们开始在openshift4 上进行部署测试。
set security for temp image registry
我们临时创建了一个镜像仓库，那么我们就要把这个配置放到集群里面去，主要是让ocp集群，不要检查这个新镜像仓库的证书。
oc patch schedulers.config.openshift.io/cluster --type merge -p '{"spec":{"mastersSchedulable":false}}'
install /data/ocp4/clients/butane-amd64 /usr/local/bin/butane
cat << EOF > /data/sno/tmp.images.bu
variant: openshift
version: 4.9.0
metadata:
labels:
machineconfiguration.openshift.io/role: worker
name: 99-zzz-worker-temp-images
storage:
files:
- path: /etc/containers/registries.conf.d/temp.registries.conf
overwrite: true
contents:
inline: |
[[registry]]
location = "tmp-registry.ocp4.redhat.ren:5443"
insecure = true
blocked = false
mirror-by-digest-only = false
prefix = ""
EOF
butane /data/sno/tmp.images.bu > /data/sno/99-zzz-worker-temp-images.yaml
oc create -f /data/sno/99-zzz-worker-temp-images.yamlworker-2 node, rt-kernel setting

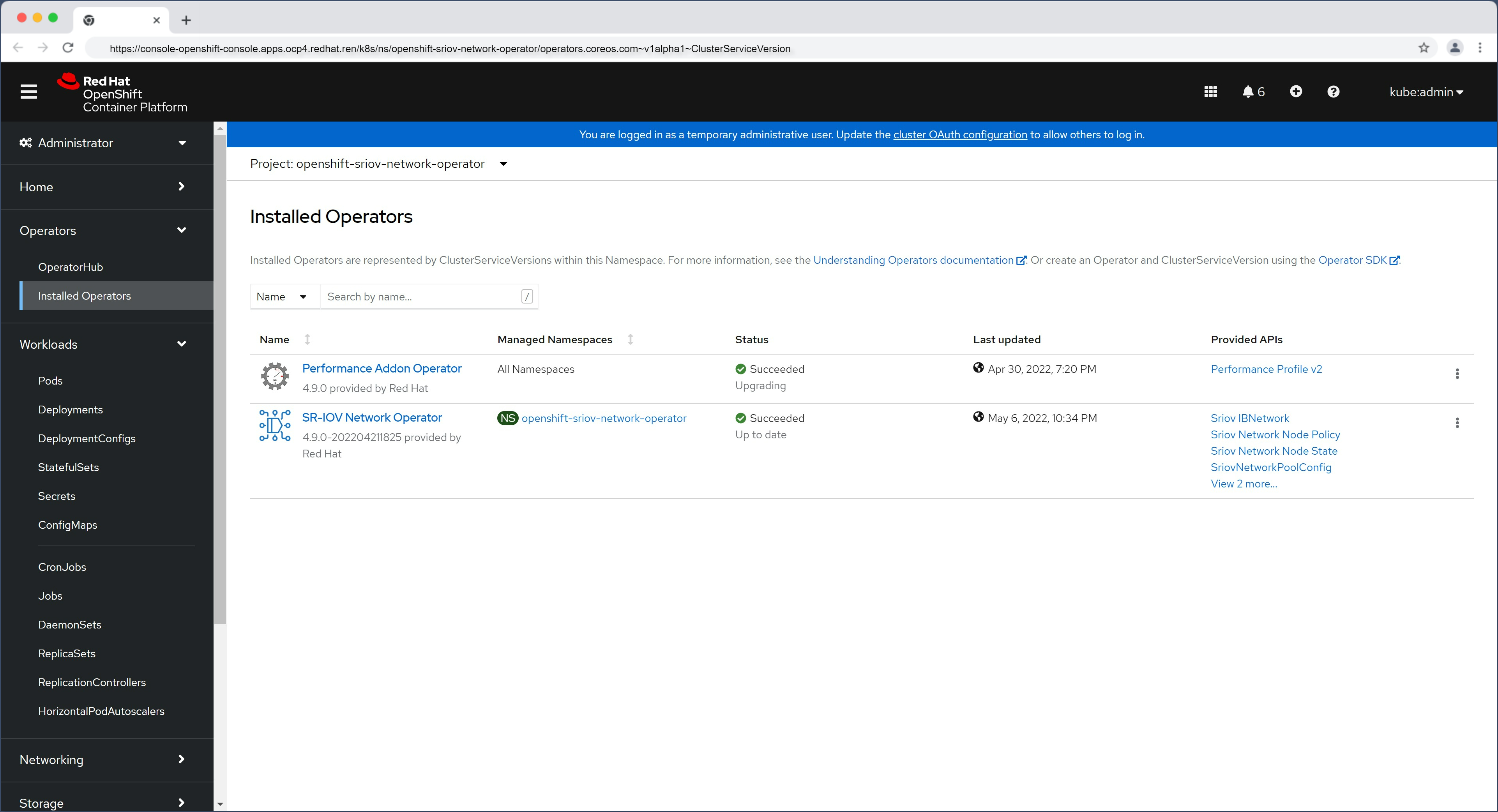

bbu 应用是需要实时操作系统支持的，那么我们就用openshift的performance addon operator来搞这个事情，pao支持激活rt-kernel，同时还能设置一些内核参数，我们需要把hugepage，cpu隔离设置好，还有e810的驱动屏蔽。
The bbu application needs the support of the real-time operating system, so we use the performance addon operator of openshift to do this. Pao supports the activation of rt-kernel, and can also set some kernel parameters. We need to set hugepage and cpu isolation. There are driver shields for e810.
cat << EOF > /data/install/performance-2.yaml
---
apiVersion: performance.openshift.io/v2
kind: PerformanceProfile
metadata:
name: wzh-performanceprofile-2
spec:
additionalKernelArgs:
- nmi_watchdog=0
- isolcpus=1-18
- nohz_full=1-18
- rcu_nocbs=1-18
- kthread_cpus=0,19
- irqaffinity=0,19
- iommu=pt
- intel_iommu=on
- intel_pstate=disable
# try to upgrade e810 driver
- module_name.blacklist=1
- rd.driver.blacklist=ice
# profile creator
- audit=0
- mce=off
- nmi_watchdog=0
globallyDisableIrqLoadBalancing: true
cpu:
isolated: "1-18"
reserved: "0,19"
hugepages:
defaultHugepagesSize: "1G"
pages:
- size: "1G"
count: 24
realTimeKernel:
enabled: true
numa:
topologyPolicy: "single-numa-node"
nodeSelector:
node-role.kubernetes.io/worker-rt-2: ""
machineConfigPoolSelector:
machineconfiguration.openshift.io/role: worker-rt-2
EOF
oc create --save-config -f /data/install/performance-2.yaml
# oc apply -f /data/install/performance-2.yaml
# oc delete -f /data/install/performance-2.yaml
oc label node worker-2.ocp4.redhat.ren node-role.kubernetes.io/worker-rt-2=""intel e810 driver
openshift 4.9.5 对应的coreos操作系统里面自带的e810驱动ice.ko，版本比较低，无法支持ptp，我们需要升级驱动。但是coreos升级驱动操作比较麻烦，我们需要制作一个systemd service，让他在kubelet之前启动，在这个service 里面，用podman启动一个特权容器，在容器里面，insmod ice.ko。当然一切的前提，是在kernel参数上，屏蔽了ice的自动加载。
The e810 driver ice.ko that comes with the coreos operating system corresponding to openshift 4.9.5 has a relatively low version and cannot support ptp. We need to upgrade the driver. But the coreos upgrade driver operation is more troublesome, we need to make a systemd service, let it start before kubelet, in this service, use podman to start a privileged container, in the container, insmod ice.ko. Of course, the premise of everything is that the automatic loading of ice is blocked on the kernel parameters.
cat << EOF > /data/sno/static-pod.bu
variant: openshift
version: 4.9.0
metadata:
labels:
machineconfiguration.openshift.io/role: worker-rt-2
name: 99-zzz-e810-dpdk-driver-static-worker-rt-2
storage:
files:
- path: /etc/modprobe.d/blacklist-ice.conf
mode: 0644
overwrite: true
contents:
inline: |
blacklist ice
systemd:
units:
- name: driver.ice.service
enabled: true
contents: |
[Unit]
Description=driver.ice service
Wants=network-online.target
After=network-online.target
[Service]
Type=oneshot
RemainAfterExit=yes
User=root
WorkingDirectory=/root/
ExecStart=podman run --privileged --rm -it quay.io/nepdemo/intel-driver:8.4-rt-1.9.7 /bin/sh -c " rmmod ice; rmmod auxiliary ; insmod /diy/auxiliary.ko; insmod /diy/ice.ko ; "
[Install]
WantedBy=multi-user.target
- name: kubelet.service
dropins:
- name: 99-after-ice.conf
contents: |
[Unit]
Requires=driver.ice.service
After=driver.ice.service
EOF
butane -d /data/install /data/sno/static-pod.bu > /data/install/99-zzz-e810-dpdk-driver-static-worker-rt-2.yaml
oc create --save-config -f /data/install/99-zzz-e810-dpdk-driver-static-worker-rt-2.yaml
# oc apply -f /data/install/99-zzz-e810-dpdk-driver-static-worker-rt-2.yaml
# oc delete -f /data/install/99-zzz-e810-dpdk-driver-static-worker-rt-2.yamllinuxptp 3.11
vRAN应用，特别是option 7.2 的方案，需要ptp时钟方案支持，物理形态，要么是GPS master连到交换机上，通过交换机授时，要么GPS master直接连网卡上。在服务器端，需要支持网络授时的网卡，并且主机上要启动ptp相关的服务，同时关掉ntp。

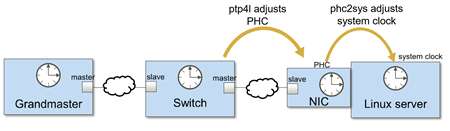

从上图可以看到，ptp4l，是从网络上拿时间到网卡上，phc2sys，是从网卡上，写到系统时钟上。ts2phc应该是把本地时间同步给其他设备用的。
openshift自带的ptp operator版本比较低，我们需要升级，就自己做镜像，做服务吧。
build linuxptp container image
我们在外网，用linuxptp 3.1.1版本做镜像，并且支持注入参数。方便项目现场调整。
# http://linuxptp.sourceforge.net/
# download linuxptp-3.1.1
mkdir -p /data/ptp
cd /data/ptp
wget https://nchc.dl.sourceforge.net/project/linuxptp/v3.1/linuxptp-3.1.1.tgz
tar zvxf linuxptp-3.1.1.tgz
cd linuxptp-3.1.1
make
cat << 'EOF' > ptp4l.sh
#!/bin/bash
if [ -z $DEMO_ENV_PRIO ]; then
/usr/local/sbin/ptp4l -f /etc/ptp4l.conf -m $DEMO_ENV_PTP4L_ARG
else
/usr/bin/chrt -f $DEMO_ENV_PRIO /usr/local/sbin/ptp4l -f /etc/ptp4l.conf -m $DEMO_ENV_PTP4L_ARG
fi
EOF
cat << 'EOF' > phc2sys.sh
#!/bin/bash
if [ -z $DEMO_ENV_PRIO ]; then
/usr/local/sbin/phc2sys -m -z /var/run/ptp4l -t [phc2sys] $DEMO_ENV_PHC2SYS_ARG
else
/usr/bin/chrt -f $DEMO_ENV_PRIO /usr/local/sbin/phc2sys -m -z /var/run/ptp4l -t [phc2sys] $DEMO_ENV_PHC2SYS_ARG
fi
EOF
cat << 'EOF' > ts2phc.sh
#!/bin/bash
if [ -z $DEMO_ENV_PRIO ]; then
/usr/local/sbin/ts2phc -f /etc/ts2phc.cfg -m $DEMO_ENV_TS2PHC_ARG
else
/usr/bin/chrt -f $DEMO_ENV_PRIO /usr/local/sbin/ts2phc -f /etc/ts2phc.cfg -m $DEMO_ENV_TS2PHC_ARG
fi
EOF
cat << EOF > ./ptp.dockerfile
FROM registry.access.redhat.com/ubi8/ubi:8.4
COPY hwstamp_ctl nsm phc2sys phc_ctl pmc ptp4l timemaster ts2phc incdefs.sh version.sh ptp4l.sh phc2sys.sh ts2phc.sh /usr/local/sbin/
RUN cd /usr/local/sbin/ && chmod +x hwstamp_ctl nsm phc2sys phc_ctl pmc ptp4l timemaster ts2phc incdefs.sh version.sh ptp4l.sh phc2sys.sh ts2phc.sh
EOF
podman build --squash -t quay.io/nepdemo/linuxptp:3.1.1-ubi-8.4-v06 -f ptp.dockerfile ./
podman push quay.io/nepdemo/linuxptp:3.1.1-ubi-8.4-v06deploy linux ptp
有了镜像，我们就做一个deployment，来启动ptp，注意，里面有3个container, 同时还有一些configmap 做配置文件注入. 在项目现场, 注意需要调整配置文件参数.
oc new-project vbbu-demo
oc project vbbu-demo
export REG_TMP='tmp-registry.ocp4.redhat.ren:5443'
# kernel driver deployment
oc create serviceaccount svcacct-driver -n vbbu-demo
oc adm policy add-scc-to-user privileged -z svcacct-driver -n vbbu-demo
# oc adm policy add-scc-to-user anyuid -z mysvcacct -n vbbu-demo
# !!! remember to disable chronyd on dest host !!!
# we do not use ptp opeerator, so we need to do it manually
# TODO
# https://docs.openshift.com/container-platform/4.10/scalability_and_performance/ztp-configuring-single-node-cluster-deployment-during-installation.html#sno-du-disabling-ntp_sno-du-deploying-distributed-units-manually-on-single-node-openshift
cat << 'EOF' > /data/install/ptp.chrony.conf
apiVersion: machineconfiguration.openshift.io/v1
kind: MachineConfig
metadata:
labels:
machineconfiguration.openshift.io/role: worker-rt-2
name: disable-chronyd
spec:
config:
systemd:
units:
- contents: |
[Unit]
Description=NTP client/server
Documentation=man:chronyd(8) man:chrony.conf(5)
After=ntpdate.service sntp.service ntpd.service
Conflicts=ntpd.service systemd-timesyncd.service
ConditionCapability=CAP_SYS_TIME
[Service]
Type=forking
PIDFile=/run/chrony/chronyd.pid
EnvironmentFile=-/etc/sysconfig/chronyd
ExecStart=/usr/sbin/chronyd $OPTIONS
ExecStartPost=/usr/libexec/chrony-helper update-daemon
PrivateTmp=yes
ProtectHome=yes
ProtectSystem=full
[Install]
WantedBy=multi-user.target
enabled: false
name: chronyd.service
ignition:
version: 2.2.0
EOF
oc create -f /data/install/ptp.chrony.conf
cat << EOF > /data/install/ptp4l.conf
[global]
#
# Default Data Set
#
twoStepFlag 1
slaveOnly 0
priority1 128
priority2 128
domainNumber 24
clockClass 248
clockAccuracy 0xFE
offsetScaledLogVariance 0xFFFF
free_running 0
freq_est_interval 0
#
# Port Data Set
# 16 TS a second use logSyncInterval -4
#
#logAnnounceInterval 4
logAnnounceInterval 1
logSyncInterval -4
logMinDelayReqInterval 0
logMinPdelayReqInterval 0
announceReceiptTimeout 3
syncReceiptTimeout 0
delayAsymmetry 0
fault_reset_interval 4
neighborPropDelayThresh 20000000
#
# Run time options
#
assume_two_step 0
logging_level 6
path_trace_enabled 0
follow_up_info 0
tx_timestamp_timeout 200
use_syslog 1
verbose 0
summary_interval 0
kernel_leap 1
check_fup_sync 0
#
# Servo Options
#
pi_proportional_const 0.0
pi_integral_const 0.0
pi_proportional_scale 0.0
pi_proportional_exponent -0.3
pi_proportional_norm_max 0.7
pi_integral_scale 0.0
pi_integral_exponent 0.4
pi_integral_norm_max 0.3
step_threshold 0.00000002
first_step_threshold 0.00002
max_frequency 900000000
clock_servo nullf
sanity_freq_limit 200000000
ntpshm_segment 0
#
# Transport options
#
transportSpecific 0x0
ptp_dst_mac 01:1B:19:00:00:00
p2p_dst_mac 01:80:C2:00:00:0E
udp6_scope 0x0E
uds_address /var/run/ptp4l
#
# Default interface options
#
network_transport UDPv4
#network_transport L2
delay_mechanism E2E
time_stamping hardware
delay_filter moving_median
delay_filter_length 10
egressLatency 0
ingressLatency 0
boundary_clock_jbod 0
#
# Clock description
#
productDescription ;;
revisionData ;;
manufacturerIdentity 00:00:00
userDescription ;
timeSource 0xA0
EOF
cat << EOF > /data/install/ts2phc.cfg
[global]
use_syslog 0
verbose 1
logging_level 7
ts2phc.pulsewidth 100000000
# For GNSS module
ts2phc.nmea_serialport /dev/ttyGNSS_6500_0
[ens2f0]
ts2phc.extts_polarity rising
EOF
oc delete configmap ptp-config -n vbbu-demo
oc create configmap ptp-config -n vbbu-demo --from-file=/data/install/ptp4l.conf --from-file=/data/install/ts2phc.cfg --save-config=true
# 06 for fifo
# 07 for nice
export VAR_IMAGE='quay.io/nepdemo/linuxptp:3.1.1-ubi-8.4-v06'
cat << EOF > /data/install/ptp.demo.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nepdemo-linuxptp-daemon
labels:
app: nepdemo-linuxptp-daemon
spec:
replicas: 1
selector:
matchLabels:
app: nepdemo-linuxptp-daemon
template:
metadata:
annotations:
labels:
app: nepdemo-linuxptp-daemon
name: nepdemo-linuxptp-daemon
# namespace: openshift-ptp
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchFields:
- key: metadata.name
operator: In
values:
- worker-2.ocp4.redhat.ren
tolerations:
- key: "vbbu"
operator: "Exists"
effect: "NoSchedule"
containers:
- name: ptp4l
image: $VAR_IMAGE
command: ["/bin/sh", "-c", "--"]
args: [" /usr/local/sbin/ptp4l.sh ;"]
env:
- name: DEMO_ENV_PTP4L_ARG
value: " -i ens2f0 -2 "
- name: DEMO_ENV_PRIO
value: "65"
securityContext:
privileged: true
runAsUser: 0
volumeMounts:
- mountPath: /etc/ptp4l.conf
subPath: ptp4l.conf
name: config-volume
- mountPath: /var/run
name: socket-dir
- name: phc2sys
image: $VAR_IMAGE
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "--"]
args: [" /usr/local/sbin/phc2sys.sh ;"]
env:
- name: DEMO_ENV_PHC2SYS_ARG
# value: " -s ens2f0 -O 0 -R 8 "
value: " -s ens2f0 -r -u 1 -O 0 -R 8 "
- name: DEMO_ENV_PRIO
value: "65"
securityContext:
privileged: true
runAsUser: 0
volumeMounts:
- mountPath: /etc/ptp4l.conf
subPath: ptp4l.conf
name: config-volume
- mountPath: /var/run
name: socket-dir
- name: ts2phc
image: $VAR_IMAGE
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "--"]
args: [" /usr/local/sbin/ts2phc.sh ;"]
env:
- name: DEMO_ENV_TS2PHC_ARG
value: " -s generic -c ens2f0 "
- name: DEMO_ENV_PRIO
value: "65"
securityContext:
privileged: true
runAsUser: 0
volumeMounts:
- mountPath: /etc/ts2phc.cfg
subPath: ts2phc.cfg
name: config-volume
- mountPath: /var/run
name: socket-dir
- name: dev
mountPath: /dev
hostNetwork: true
# hostPID: true
serviceAccountName: svcacct-driver
volumes:
- configMap:
defaultMode: 420
name: ptp-config
name: config-volume
- name: socket-dir
emptyDir: {}
- name: dev
hostPath:
path: "/dev"
EOF
oc create --save-config -n vbbu-demo -f /data/install/ptp.demo.yaml
# oc delete -n vbbu-demo -f /data/install/ptp.demo.yamlsetup sriov operator
openshift有sriov的operator，官方支持intel e810网卡，我们直接用就好了。
the env has nic Intel e810 : 8086 1593
# install sriov operator
cat << EOF > /data/install/sriov.yaml
---
apiVersion: v1
kind: Namespace
metadata:
name: openshift-sriov-network-operator
annotations:
workload.openshift.io/allowed: management
---
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
name: sriov-network-operators
namespace: openshift-sriov-network-operator
spec:
targetNamespaces:
- openshift-sriov-network-operator
---
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
name: sriov-network-operator-subscription
namespace: openshift-sriov-network-operator
spec:
channel: "stable"
installPlanApproval: Manual
name: sriov-network-operator
source: redhat-operators
sourceNamespace: openshift-marketplace
EOF
oc create -f /data/install/sriov.yaml
oc get SriovNetworkNodeState -n openshift-sriov-network-operator
# NAME AGE
# master-0 42m
# worker-0.ocp4.redhat.ren 42m
# worker-1 42m
# worker-2.ocp4.redhat.ren 42m
oc get SriovNetworkNodeState/worker-2.ocp4.redhat.ren -n openshift-sriov-network-operator -o yaml
# apiVersion: sriovnetwork.openshift.io/v1
# kind: SriovNetworkNodeState
# metadata:
# creationTimestamp: "2022-05-06T14:34:54Z"
# generation: 61
# name: worker-2.ocp4.redhat.ren
# namespace: openshift-sriov-network-operator
# ownerReferences:
# - apiVersion: sriovnetwork.openshift.io/v1
# blockOwnerDeletion: true
# controller: true
# kind: SriovNetworkNodePolicy
# name: default
# uid: 4eca5eea-e1e5-410f-8833-dd2de1434e53
# resourceVersion: "93262422"
# uid: 1d122c8e-b788-4f1e-a3d5-865c6230a476
# spec:
# dpConfigVersion: "93222170"
# status:
# interfaces:
# - deviceID: "1593"
# driver: ice
# linkSpeed: -1 Mb/s
# linkType: ETH
# mac: 40:a6:b7:82:0e:4c
# mtu: 1500
# name: ens2f0
# pciAddress: 0000:65:00.0
# totalvfs: 64
# vendor: "8086"
# - deviceID: "1593"
# driver: ice
# linkSpeed: -1 Mb/s
# linkType: ETH
# mac: 40:a6:b7:82:0e:4d
# mtu: 1500
# name: ens2f1
# pciAddress: 0000:65:00.1
# totalvfs: 64
# vendor: "8086"
# - deviceID: "1593"
# driver: ice
# linkSpeed: -1 Mb/s
# linkType: ETH
# mac: 40:a6:b7:82:0e:4e
# mtu: 1500
# name: ens2f2
# pciAddress: 0000:65:00.2
# totalvfs: 64
# vendor: "8086"
# - deviceID: "1593"
# driver: ice
# linkSpeed: -1 Mb/s
# linkType: ETH
# mac: 40:a6:b7:82:0e:4f
# mtu: 1500
# name: ens2f3
# pciAddress: 0000:65:00.3
# totalvfs: 64
# vendor: "8086"
# - deviceID: 37d1
# driver: i40e
# linkSpeed: 1000 Mb/s
# linkType: ETH
# mac: ac:1f:6b:ea:5b:32
# mtu: 1500
# name: eno1
# pciAddress: 0000:b5:00.0
# totalvfs: 32
# vendor: "8086"
# - deviceID: 37d1
# driver: i40e
# linkSpeed: 1000 Mb/s
# linkType: ETH
# mac: ac:1f:6b:ea:5b:33
# mtu: 1500
# name: eno2
# pciAddress: 0000:b5:00.1
# totalvfs: 32
# vendor: "8086"
# syncStatus: Succeeded
# how to use the sriov to create VF and attach to pod, depends on use case from nep demo request
# remember to active SRIOV in bios
# remember to active VT-d in bios
cat << EOF > /data/install/sriov.policy.yaml
---
apiVersion: sriovnetwork.openshift.io/v1
kind: SriovNetworkNodePolicy
metadata:
name: policy-810-nic01-rt2
namespace: openshift-sriov-network-operator
spec:
resourceName: intel_810_nic01_rt2
nodeSelector:
kubernetes.io/hostname: worker-2.ocp4.redhat.ren
numVfs: 2
nicSelector:
vendor: "8086"
deviceID: "1593"
rootDevices:
- "0000:65:00.0"
# pfNames:
# - "ens2f0"
# linkType: eth
# isRdma: false
deviceType: vfio-pci
EOF
oc create -f /data/install/sriov.policy.yaml
# oc delete -f /data/install/sriov.policy.yaml
oc get sriovnetworknodestates/worker-2.ocp4.redhat.ren -n openshift-sriov-network-operator -o jsonpath='{.status.syncStatus}' && echo
# Succeeded
cat << EOF > /data/install/sriov.attach.yaml
---
apiVersion: sriovnetwork.openshift.io/v1
kind: SriovNetwork
metadata:
name: intel-810-nic01-vf0-rt2
namespace: openshift-sriov-network-operator
spec:
resourceName: intel_810_nic01_rt2
networkNamespace: vbbu-demo
vlan: 5
---
apiVersion: sriovnetwork.openshift.io/v1
kind: SriovNetwork
metadata:
name: intel-810-nic01-vf1-rt2
namespace: openshift-sriov-network-operator
spec:
resourceName: intel_810_nic01_rt2
networkNamespace: vbbu-demo
vlan: 5
EOF
oc create -f /data/install/sriov.attach.yaml
# oc delete -f /data/install/sriov.attach.yaml
oc get net-attach-def -n vbbu-demo
# NAME AGE
# intel-810-nic01-vf0-rt2 2m19s
# intel-810-nic01-vf1-rt2 2m19s
nepdemo license file
把license file放到config map里面，注入容器。
不过呢，当前，我们是在制作容器镜像的步骤里面，直接把license 复制到容器里面了。
# license file 加载到config map中
oc create configmap -n vbbu-demo license.for.nepdemo \
--from-file=license=./3496531EC238AD91DED6DBA5BD6B.lic
# to updated config map
oc create configmap -n vbbu-demo license.for.nepdemo --from-file=license=./3496531EC238AD91DED6DBA5BD6B.lic -o yaml --dry-run=client | oc apply -f -create deployment for release/production
终于, 我们要启动服务了, 这是一个dpdk程序, 我们设置resource request, limits, 达到绑核的目的.
Finally, we have to start the service, this is a dpdk program, we set the resource request, limits, to achieve the purpose of binding the core.
oc new-project vbbu-demo
oc project vbbu-demo
# kernel driver deployment
oc create serviceaccount svcacct-driver -n vbbu-demo
oc adm policy add-scc-to-user privileged -z svcacct-driver -n vbbu-demo
# oc adm policy add-scc-to-user anyuid -z mysvcacct -n vbbu-demo16 cpu core config, auto convert
cpu core 1-16
cat << 'EOF' > /data/install/bbu.core.conf.sh
#!/bin/bash
sed -i 's/<systemThread>.*</<systemThread>2, 0, 0</' /root/flexran/bin/nr5g/gnb/l1/phycfg_xran.xml
sed -i 's/<timerThread>.*</<timerThread>1, 96, 0</' /root/flexran/bin/nr5g/gnb/l1/phycfg_xran.xml
sed -i 's/<FpgaDriverCpuInfo>.*</<FpgaDriverCpuInfo>3, 96, 0</' /root/flexran/bin/nr5g/gnb/l1/phycfg_xran.xml
sed -i 's/<FrontHaulCpuInfo>.*</<FrontHaulCpuInfo>3, 96, 0</' /root/flexran/bin/nr5g/gnb/l1/phycfg_xran.xml
sed -i 's/<radioDpdkMaster>.*</<radioDpdkMaster>2, 99, 0</' /root/flexran/bin/nr5g/gnb/l1/phycfg_xran.xml
sed -i "s/<BbuPoolThreadDefault_0_63>.*</<BbuPoolThreadDefault_0_63>0x$(to_hex '10,11,12,13,14,15')</" /root/flexran/bin/nr5g/gnb/l1/phycfg_xran.xml
sed -i 's/<xRANThread>.*</<xRANThread>9, 96, 0</' /root/flexran/bin/nr5g/gnb/l1/xrancfg_sub6.xml
sed -i "s/<xRANWorker>.*</<xRANWorker>0x$(to_hex '16'), 96, 0</" /root/flexran/bin/nr5g/gnb/l1/xrancfg_sub6.xml
sed -i "s/OAM_SHARED_CORE_BITMAP=.*/OAM_SHARED_CORE_BITMAP=$(to_dec '3,4')/" /etc/BBU_cfg/cu_cfg/gNodeB_CU_Configuration.cfg
sed -i "s/L3_SHARED_CORE_BITMAP=.*/L3_SHARED_CORE_BITMAP=$(to_dec '4,5')/" /etc/BBU_cfg/cu_cfg/gNodeB_CU_Configuration.cfg
sed -i "s/PDCP_SHRED_CORE_BITMAP=.*/PDCP_SHRED_CORE_BITMAP=$(to_dec '7,8')/" /etc/BBU_cfg/cu_cfg/gNodeB_CU_Configuration.cfg
sed -i "s/RRM_SHARED_CORE_BITMAP=.*/RRM_SHARED_CORE_BITMAP=$(to_dec '1,8')/" /etc/BBU_cfg/cu_cfg/gNodeB_CU_Configuration.cfg
sed -i "s/SON_SHARED_CORE_BITMAP=.*/SON_SHARED_CORE_BITMAP=$(to_dec '1,2')/" /etc/BBU_cfg/cu_cfg/gNodeB_CU_Configuration.cfg
# https://unix.stackexchange.com/questions/487451/sed-replace-a-pattern-between-a-pattern-and-the-end-of-file
sed -i "/<oam_shm_logger_cfg>/,\$s/<cpu_bitmap>.*</<cpu_bitmap>$(to_dec '7')</" /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i "/<shm_logger_cfg>/,\$s/<cpu_bitmap>.*</<cpu_bitmap>$(to_dec '7')</" /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<L3Params>/,$s/<core_no>.*</<core_no>2</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<process_name>gnb_cu_son</,$s/<process_args>.* /<process_args>2 /' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<process_name>gnb_cu_rrm</,$s/<process_args>.* /<process_args>2 /' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<pdcp_index>0</,$s/<core_num_for_worker_thread>.*</<core_num_for_worker_thread>3</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<pdcp_index>1</,$s/<core_num_for_worker_thread>.*</<core_num_for_worker_thread>3</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<egtpu_instance>0</,$s/<core_num_of_worker_thread>.*</<core_num_of_worker_thread>6</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<egtpu_instance>1</,$s/<core_num_of_worker_thread>.*</<core_num_of_worker_thread>6</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<f1u_instance>0</,$s/<core_num_of_worker_thread>.*</<core_num_of_worker_thread>6</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i '/<f1u_instance>1</,$s/<core_num_of_worker_thread>.*</<core_num_of_worker_thread>6</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i 's/<core_num_mapping>.*</<core_num_mapping>4,4</' /etc/BBU_cfg/cu_cfg/Proprietary_gNodeB_CU_Data_Model.xml
sed -i 's/MAC_BINREAD_CORE_NUM=.*/MAC_BINREAD_CORE_NUM=1/' /etc/BBU_cfg/du_cfg/gNB_DU_Configuration.cfg
sed -i 's/RLC_BINREAD_CORE_NUM=.*/RLC_BINREAD_CORE_NUM=1/' /etc/BBU_cfg/du_cfg/gNB_DU_Configuration.cfg
sed -i 's/MAC_HP_CORE_NUM=.*/MAC_HP_CORE_NUM=5/' /etc/BBU_cfg/du_cfg/gNB_DU_Configuration.cfg
sed -i 's/RLC_MASTER_CORE_NUM=.*/RLC_MASTER_CORE_NUM=2/' /etc/BBU_cfg/du_cfg/gNB_DU_Configuration.cfg
sed -i "s/SHARED_CORE_BITMAP=.*/SHARED_CORE_BITMAP=$(to_dec '5,6')/" /etc/BBU_cfg/du_cfg/gNB_DU_Configuration.cfg
sed -i 's/RELAY_ADAPTER_RECVR_THREAD_CORE_NUM=.*/RELAY_ADAPTER_RECVR_THREAD_CORE_NUM=4/' /etc/BBU_cfg/du_cfg/gNB_DU_Configuration.cfg
sed -i '/<RlcProvsioningParams>/,$s/<CoreNumWorkerThread>.*</<CoreNumWorkerThread>7</' /etc/BBU_cfg/du_cfg/Proprietary_gNodeB_DU_Data_Model.xml
sed -i '/<RlclSystemParams>/,$s/<CoreNumWorkerThread>.*</<CoreNumWorkerThread>7</' /etc/BBU_cfg/du_cfg/Proprietary_gNodeB_DU_Data_Model.xml
sed -i '/<F1uProvisioningParams>/,$s/<numCoreWorkerThreads>.*</<numCoreWorkerThreads>7</' /etc/BBU_cfg/du_cfg/Proprietary_gNodeB_DU_Data_Model.xml
# --a=8 --t=8 --b=8
sed -i 's/\.\/gnb_cu_pdcp .* >/\.\/gnb_cu_pdcp --r=2 --a=8 --t=8 --m=2 --i=0 --b=8 --p=0 --s=50 --n=10 >/' /home/BaiBBU_XSS/BaiBBU_SXSS/gNB_app
EOF
oc delete configmap vbbu-core-config -n vbbu-demo
oc create configmap vbbu-core-config -n vbbu-demo --from-file=/data/install/bbu.core.conf.sh --save-config=true
create vbbu deployment
oc adm taint nodes worker-2.ocp4.redhat.ren vbbu=realtime:NoSchedule
# oc adm taint nodes worker-2.ocp4.redhat.ren vbbu=realtime:NoExecute-
oc get nodes -o json | jq '.items[] | .metadata.name, (.spec.taints | tostring )' | paste - -
# "master-0" "null"
# "worker-1" "null"
# "worker-2.ocp4.redhat.ren" "[{\"effect\":\"NoSchedule\",\"key\":\"vbbu\",\"value\":\"realtime\"}]"
export REG_TMP='tmp-registry.ocp4.redhat.ren:5443'
# the pod with vbbu container and dev container
# later, it will change to deployment
cat << EOF > /data/install/vran.intel.flexran.yaml
---
apiVersion: "k8s.cni.cncf.io/v1"
kind: NetworkAttachmentDefinition
metadata:
name: host-device-vbbu-demo
spec:
config: '{
"cniVersion": "0.3.1",
"type": "host-device",
"device": "ens2f2",
"ipam": {
"type": "static",
"addresses": [
{
"address": "192.168.12.20/24"
},
{
"address": "192.168.12.19/24"
}
]
}
}'
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: flexran-binary-release-deployment
labels:
app: flexran-binary-release-deployment
spec:
replicas: 1
selector:
matchLabels:
app: flexran-binary-release
template:
metadata:
labels:
app: flexran-binary-release
name: flexran-binary-release
annotations:
k8s.v1.cni.cncf.io/networks: |-
[
{
"name": "host-device-vbbu-demo"
},
{
"name": "intel-810-nic01-vf0-rt2",
"mac": "00:11:22:33:44:66"
},
{
"name": "intel-810-nic01-vf1-rt2",
"mac": "00:11:22:33:44:67"
}
]
spec:
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: "app"
operator: In
values:
- flexran-binary-release
topologyKey: "kubernetes.io/hostname"
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/hostname
operator: In
values:
- worker-2.ocp4.redhat.ren
tolerations:
- key: "vbbu"
operator: "Exists"
effect: "NoSchedule"
serviceAccountName: svcacct-driver
containers:
- name: flexran-release-running
securityContext:
privileged: true
runAsUser: 0
# command: [ "/sbin/init" ]
command: [ "/bin/sh","-c","--" ]
args: [" /root/systemd/set_ip.sh ; cd /home/BaiBBU_XSS/tools/ ; ./XRAN_BBU start ; trap '{ cd /home/BaiBBU_XSS/tools/ ; ./XRAN_BBU stop ; exit 255; }' SIGINT SIGTERM ERR EXIT ; sleep infinity ; "]
tty: true
stdin: true
image: ${REG_TMP}/nepdemo/flexran_vdu:flexran-20.11-dpdk-19.11-ocp4.9.5-ubi-8.4-core-conf
imagePullPolicy: Always
resources:
requests:
cpu: 16
memory: "48Gi"
hugepages-1Gi: 24Gi
limits:
cpu: 16
memory: "48Gi"
hugepages-1Gi: 24Gi
volumeMounts:
- name: hugepage
mountPath: /hugepages
readOnly: False
- name: varrun
mountPath: /var/run/dpdk
readOnly: false
- name: lib-modules
mountPath: /lib/modules
- name: src
mountPath: /usr/src
- name: dev
mountPath: /dev
- name: cache-volume
mountPath: /dev/shm
- name: license-volume
mountPath: /nepdemo/lic
- mountPath: /root/bbu.core.conf.sh
subPath: bbu.core.conf.sh
name: vbbu-core-config-volume
volumes:
- name: hugepage
emptyDir:
medium: HugePages
- name: varrun
emptyDir: {}
- name: lib-modules
hostPath:
path: /lib/modules
- name: src
hostPath:
path: /usr/src
- name: dev
hostPath:
path: "/dev"
- name: cache-volume
emptyDir:
medium: Memory
sizeLimit: 1Gi
- name: license-volume
configMap:
name: license.for.nepdemo
items:
- key: license
path: license.lic
- name: vbbu-core-config-volume
configMap:
defaultMode: 420
name: vbbu-core-config
---
apiVersion: v1
kind: Service
metadata:
name: vbbu-http
spec:
ports:
- name: http
port: 80
targetPort: 80
nodePort: 31071
type: NodePort
selector:
app: flexran-binary-release
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
name: vbbu-http
spec:
port:
targetPort: http
to:
kind: Service
name: vbbu-http
---
EOF
oc create -n vbbu-demo -f /data/install/vran.intel.flexran.yaml
# oc delete -n vbbu-demo -f /data/install/vran.intel.flexran.yaml
# below, used for debug
POD_ID=$(oc get pod -n vbbu-demo -o json | jq -r '.items[].metadata.name | select(. | contains("flexran-binary-release"))' )
oc rsh -c flexran-release-running ${POD_ID}
# below runs the command in the pod
bash
tail -100 /root/flexran/bin/nr5g/gnb/l1/Phy.log
# ......
# ==== l1app Time: 315002 ms NumCarrier: 1 NumBbuCores: 6. Tti2Tti Time: [ 0.00.. 0.00.. 0.00] usces
# ==== [o-du0][rx 17639351 pps 55999 kbps 1585561][tx 58086520 pps 184408 kbps 5133280] [on_time 17639351 early 0 late 0 corrupt 0 pkt_dupl 8 Total 17639351]
# Pusch[ 64000 63999 64000 64000 0 0 0 0] SRS[ 0]
# -------------------------------------------------------------------------------------------------------------------------------------------------------
# Cell DL Tput UL Tput UL BLER SRS SNR MIMO PCI
# 0 (Kbps) 1,329,880 34,314 / 36,537 0.00% 0 Db 4T4R 21
# -------------------------------------------------------------------------------------------------------------------------------------------------------
# Core Utilization [6 BBU core(s)]:
# Core Id: 10 11 12 13 14 15 Avg
# Util %: 14 20 18 17 16 21 17.67
# Xran Id: 9 16 Master Core Util: 61 %
# -------------------------------------------------------------------------------------------------------------------------------------------------------top to show thread and core
我们在调优的时候，特别是分配核绑定的时候，经常需要看看现在都有哪些线程，占用了哪些核，或者说，哪些核比较繁忙，我们就要重新平衡一下。那么就需要一个好用的工具，来帮助我们。很幸运top本身就具备这样的功能。我们只要 -H 运行 top，然后打开线程绑定的核的显示项就可以了。
When we are tuning, especially when assigning core bindings, we often need to see which threads are currently available, which cores are occupied, or which cores are busy, and we need to rebalance. Then we need a useful tool to help us. Fortunately, top itself has such a function. We just need to run top with -H, and then open the display item of the core bound to the thread.
sudo -i
# /root/.config/procps/toprc
mkdir /root/wzh
cat << 'EOF' > /root/wzh/.toprc
top's Config File (Linux processes with windows)
Id:i, Mode_altscr=0, Mode_irixps=1, Delay_time=3.0, Curwin=0
Def fieldscur=ķ&')*+,-./01258<>?ABCFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcdefghij
winflags=193844, sortindx=18, maxtasks=0, graph_cpus=0, graph_mems=0
summclr=1, msgsclr=1, headclr=3, taskclr=1
Job fieldscur=(Ļ@<)*+,-./012568>?ABCFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcdefghij
winflags=193844, sortindx=0, maxtasks=0, graph_cpus=0, graph_mems=0
summclr=6, msgsclr=6, headclr=7, taskclr=6
Mem fieldscur=<MBND34&'()*+,-./0125689FGHIJKLOPQRSTUVWXYZ[\]^_`abcdefghij
winflags=193844, sortindx=21, maxtasks=0, graph_cpus=0, graph_mems=0
summclr=5, msgsclr=5, headclr=4, taskclr=5
Usr fieldscur=)+,-./1234568;<=>?@ABCFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcdefghij
winflags=193844, sortindx=3, maxtasks=0, graph_cpus=0, graph_mems=0
summclr=3, msgsclr=3, headclr=2, taskclr=3
Fixed_widest=0, Summ_mscale=1, Task_mscale=0, Zero_suppress=0
EOF
HOME="/root/wzh/" top -H
