create a sftp pod in openshift
Customer wants to run sftp service in pod, and expose it to the internet. How can we do that? We know that the ingress only support http/https. Here we show several ways to do that.
- macvlan

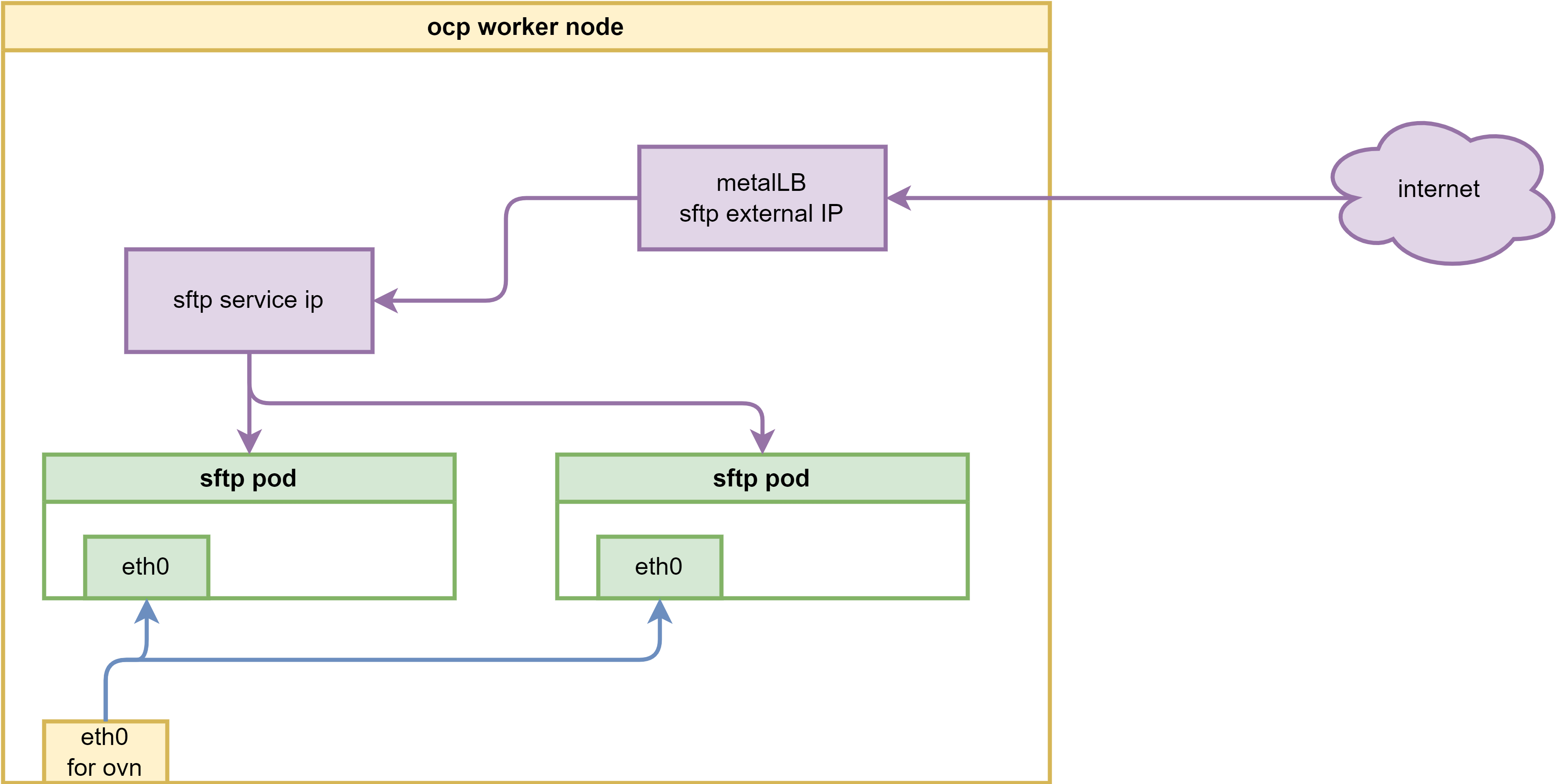

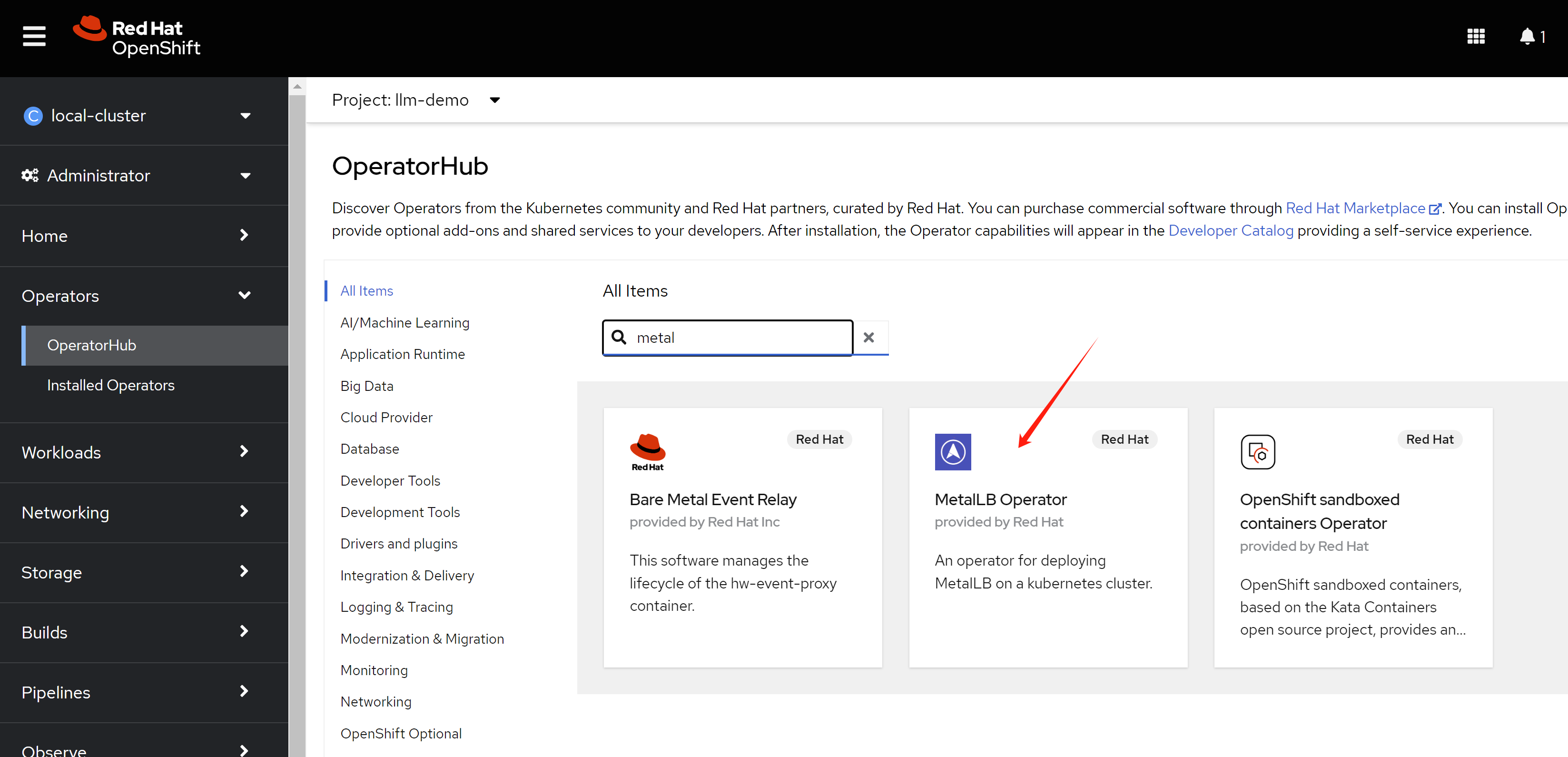

- loadbalancer / metalLB

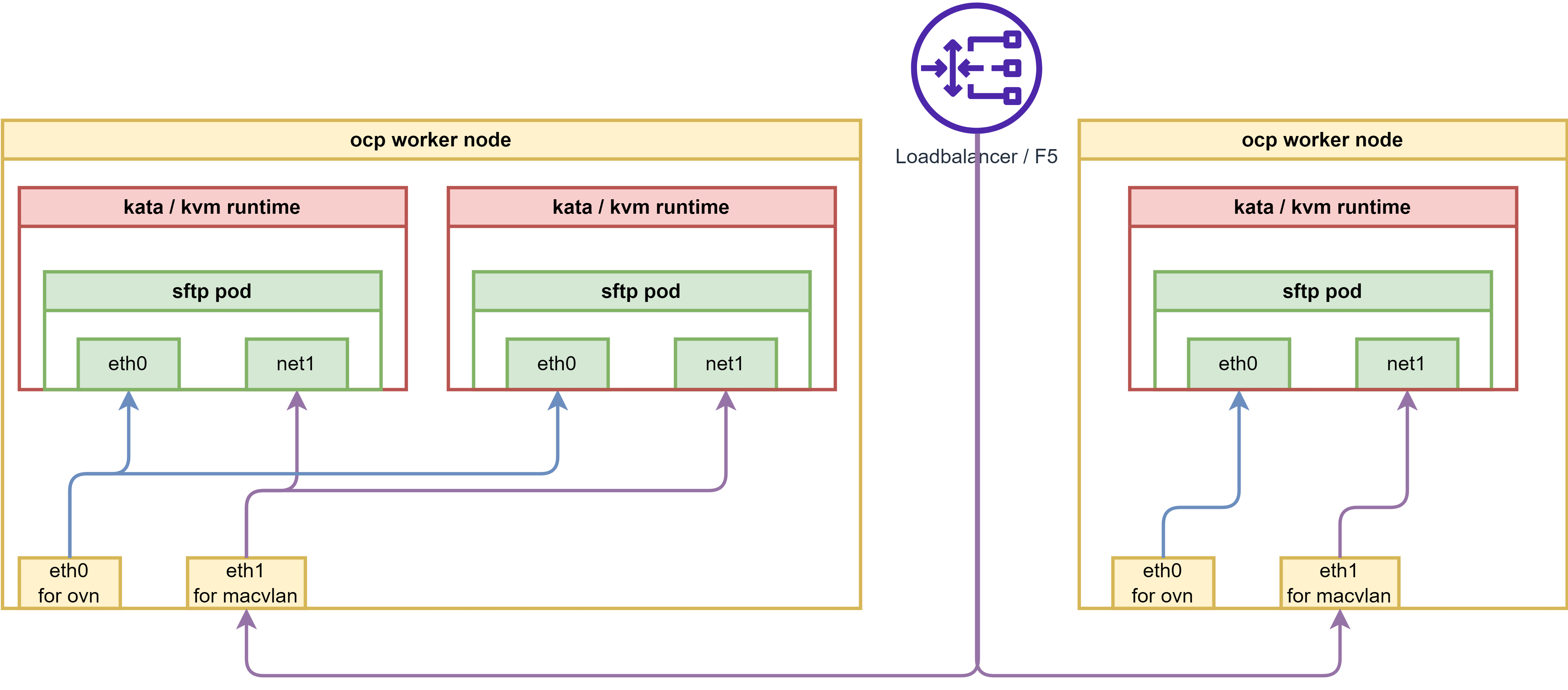

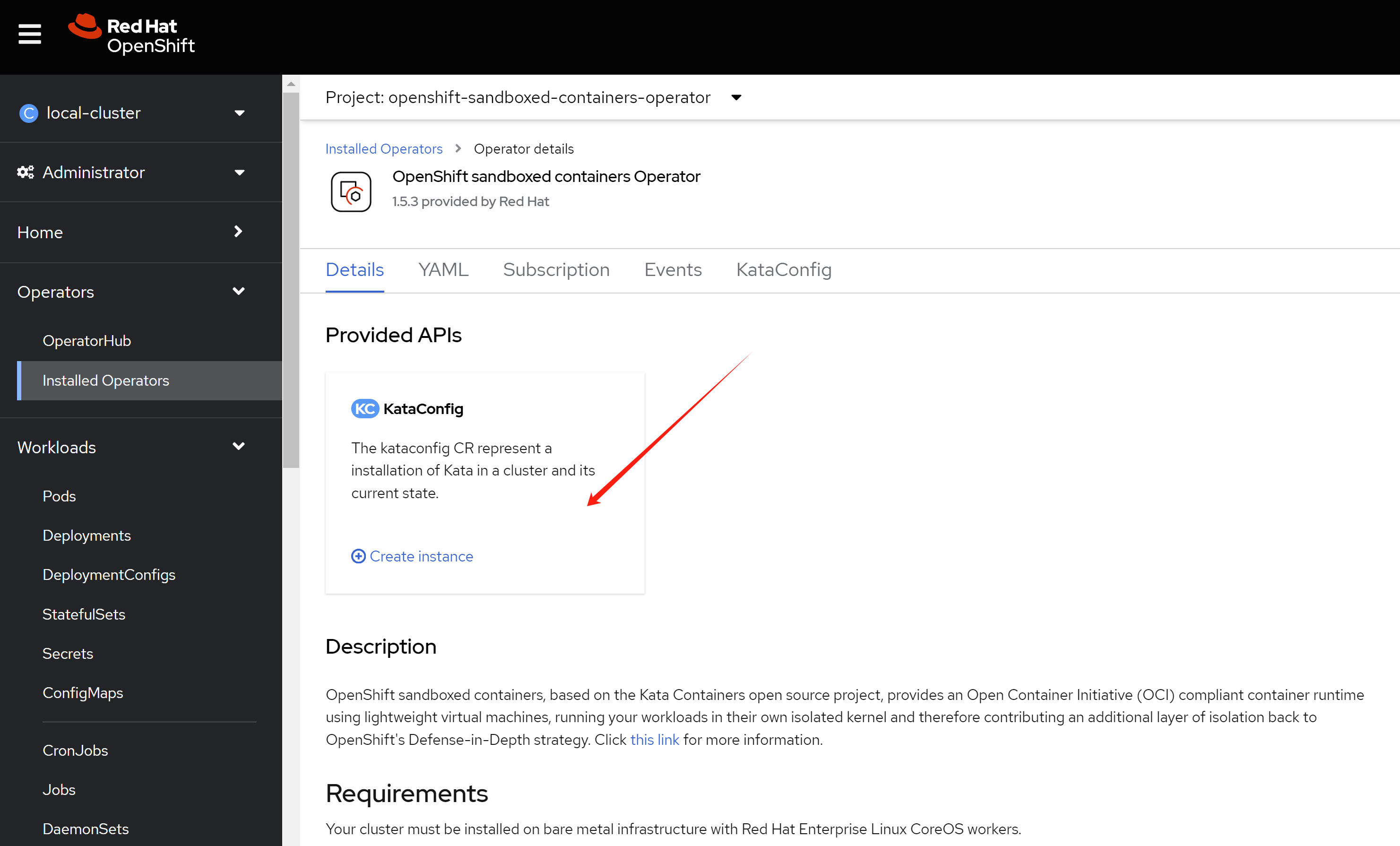

- enhance security with kata
service meshcustomize router/haproxy deployment
deploy the ssh pod
ssh runs on port 22, which needs speical privilege. We need to create a security context constraint to allow the pod to run as root user, and add the capability to bind to port 22.
- https://github.com/wangzheng422/sftp/tree/wzh

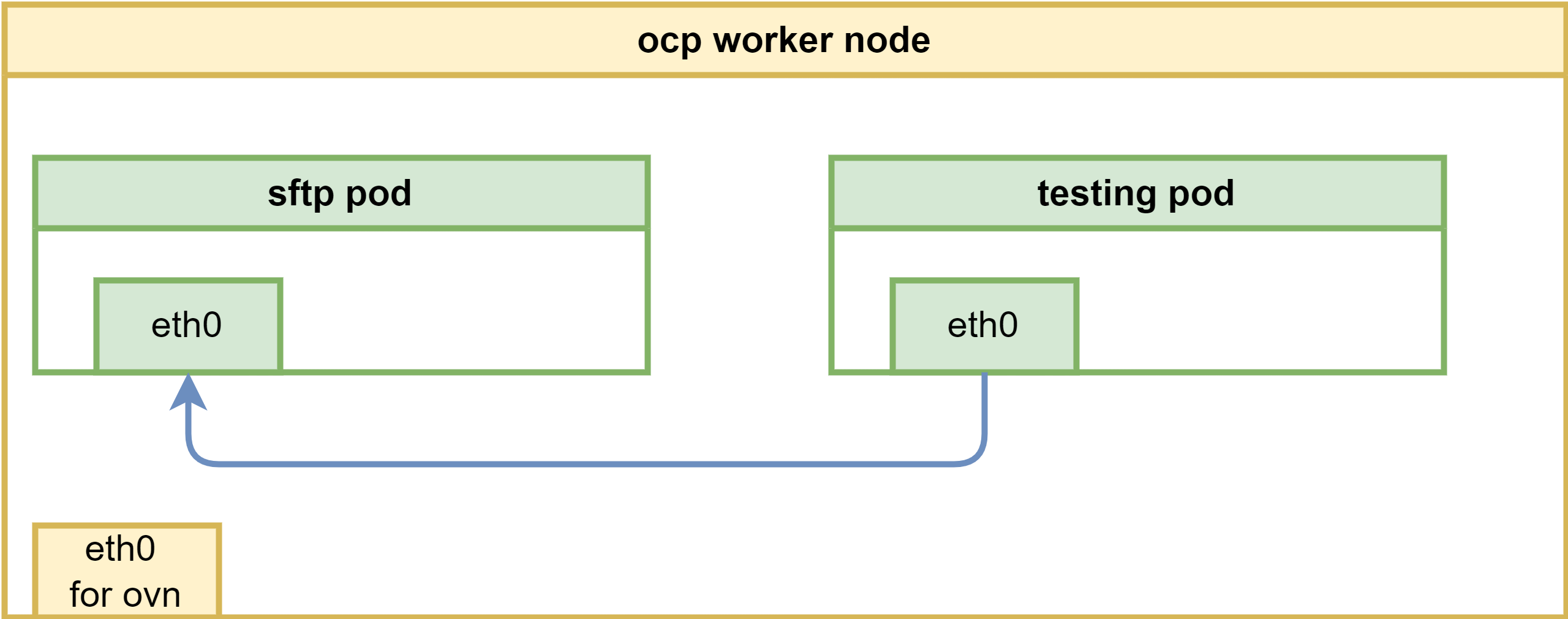

The overall network architecture will be like below, it is simple, we will add more feature and security enhancement later.
oc new-project llm-demo
mkdir -p $HOME/data/install
# https://access.redhat.com/articles/6973044
# Using the legacy restricted SCC in OCP 4.11+
# do not pay attention to this, it works. :)
# we will create a new scc to allow the pod to run as root user, and add the capability to bind to port 22.
cat << EOF > $HOME/data/install/sftp-scc.yaml
apiVersion: security.openshift.io/v1
kind: SecurityContextConstraints
metadata:
name: sftp-scc
allowPrivilegedContainer: false
allowPrivilegeEscalation: false
allowHostDirVolumePlugin: false
allowHostNetwork: false
allowHostPorts: false
allowHostPID: false
allowHostIPC: false
defaultAddCapabilities:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
runAsUser:
type: RunAsAny
seLinuxContext:
type: MustRunAs
fsGroup:
type: RunAsAny
supplementalGroups:
type: RunAsAny
volumes:
- configMap
- downwardAPI
- emptyDir
- persistentVolumeClaim
- projected
- secret
EOF
oc apply -f $HOME/data/install/sftp-scc.yaml
# oc delete -f $HOME/data/install/sftp-scc.yaml
# create a new sa, and assign the scc to the sa
oc create sa sftp-sa -n llm-demo
oc adm policy add-scc-to-user sftp-scc -z sftp-sa -n llm-demo
# try to fix the legacy restricted SCC in OCP 4.11+, but it works, forget this
# export VAR_NS='llm-demo'
# oc create rolebinding local:scc:restricted -n $VAR_NS --clusterrole=system:openshift:scc:restricted --group=system:serviceaccounts:$VAR_NS
# oc delete rolebinding local:scc:restricted -n $VAR_NS
# create pvc to hold the sftp upload files
cat << EOF > $HOME/data/install/sftp-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: sftp-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
EOF
oc apply -f $HOME/data/install/sftp-pvc.yaml -n llm-demo
# oc delete -f $HOME/data/install/sftp-pvc.yaml -n llm-demo
# we used to think we need priviledged, but we limit the capability in scc
# so do not need this
# oc label namespace llm-demo pod-security.kubernetes.io/enforce=privileged
# oc label namespace llm-demo pod-security.kubernetes.io/enforce-
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Limit concurrent sessions
# MaxSessions 2
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Service
metadata:
name: sftp-service
spec:
selector:
app: sftp-pod
ports:
- protocol: TCP
port: 22
targetPort: 22
---
apiVersion: v1
kind: Pod
metadata:
name: sftp-pod
labels:
app: sftp-pod
spec:
serviceAccountName: sftp-sa
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# get the pod ip
oc get pod -o json | jq -r '.items[] | select(.metadata.name | test("^sftp-pod")) | .status.podIP'
# 10.128.2.193
VAR_POD_IP=`oc get pod -o json | jq -r '.items[] | select(.metadata.name | test("^sftp-pod")) | .status.podIP' `
# we create a testing pod, to connect to the sftp pod remotely.
cat << EOF > $HOME/data/install/sftp-test-pod.yaml
---
kind: Pod
apiVersion: v1
metadata:
name: wzh-demo-util
spec:
# nodeSelector:
# kubernetes.io/hostname: 'worker-01-demo'
restartPolicy: Always
containers:
- name: demo1
image: >-
quay.io/wangzheng422/qimgs:rocky9-test-2024.06.17.v01
env:
- name: key
value: value
command: [ "/bin/bash", "-c", "--" ]
args: [ "tail -f /dev/null" ]
# imagePullPolicy: Always
EOF
oc delete -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc apply -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc rsh -n llm-demo wzh-demo-util
# upload to upload directory, otherwise, it will report error on permission denied
# sftp foo@10.131.0.24
oc exec -it -n llm-demo wzh-demo-util -- sshpass -p pass sftp -o StrictHostKeyChecking=no foo@$VAR_POD_IPThe sftp container will create user(foo) during startup, and create folder upload in the user’s home directory. If you set the upload folder to 333 chmod -R 333 upload, then the user can upload to the folder, and can create subdir in the folder, but can not list, and read/download file from the upload folder.
expose in macvlan
macvlan is linux kernel feature, which allows you to create virtual network interfaces, which can be attached to a container. This is useful when you want to expose the container to the network directly, without going through the host network stack. There are blogs on redhat website about this:
- https://developers.redhat.com/blog/2018/10/22/introduction-to-linux-interfaces-for-virtual-networking#bonded_interface
- https://www.redhat.com/en/blog/your-guide-to-vlans-based-on-container-namespaced-interfaces-in-openshift-pods

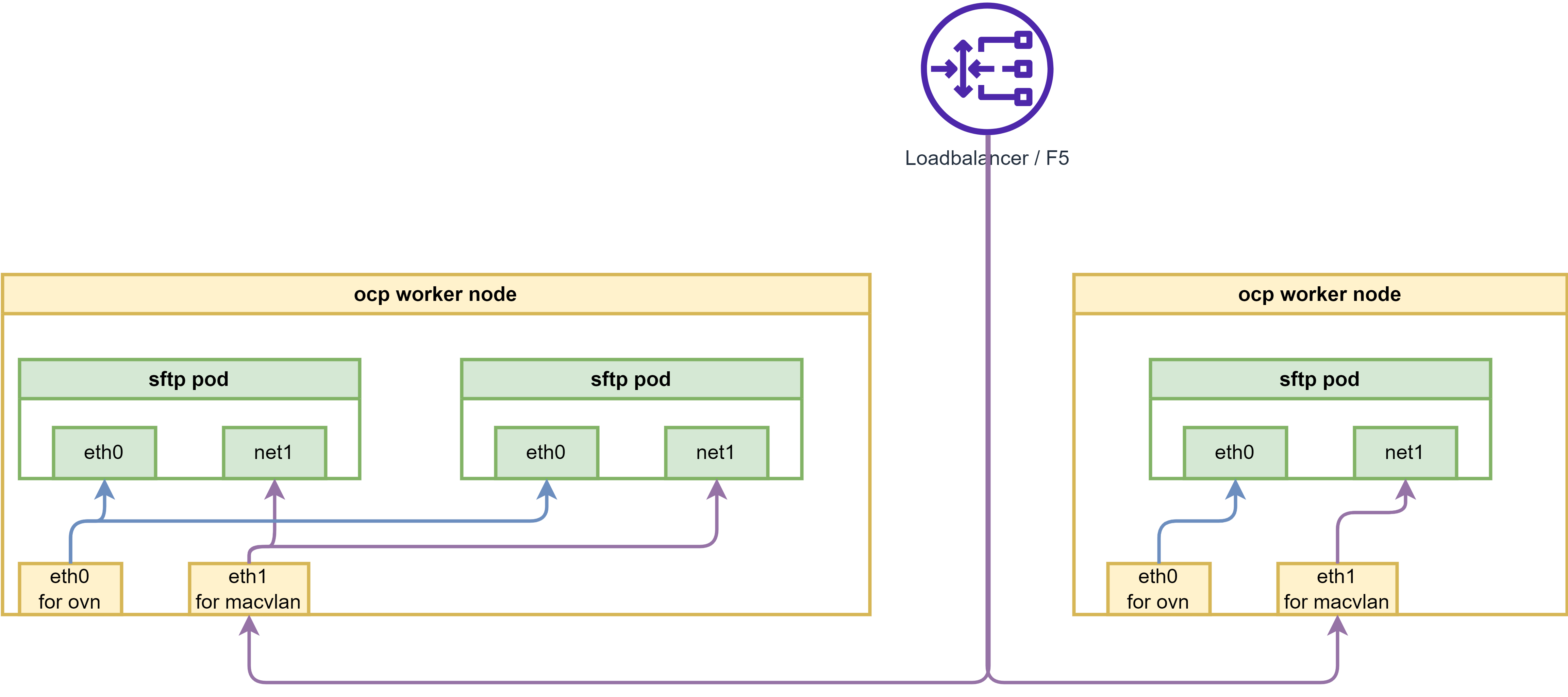

If using macvlan, the overall network architecture will be like below:
# create macvlan config
cat << EOF > $HOME/data/install/sftp-macvlan.yaml
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: sftp-macvlan
spec:
config: |-
{
"cniVersion": "0.3.1",
"name": "sftp-macvlan",
"type": "macvlan",
"master": "enp9s0",
"linkInContainer": false,
"mode": "bridge",
"ipam": {
"type": "static",
"addresses": [
{
"address": "192.168.77.67/24",
"_gateway": "1.1.1.1"
}
]
}
}
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: sftp-debug-macvlan
spec:
config: |-
{
"cniVersion": "0.3.1",
"name": "sftp-debug-macvlan",
"type": "macvlan",
"master": "enp9s0",
"linkInContainer": false,
"mode": "bridge",
"ipam": {
"type": "static",
"addresses": [
{
"address": "192.168.77.68/24",
"_gateway": "1.1.1.1"
}
]
}
}
EOF
oc apply -f $HOME/data/install/sftp-macvlan.yaml -n llm-demo
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Pod
metadata:
name: sftp-pod
annotations:
k8s.v1.cni.cncf.io/networks: sftp-macvlan
spec:
serviceAccountName: sftp-sa
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# we create a testing pod, to connect to the sftp pod remotely.
cat << EOF > $HOME/data/install/sftp-test-pod.yaml
---
kind: Pod
apiVersion: v1
metadata:
name: wzh-demo-util
annotations:
k8s.v1.cni.cncf.io/networks: sftp-debug-macvlan
spec:
# nodeSelector:
# kubernetes.io/hostname: 'worker-01-demo'
restartPolicy: Always
containers:
- name: demo1
image: >-
quay.io/wangzheng422/qimgs:rocky9-test
env:
- name: key
value: value
command: [ "/bin/bash", "-c", "--" ]
args: [ "tail -f /dev/null" ]
# imagePullPolicy: Always
EOF
oc delete -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc apply -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc rsh -n llm-demo wzh-demo-util
# upload to upload directory, otherwise, it will report error on permission denied
# sftp foo@192.168.77.67
# sh-5.1# scp /etc/os-release foo@192.168.77.67:/upload/
# foo@192.168.99.7's password:
# os-release 100% 507 636.7KB/s 00:00
# on helper, on vsphere vm/baremetal node
sftp foo@192.168.77.67
# it turn out on the helper, vsphere platform, we can not connect to the sftp pod
# we need to try on baremental env to see if it works.
# generally, it is macvlan and switch co-working problem.
# Later, yes, we confirmed that on baremetal platform, it works.expose in ipvlan
macvlan is linux kernel feature, which allows you to create virtual network interfaces, which can be attached to a container. This is useful when you want to expose the container to the network directly, without going through the host network stack. There are blogs on redhat website about this:
- https://developers.redhat.com/blog/2018/10/22/introduction-to-linux-interfaces-for-virtual-networking#bonded_interface
- https://www.redhat.com/en/blog/your-guide-to-vlans-based-on-container-namespaced-interfaces-in-openshift-pods
If using macvlan, the overall network architecture will be like below:
# create macvlan config
cat << EOF > $HOME/data/install/sftp-ipvlan.yaml
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: sftp-ipvlan
spec:
config: |-
{
"cniVersion": "0.3.1",
"name": "sftp-ipvlan",
"type": "ipvlan",
"master": "ens224",
"linkInContainer": false,
"mode": "l2",
"ipam": {
"type": "static",
"addresses": [
{
"address": "192.168.99.67/24",
"_gateway": "1.1.1.1"
}
]
}
}
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: sftp-debug-ipvlan
spec:
config: |-
{
"cniVersion": "0.3.1",
"name": "sftp-debug-ipvlan",
"type": "ipvlan",
"master": "ens224",
"linkInContainer": false,
"mode": "l2",
"ipam": {
"type": "static",
"addresses": [
{
"address": "192.168.99.68/24",
"_gateway": "1.1.1.1"
}
]
}
}
EOF
oc apply -f $HOME/data/install/sftp-ipvlan.yaml -n llm-demo
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Pod
metadata:
name: sftp-pod
annotations:
k8s.v1.cni.cncf.io/networks: sftp-ipvlan
spec:
serviceAccountName: sftp-sa
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# on helper, on vsphere
sftp foo@192.168.99.67
# using ipvlan is ok, then, macvlan should be ok if vsphere open the mac limitation.expose ssh service in metalLB
MetaLB needs baremetal environment.
By using metalLB, the network architecture will be like below:
install the metalLB operator, and create a loadbalancer service to expose the ssh service.
Create a single instance of a MetalLB custom resource:
apiVersion: metallb.io/v1beta1
kind: MetalLB
metadata:
name: metallb
namespace: metallb-systemconfig ip address pool
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
namespace: metallb-system
name: sftp-pool
labels:
zone: sftp
spec:
addresses:
- 192.168.29.50-192.168.29.53
autoAssign: false
avoidBuggyIPs: trueconfig for L2 advertisement
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
name: l2advertisement
namespace: metallb-system
spec:
ipAddressPools:
- sftp-poolcreate the pod using metalLB with service
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Service
metadata:
name: sftp-service
annotations:
metallb.universe.tf/address-pool: sftp-pool
spec:
selector:
app: sftp-pod
ports:
- protocol: TCP
port: 22
targetPort: 22
type: LoadBalancer
loadBalancerIP: 192.168.29.50
---
apiVersion: v1
kind: Pod
metadata:
name: sftp-pod
labels:
app: sftp-pod
spec:
serviceAccountName: sftp-sa
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# on helper
sftp foo@192.168.29.50
# it is ok to sftpkata to improve security
Kata needs baremetal environment.
By using kata, pod will run in a mini kvm/qemu on rhcos, which will improve the security. We can use kata to run the sftp pod, and expose it to the internet.
The network architecture will be like below:
install sandbox operator
The node installed with kata will reboot once.
in macvlan
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Pod
metadata:
name: sftp-pod
annotations:
k8s.v1.cni.cncf.io/networks: sftp-macvlan
spec:
serviceAccountName: sftp-sa
runtimeClassName: kata
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# we create a testing pod, to connect to the sftp pod remotely.
cat << EOF > $HOME/data/install/sftp-test-pod.yaml
---
kind: Pod
apiVersion: v1
metadata:
name: wzh-demo-util
annotations:
k8s.v1.cni.cncf.io/networks: sftp-debug-macvlan
spec:
# nodeSelector:
# kubernetes.io/hostname: 'worker-01-demo'
runtimeClassName: kata
restartPolicy: Always
containers:
- name: demo1
image: >-
quay.io/wangzheng422/qimgs:rocky9-test
env:
- name: key
value: value
command: [ "/bin/bash", "-c", "--" ]
args: [ "tail -f /dev/null" ]
# imagePullPolicy: Always
EOF
oc delete -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc apply -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc rsh -n llm-demo wzh-demo-util
# upload to upload directory, otherwise, it will report error on permission denied
# sftp foo@192.168.77.67
# sh-5.1# scp /etc/os-release foo@192.168.77.67:/upload/
# foo@192.168.99.7's password:
# os-release 100% 507 636.7KB/s 00:00
# on helper, on vsphere vm/baremetal node
sftp foo@192.168.77.67
# it turn out on the helper, vsphere platform, we can not connect to the sftp pod
# we need to try on baremental env to see if it works.
# generally, it is macvlan and switch co-working problem.
# Later, yes, we confirmed that on baremetal platform, it works.
in ipvlan
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Pod
metadata:
name: sftp-pod
annotations:
k8s.v1.cni.cncf.io/networks: sftp-ipvlan
spec:
serviceAccountName: sftp-sa
runtimeClassName: kata
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# on helper, on vsphere
sftp foo@192.168.99.67
# using ipvlan is ok, then, macvlan should be ok if vsphere open the mac limitation.
in metalLB
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Service
metadata:
name: sftp-service
annotations:
metallb.universe.tf/address-pool: sftp-pool
spec:
selector:
app: sftp-pod
ports:
- protocol: TCP
port: 22
targetPort: 22
type: LoadBalancer
loadBalancerIP: 192.168.29.50
---
apiVersion: v1
kind: Pod
metadata:
name: sftp-pod
labels:
app: sftp-pod
spec:
serviceAccountName: sftp-sa
runtimeClassName: kata
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# on helper
sftp foo@192.168.29.50
# it is ok to sftp
sftp deny download, only upload allowed.
apt-get update
apt-get install acl
chmod -R 330 /home/foo/upload
setfacl -m d:u::wx,d:g::wx,d:o::- /home/foo/uploadauto delete upload file
For demo purpose, we need to save the storage space, so we need to delete the uploaded file automatically.
oc new-project llm-demo
mkdir -p $HOME/data/install
# https://access.redhat.com/articles/6973044
# Using the legacy restricted SCC in OCP 4.11+
# do not pay attention to this, it works. :)
# we will create a new scc to allow the pod to run as root user, and add the capability to bind to port 22.
cat << EOF > $HOME/data/install/sftp-scc.yaml
apiVersion: security.openshift.io/v1
kind: SecurityContextConstraints
metadata:
name: sftp-scc
allowPrivilegedContainer: false
allowPrivilegeEscalation: false
allowHostDirVolumePlugin: false
allowHostNetwork: false
allowHostPorts: false
allowHostPID: false
allowHostIPC: false
defaultAddCapabilities:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
runAsUser:
type: RunAsAny
seLinuxContext:
type: MustRunAs
fsGroup:
type: RunAsAny
supplementalGroups:
type: RunAsAny
volumes:
- configMap
- downwardAPI
- emptyDir
- persistentVolumeClaim
- projected
- secret
EOF
oc apply -f $HOME/data/install/sftp-scc.yaml
# oc delete -f $HOME/data/install/sftp-scc.yaml
# create a new sa, and assign the scc to the sa
oc create sa sftp-sa -n llm-demo
oc adm policy add-scc-to-user sftp-scc -z sftp-sa -n llm-demo
# try to fix the legacy restricted SCC in OCP 4.11+, but it works, forget this
# export VAR_NS='llm-demo'
# oc create rolebinding local:scc:restricted -n $VAR_NS --clusterrole=system:openshift:scc:restricted --group=system:serviceaccounts:$VAR_NS
# oc delete rolebinding local:scc:restricted -n $VAR_NS
# create pvc to hold the sftp upload files
cat << EOF > $HOME/data/install/sftp-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: sftp-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 20Gi
EOF
oc delete -f $HOME/data/install/sftp-pvc.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pvc.yaml -n llm-demo
# oc delete -f $HOME/data/install/sftp-pvc.yaml -n llm-demo
# we used to think we need priviledged, but we limit the capability in scc
# so do not need this
# oc label namespace llm-demo pod-security.kubernetes.io/enforce=privileged
# oc label namespace llm-demo pod-security.kubernetes.io/enforce-
# we use a startup script to get pod information
# and store it to log dir, so admin can know the pod information
cat << 'EOF' > ${HOME}/data/install/auto-remove.sh
#!/bin/bash
echo "try to remove hprof files"
# Loop indefinitely
while true; do
# Find files in the directory that were last modified 1 minute ago or more
# and remove them
# echo "try to remove hprof files"
find "$LOCAL_DIR" -type f -name "*.hprof" -mmin +1 -exec sh -c 'echo "Removing {}"; rm -f {}' \;
sleep 5
done
EOF
oc delete configmap sftp-script-configmap -n llm-demo
# inject the script into a configmap
oc create configmap sftp-script-configmap \
--from-file=${HOME}/data/install/auto-remove.sh \
-n llm-demo
# create the sftp pod
# first, create the configmap, which contains the sshd_config and users.conf
# but this should not need, because the image has the default config
# we used to hack for the pod not running, but it is not necessary right now.
cat << EOF > $HOME/data/install/sftp-pod.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: sftp-conf
data:
sshd_config: |
# Secure defaults
# See: https://stribika.github.io/2015/01/04/secure-secure-shell.html
Protocol 2
HostKey /etc/ssh/ssh_host_ed25519_key
HostKey /etc/ssh/ssh_host_rsa_key
# Faster connection
# See: https://github.com/atmoz/sftp/issues/11
UseDNS no
# Limited access
PermitRootLogin no
X11Forwarding no
AllowTcpForwarding no
# Force sftp and chroot jail
Subsystem sftp internal-sftp
ForceCommand internal-sftp
ChrootDirectory %h
# Limit concurrent sessions
# MaxSessions 2
# Enable this for more logs
# LogLevel VERBOSE
users.conf: |
foo:pass:1001::upload
---
apiVersion: v1
kind: Service
metadata:
name: sftp-service
spec:
selector:
app: sftp-pod
ports:
- protocol: TCP
port: 22
targetPort: 22
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: sftp-pod
spec:
replicas: 1
selector:
matchLabels:
app: sftp-pod
template:
replicas: 1
metadata:
labels:
app: sftp-pod
spec:
serviceAccountName: sftp-sa
containers:
- name: sftp-container
image: quay.io/wangzheng422/qimgs:sftp-ubi9-2024.06.20
securityContext:
runAsUser: 0
capabilities:
add:
- CAP_NET_BIND_SERVICE
- CAP_SYS_CHROOT
- CAP_SETGID
- AUDIT_WRITE
volumeMounts:
- name: sftp-volume
mountPath: /home/
- mountPath: /etc/sftp/users.conf
name: conf
subPath: users.conf
- mountPath: /etc/ssh/sshd_config
name: conf
subPath: sshd_config
- name: auto-remove
# the image used here is not optimized for rpms installed, it is just for demo.
image: quay.io/wangzheng422/qimgs:rocky9-test-2024.06.17.v01
command: ['bash', '/wzh-scripts/auto-remove.sh']
volumeMounts:
- name: wzh-script-volume
mountPath: /wzh-scripts
- name: sftp-volume
mountPath: /home/
env:
- name: LOCAL_DIR
value: /home/
volumes:
- name: sftp-volume
persistentVolumeClaim:
claimName: sftp-pvc
- configMap:
items:
- key: users.conf
path: users.conf
- key: sshd_config
path: sshd_config
name: sftp-conf
name: conf
- name: wzh-script-volume
configMap:
name: sftp-script-configmap
EOF
oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
oc apply -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# oc delete -f $HOME/data/install/sftp-pod.yaml -n llm-demo
# for lvm pv, we fix the permission issue on /home
# oc rsh -n llm-demo sftp-pod
oc exec -it -n llm-demo sftp-pod -- chown root:root /home
oc exec -it -n llm-demo sftp-pod -- chmod 755 /home
# check the files
# oc exec -it -n llm-demo sftp-pod -- ls -Rlh /home
# Set the namespace and deployment name
NAMESPACE="llm-demo"
DEPLOYMENT_NAME="sftp-pod"
# Get the label selector for the deployment
LABEL_SELECTOR=$(oc get deployment $DEPLOYMENT_NAME -n $NAMESPACE -o jsonpath='{.spec.selector.matchLabels}'| jq -r 'to_entries | map("\(.key)=\(.value)") | join(",")')
# Find pods by label selector
PODS=$(oc get pods -n $NAMESPACE -l $LABEL_SELECTOR -o name)
# Loop through each pod and run the command
for POD in $PODS; do
echo "Executing on $POD"
oc exec -it -n $NAMESPACE $POD -- ls -Rlh /home
done
# remove all the switch files
oc exec -it -n llm-demo sftp-pod -- find /home -type f -name "upload.switch" -exec rm -f {} \;
# get the pod ip
oc get pod -o json | jq -r '.items[] | select(.metadata.name | test("^sftp-pod")) | .status.podIP'
# 10.131.0.180
VAR_POD_IP=`oc get pod -o json | jq -r '.items[] | select(.metadata.name | test("^sftp-pod")) | .status.podIP' `
# we create a testing pod, to connect to the sftp pod remotely.
cat << EOF > $HOME/data/install/sftp-test-pod.yaml
---
kind: Pod
apiVersion: v1
metadata:
name: wzh-demo-util
spec:
# nodeSelector:
# kubernetes.io/hostname: 'worker-01-demo'
restartPolicy: Always
containers:
- name: demo1
image: >-
quay.io/wangzheng422/qimgs:rocky9-test-2024.06.17.v01
env:
- name: key
value: value
command: [ "/bin/bash", "-c", "--" ]
args: [ "tail -f /dev/null" ]
# imagePullPolicy: Always
EOF
oc delete -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc apply -f ${HOME}/data/install/sftp-test-pod.yaml -n llm-demo
oc rsh -n llm-demo wzh-demo-util
# upload to upload directory, otherwise, it will report error on permission denied
# sftp foo@10.131.0.24
oc exec -it -n llm-demo wzh-demo-util -- sshpass -p pass sftp -o StrictHostKeyChecking=no foo@$VAR_POD_IP
oc exec -it -n llm-demo wzh-demo-util -- sshpass -p pass scp -o StrictHostKeyChecking=no /etc/os-release foo@$VAR_POD_IP:upload/
