[!TIP] Ongoing and occasional updates and improvements.

redhat developer hub (1.2) based on a book

Red Hat has published a book on how to use RHDF, which provides a detailed description of the complete project workflow and the associated software template. You can get the book from the following link:

You can also get the software template from the following link:

Based on the requirements of the local experimental environment and service projects, I have modified the corresponding software code. The links to the relevant software are as follows:

Here are the projects after parameter instantiation for easy reference and comparison.

For backend

For frontend

We primarily focus on building the foundational platform of OpenShift and configuring the related experimental environment. Additionally, we have introduced a new component, JFrog, to demonstrate the extensibility of RHDH.

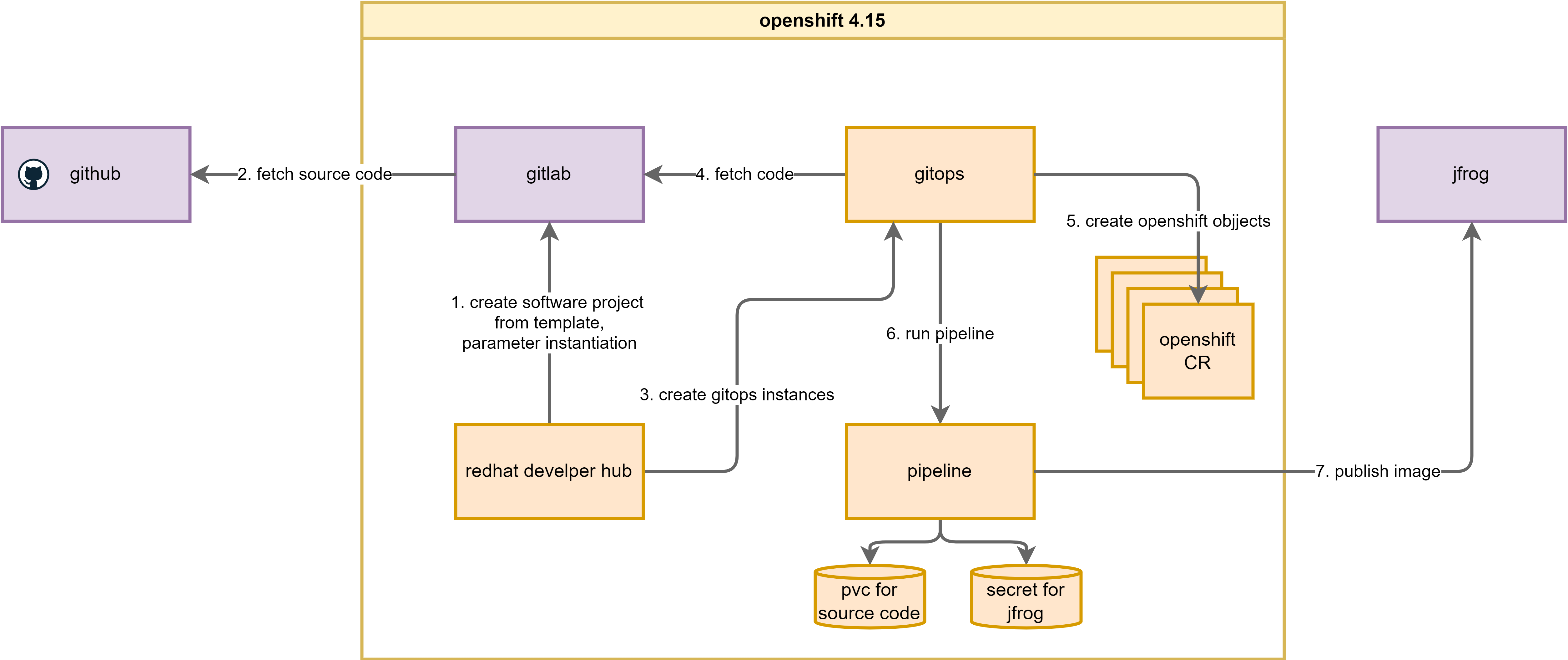

The following is the system architecture used for this document and the workflow between its various components:

install gitlab

GitLab offers various installation methods to meet the needs of different scenarios. After a series of experiments, I found that using the automated Helm installation script provided by Red Hat is the simplest and most effective method.

The project has been adapted to the local environment. The original code address and the adapted code address are as follows:


        oc new-project demo-gitlab

        mkdir -p ${BASE_DIR}/data/git

        cd ${BASE_DIR}/data/git

        # git clone https://github.com/redhat-gpte-devopsautomation/agnosticg.git

        git clone --branch wzh https://github.com/wangzheng422/agnosticg

        cd agnosticg/charts/gitlab/

        cat << EOF > ./values.yaml
        gitlab:
          email:
            address: "gitlab@example.com"
            displayName: "wzh"
            replyTo: "noreply@wzhlab.top"
          smtp:
            enabled: "false"
            domain: "example.com"
            host: "smtp.gitlab-demo-gitlab.apps.demo-01-rhsys.wzhlab.top"
            port: "587"
            user: "gitlab"
            password: "gitlab"
          ssh:
            host: "ssh.gitlab-demo-gitlab.apps.demo-01-rhsys.wzhlab.top"
            port: "22"
          rootPassword: openshift
          host: gitlab-demo-gitlab.apps.demo-01-rhsys.wzhlab.top
          https: "true"
          rootEmail: "admin@wzhlab.top"
          keyBase:
            db: "0123456789"
            otp: "0123456789"
            secret: "0123456789"
          users:
            password: openshift
            count: 2
          groups: []
          # groups:
          # - name: backstage
          #   repo:
          #   - name: software-templates
          #     url: https://github.com/treddy08/software-templates.git

        postgresql:
          dbUser: gitlab
          dbPassword: passw0rd
          dbName: gitlab_production

        EOF

        # remove the role binding we created before

        oc delete rolebinding admin --namespace demo-gitlab

        # install gitlab using helm

        helm install gitlab . --namespace demo-gitlab

        # NAME: gitlab

        # LAST DEPLOYED: Mon Aug 12 21:38:23 2024

        # NAMESPACE: demo-gitlab

        # STATUS: deployed

        # REVISION: 1

        # TEST SUITE: None

        # if you want to remove the gitlab deployment

        # helm uninstall gitlab --namespace demo-gitlab

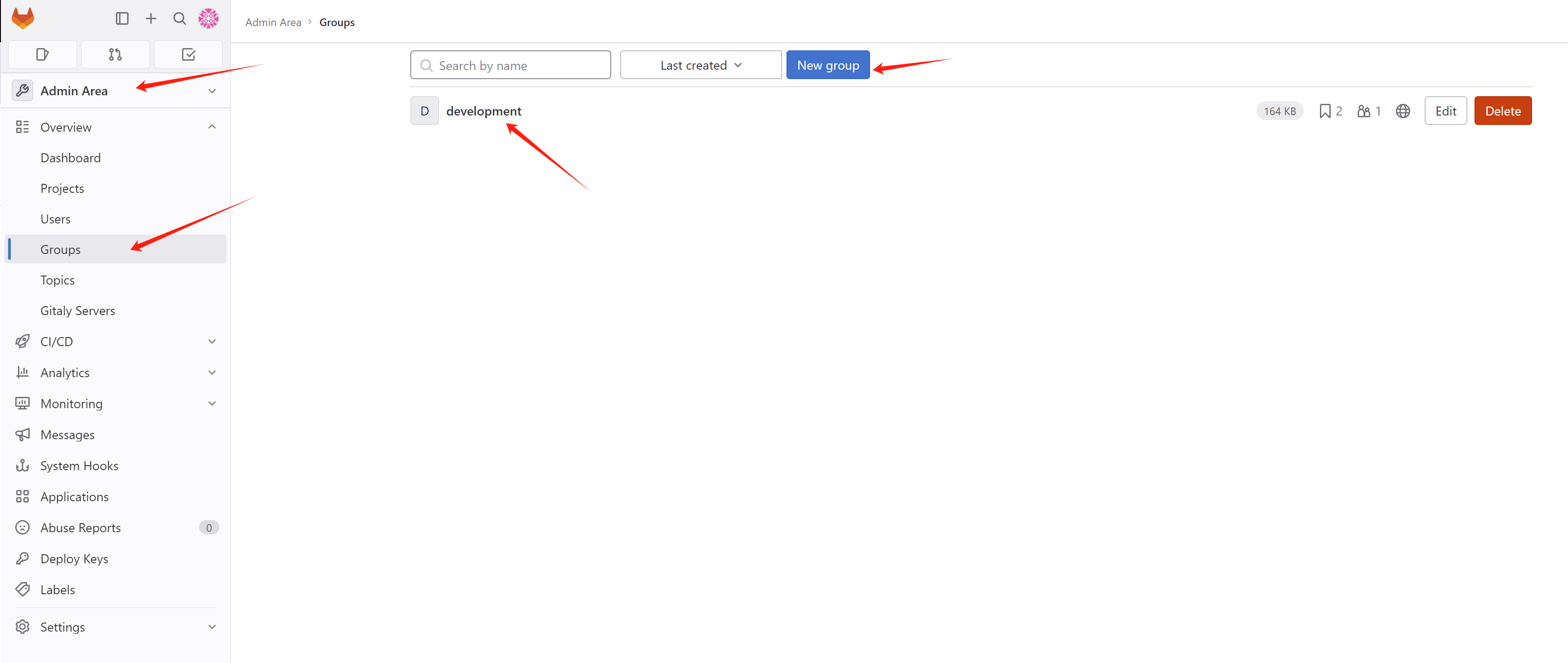

create a group development, for usage in this lab.

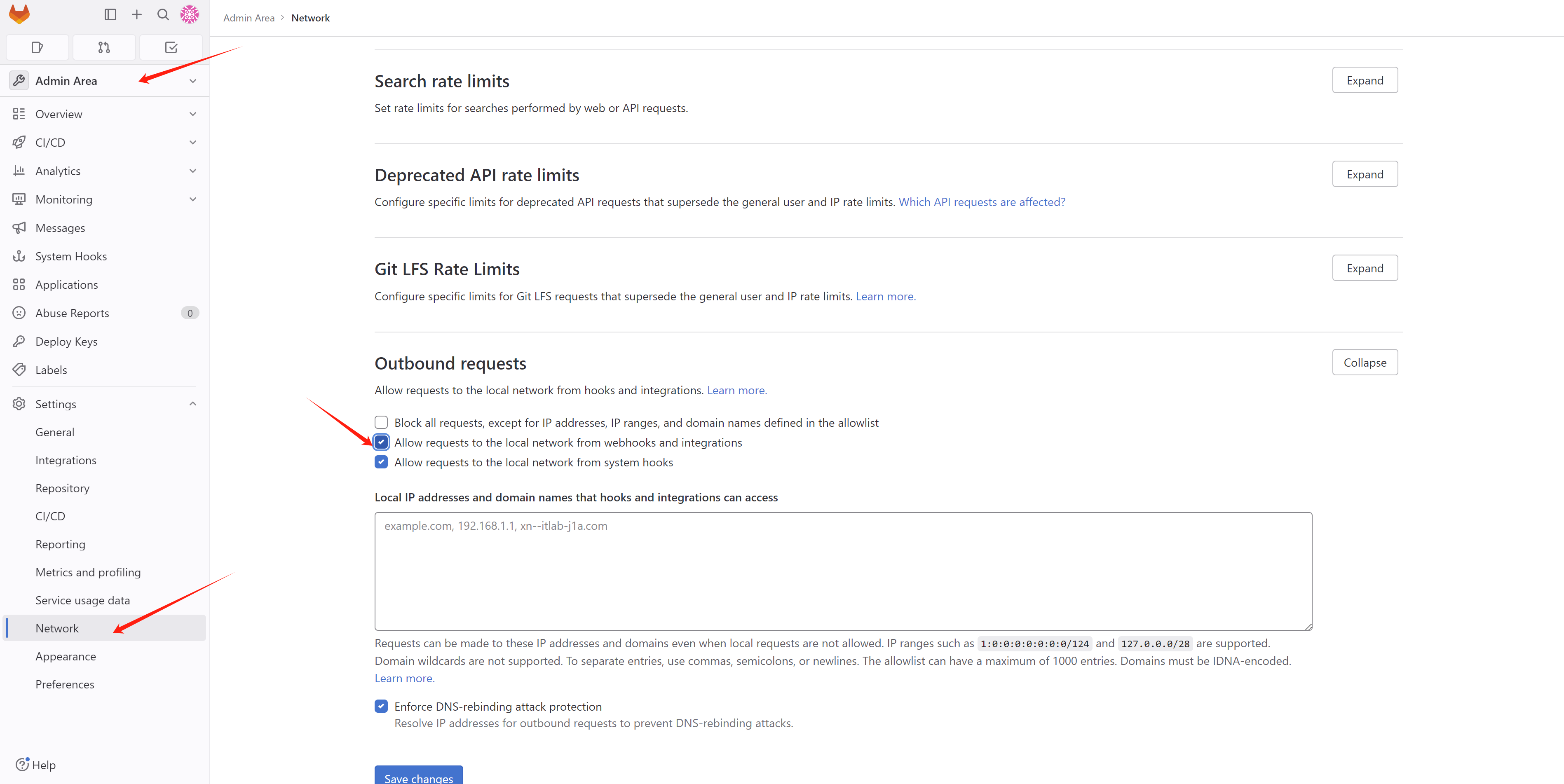

when create web hook, it will report Url is blocked: Requests to the local network are not allowed, so we need to add the following to the gitlab config. Offical docs is here:

install jfrog

To integrate with jfrog, we need a running instance, we will use opensource version of jfrog container registry, and we will use the build-in memory db. The method used in this document is the simplest and most effective, do not use in a production environment.


        # disable ipv6 totally

        cat << EOF >> /etc/sysctl.d/99-sysctl.conf

        net.ipv6.conf.all.disable_ipv6 = 1
        net.ipv6.conf.default.disable_ipv6 = 1
        net.ipv6.conf.ens192.disable_ipv6 = 1
        EOF

        sudo sysctl -p

        sudo systemctl restart NetworkManager

        # install jfrog container registry

        wget https://releases.jfrog.io/artifactory/artifactory-rpms/artifactory-rpms.repo -O jfrog-artifactory-rpms.repo;
        sudo mv jfrog-artifactory-rpms.repo /etc/yum.repos.d/;
        sudo yum update -y
        sudo yum install -y jfrog-artifactory-jcr

        # active build-in memory db

        sed -i 's/#   allowNonPostgresql: false/  allowNonPostgresql: true/' /opt/jfrog/artifactory/var/etc/system.yaml

        systemctl restart artifactory.service

        # systemctl stop artifactory.service

        systemctl status artifactory.service

        # yum remove -y jfrog-artifactory-jcr

        # /bin/rm -rf /opt/jfrog/artifactory

        # /bin/rm -rf /var/opt/jfrog

        cd /opt/jfrog/artifactory/var/log
        tail -f /opt/jfrog/artifactory/var/log/console.log

        # ...

        # ###############################################################

        # ###   All services started successfully in 53.258 seconds   ###

        # ###############################################################

        # 2024-08-26T02:55:55.750Z [jfac ] [INFO ] [30e54f2f793096ff] [CertificateFileHandlerBase:167] [c-default-executor-0] - Loading ca certificate from database.

        # 2024-08-26T02:55:55.898Z [jfac ] [INFO ] [30e54f2f793096ff] [CertificateFileHandlerBase:200] [c-default-executor-0] - [ACCESS BOOTSTRAP] Saved new ca certificate at: /opt/jfrog/artifactory/var/etc/access/keys/ca.crt

        # 2024-08-26T02:55:55.898Z [jfac ] [INFO ] [30e54f2f793096ff] [CertificateFileHandlerBase:167] [c-default-executor-0] - Loading root certificate from database.

        # 2024-08-26T02:55:55.987Z [jfac ] [INFO ] [30e54f2f793096ff] [CertificateFileHandlerBase:200] [c-default-executor-0] - [ACCESS BOOTSTRAP] Saved new root certificate at: /opt/jfrog/artifactory/var/etc/access/keys/root.crt

        # 2024-08-26T02:55:58.714Z [jfrou] [INFO ] [2ba450275ed96969] [external_topology.go:272      ] [main                ] [] - External Topology changed: dify state changed (jfac@01j669r1vbmrhn1rx61rm213nz HEALTHY,jffe@01j669r1vbmrhn1rx61rm213nz HEALTHY,jfmd@01j669r08xadf1y7mrzh7296vw HEALTHY,jfob@01j669r75rr6211mt43gq0091t HEALTHY,jfrt@01j669r75rr6211mt43gq0091t HEALTHY)

        # 2024-08-26T02:55:58.717Z [jfrou] [INFO ] [2ba450275ed96969] [routing_handler.go:410        ] [main                ] [] - External topology is changed, updating traefik external routes

        # 2024-08-26T02:56:01.951Z [jfrt ] [INFO ] [33a70b18e4758697] [.e.EventsLogCleanUpService:111] [e4758697|art-exec-22] - Starting cleanup of old events from event log

        # 2024-08-26T02:56:01.958Z [jfrt ] [INFO ] [33a70b18e4758697] [.e.EventsLogCleanUpService:117] [e4758697|art-exec-22] - deleteFrom=1724640931725

        # 2024-08-26T02:56:01.959Z [jfrt ] [INFO ] [33a70b18e4758697] [.e.EventsLogCleanUpService:124] [e4758697|art-exec-22] - eventsDeleteInterval=14400000

        # 2024-08-26T02:56:02.010Z [jfrt ] [INFO ] [33a70b18e4758697] [.e.EventsLogCleanUpService:127] [e4758697|art-exec-22] - maxBoundary.timestamp=1724637331741

        # 2024-08-26T02:56:02.010Z [jfrt ] [INFO ] [33a70b18e4758697] [.e.EventsLogCleanUpService:128] [e4758697|art-exec-22] - maxBoundary.deleteErrors=false

        # 2024-08-26T02:56:02.010Z [jfrt ] [INFO ] [33a70b18e4758697] [.e.EventsLogCleanUpService:155] [e4758697|art-exec-22] - Cleanup of old events from event log finished

        # 2024-08-26T02:56:02.014Z [jfrt ] [INFO ] [33a70b18e4758697] [onStatusStorageServiceImpl:111] [onitor-migration-job] - Inserting new migration status record 'MigrationStatus(identifier=event-table-repo-key-migration, started=1724640962014, finished=0, migrationInfoBlob=MarkerMigrationInfoBlob(serverId=))'

        # 2024-08-26T02:56:02.035Z [jfrt ] [INFO ] [33a70b18e4758697] [entTableRepoKeyMigrationDao:86] [onitor-migration-job] - start execute events table repo key migration in the first time

        # 2024-08-26T02:56:02.043Z [jfrt ] [INFO ] [33a70b18e4758697] [ntTableRepoKeyMigrationDao:134] [onitor-migration-job] - finish to add  index on node_events

        # 2024-08-26T02:56:07.055Z [jfrt ] [INFO ] [33a70b18e4758697] [onStatusStorageServiceImpl:124] [onitor-migration-job] - Migration for 'event-table-repo-key-migration' has finished.

        # 2024-08-26T02:56:07.061Z [jfrt ] [INFO ] [33a70b18e4758697] [ntTableRepoKeyMigrationDao:185] [onitor-migration-job] - successfully finished execute events table repo key migration


        # goto webui

        # http://192.168.50.17:8082/ui/

        # user: admin

        # passwd: password

        # to accept the eula

        curl -XPOST -vu admin:password http://192.168.50.17:8082/artifactory/ui/jcr/eula/accept

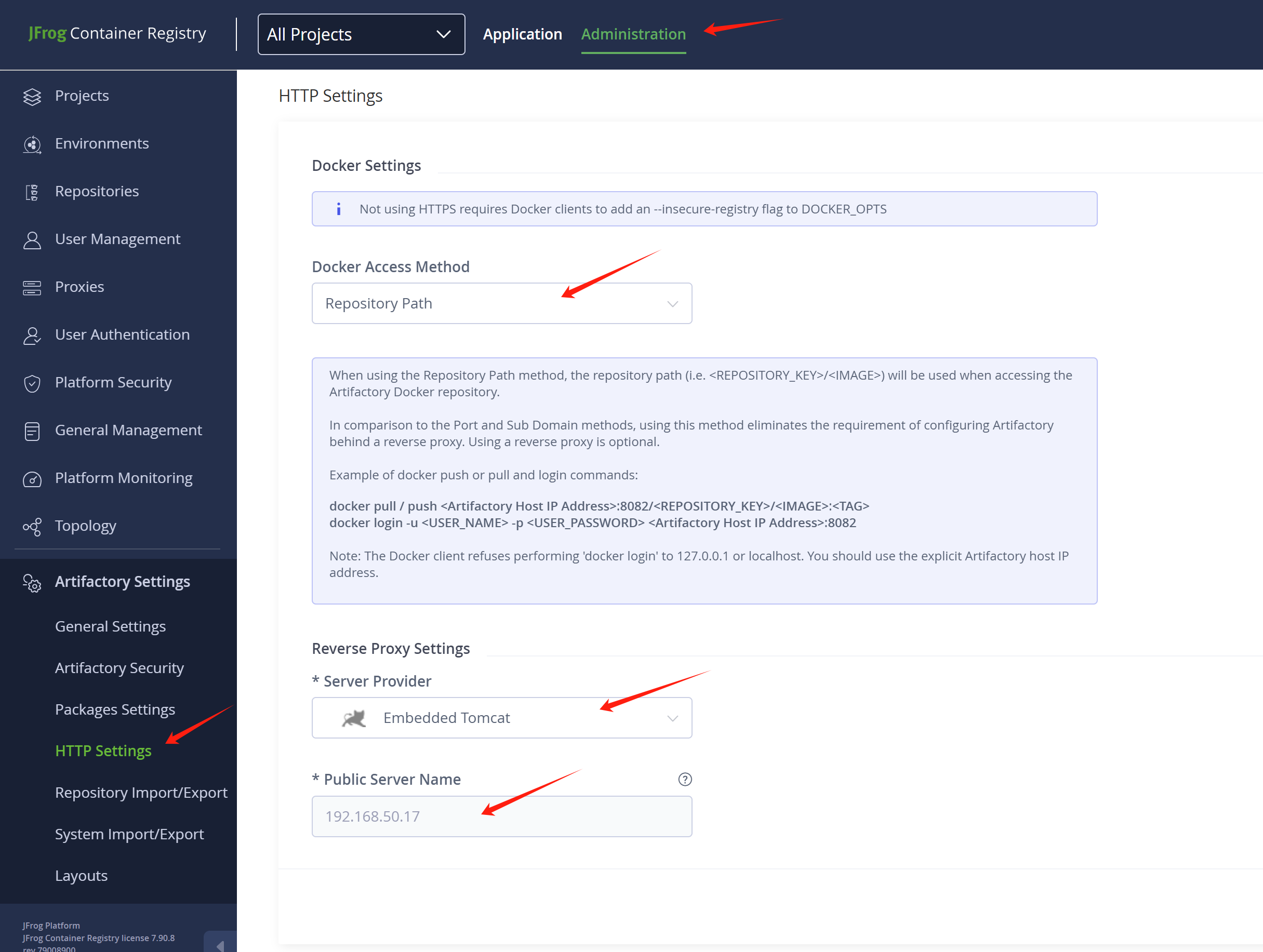

Ensure your jfrog http settings, in this demo, we use the simplest way.


        # testing with the jfrog

        # first trust the jfrog http endpoint

        cat << EOF > /etc/containers/registries.conf.d/99-wzh.conf
        [[registry]]
        location = "192.168.50.17:8082"
        insecure = true
        EOF

        # then login and push a image

        podman login 192.168.50.17:8082/demo-01

        podman tag docker.io/library/busybox 192.168.50.17:8082/demo-01/busybox:v1

        podman push 192.168.50.17:8082/demo-01/busybox:v1

We need to add the jfrog registry to the insecure registry list of the openshift cluster, and add the pull secret for the jfrog registry.


        # for ocp, add inscure registry for jfrog

        cat << EOF > ${BASE_DIR}/data/install/ocp-registry.yaml
        spec:
          registrySources:
            # this will write to /etc/containers/policy.json
            allowedRegistries:
            - docker.io
            - quay.io
            - registry.redhat.io
            - image-registry.openshift-image-registry.svc:5000
            - registry.k8s.io
            - gcr.io
            - k8s.gcr.io
            - nvcr.io
            - registry.access.redhat.com
            - registry.connect.redhat.com
            - ghcr.io
            - 192.168.50.17:8082
            # this will write to /etc/containers/registries.conf
            insecureRegistries:
            - 192.168.50.17:8082
        EOF

        oc patch image.config.openshift.io/cluster --patch "$(cat ${BASE_DIR}/data/install/ocp-registry.yaml)" --type=merge


        # add pull secret for the jfrog registry

        # https://docs.openshift.com/container-platform/4.15/openshift_images/managing_images/using-image-pull-secrets.html#images-update-global-pull-secret_using-image-pull-secrets

        oc registry login --registry="192.168.50.17:8082" \
          --auth-basic="admin:password" \
          --to=${BASE_DIR}/data/install/internal-registry-secret.json

        # merge with existed

        jq --argjson newAuth "`cat ${BASE_DIR}/data/install/internal-registry-secret.json`" '.auths += $newAuth.auths' "${BASE_DIR}/data/pull-secret.json" | jq -c . > "${BASE_DIR}/data/pull-secret.json.tmp"

        oc set data secret/pull-secret -n openshift-config \
          --from-file=.dockerconfigjson=${BASE_DIR}/data/pull-secret.json.tmp

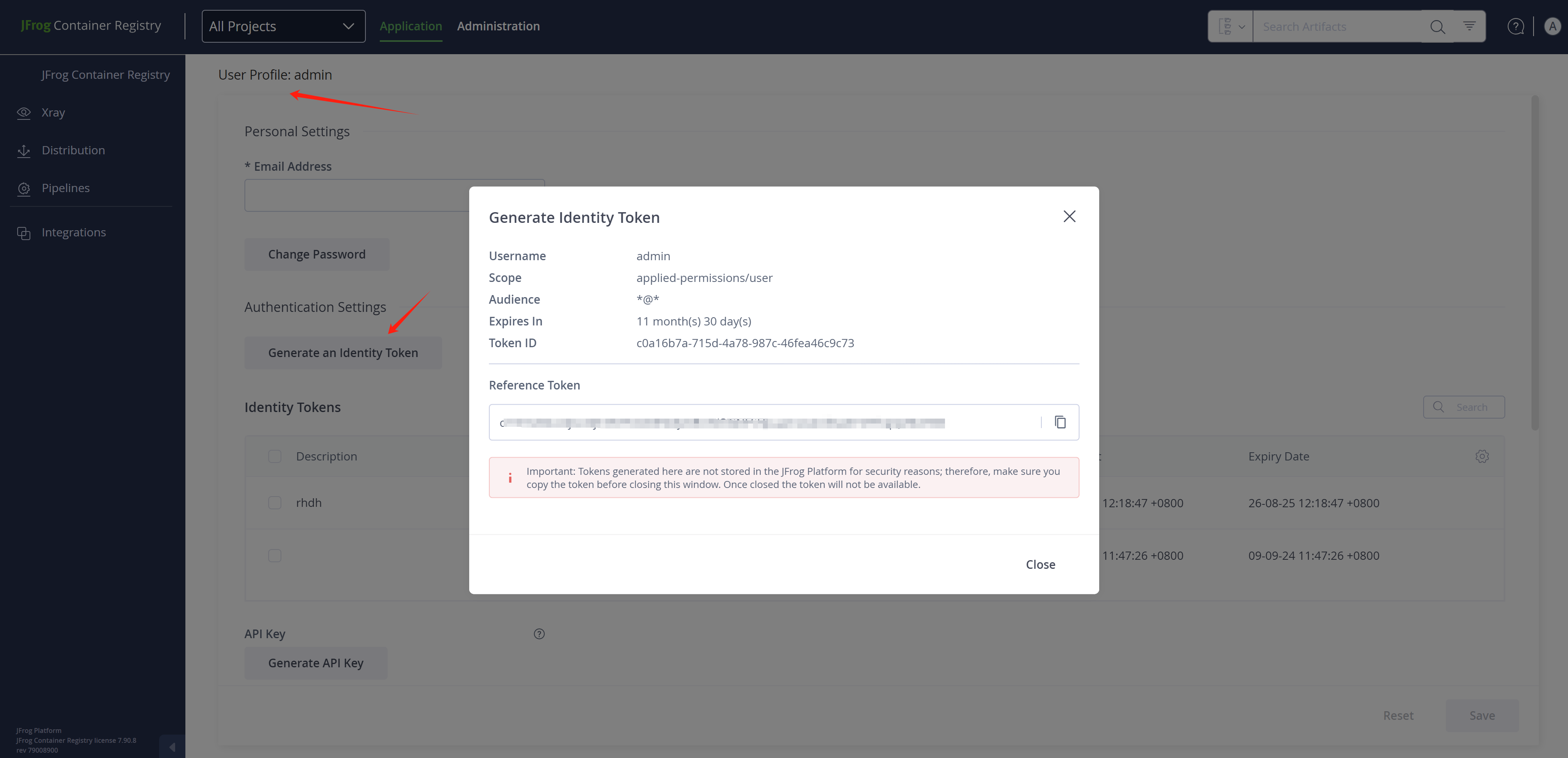

Here is how to get token, which will be used by rhdh proxy config

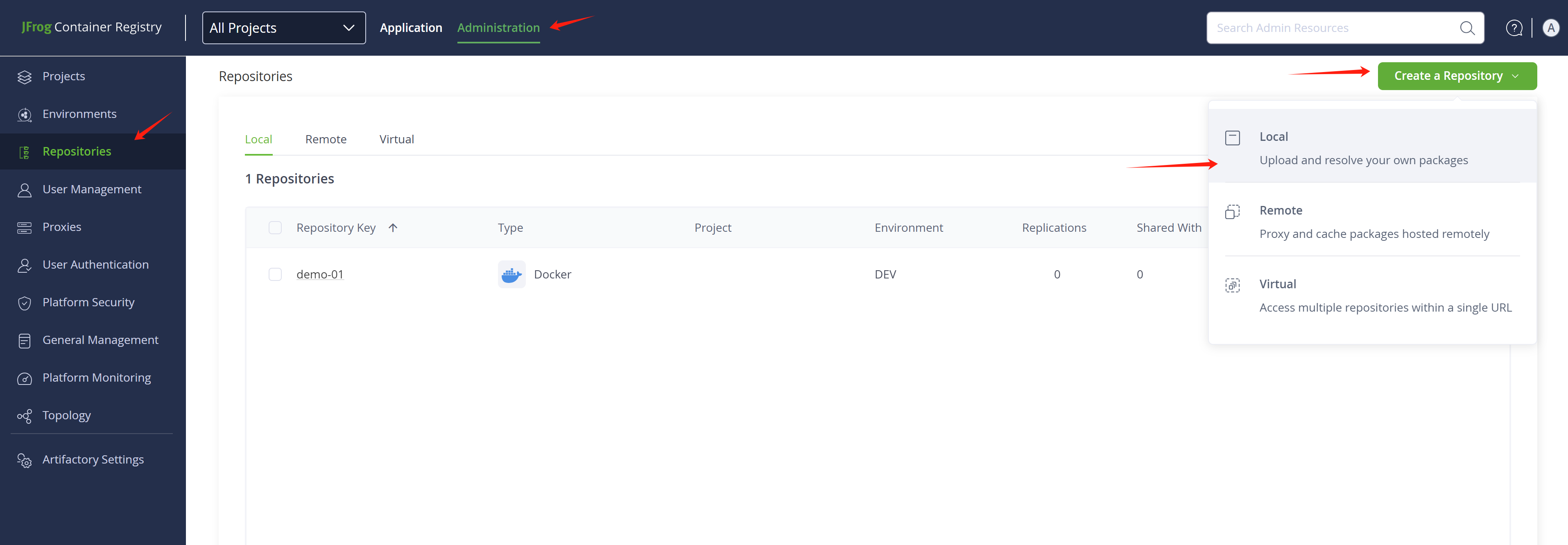

You need to add a repository in jfrog, using type docker. In our demo, the repository name should be the name of the namespace your application deployed in the openshift4 cluster.


        # jfrog using graphql to query metadata

        # https://jfrog.com/help/r/jfrog-rest-apis/example-1-package-by-name-and-type

        cat << EOF > /tmp/demo.json
        {
          "query": "query { packages(filter: { name: \"*\", packageTypeIn: [NPM, DOCKER] }, first: 3, orderBy: { field: NAME, direction: DESC }) { edges { node { name description } } } }"
        }
        EOF

        curl -H "Authorization: Bearer cmVmdGtuOjAxOjE3NTYxODE5Mjc6RUtVOGNFSHpuamsweUh6aXY4TFhqQzRtcHBh" -XPOST http://192.168.50.17:8082/metadata/api/v1/query -d @/tmp/demo.json

install gitops

Just install the redhat gitops operator, it will create an argocd instance by default, but we will not use the default one, we will create a new argocd instance.

When deploying applications using a private certificate, Argo CD may not be able to access gitlab due to its default configuration not recognizing private certificates. To resolve this, we need to configure Argo CD to support private certificates. Two methods can be used:

  1. Command line method: Modify Argo CD configuration using command line tools to support private certificates.

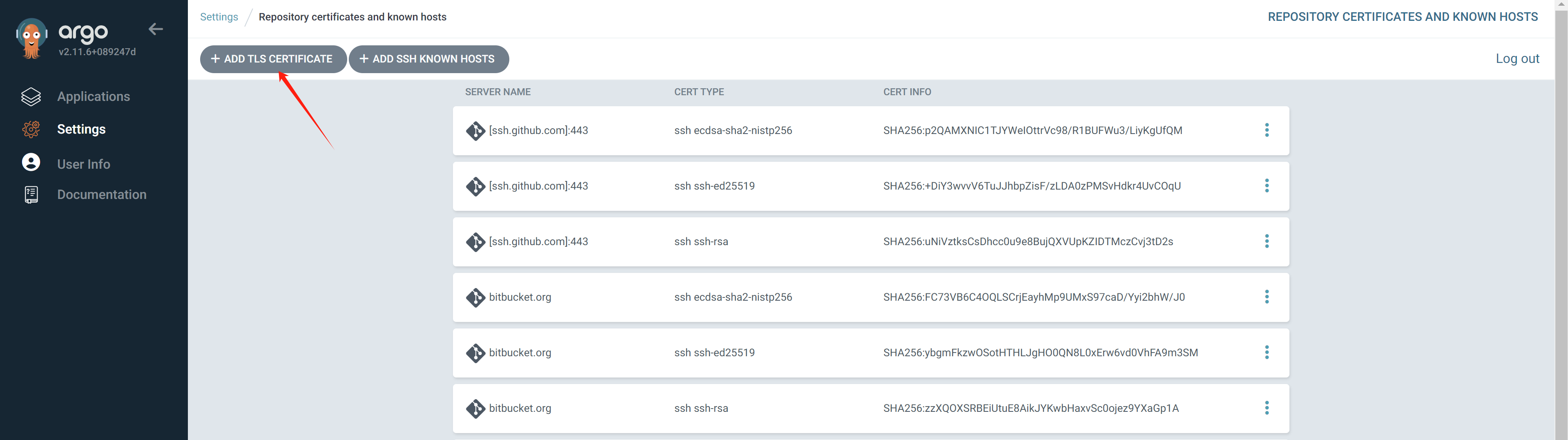

  2. Manual interface method: Directly configure certificate information through Argo CD’s graphical interface, enabling it to recognize private certificates.

We recommend using the manual webUI method as it is more intuitive and easier to operate. Of course, the command line method can also be used, and specific methods can be found in relevant documentation.

How to deal with gitlab self-cert


        # get ingress cert of openshift

        oc get secret router-certs-default -n openshift-ingress -o jsonpath='{.data.tls\.crt}' | base64 --decode > ${BASE_DIR}/data/install/openshift-ingress.crt

        # cat ${BASE_DIR}/data/install/openshift-ingress.crt

        # # the content of your openshift ingress cert

        # create a configmap, add the content of openshift-ingress.crt to a host key

        oc delete configmap argocd-tls-certs-cm -n demo-gitops
        oc create configmap argocd-tls-certs-cm -n demo-gitops --from-file=gitlab-demo-gitlab.apps.demo-01-rhsys.wzhlab.top=${BASE_DIR}/data/install/openshift-ingress.crt
        oc label configmap argocd-tls-certs-cm -n demo-gitops app.kubernetes.io/name=argocd-tls-certs-cm app.kubernetes.io/part-of=argocd

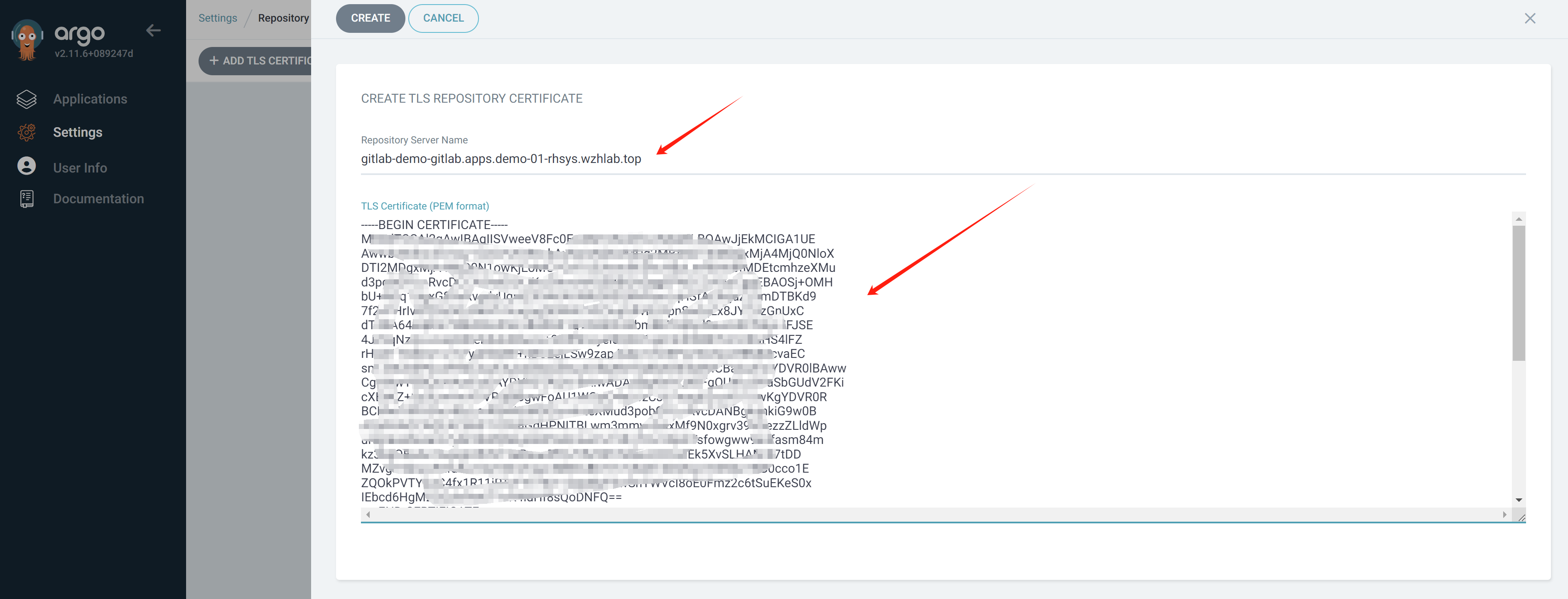

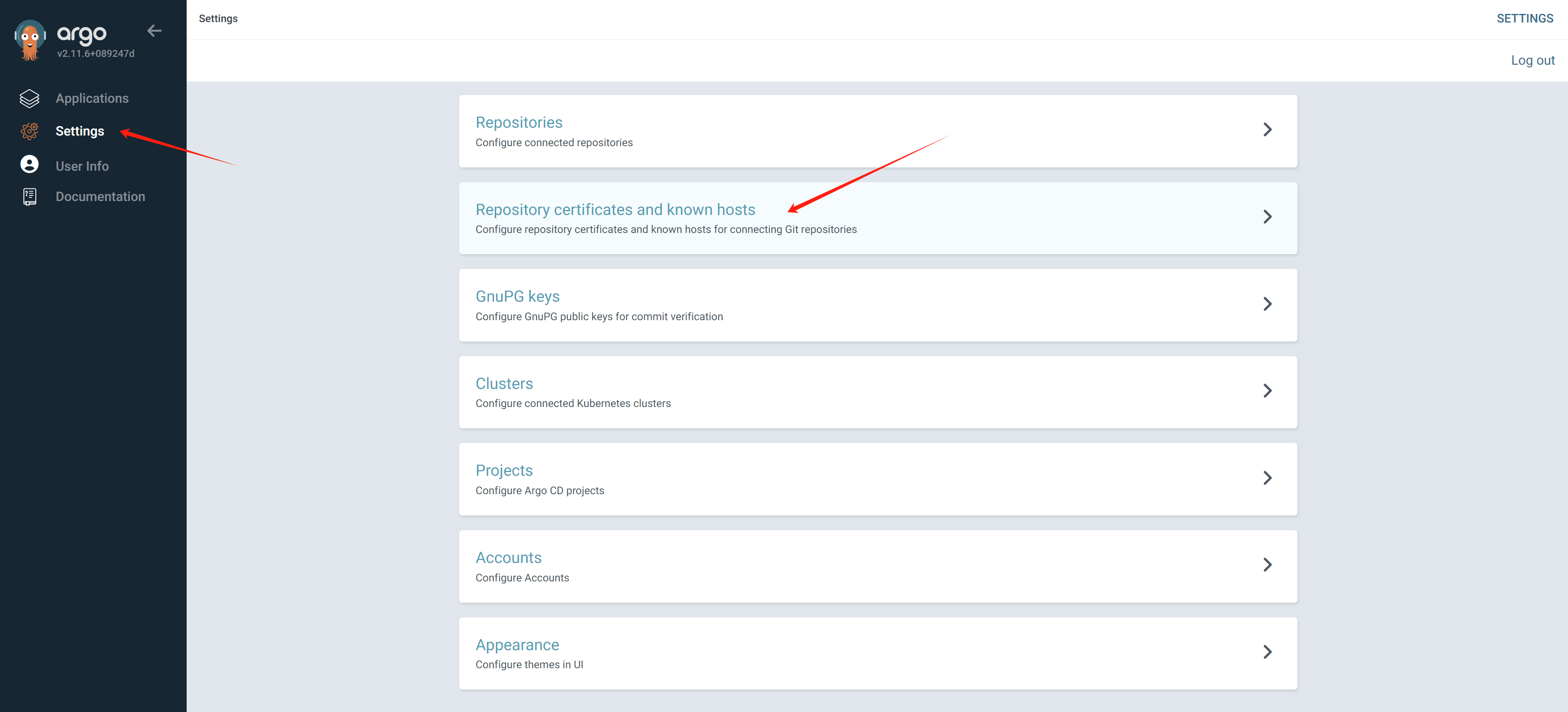

If you want to do it manually.

Now, create the argocd/gitops instance. When creating an Argo CD instance, we will also generate a user account. Next, we will set the password for this user via the command line. Additionally, we will demonstrate how to create this user’s account and token using a graphical interface. However, to facilitate more intuitive operations, we still recommend prioritizing the use of command line methods.


        ARGOCD_NS="demo-gitops"
        ARGOCD_INSTANCE_NAME="argocd"

        oc new-project $ARGOCD_NS

        oc delete -f ${BASE_DIR}/data/install/argocd.yaml -n $ARGOCD_NS

        # https://github.com/argoproj/argo-cd/blob/master/docs/operator-manual/user-management/index.md

        cat << EOF > ${BASE_DIR}/data/install/argocd.yaml

        # ---

        # apiVersion: v1

        # kind: ConfigMap

        # metadata:

        #   name: argocd-wzh-user-cm

        #   labels:

        #     app.kubernetes.io/name: argocd-wzh-user-cm

        #     app.kubernetes.io/part-of: argocd

        # data:

        #   # add an additional local user with apiKey and login capabilities

        #   #   apiKey - allows generating API keys

        #   #   login - allows to login using UI

        #   accounts.alice: apiKey, login

        #   # disables user. User is enabled by default

        #   accounts.alice.enabled: "true"

        ---
        apiVersion: argoproj.io/v1beta1
        kind: ArgoCD
        metadata:
          name: $ARGOCD_INSTANCE_NAME
        spec:
          extraConfig:
            accounts.alice: apiKey, login
            accounts.alice.enabled: "true"
          server:
            route:
              enabled: true
              tls:
                termination: passthrough
          applicationInstanceLabelKey: wzhlab.top/demo-argocd
          rbac:
            defaultPolicy: 'role:admin'
            policy: |
              g, system:cluster-admins, role:admin
              g, alice, role:admin
              p, alice, *, *, *, allow
            scopes: '[groups]'
          controller:
            appSync: 30s

        EOF

        oc create --save-config -f ${BASE_DIR}/data/install/argocd.yaml -n $ARGOCD_NS

        # get password for admin

        oc get secret argocd-cluster -n $ARGOCD_NS -o jsonpath='{.data.admin\.password}' | base64 --decode && echo

        # X6KEJ0wPimlMFj7CkfAULQITW9ZBxh2V

        # create passwd for alice

        argocd login argocd-demo-gitops.apps.demo-01-rhsys.wzhlab.top

        # Context 'kubernetes' updated

        argocd proj list

        # NAME     DESCRIPTION  DESTINATIONS  SOURCES  CLUSTER-RESOURCE-WHITELIST  NAMESPACE-RESOURCE-BLACKLIST  SIGNATURE-KEYS  ORPHANED-RESOURCES

        # default               *,*           *        */*                         <none>                        <none>          disabled

        argocd account update-password --account alice --new-password redhatocp

        # *** Enter password of currently logged in user (admin):

        # Password updated

        argocd account generate-token --account alice

        # eyJhbGxxxxxxxxxxxxxxxxxxxxxxx

        argocd account list

        # NAME   ENABLED  CAPABILITIES

        # admin  true     login

        # alice  true     apiKey, login

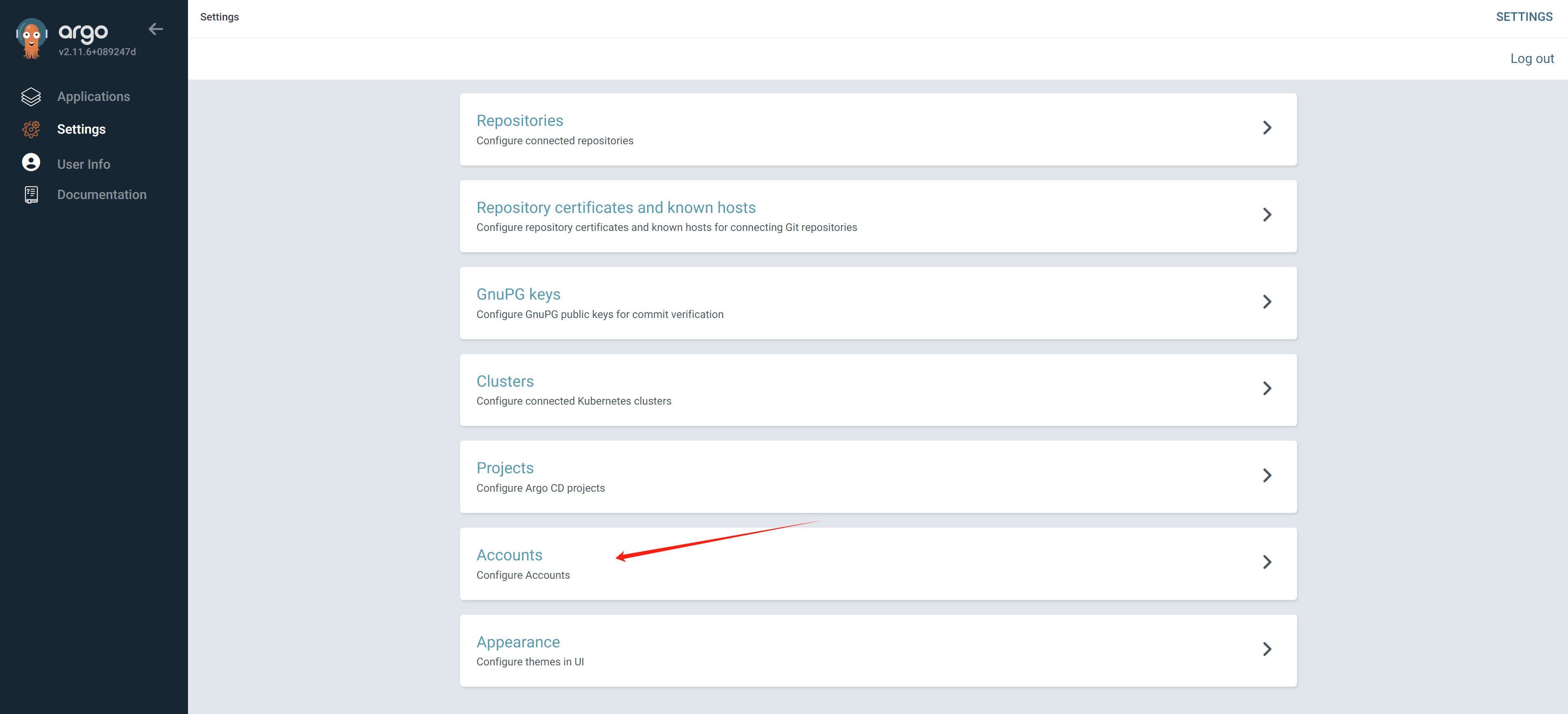

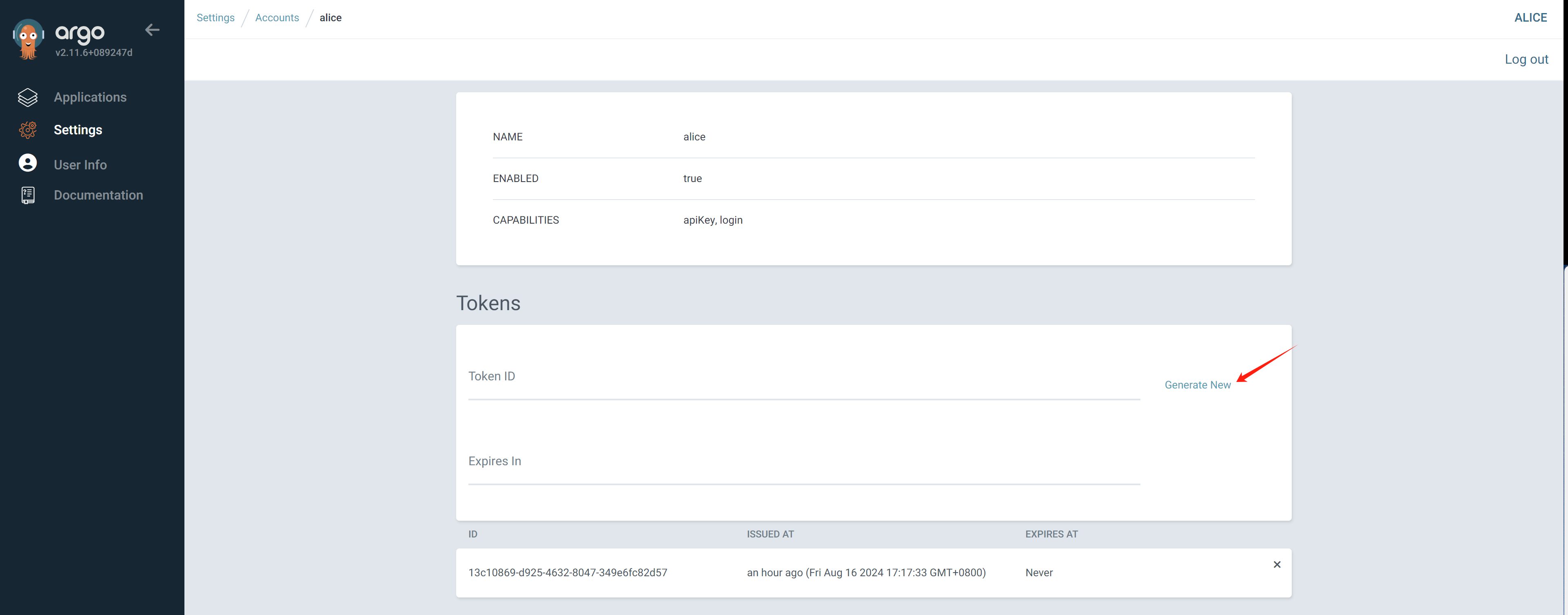

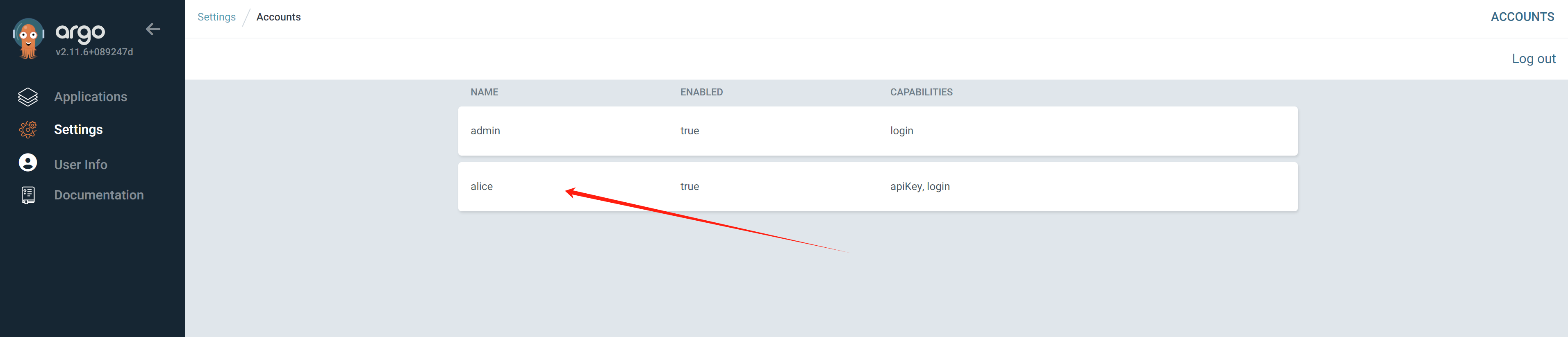

To create token for user alice, login argocd instance webui using admin, and get the password from secret.

Copy the generated token, it will not be shown again.

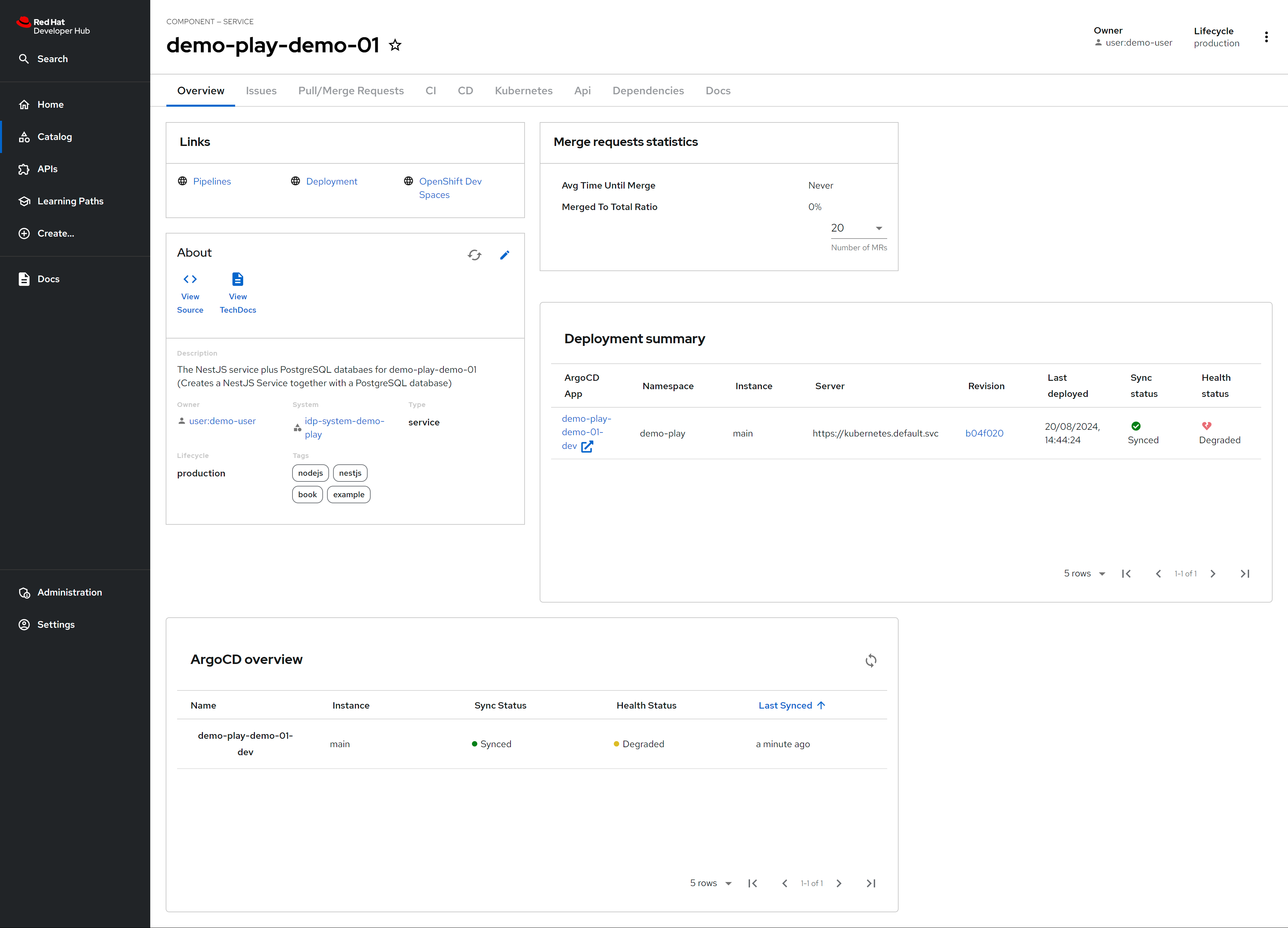

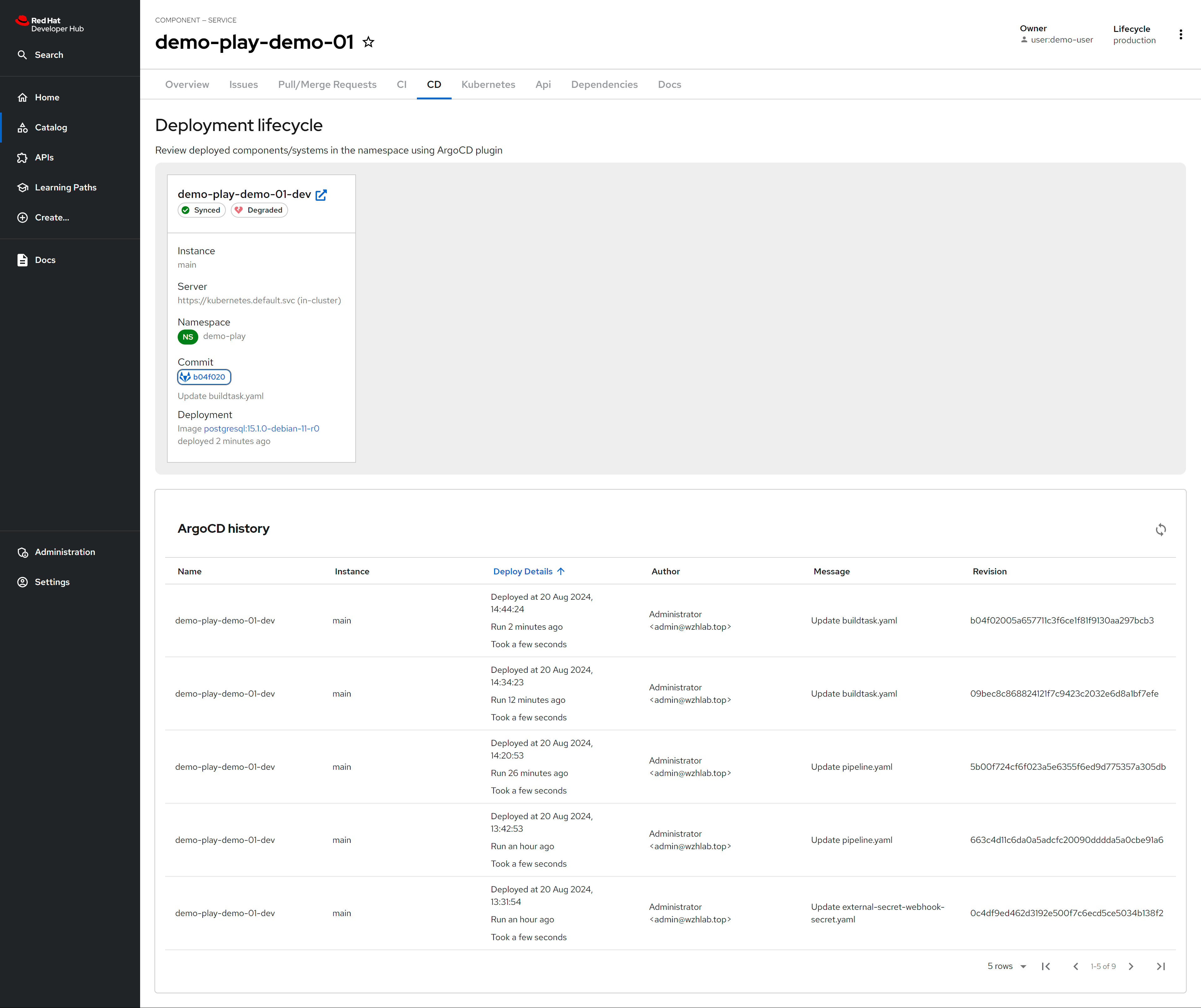

To ensure everything is ok, just try to create a new app following:

We can know, the gitops/argocd is working.

When configure the gitops/argocd plugin in rhdh, we need to change source code to search the argocd application by the wzhlab.top/demo-argocd label. Here is the code needs to changes.

First, in the catalog-info.yaml, define the search criteria, and let the plugin to search argocd application.

apiVersion: backstage.io/v1alpha1
        kind: Component
        metadata:
          name: demo-play-demo-01
          description: 'The NestJS service plus PostgreSQL databaes for demo-play-demo-01 (Creates a NestJS Service together with a PostgreSQL database)'
          annotations:
            ......
            wzhlab.top/app-name: demo-play-demo-01-dev
            argocd/app-selector: wzhlab.top/app-name=demo-play-demo-01-dev
            argocd/instance-name: main
            ......
        ......

Then, in gitops/argocd application, add the annotation, so the application can be selected.

---
        apiVersion: argoproj.io/v1alpha1
        kind: Application
        metadata:
          name: demo-play-demo-01-dev
          namespace: demo-gitops
          labels:
            # argocd/app-name: demo-play-demo-01-dev
            wzhlab.top/app-name: demo-play-demo-01-dev
          annotations:
            # argocd/app-name: demo-play-demo-01-dev
            wzhlab.top/app-name: demo-play-demo-01-dev
        ......

[!NOTE] Do not use argocd/app-name, it will cause argocd plugin to dump for unknown reason.

install pipeline

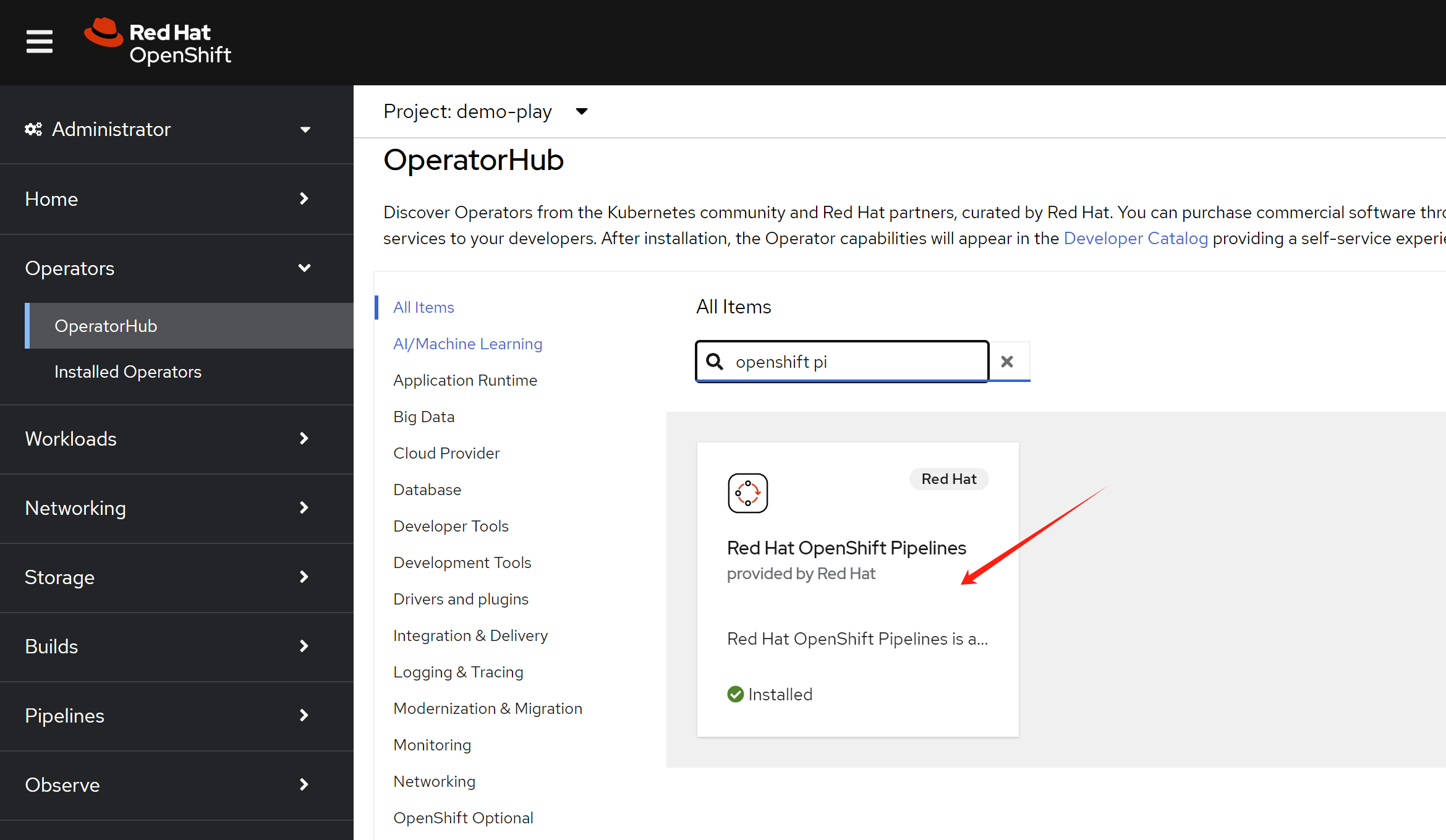

Just install the redhat pipeline operator, there is no need to create a pipeline instance.

install External Secrets Operator

In our demo, it use external secret to import tokens, like gitlab webhook token, then used in pipeline and openshift4 deployment.

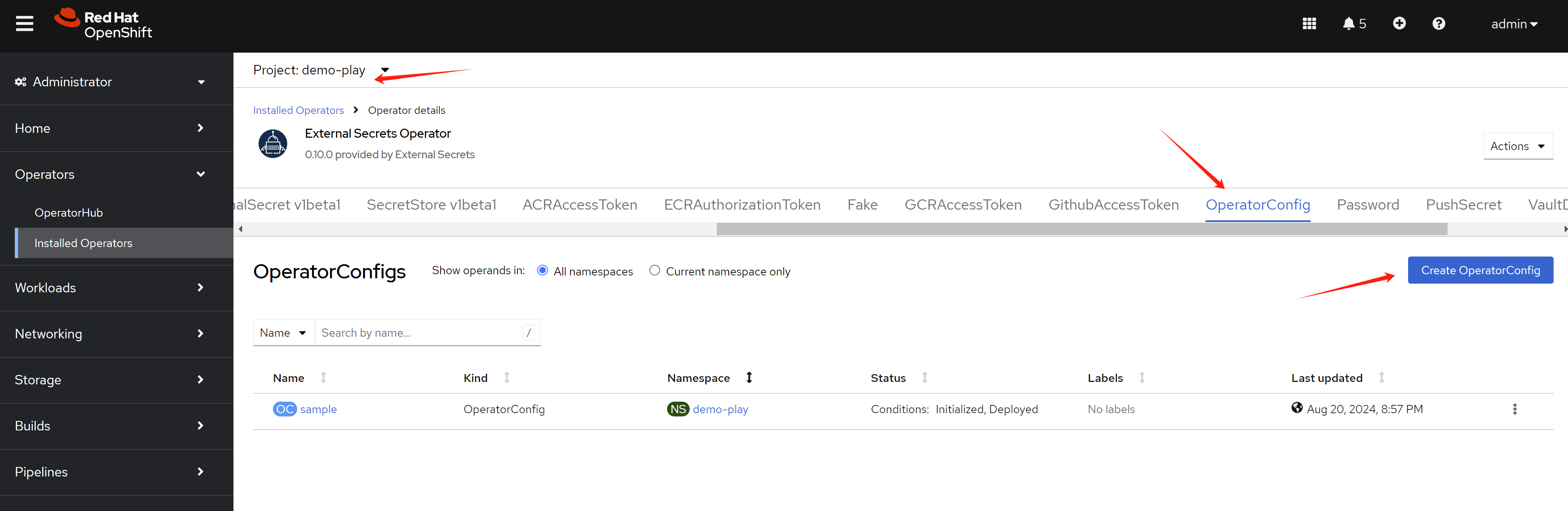

deploy an operator config instance first.

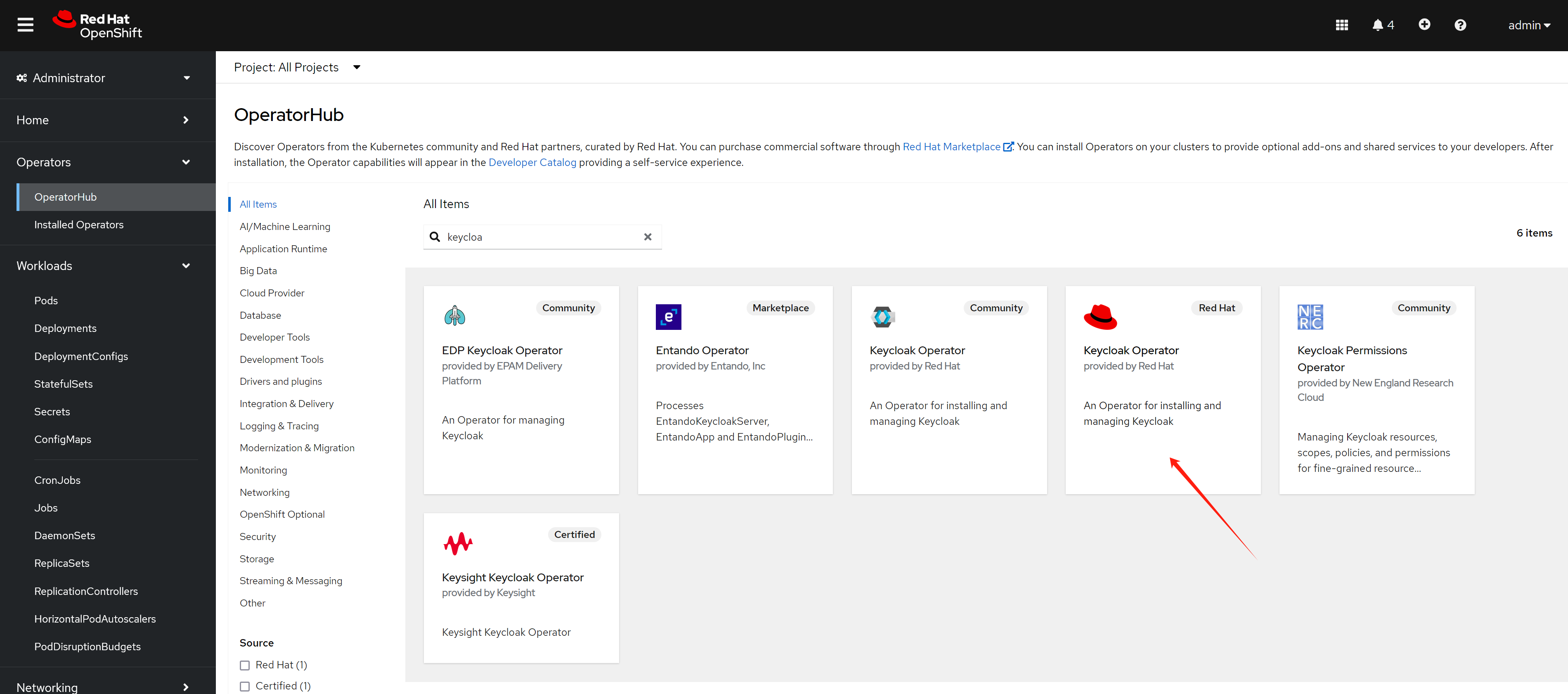

install rhsso/keycloak

We will use keycloak to manage the user, and use it as the oauth2 provider for the rhdh.


        oc new-project demo-keycloak



        oc delete -f ${BASE_DIR}/data/install/keycloak-db-pvc.yaml -n demo-keycloak

        cat << EOF > ${BASE_DIR}/data/install/keycloak-db-pvc.yaml
        apiVersion: v1
        kind: PersistentVolumeClaim
        metadata:
          name: postgresql-db-pvc
        spec:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 1Gi
        EOF

        oc create -f ${BASE_DIR}/data/install/keycloak-db-pvc.yaml -n demo-keycloak



        oc delete -f ${BASE_DIR}/data/install/keycloak-db.yaml -n demo-keycloak

        cat << EOF > ${BASE_DIR}/data/install/keycloak-db.yaml
        ---
        apiVersion: apps/v1
        kind: StatefulSet
        metadata:
          name: postgresql-db
        spec:
          serviceName: postgresql-db-service
          selector:
            matchLabels:
              app: postgresql-db
          replicas: 1
          template:
            metadata:
              labels:
                app: postgresql-db
            spec:
              containers:
                - name: postgresql-db
                  image: postgres:15
                  args: ["-c", "max_connections=1000"]
                  volumeMounts:
                    - mountPath: /data
                      name: cache-volume
                  env:
                    - name: POSTGRES_USER
                      value: testuser
                    - name: POSTGRES_PASSWORD
                      value: testpassword
                    - name: PGDATA
                      value: /data/pgdata
                    - name: POSTGRES_DB
                      value: keycloak
              volumes:
                - name: cache-volume
                  persistentVolumeClaim:
                    claimName: postgresql-db-pvc
        ---
        apiVersion: v1
        kind: Service
        metadata:
          name: postgres-db
        spec:
          selector:
            app: postgresql-db
          type: LoadBalancer
          ports:
          - port: 5432
            targetPort: 5432

        EOF

        oc create -f ${BASE_DIR}/data/install/keycloak-db.yaml -n demo-keycloak



        RHSSO_HOST="keycloak-demo-keycloak.apps.demo-01-rhsys.wzhlab.top"

        cd ${BASE_DIR}/data/install/

        openssl req -subj "/CN=$RHSSO_HOST/O=Test Keycloak./C=US" -newkey rsa:2048 -nodes -keyout key.pem -x509 -days 365 -out certificate.pem

        oc delete secret example-tls-secret -n demo-keycloak
        oc create secret tls example-tls-secret --cert certificate.pem --key key.pem -n demo-keycloak



        oc delete secret keycloak-db-secret -n demo-keycloak
        oc create secret generic keycloak-db-secret -n demo-keycloak \
          --from-literal=username=testuser \
          --from-literal=password=testpassword



        oc delete -f ${BASE_DIR}/data/install/keycloak.yaml -n demo-keycloak

        cat << EOF > ${BASE_DIR}/data/install/keycloak.yaml
        apiVersion: k8s.keycloak.org/v2alpha1
        kind: Keycloak
        metadata:
          name: example-kc
        spec:
          instances: 1
          db:
            vendor: postgres
            host: postgres-db
            usernameSecret:
              name: keycloak-db-secret
              key: username
            passwordSecret:
              name: keycloak-db-secret
              key: password
          http:
            tlsSecret: example-tls-secret
          # ingress:
          #   className: openshift-default
          hostname:
            hostname: $RHSSO_HOST
          proxy:
            headers: xforwarded
        EOF

        oc create -f ${BASE_DIR}/data/install/keycloak.yaml -n demo-keycloak

        # get the keycloak initial admin user and password

        oc get secret example-kc-initial-admin -n demo-keycloak -o jsonpath='{.data.username}' | base64 --decode && echo

        # admin

        oc get secret example-kc-initial-admin -n demo-keycloak -o jsonpath='{.data.password}' | base64 --decode && echo

        # 51a3bf077ab5465e84c51729c6a29f27


        # in postgresql pod terminal

        psql -U testuser -d keycloak

        # Type "help" for help.

        # keycloak=# SHOW max_connections;

        #  max_connections

        # -----------------

        #  1000

        # (1 row)

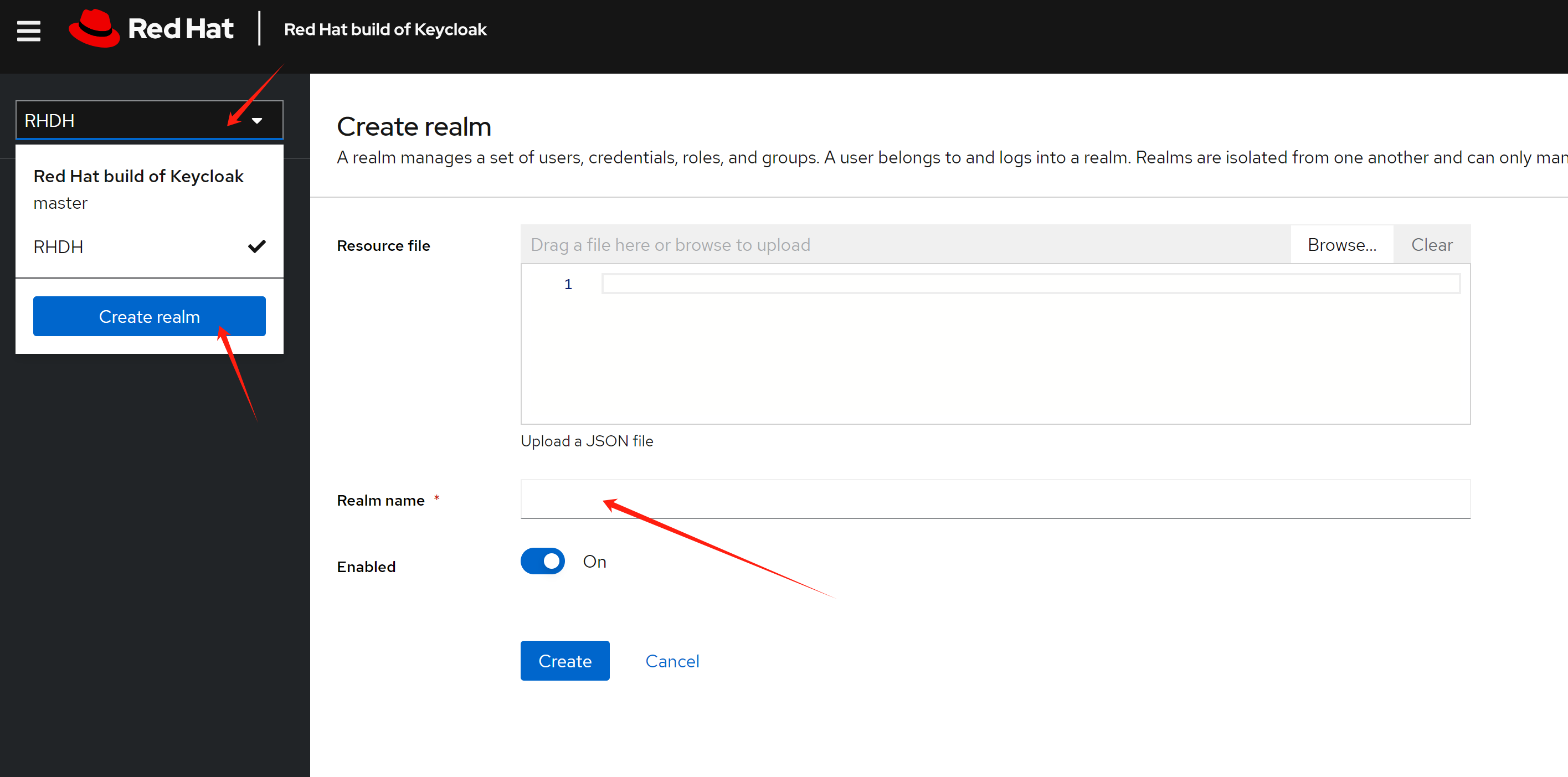

Base on the demo requirement, we need to create a realm named RHDH, which will be used for rhdh later.

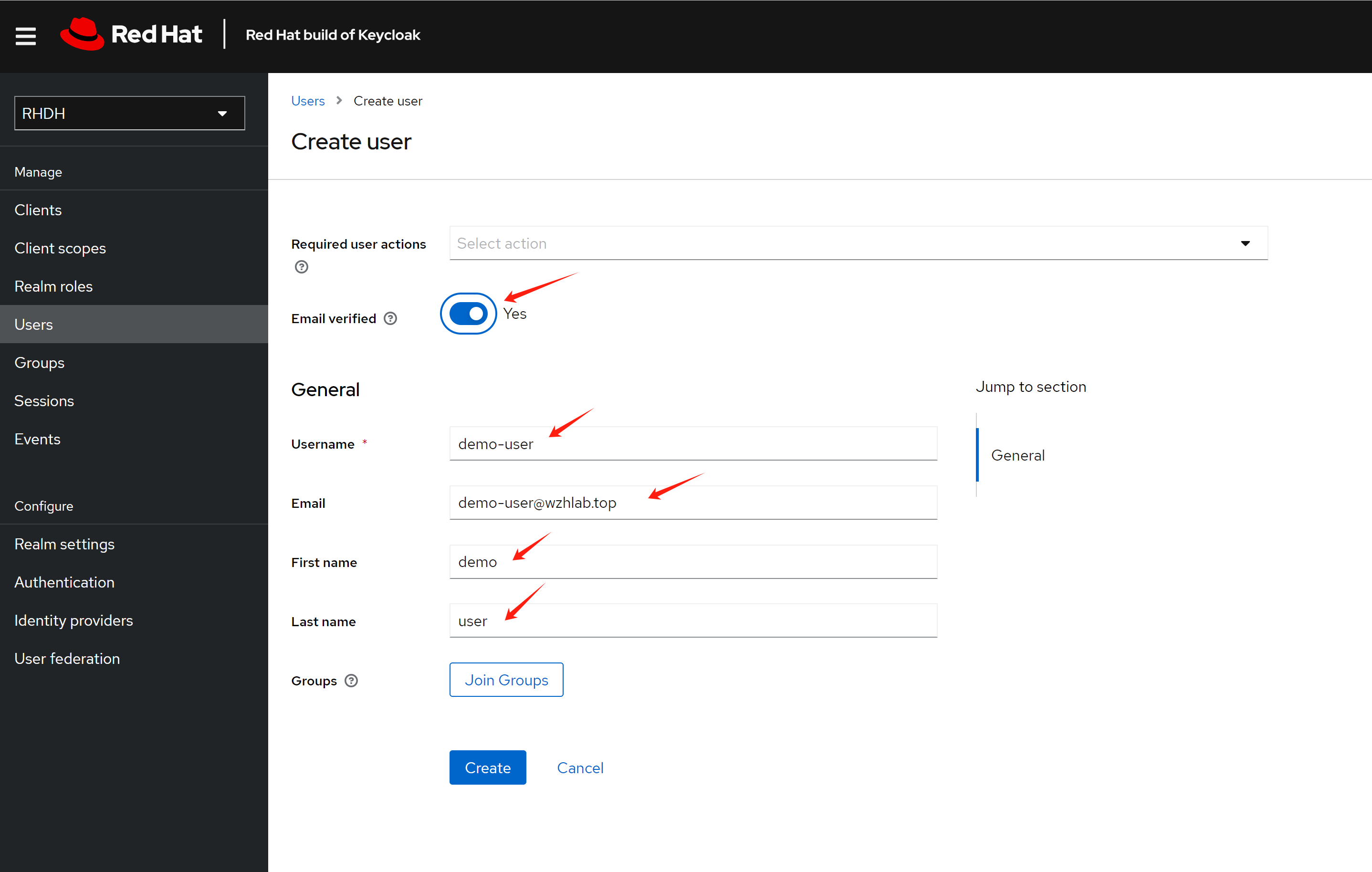

Create a test use demo-user

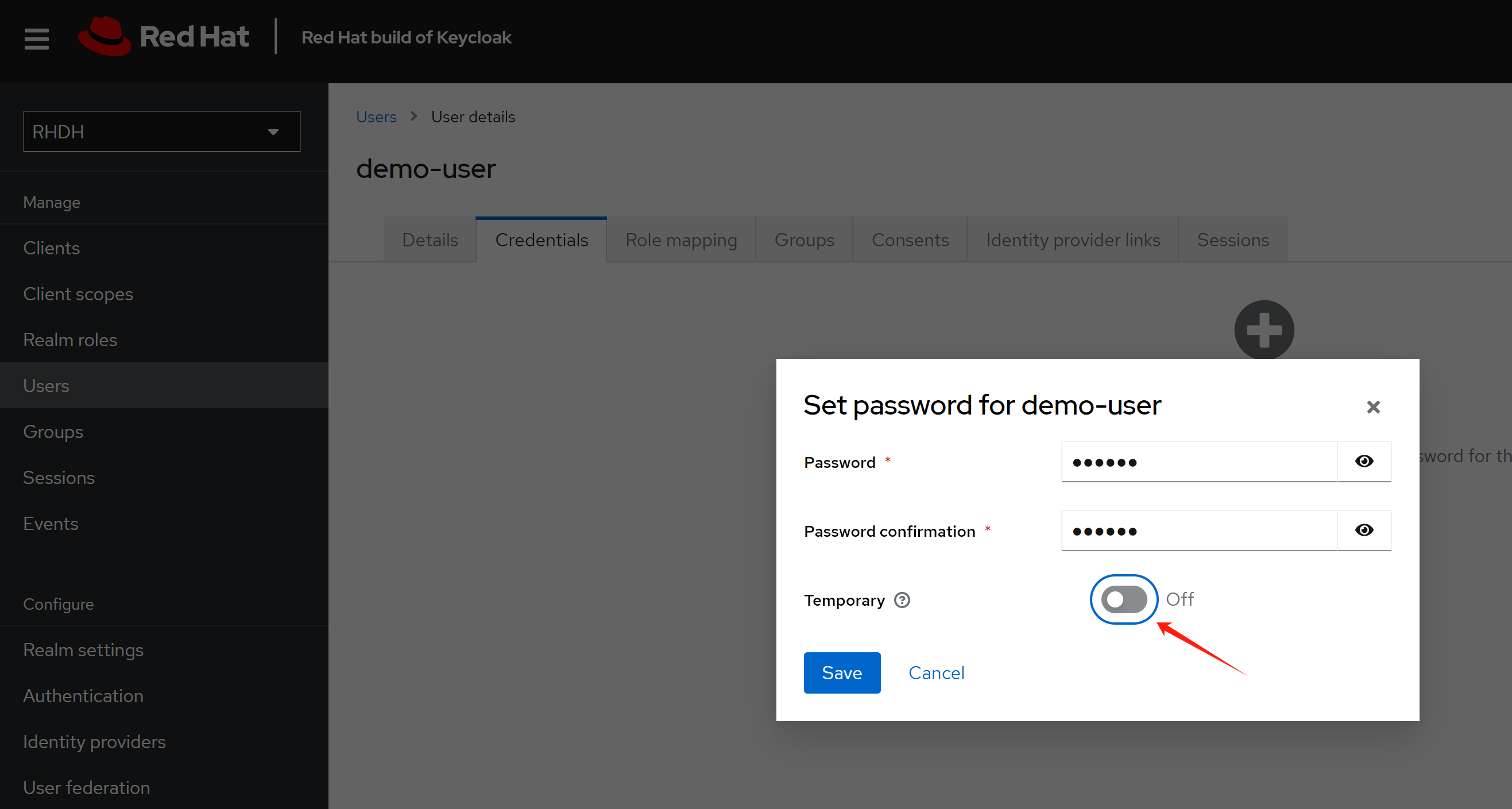

Set password for the user

Make the password not expired.

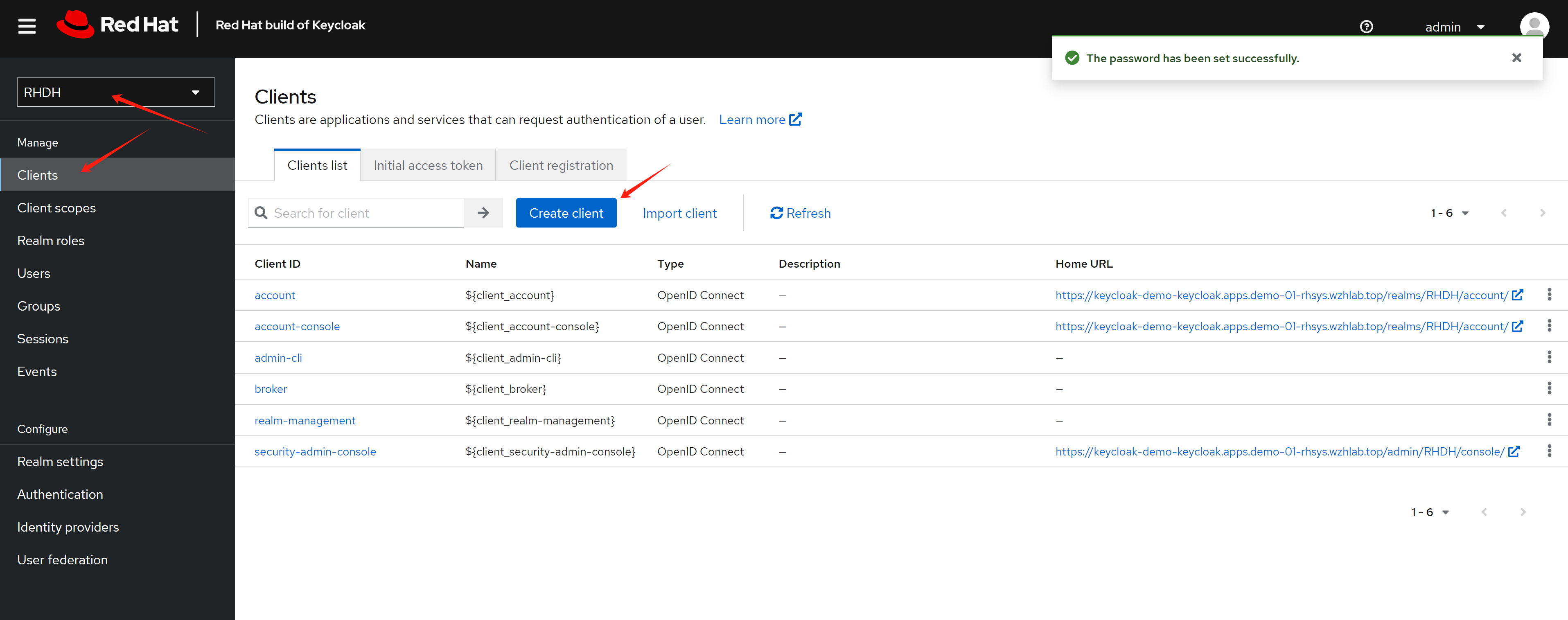

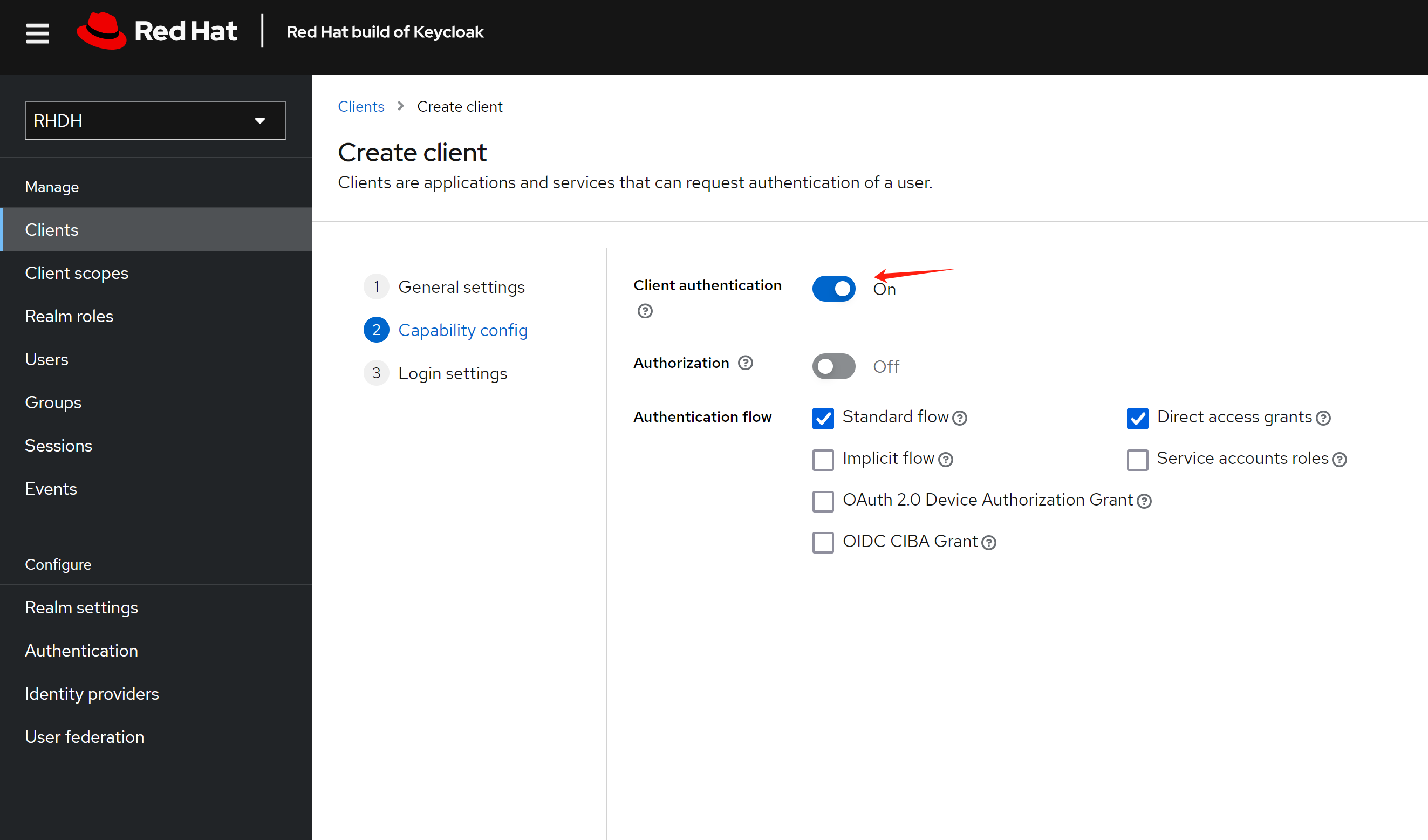

Create a client for the rhdh, and set the redirect url.

The redirect url looks like this: https://<RHDH_URL>/api/auth/oidc/handler/frame

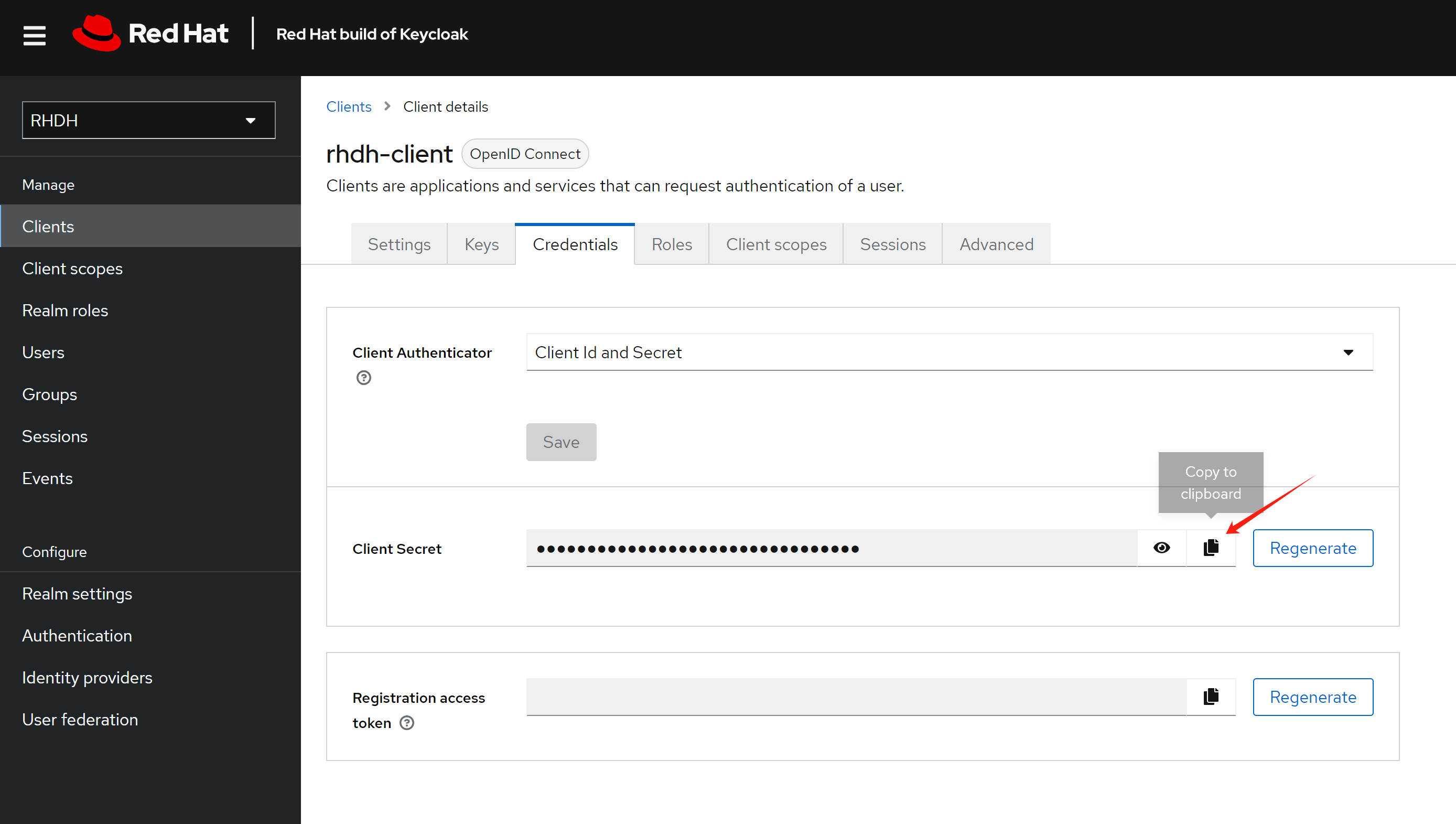

Copy out the client secret, it will used later.

install rhdh

Create a new namespace for rhdh deployment.

oc new-project demo-rhdh

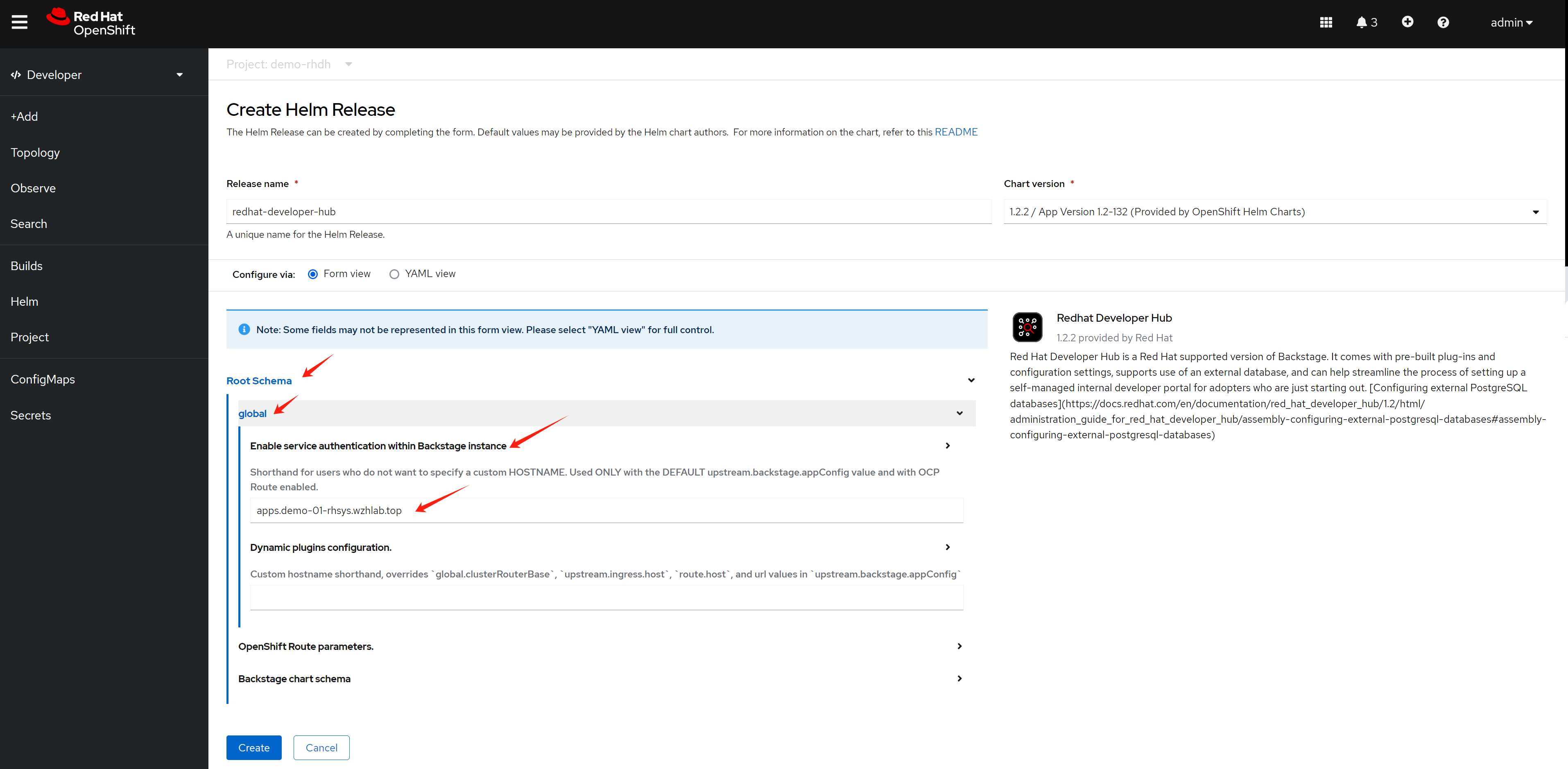

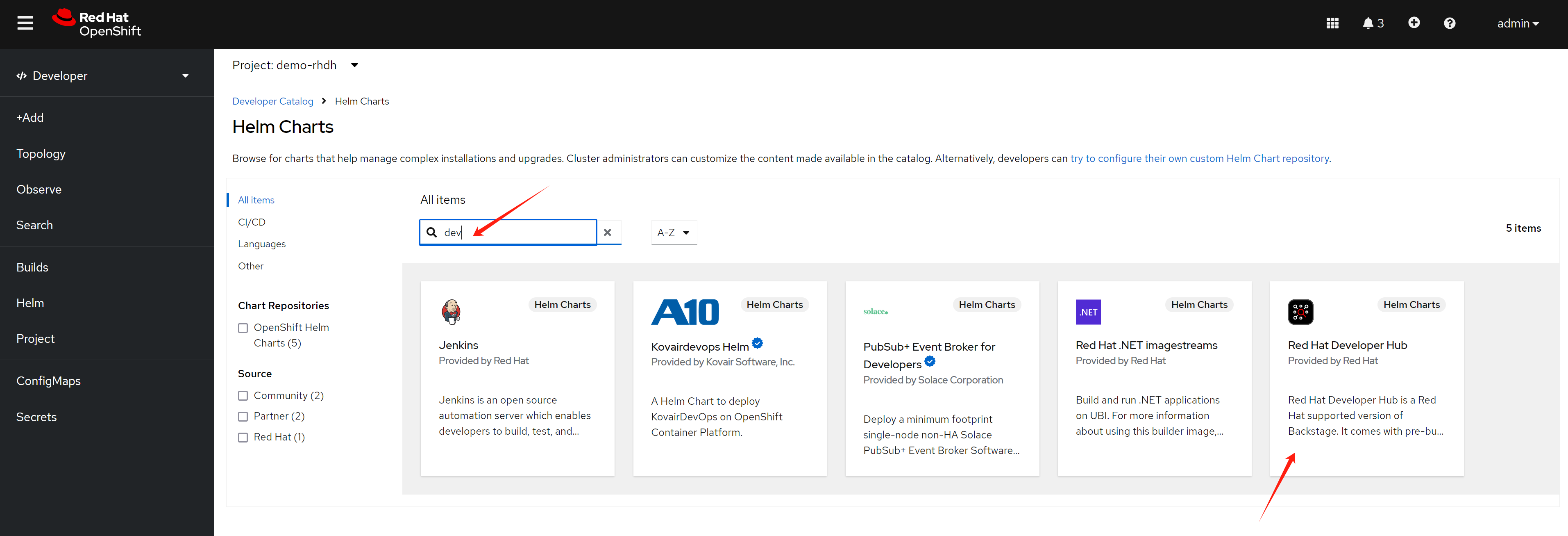

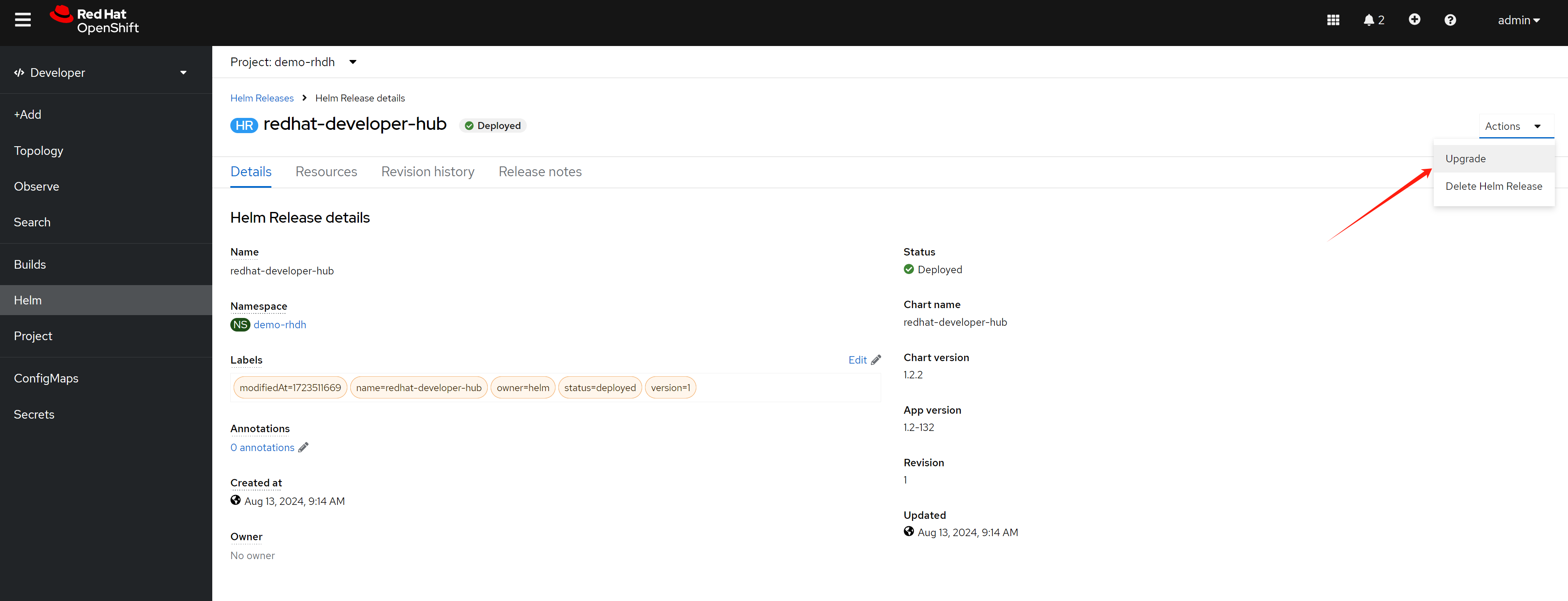

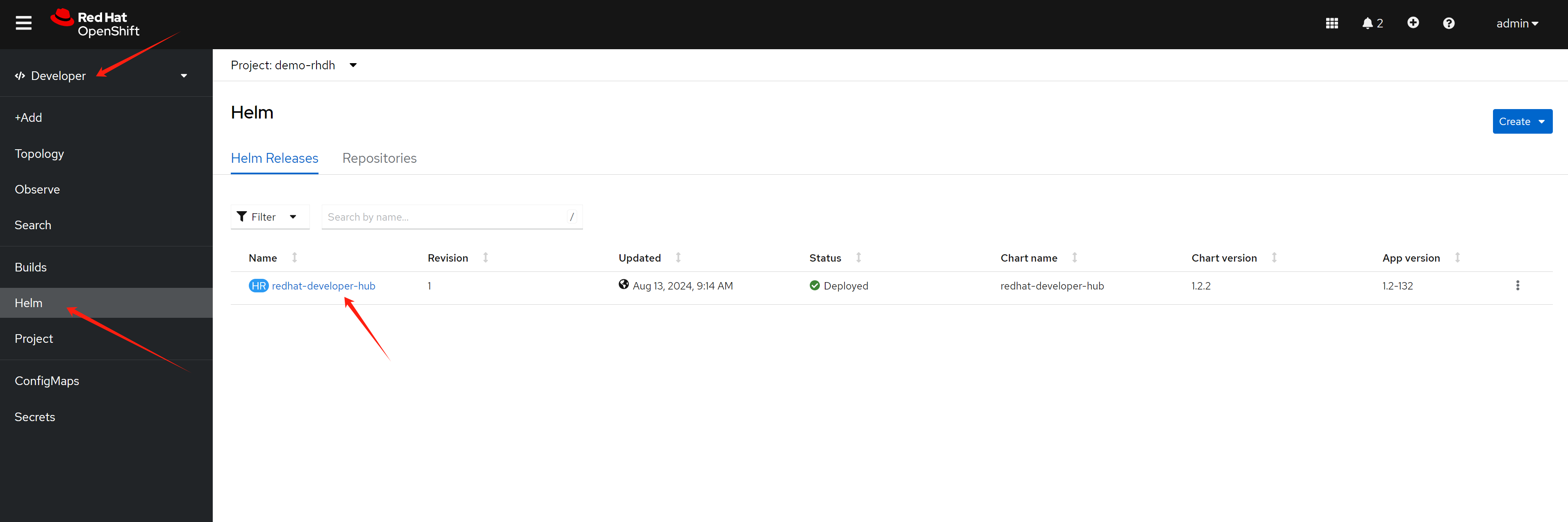

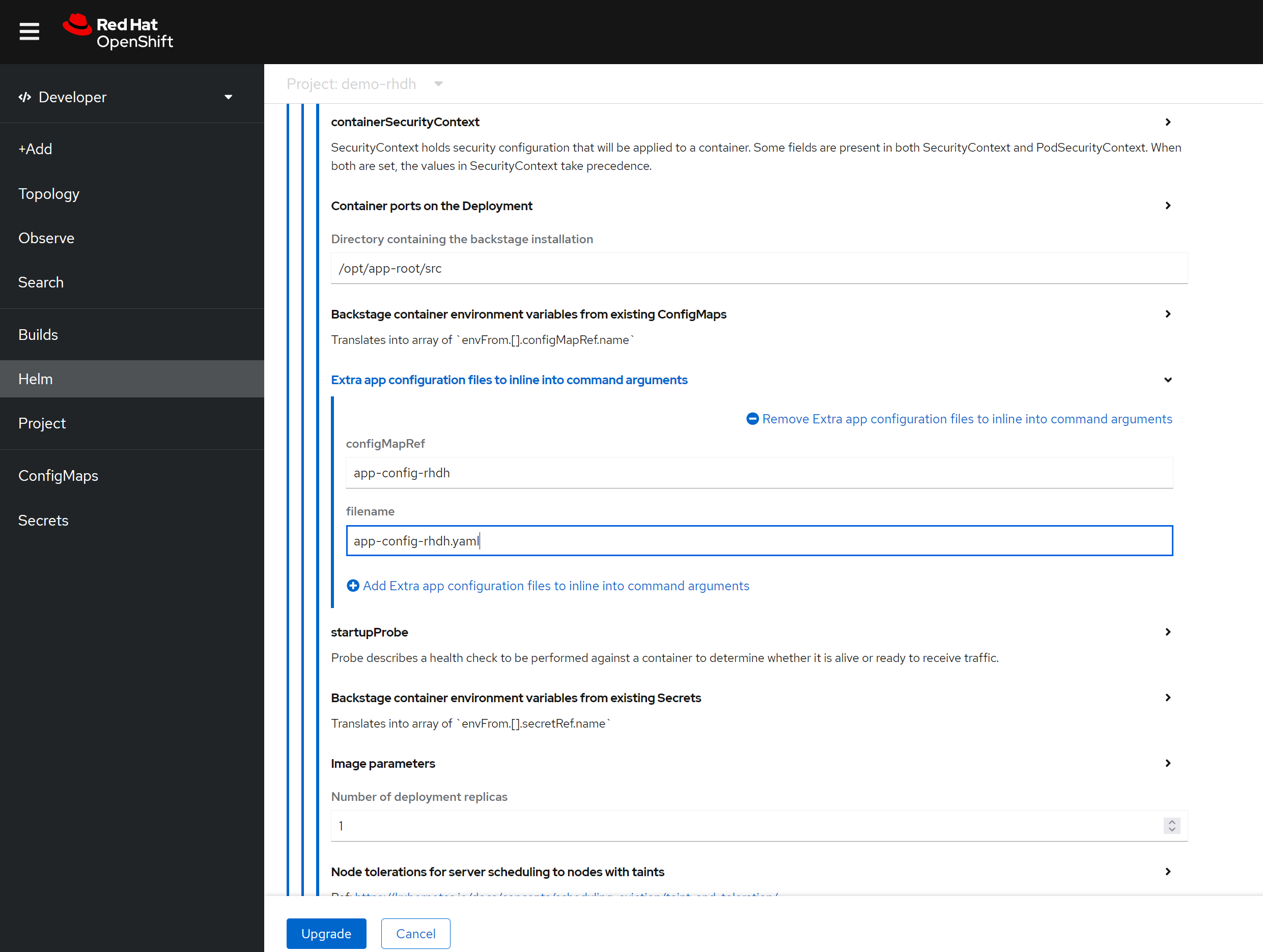

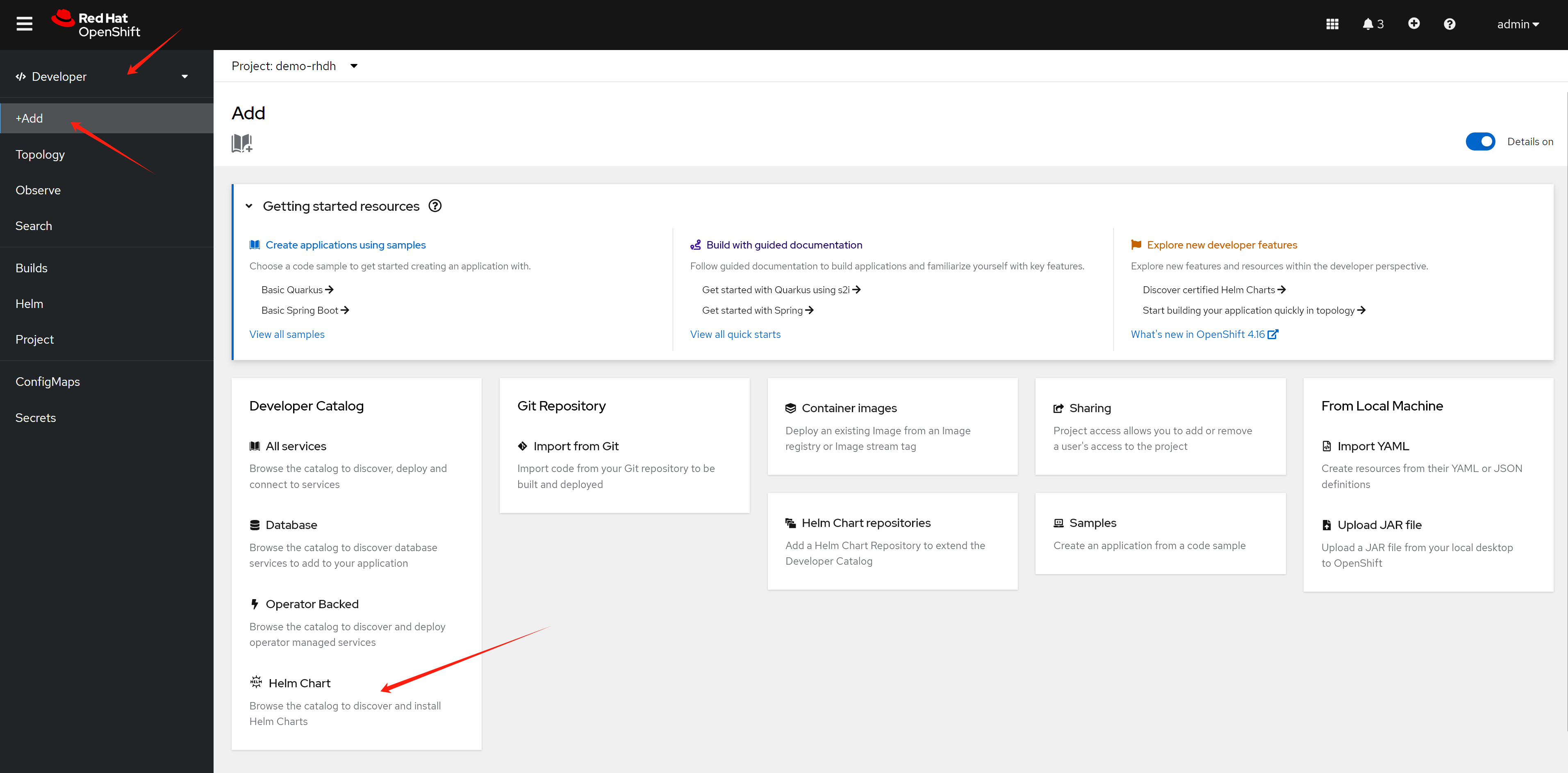

There are 2 ways to install rhdh right now, one is using operator, one is using helm chart. Here we use the helm chart.

config rhdh

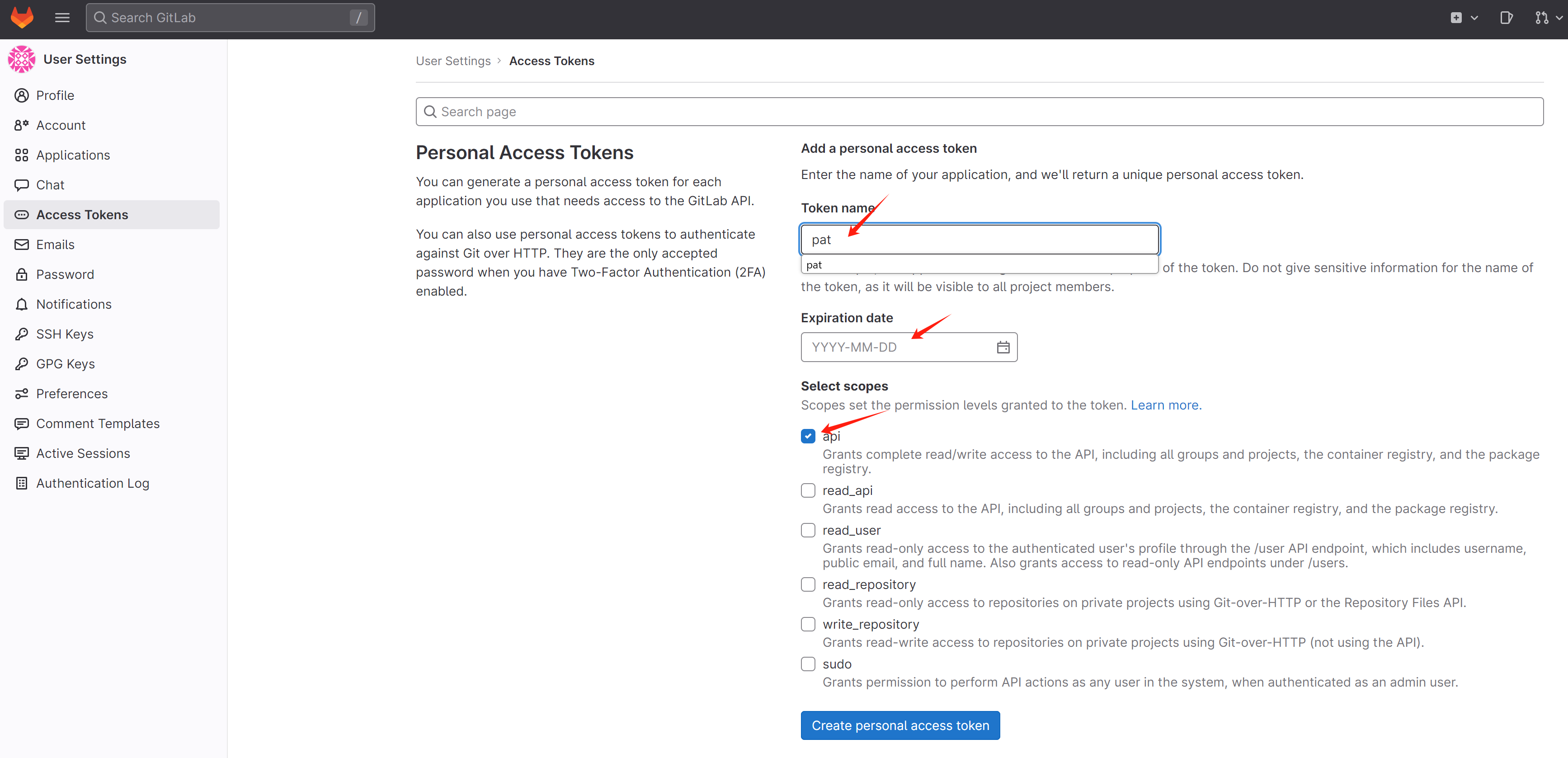

For gitlab, we need to craete a personal access token, and save it to be used later .

For github, go to developer settings, and add personal access token. Following https://backstage.io/docs/integrations/github/locations , to add authentication.

For keycloak

Now we begin to config the rhdh using cli.


        # for k8s plugin

        # let the plugin access k8s resources

        oc delete -f ${BASE_DIR}/data/install/role-rhdh.yaml

        cat << EOF > ${BASE_DIR}/data/install/role-rhdh.yaml
        apiVersion: rbac.authorization.k8s.io/v1
        kind: ClusterRole
        metadata:
          name: backstage-read-only
        rules:
          - apiGroups:
              - '*'
            resources:
              - pods
              - configmaps
              - services
              - deployments
              - replicasets
              - horizontalpodautoscalers
              - ingresses
              - statefulsets
              - limitranges
              - resourcequotas
              - daemonsets
              - pipelineruns
              - taskruns
              - routes
            verbs:
              - get
              - list
              - watch
          - apiGroups:
              - batch
            resources:
              - jobs
              - cronjobs
            verbs:
              - get
              - list
              - watch
          - apiGroups:
              - metrics.k8s.io
            resources:
              - pods
            verbs:
              - get
              - list
        EOF
        oc apply -f ${BASE_DIR}/data/install/role-rhdh.yaml


        NAMESPACES="demo-rhdh"

        oc delete -f ${BASE_DIR}/data/install/sa-rhdh.yaml
        cat << EOF > ${BASE_DIR}/data/install/sa-rhdh.yaml
        ---
        apiVersion: v1
        kind: ServiceAccount
        metadata:
          name: backstage-read-only-sa
          namespace: $NAMESPACES  # Replace with the appropriate namespace

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: ClusterRoleBinding
        metadata:
          name: backstage-read-only-binding
        subjects:
          - kind: ServiceAccount
            name: backstage-read-only-sa
            namespace: $NAMESPACES  # Replace with the appropriate namespace
        roleRef:
          kind: ClusterRole
          name: backstage-read-only
          apiGroup: rbac.authorization.k8s.io

        EOF
        oc create -f ${BASE_DIR}/data/install/sa-rhdh.yaml -n $NAMESPACES


        # create pvc for rhdh plugin

        oc delete -f ${BASE_DIR}/data/install/pvc-rhdh.yaml

        cat << EOF > ${BASE_DIR}/data/install/pvc-rhdh.yaml
        kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: rhdh-plugin
        spec:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 10Gi
          # storageClassName: lvms-vg1
          volumeMode: Filesystem
        EOF

        oc apply -f ${BASE_DIR}/data/install/pvc-rhdh.yaml -n $NAMESPACES


        # create token of the sa, and save to variable, expire date is 100 years

        SA_TOKEN=`oc create token backstage-read-only-sa --duration=876000h -n $NAMESPACES`

        # SECRET_NAME=$(oc get sa backstage-read-only-sa -n $NAMESPACES -o jsonpath='{.secrets[0].name}' )

        # SA_TOKEN=$(oc get secret $SECRET_NAME -n $NAMESPACES -o jsonpath='{.data.token}'  | base64 --decode)

        echo $SA_TOKEN

        # check the expire date of the token

        echo $SA_TOKEN | cut -d '.' -f2 | base64 -d | jq -r '.exp' | xargs -I {} date -d @{}

        # Sun Jul 23 10:57:39 AM CST 2124

        # get env variable for backstage

        OCP_NAME="demo-01-rhsys"
        OCP_BASE_URL="demo-01-rhsys.wzhlab.top"
        OCP_API="https://api.$OCP_BASE_URL:6443"

        GITLAB_BASE_HOST="gitlab-demo-gitlab.apps.$OCP_BASE_URL"
        GITLAB_BASE_URL="https://gitlab-demo-gitlab.apps.$OCP_BASE_URL"
        GITLAB_PAT="<your gitlab personal access token>"

        # AUTH_GITLAB_CLIENT_ID="you gitlab client id"

        # AUTH_GITLAB_CLIENT_SECRET="you gitlab client secret"

        AUTH_KEYCLOAK_CLIENT_ID="rhdh-client"
        AUTH_KEYCLOAK_CLIENT_SECRET="<your keycloak client secret>"
        KEYCLOAK_BASE_URL="https://keycloak-demo-keycloak.apps.$OCP_BASE_URL"
        KEYCLOAK_REALM="RHDH"
        KEYCLOAK_PROMPT="auto"

        SESSION_SECRET=`openssl rand -hex 32`
        GITHUB_TOKEN="<your github personal access token>"

        ARGOCD_NS="demo-gitops"
        ARGOCD_INSTANCE_NAME="argocd"

        # no ending "/"

        ARGOCD_URL="https://$ARGOCD_INSTANCE_NAME-$ARGOCD_NS.apps.$OCP_BASE_URL"

        # ARGOCD_SECRET="$ARGOCD_INSTANCE_NAME-cluster"

        # ARGOCD_PASSWORD=`oc get secret $ARGOCD_SECRET -n $ARGOCD_NS -o jsonpath='{.data.admin\.password}' | base64 --decode`

        ARGOCD_USER="alice"
        ARGOCD_PASSWORD="redhadocp"
        ARGOCD_TOKEN="<your argocd token>"

        JFROG_URL="http://192.168.50.17:8082"
        JFROG_TOKEN="<your jfrog token>"


        # create secret based on env variable

        oc delete secret wzh-rhdh-credentials -n $NAMESPACES
        oc create secret generic wzh-rhdh-credentials -n $NAMESPACES \
        --from-literal=OCP_NAME=$OCP_NAME \
        --from-literal=OCP_BASE_URL=$OCP_BASE_URL \
        --from-literal=OCP_API=$OCP_API \
        --from-literal=GITLAB_BASE_HOST=$GITLAB_BASE_HOST \
        --from-literal=GITLAB_BASE_URL=$GITLAB_BASE_URL \
        --from-literal=GITLAB_PAT=$GITLAB_PAT \
        --from-literal=AUTH_KEYCLOAK_CLIENT_ID=$AUTH_KEYCLOAK_CLIENT_ID \
        --from-literal=AUTH_KEYCLOAK_CLIENT_SECRET=$AUTH_KEYCLOAK_CLIENT_SECRET \
        --from-literal=KEYCLOAK_BASE_URL=$KEYCLOAK_BASE_URL \
        --from-literal=KEYCLOAK_REALM=$KEYCLOAK_REALM \
        --from-literal=KEYCLOAK_PROMPT=$KEYCLOAK_PROMPT \
        --from-literal=SESSION_SECRET=$SESSION_SECRET \
        --from-literal=GITHUB_TOKEN=$GITHUB_TOKEN \
        --from-literal=ARGOCD_NS=$ARGOCD_NS \
        --from-literal=ARGOCD_INSTANCE_NAME=$ARGOCD_INSTANCE_NAME \
        --from-literal=ARGOCD_URL=$ARGOCD_URL \
        --from-literal=ARGOCD_USER=$ARGOCD_USER \
        --from-literal=ARGOCD_PASSWORD=$ARGOCD_PASSWORD \
        --from-literal=ARGOCD_TOKEN=$ARGOCD_TOKEN \
        --from-literal=JFROG_URL=$JFROG_URL \
        --from-literal=JFROG_TOKEN=$JFROG_TOKEN \
        --from-literal=SA_TOKEN=$SA_TOKEN


        # create app config

        oc delete configmap app-config-rhdh -n $NAMESPACES

        cat << EOF > ${BASE_DIR}/data/install/app-config-rhdh.yaml
        ---
        kind: ConfigMap
        apiVersion: v1
        metadata:
          name: app-config-rhdh
        data:
          app-config-rhdh.yaml: |
            app:
              title: WZH Developer Hub

            integrations:
              gitlab:
                - host: \${GITLAB_BASE_HOST}
                  baseUrl: \${GITLAB_BASE_URL}
                  apiBaseUrl: \${GITLAB_BASE_URL}/api/v4
                  token: \${GITLAB_PAT}
              github:
                - host: github.com
                  token: \${GITHUB_TOKEN}

            auth:
              # environment: production
              # using development, will give you guest login options :)
              environment: development
              session:
                secret: \${SESSION_SECRET}
              providers:
                oidc:
                  # production:
                  development:
                    clientId: \${AUTH_KEYCLOAK_CLIENT_ID}
                    clientSecret: \${AUTH_KEYCLOAK_CLIENT_SECRET}
                    metadataUrl: \${KEYCLOAK_BASE_URL}/realms/\${KEYCLOAK_REALM}/.well-known/openid-configuration
                    prompt: \${KEYCLOAK_PROMPT} # recommended to use auto
                    # Uncomment for additional configuration options
                    # callbackUrl: \${KEYCLOAK_CALLBACK_URL}
                    # tokenEndpointAuthMethod: \${KEYCLOAK_TOKEN_ENDPOINT_METHOD}
                    # tokenSignedResponseAlg: \${KEYCLOAK_SIGNED_RESPONSE_ALG}
                    # scope: \${KEYCLOAK_SCOPE}
                    # If you are using the keycloak-backend plugin, use the preferredUsernameMatchingUserEntityName resolver to avoid a login error.
                    signIn:
                      resolvers:
                        - resolver: preferredUsernameMatchingUserEntityName
                guest:
                  dangerouslyAllowOutsideDevelopment: true
                  userEntityRef: user:default/guest

            signInPage: oidc

            proxy:
              endpoints:
                '/jfrog-artifactory/api':
                  target: '\${JFROG_URL}' # or https://<customer>.jfrog.io
                  headers:
                    Authorization: 'Bearer \${JFROG_TOKEN}'
                  # Change to "false" in case of using self hosted artifactory instance with a self-signed certificate
                  secure: false

            catalog:
              rules:
                - allow: [Component, System, API, Resource, Location, Template]

              locations:
                - target: https://github.com/wangzheng422/docker_env/blob/dev/redhat/ocp4/4.15/files/org.yaml
                  type: url
                  rules:
                    - allow: [Group, User]
                - target: https://github.com/nepdemo/rhdh-book1-templates/blob/wzh/quarkus-with-angular/template.yaml
                  type: url
                  rules:
                    - allow: [Template]
                - target: https://github.com/nepdemo/rhdh-book1-templates/blob/wzh/nestjs-with-postgres/template.yaml
                  type: url
                  rules:
                    - allow: [Template]

              providers:
                gitlab:
                  yourProviderId:
                    host: gitlab-demo-gitlab.apps.demo-01-rhsys.wzhlab.top # Identifies one of the hosts set up in the integrations
                    branch: main # Optional. Used to discover on a specific branch
                    fallbackBranch: master # Optional. Fallback to be used if there is no default branch configured at the Gitlab repository. It is only used, if branch is undefined. Uses master as default
                    skipForkedRepos: false # Optional. If the project is a fork, skip repository
                    # group: example-group # Optional. Group and subgroup (if needed) to look for repositories. If not present the whole instance will be scanned
                    entityFilename: catalog-info.yaml # Optional. Defaults to catalog-info.yaml
                    projectPattern: '[\s\S]*' # Optional. Filters found projects based on provided patter. Defaults to [\s\S]*, which means to not filter anything
                    excludeRepos: [] # Optional. A list of project paths that should be excluded from discovery, e.g. group/subgroup/repo. Should not start or end with a slash.
                    schedule: # Same options as in TaskScheduleDefinition. Optional for the Legacy Backend System
                      # supports cron, ISO duration, "human duration" as used in code
                      frequency: { minutes: 30 }
                      # supports ISO duration, "human duration" as used in code
                      timeout: { minutes: 3 }

                    # orgEnabled: true
                    # group: org/teams # Required for gitlab.com when orgEnabled: true. Optional for self managed. Must not end with slash. Accepts only groups under the provided path (which will be stripped)
                    # allowInherited: true # Allow groups to be ingested even if there are no direct members.
                    # groupPattern: '[\s\S]*' # Optional. Filters found groups based on provided pattern. Defaults to [\s\S]*, which means to not filter anything

                github:
                  # the provider ID can be any camelCase string
                  providerId:
                    organization: 'nepdemo' # string
                    catalogPath: '/catalog-info.yaml' # string
                    filters:
                      branch: 'wzh' # string
                      repository: 'rhdh.*' # Regex
                    schedule: # same options as in TaskScheduleDefinition
                      # supports cron, ISO duration, "human duration" as used in code
                      frequency: { minutes: 30 }
                      # supports ISO duration, "human duration" as used in code
                      timeout: { minutes: 3 }

                # kubernetes:
                #   openshift:
                #     cluster: openshift
                #     processor:
                #       namespaceOverride: default
                #       defaultOwner: guests
                #     schedule:
                #       frequency:
                #         seconds: 30
                #       timeout:
                #         seconds: 5

            kubernetes:
              serviceLocatorMethod:
                type: "multiTenant"
              clusterLocatorMethods:
                - type: "config"
                  clusters:
                    - name: \${OCP_NAME}
                      url: \${OCP_API}
                      authProvider: "serviceAccount"
                      skipTLSVerify: true
                      serviceAccountToken: \${SA_TOKEN}
              customResources:
                - group: 'tekton.dev'
                  apiVersion: 'v1'
                  plural: 'pipelineruns'
                - group: 'tekton.dev'
                  apiVersion: 'v1'
                  plural: 'taskruns'
                - group: 'route.openshift.io'
                  apiVersion: 'v1'
                  plural: 'routes'

            argocd:
              # username: \${ARGOCD_USER}
              # password: \${ARGOCD_PASSWORD}
              appLocatorMethods:
                - type: 'config'
                  instances:
                    - name: main
                      url:  \${ARGOCD_URL}
                      token: \${ARGOCD_TOKEN}
                      # username: \${ARGOCD_USER}
                      # password: \${ARGOCD_PASSWORD}

            # deal with "wrong project_slug or project_id"
            gitlab:
              proxySecure: false

            permission:
              enabled: false

            enabled:
              kubernetes: true
              # techdocs: true
              argocd: true
              # sonarqube: false
              # keycloak: true
              # ocm: true
              github: false
              # githubOrg: false
              gitlab: true
              # jenkins: false
              permission: false
        EOF

        oc create -f ${BASE_DIR}/data/install/app-config-rhdh.yaml -n $NAMESPACES


        oc scale deployment redhat-developer-hub --replicas=0 -n $NAMESPACES

        oc scale deployment redhat-developer-hub --replicas=1 -n $NAMESPACES

Expand Root Schema → Backstage chart schema → Backstage parameters → Extra app configuration files to inline into command arguments

upstream:
          backstage:
            extraAppConfig:
              - configMapRef: app-config-rhdh
                filename: app-config-rhdh.yaml
            # ... other Red Hat Developer Hub Hel

Apart from above, you can enable build-in plugins (which is disabled by default), by patch the following to the helm config, just switch to yaml view.

get the digest of the plugin first:


        npm view @wangzheng422/backstage-plugin-scaffolder-backend-module-wzh-custom-actions-dynamic@0.1.9 dist.integrity

        # sha512-qglFOgfep5ACQwjVmB3m+GeiOixz5JcrF/0MBiAWTbCGdp0XKIG03owGn+MDo2uxSJLSGmmRYipCQv10Um1/lA==


        npm view @wangzheng422/backstage-plugin-scaffolder-backend-module-dummy-wzh-actions-dynamic@0.1.1 dist.integrity

        # sha512-d8SGXRkjJExz2mQbzg8+gF3yOIUrgeYgX8+AJ0RR7eaQ46fvYKqiyRLdKjRGwjLVTdkX0PK8NU6C344VyamVUw==

        global:
          dynamic:
            plugins:
              # for gitlab
              - package:    ./dynamic-plugins/dist/immobiliarelabs-backstage-plugin-gitlab
                disabled: false
              - package:    ./dynamic-plugins/dist/backstage-plugin-catalog-backend-module-gitlab-dynamic
                disabled: false
              - package:    ./dynamic-plugins/dist/immobiliarelabs-backstage-plugin-gitlab-backend-dynamic
                disabled: false
              - package:    ./dynamic-plugins/dist/backstage-plugin-scaffolder-backend-module-gitlab-dynamic
                disabled: false
              # - package:  ./dynamic-plugins/dist/backstage-plugin-catalog-backend-module-gitlab-org-dynamic
              #   disabled: false
              # - package:  '@backstage/plugin-auth-backend-module-gitlab-provider'
              #   integrity: sha512-qzNWNgneZitqYp8X2Bk6L1WYPZrzGeg5yzxm0aB79DZIaALuhqxANEVfUf+fsDj28HnzNVEU1oyoabWcNMhe3g==
              #   disabled: false

              # for github
              - package:    ./dynamic-plugins/dist/backstage-plugin-catalog-backend-module-github-dynamic
                disabled: false
              - package:    ./dynamic-plugins/dist/backstage-plugin-scaffolder-backend-module-github-dynamic
                disabled: false
              - package:    ./dynamic-plugins/dist/backstage-plugin-github-actions
                disabled: false
              - package:    ./dynamic-plugins/dist/roadiehq-backstage-plugin-github-insights
                disabled: false
              - package:    ./dynamic-plugins/dist/backstage-plugin-github-issues
                disabled: false
              - package:    ./dynamic-plugins/dist/roadiehq-backstage-plugin-github-pull-requests
                disabled: false

              # for teckton
              - package:    ./dynamic-plugins/dist/janus-idp-backstage-plugin-tekton
                disabled: false

              # for k8s
              - package:    ./dynamic-plugins/dist/backstage-plugin-kubernetes
                disabled: false
              - package:    ./dynamic-plugins/dist/backstage-plugin-kubernetes-backend-dynamic
                disabled: false

              # for gitops
              - package: ./dynamic-plugins/dist/roadiehq-backstage-plugin-argo-cd-backend-dynamic
                disabled: false
              - package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-argocd
                disabled: false
              - package: ./dynamic-plugins/dist/roadiehq-backstage-plugin-argo-cd
                disabled: false
              - package:    ./dynamic-plugins/dist/roadiehq-scaffolder-backend-argocd-dynamic
                disabled: false

              # for jfrog
              - package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-jfrog-artifactory
                disabled: false

              # for topology, which integrate ocp webui
              # https://janus-idp.io/plugins/topology/
              - package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-topology
                disabled: false

              # for custom actions demo, wrap with dynamic plugin
              # custom action demo ok
              # - package: "@wangzheng422/backstage-plugin-scaffolder-backend-module-wzh-custom-actions-dynamic@0.1.9"
              #   disabled: false
              #   integrity: sha512-qglFOgfep5ACQwjVmB3m+GeiOixz5JcrF/0MBiAWTbCGdp0XKIG03owGn+MDo2uxSJLSGmmRYipCQv10Um1/lA==


        upstream:
          backstage:
            extraEnvVars:
              # for https self certificate
              - name: NODE_TLS_REJECT_UNAUTHORIZED
                value: '0'

Summarized, you can patch the helm config like this:

global:
          # patch the base url
          clusterRouterBase: apps.demo-01-rhsys.wzhlab.top
        upstream:
          backstage:
            # patch for app config
            extraAppConfig:
              - configMapRef: app-config-rhdh
                filename: app-config-rhdh.yaml
            # patch for secrets
            extraEnvVarsSecrets:
              - wzh-rhdh-credentials
            extraEnvVars:
              # for https self certificate
              - name: NODE_TLS_REJECT_UNAUTHORIZED
                value: '0'
            # extraVolumes:
            #   # patch for static pvc
            #   - name: dynamic-plugins-root
            #     persistentVolumeClaim:
            #       claimName: rhdh-plugin

custom actions

If you want to add custom action to template / scaffolder, you need to wrap your action into dynamic plugins, and import the dynamic plugins into rhdh.

Here is a demo custom action project repo coming with building dynamic plugins

You can build your own custom action project based on this demo, and build the dynamic plugins, then import the dynamic plugins into rhdh.

book lab

Now we can follow the book, to do the demo, but there should be some configuration for the demo to run smoothly.

First, we need to create a new project for the demo, and label it with argocd.argoproj.io/managed-by=demo-gitops.


        oc new-project demo-play

        oc label namespace demo-play argocd.argoproj.io/managed-by=demo-gitops

Then, we need to provide the tokens for external secrets.


        # we need to create a central secret store, so the lab can access the gitlab token

        oc delete -f ${BASE_DIR}/data/install/external-secret.yaml -n demo-play
        cat << EOF > ${BASE_DIR}/data/install/external-secret.yaml
        apiVersion: external-secrets.io/v1beta1
        kind: ClusterSecretStore
        metadata:
          name: fake-secret-store
        spec:
          provider:
            fake:
              data:
              - key: "secrets/janusidp/gitlab"
                value: "$GITLAB_PAT"
                version: "v1"
              - key: "secrets/janusidp/gitlab_webhook"
                value: "redhatocp"
                version: "v1"
        EOF

        oc create --save-config -f ${BASE_DIR}/data/install/external-secret.yaml -n demo-play

        kubectl get SecretStores,ClusterSecretStores,ExternalSecrets --all-namespaces

        # NAMESPACE   NAME                                                       AGE   STATUS   CAPABILITIES   READY

        #             clustersecretstore.external-secrets.io/fake-secret-store   56m   Valid    ReadWrite      True

        # NAMESPACE   NAME                                                                           STORE               REFRESH INTERVAL   STATUS         READY

        # demo-play   externalsecret.external-secrets.io/demo-play-demo-01-external-git-token        fake-secret-store   1h                 SecretSynced   True

        # demo-play   externalsecret.external-secrets.io/demo-play-demo-01-external-webhook-secret   fake-secret-store   1h                 SecretSynced   True

Now, we need to prepare the docker config for the pipeline, so the pipeline can access the internal registry.


        # the openshift will store service account's docker config in secret, but the format is different from docker config file.

        # so we need to convert it to docker config file.

        # get secret name, that begin with builder-dockercfg

        SECRET_NAME=`oc get secret -n demo-play | grep builder-dockercfg | awk '{print $1}'`
        echo $SECRET_NAME

        # get the dockercfg content from the secret

        oc get secret $SECRET_NAME -n demo-play -o jsonpath='{.data.\.dockercfg}' | base64 --decode > ${BASE_DIR}/data/install/k8s_dockercfg.json

        # create a python script to convert k8s dockercfg to podman authfile

        cat << EOF > ${BASE_DIR}/data/install/docker.cfg.convert.py
        import json

        def k8s_to_podman(k8s_file, podman_file):
            with open(k8s_file, 'r') as f:
                k8s_data = json.load(f)

            podman_data = {"auths": {}}
            for registry, creds in k8s_data.items():
                podman_data["auths"][registry] = {"auth": creds["auth"]}

            with open(podman_file, 'w') as f:
                json.dump(podman_data, f, indent=2)

        # 使用示例

        k8s_to_podman('k8s_dockercfg.json', 'podman_authfile.json')
        EOF

        # convert k8s dockercfg to podman authfile

        cd ${BASE_DIR}/data/install/
        python3 docker.cfg.convert.py


        # create k8s secret from podman authfile

        oc delete secret wzh-docker-authfile -n demo-play
        oc create secret generic wzh-docker-authfile --from-file=config.json=podman_authfile.json -n demo-play

If we use the jfrog, we need to provide the jfrog token to the pipeline.


        oc registry login --registry="192.168.50.17:8082" \
          --auth-basic="admin:password" \
          --to=${BASE_DIR}/data/install/internal-registry-secret.json

        # test with jfrog

        oc delete secret wzh-docker-authfile -n demo-play
        oc create secret generic wzh-docker-authfile --from-file=config.json=${BASE_DIR}/data/install/internal-registry-secret.json -n demo-play

        # we also need to change the source code, to use the docker config secret

If everything works well, you can see the rhdh like these:

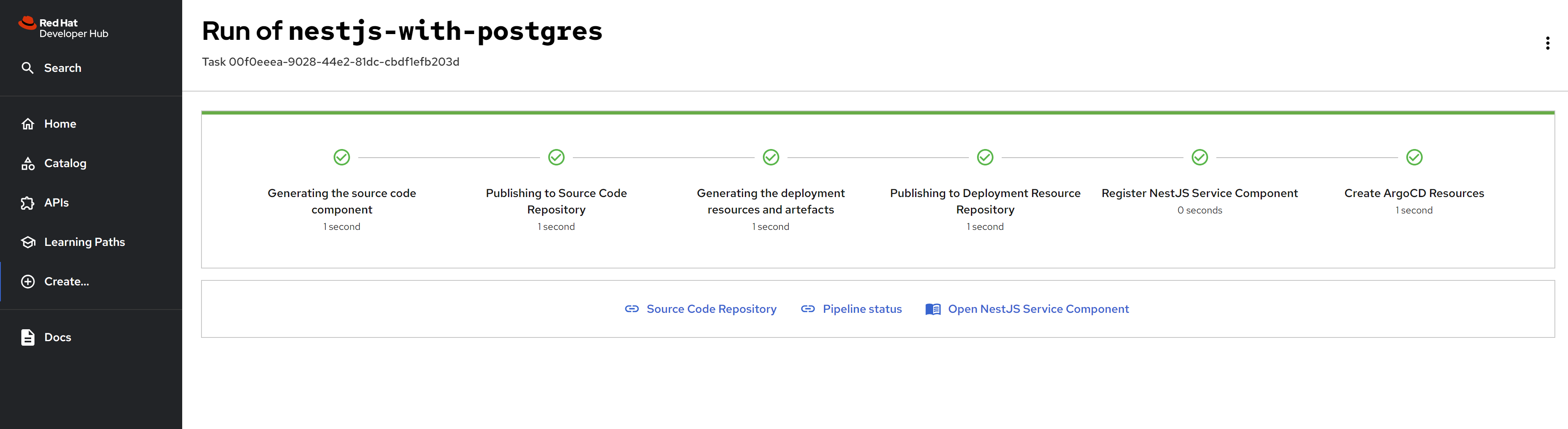

The resources created through the scaffolding project have been successfully completed.

The components in RHDH is shown as below.

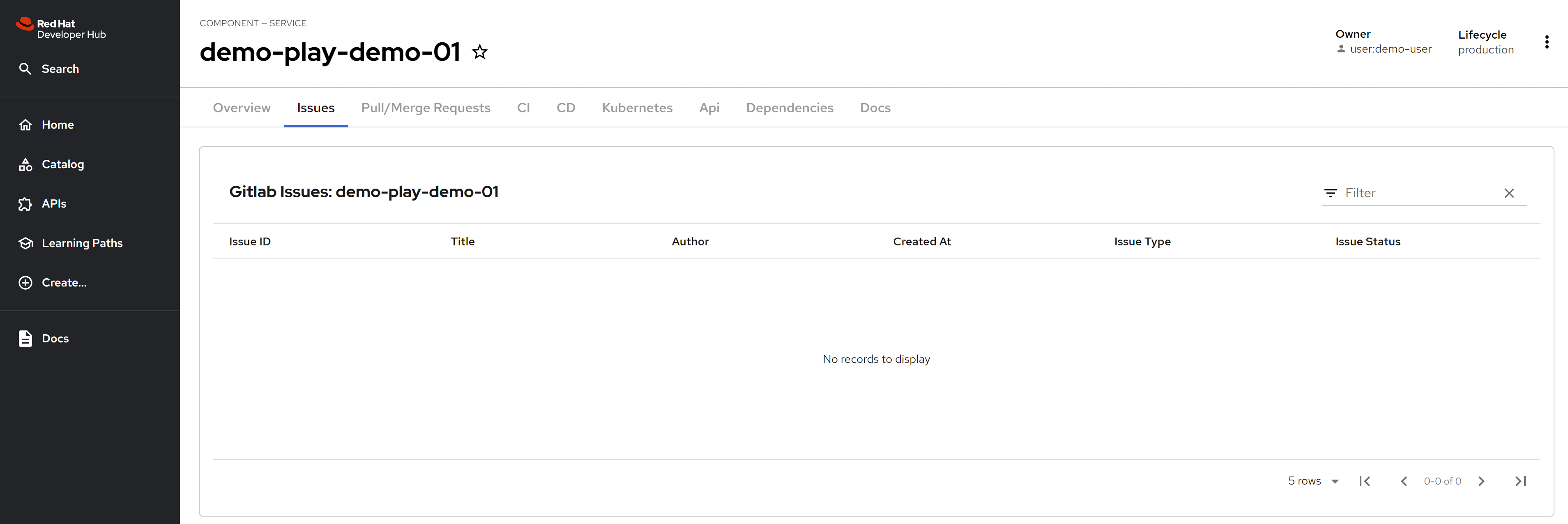

Issues from gitlab is integrated.

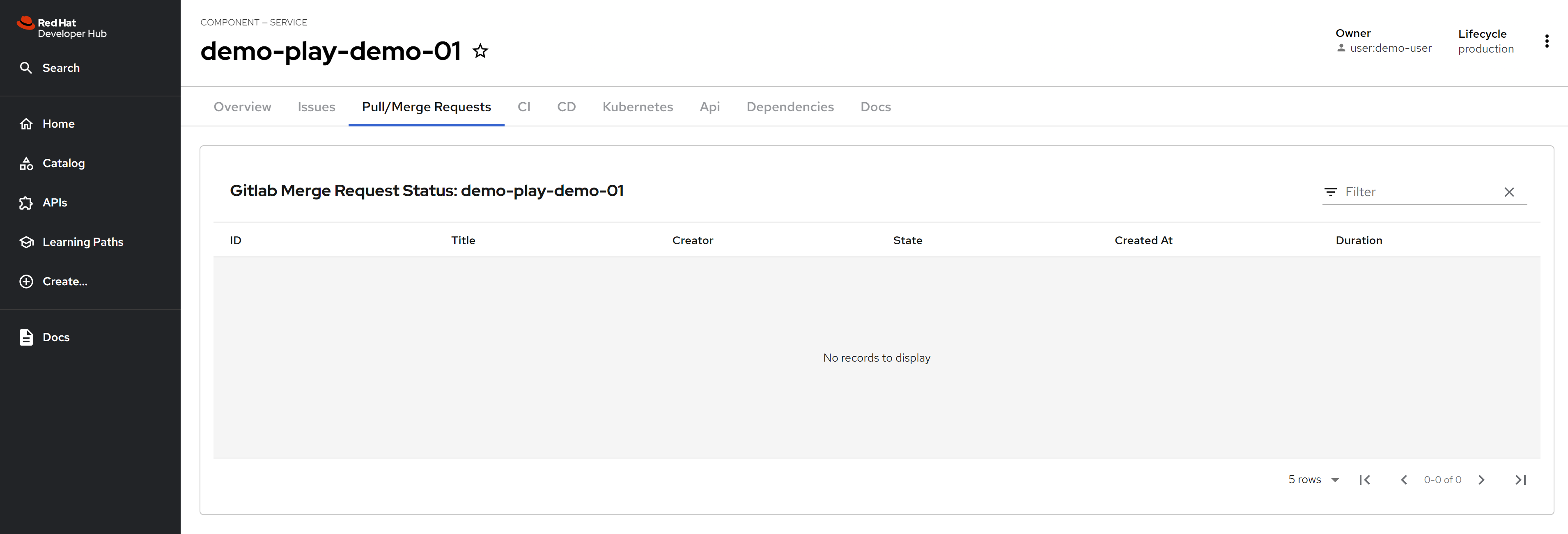

Pull/Merge requests from gitlab is integrated.

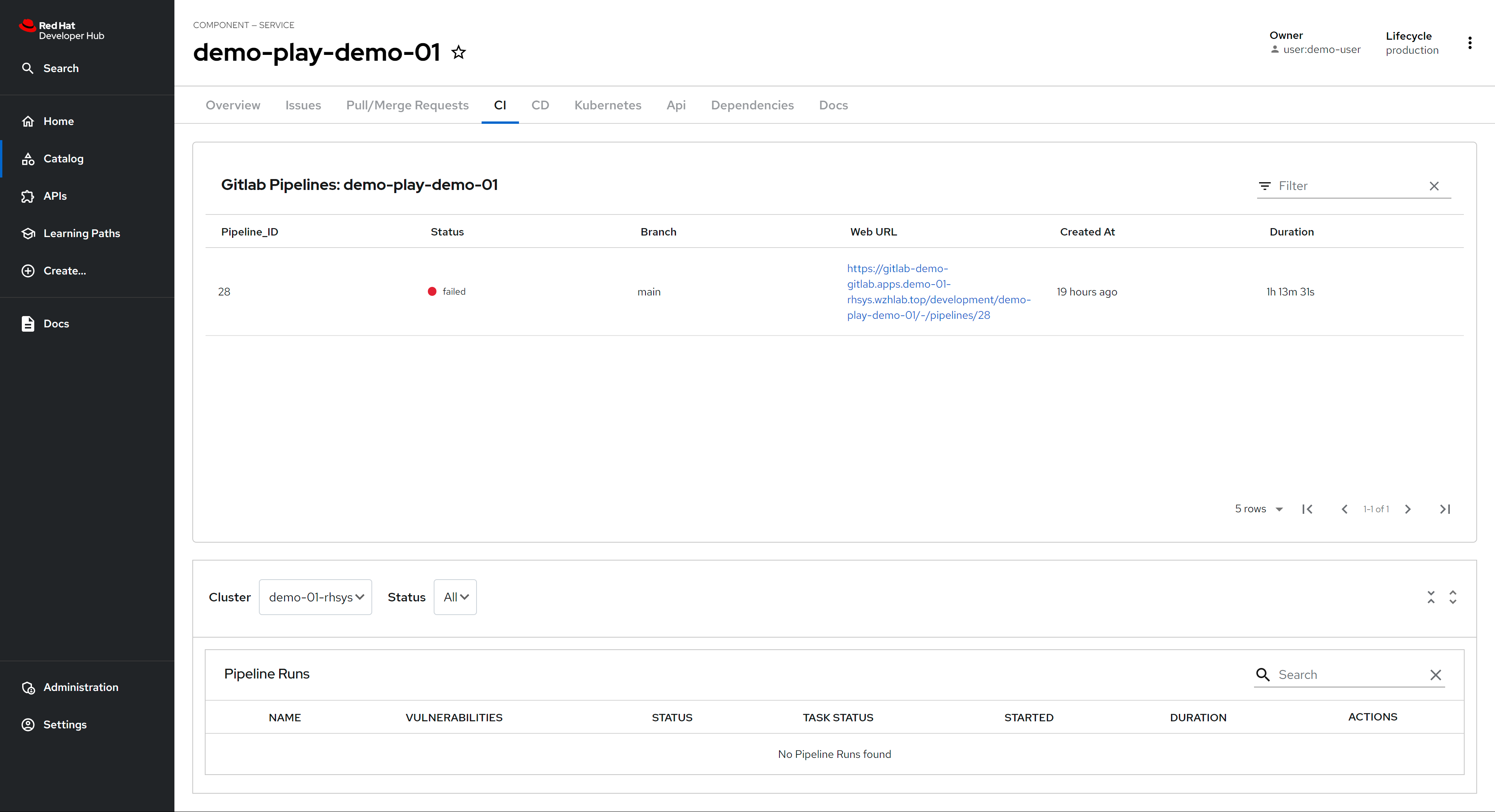

Gitlab pipeline is integrated.

Argocd/ocp pipeline is integrated.

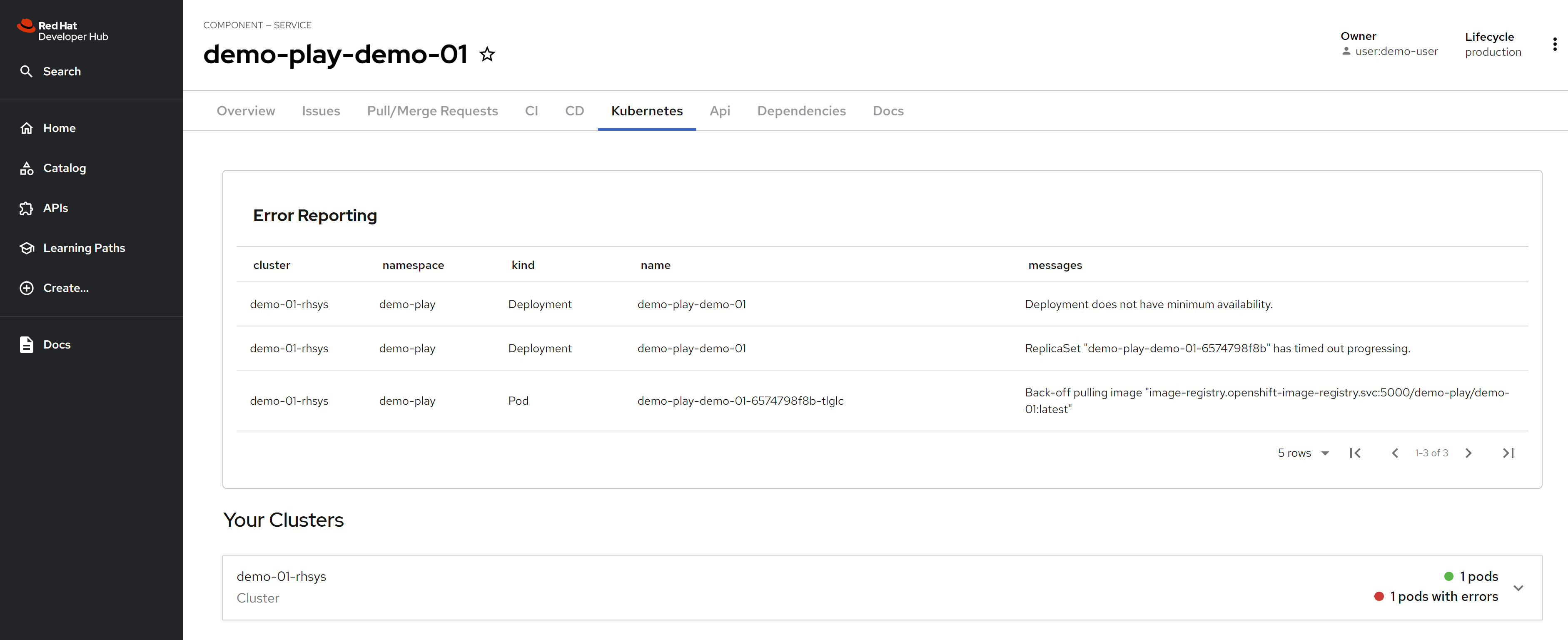

K8s/ocp resources is integrated.

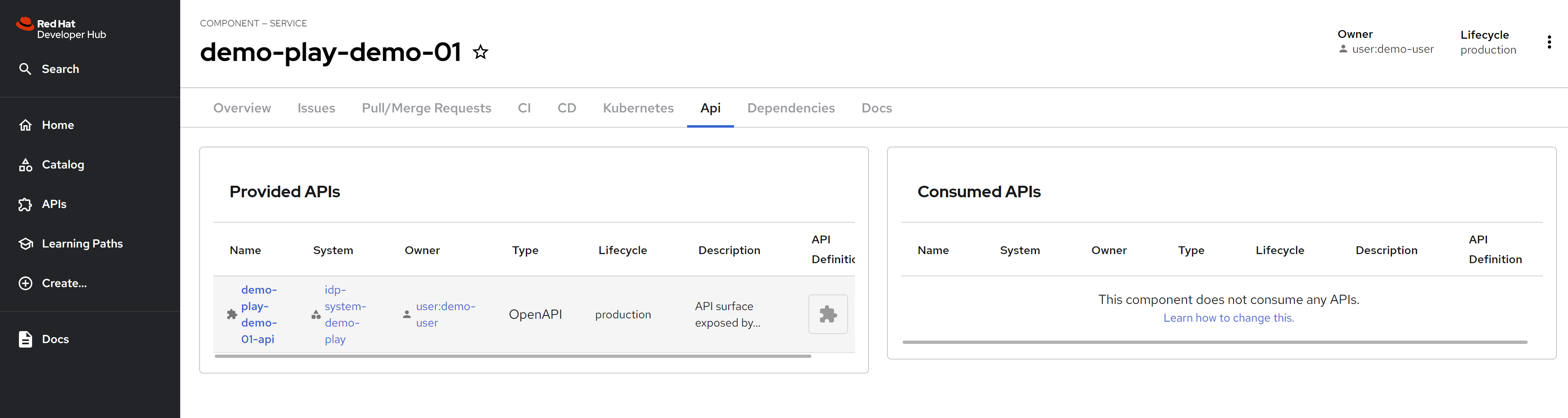

API information of the rhdh project is shown, which is defined in annotation of catalog-info.yaml

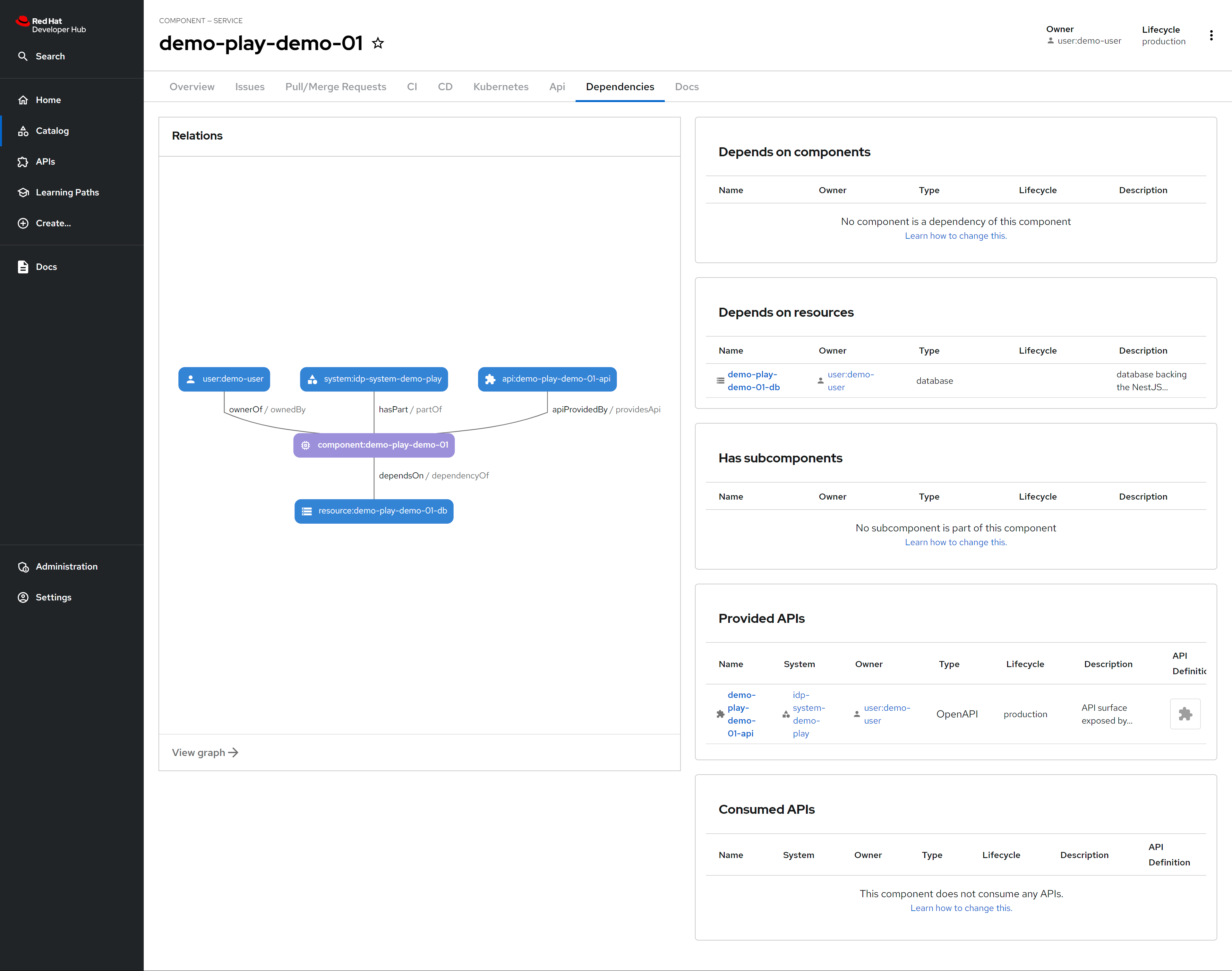

There is dependency defined in rhdh, which is in annotation of catalog-info.yaml.

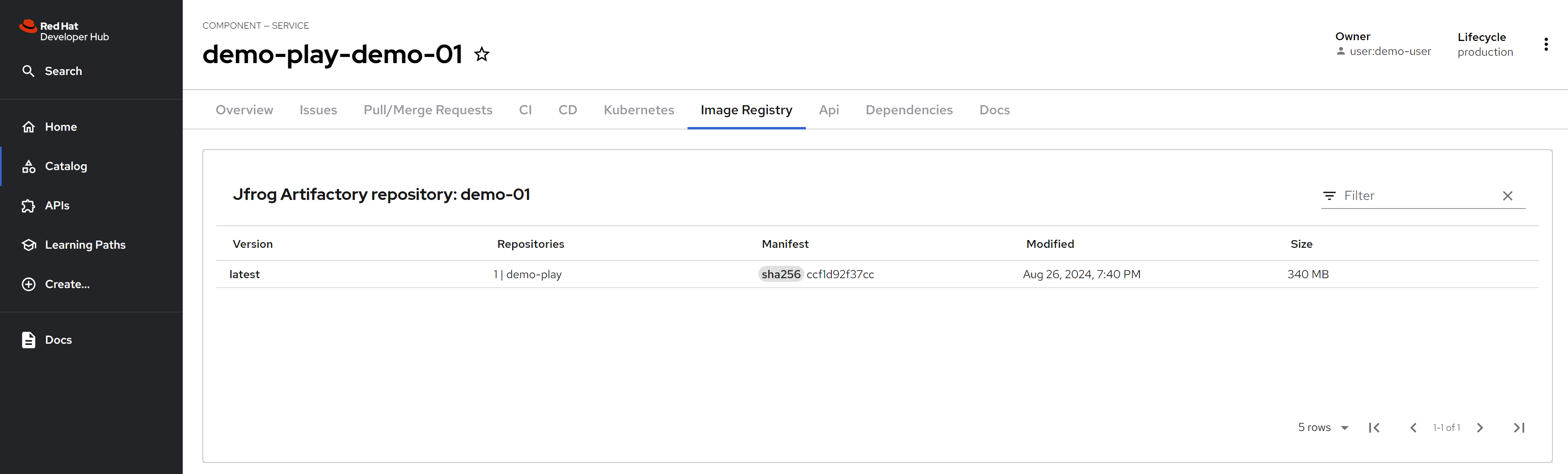

After integrate with jfrog, you can see the jfrog container image resources.

By default, the techdoc will run locally, so you can see it without any configuration, just enable it.

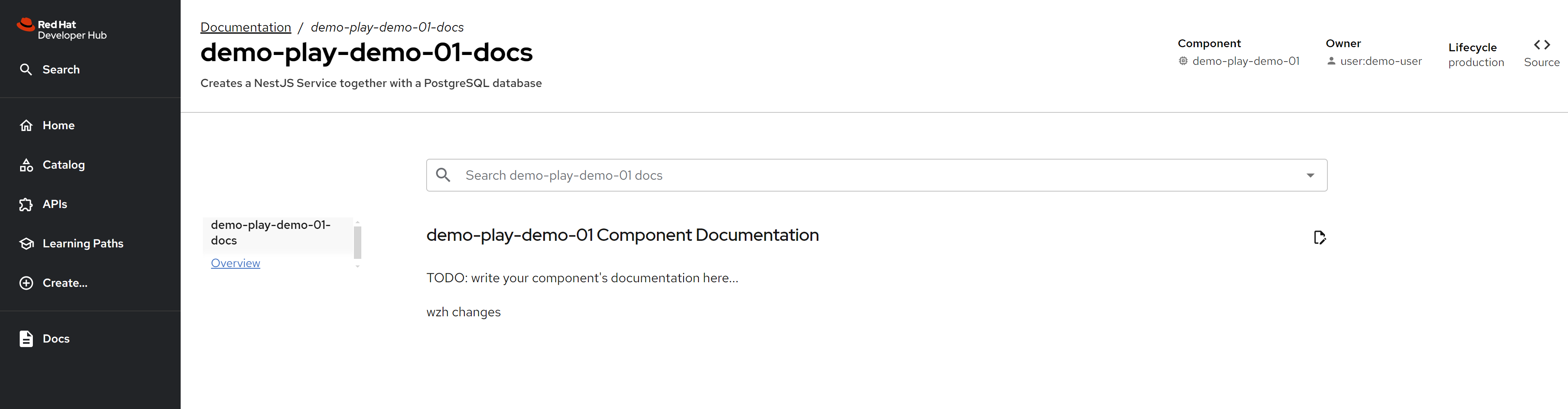

Yon can see the techdoc after click the link, and it will automatically generate the website.

continue the book

I did not realize that naming plays an important role in understanding the content of project experiments.


        # chapter 4

        # on helper

        mkdir -p ${BASE_DIR}/data/git

        cd ${BASE_DIR}/data/git

        git config --global http.sslVerify false
        git config --global user.email "you@example.com"
        git config --global user.name "root"

        # for backend app

        git clone https://gitlab-demo-gitlab.apps.demo-01-rhsys.wzhlab.top/development/demo-play-demo-01

        cd demo-play-demo-01

        cat openapi.yaml | grep "\- url: "
          # - url: https://demo-play-demo-01-demo-play.apps.demo-01-rhsys.wzhlab.top/
          # - url: http://localhost:3000/

        git remote add solution https://github.com/developer-hub-books/rhdh-book1-sample-code-poi-backend.git

        git fetch solution

        git checkout -b app-dev

        git merge --allow-unrelated-histories --strategy-option theirs -m "merge provided sample code" solution/main

        git commit -am "implement poi backend"

        git push origin app-dev

        # update the openapi.yaml for url in gitlab webIDE

        # for frontend app

        cd ${BASE_DIR}/data/git

        git clone https://gitlab-demo-gitlab.apps.demo-01-rhsys.wzhlab.top/development/demo-play-demo-02

        cd demo-play-demo-02

        git remote add solution https://github.com/developer-hub-books/rhdh-book1-sample-code-poi-map.git

        git fetch solution

        git checkout -b app-dev

        git merge --allow-unrelated-histories --strategy-option theirs -m "merge provided sample code" solution/main

        git commit -am "implement poi frontend"

        git push origin app-dev

end
