[!TIP] Ongoing and occasional updates and improvements.

apply settings belongs with worker profile

Openshift4 supports worker profile, which is a set of configurations that can be applied to the worker nodes. The worker profile contains some key parameters that can be adjusted to meet the specific requirements of the worker nodes. But the parameters is predefined, if you want to adjust the parameters, you need to find a way to do it.

https://docs.openshift.com/container-platform/4.15/nodes/clusters/nodes-cluster-worker-latency-profiles.html

Openshift4 developers listed the cluster operator around the worker profile. This gives us a clue on how to do that.

https://github.com/openshift/enhancements/blob/master/enhancements/worker-latency-profile/worker-latency-profile.md

[!WARNING] The method list in this doc, will break the supportability of your openshift cluster, like your cluster can not upgrade without rollback the configurations. Please use it with caution.

Contact with your redhat GPS, TAM, CEE or other redhat support team before apply the changes.

There is redhat cases about the same topic.

https://access.redhat.com/support/cases/#/case/03903659

for KubeletConfig

Our target is to set the node-status-update-frequency to 5s

Here is the official document to change the kubeletconfig.

https://docs.openshift.com/container-platform/4.15/post_installation_configuration/machine-configuration-tasks.html#create-a-kubeletconfig-crd-to-edit-kubelet-parameters_post-install-machine-configuration-tasks


# before apply change, check on the worker node
cat /etc/kubernetes/kubelet.conf | grep node
#   "nodeStatusUpdateFrequency": "10s",
#   "nodeStatusReportFrequency": "5m0s",

oc get mcp
# NAME     CONFIG                                             UPDATED   UPDATING   DEGRADED   MACHINECOUNT   READYMACHINECOUNT   UPDATEDMACHINECOUNT   DEGRADEDMACHINECOUNT   AGE
# master   rendered-master-3b06c8a6cdbb7a48ab7c3f43f08990bd   True      False      False      1              1                   1                     0                      16d
# worker   rendered-worker-eeb0c5ee23e3b38d342372cffde47bfb   True      False      False      0              0                   0                     0                      16d

oc get node
# NAME             STATUS   ROLES                         AGE   VERSION
# master-01-demo   Ready    control-plane,master,worker   16d   v1.28.11+add48d0

# label the machineconfigpool
oc label machineconfigpool master custom-kubelet=set-duration

# oc label machineconfigpool master custom-kubelet-

cat << EOF > ${BASE_DIR}/data/install/kubeletconfig-profile.yaml
apiVersion: machineconfiguration.openshift.io/v1
kind: KubeletConfig
metadata:
  name: set-duration
spec:
  machineConfigPoolSelector:
    matchLabels:
      custom-kubelet: set-duration
  kubeletConfig:
    nodeStatusUpdateFrequency: 5s
EOF

oc apply -f ${BASE_DIR}/data/install/kubeletconfig-profile.yaml

# oc delete -f ${BASE_DIR}/data/install/kubeletconfig-profile.yaml

# this will trigger ocp node reboot, after reboot,
# check node's kubelet.conf
cat kubelet.conf | grep node
#   "nodeStatusUpdateFrequency": "5s",
#   "nodeStatusReportFrequency": "5m0s",

for KubeControllerManager

Our target is to set the node-monitor-grace-period to 20s

Here is the kcs from redhat, tell us how to do it.

https://access.redhat.com/solutions/5686011

# before apply patch, check the kube-controller-manager pod
POD_NAME=`oc get pod -n openshift-kube-controller-manager | grep kube-controller-manager | awk '{print $1}'`

oc exec -n openshift-kube-controller-manager $POD_NAME -- ps -ef
# UID          PID    PPID  C STIME TTY          TIME CMD
# root           1       0  6 00:56 ?        00:00:38 kube-controller-manager --openshift-config=/etc/kubernetes/static-pod-resources/configmaps/config/config.yaml --kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig --authentication-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig --authorization-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig --client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/client-ca/ca-bundle.crt --requestheader-client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/aggregator-client-ca/ca-bundle.crt -v=2 --tls-cert-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.crt --tls-private-key-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.key --allocate-node-cidrs=false --cert-dir=/var/run/kubernetes --cluster-cidr=10.132.0.0/14 --cluster-name=demo-01-rhsys-wkmd8 --cluster-signing-cert-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.crt --cluster-signing-duration=720h --cluster-signing-key-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.key --configure-cloud-routes=false --controllers=* --controllers=-bootstrapsigner --controllers=-tokencleaner --controllers=-ttl --enable-dynamic-provisioning=true --feature-gates=AdminNetworkPolicy=false --feature-gates=AlibabaPlatform=true --feature-gates=AutomatedEtcdBackup=false --feature-gates=AzureWorkloadIdentity=true --feature-gates=BuildCSIVolumes=true --feature-gates=CSIDriverSharedResource=false --feature-gates=CloudDualStackNodeIPs=true --feature-gates=ClusterAPIInstall=false --feature-gates=DNSNameResolver=false --feature-gates=DisableKubeletCloudCredentialProviders=false --feature-gates=DynamicResourceAllocation=false --feature-gates=EventedPLEG=false --feature-gates=ExternalCloudProviderAzure=true --feature-gates=ExternalCloudProviderExternal=true --feature-gates=ExternalCloudProviderGCP=true --feature-gates=GCPClusterHostedDNS=false --feature-gates=GCPLabelsTags=false --feature-gates=GatewayAPI=false --feature-gates=InsightsConfigAPI=false --feature-gates=InstallAlternateInfrastructureAWS=false --feature-gates=MachineAPIOperatorDisableMachineHealthCheckController=false --feature-gates=MachineAPIProviderOpenStack=false --feature-gates=MachineConfigNodes=false --feature-gates=ManagedBootImages=false --feature-gates=MaxUnavailableStatefulSet=false --feature-gates=MetricsServer=false --feature-gates=MixedCPUsAllocation=false --feature-gates=NetworkLiveMigration=true --feature-gates=NodeSwap=false --feature-gates=OnClusterBuild=false --feature-gates=OpenShiftPodSecurityAdmission=false --feature-gates=PrivateHostedZoneAWS=true --feature-gates=RouteExternalCertificate=false --feature-gates=SignatureStores=false --feature-gates=SigstoreImageVerification=false --feature-gates=VSphereControlPlaneMachineSet=false --feature-gates=VSphereStaticIPs=false --feature-gates=ValidatingAdmissionPolicy=false --flex-volume-plugin-dir=/etc/kubernetes/kubelet-plugins/volume/exec --kube-api-burst=300 --kube-api-qps=150 --leader-elect-renew-deadline=12s --leader-elect-resource-lock=leases --leader-elect-retry-period=3s --leader-elect=true --pv-recycler-pod-template-filepath-hostpath=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml --pv-recycler-pod-template-filepath-nfs=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml --root-ca-file=/etc/kubernetes/static-pod-resources/configmaps/serviceaccount-ca/ca-bundle.crt --secure-port=10257 --service-account-private-key-file=/etc/kubernetes/static-pod-resources/secrets/service-account-private-key/service-account.key --service-cluster-ip-range=172.22.0.0/16 --use-service-account-credentials=true --tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 --tls-min-version=VersionTLS12
# root          47       0  0 01:04 pts/0    00:00:00 sh
# root          59       0  0 01:06 ?        00:00:00 ps -ef

let’s see the parameters of kube-controller-manager clearly

kube-controller-manager –openshift-config=/etc/kubernetes/static-pod-resources/configmaps/config/config.yaml –kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig –authentication-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig –authorization-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig –client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/client-ca/ca-bundle.crt –requestheader-client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/aggregator-client-ca/ca-bundle.crt -v=2 –tls-cert-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.crt –tls-private-key-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.key –allocate-node-cidrs=false –cert-dir=/var/run/kubernetes –cluster-cidr=10.132.0.0/14 –cluster-name=demo-01-rhsys-wkmd8 –cluster-signing-cert-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.crt –cluster-signing-duration=720h –cluster-signing-key-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.key –configure-cloud-routes=false –controllers=* –controllers=-bootstrapsigner –controllers=-tokencleaner –controllers=-ttl –enable-dynamic-provisioning=true –feature-gates=AdminNetworkPolicy=false –feature-gates=AlibabaPlatform=true –feature-gates=AutomatedEtcdBackup=false –feature-gates=AzureWorkloadIdentity=true –feature-gates=BuildCSIVolumes=true –feature-gates=CSIDriverSharedResource=false –feature-gates=CloudDualStackNodeIPs=true –feature-gates=ClusterAPIInstall=false –feature-gates=DNSNameResolver=false –feature-gates=DisableKubeletCloudCredentialProviders=false –feature-gates=DynamicResourceAllocation=false –feature-gates=EventedPLEG=false –feature-gates=ExternalCloudProviderAzure=true –feature-gates=ExternalCloudProviderExternal=true –feature-gates=ExternalCloudProviderGCP=true –feature-gates=GCPClusterHostedDNS=false –feature-gates=GCPLabelsTags=false –feature-gates=GatewayAPI=false –feature-gates=InsightsConfigAPI=false –feature-gates=InstallAlternateInfrastructureAWS=false –feature-gates=MachineAPIOperatorDisableMachineHealthCheckController=false –feature-gates=MachineAPIProviderOpenStack=false –feature-gates=MachineConfigNodes=false –feature-gates=ManagedBootImages=false –feature-gates=MaxUnavailableStatefulSet=false –feature-gates=MetricsServer=false –feature-gates=MixedCPUsAllocation=false –feature-gates=NetworkLiveMigration=true –feature-gates=NodeSwap=false –feature-gates=OnClusterBuild=false –feature-gates=OpenShiftPodSecurityAdmission=false –feature-gates=PrivateHostedZoneAWS=true –feature-gates=RouteExternalCertificate=false –feature-gates=SignatureStores=false –feature-gates=SigstoreImageVerification=false –feature-gates=VSphereControlPlaneMachineSet=false –feature-gates=VSphereStaticIPs=false –feature-gates=ValidatingAdmissionPolicy=false –flex-volume-plugin-dir=/etc/kubernetes/kubelet-plugins/volume/exec –kube-api-burst=300 –kube-api-qps=150 –leader-elect-renew-deadline=12s –leader-elect-resource-lock=leases –leader-elect-retry-period=3s –leader-elect=true –pv-recycler-pod-template-filepath-hostpath=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml –pv-recycler-pod-template-filepath-nfs=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml –root-ca-file=/etc/kubernetes/static-pod-resources/configmaps/serviceaccount-ca/ca-bundle.crt –secure-port=10257 –service-account-private-key-file=/etc/kubernetes/static-pod-resources/secrets/service-account-private-key/service-account.key –service-cluster-ip-range=172.22.0.0/16 –use-service-account-credentials=true –tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 –tls-min-version=VersionTLS12

There is no node-monitor-grace-period in the output, so we need to check the help, whether it is supported.

oc exec -n openshift-kube-controller-manager $POD_NAME -- kube-controller-manager --help | grep node-monitor-grace-period
      # --node-monitor-grace-period duration     Amount of time which we allow running Node to be unresponsive before marking it unhealthy. Must be N times more than kubelet's nodeStatusUpdateFrequency, where N means number of retries allowed for kubelet to post node status. (default 40s)

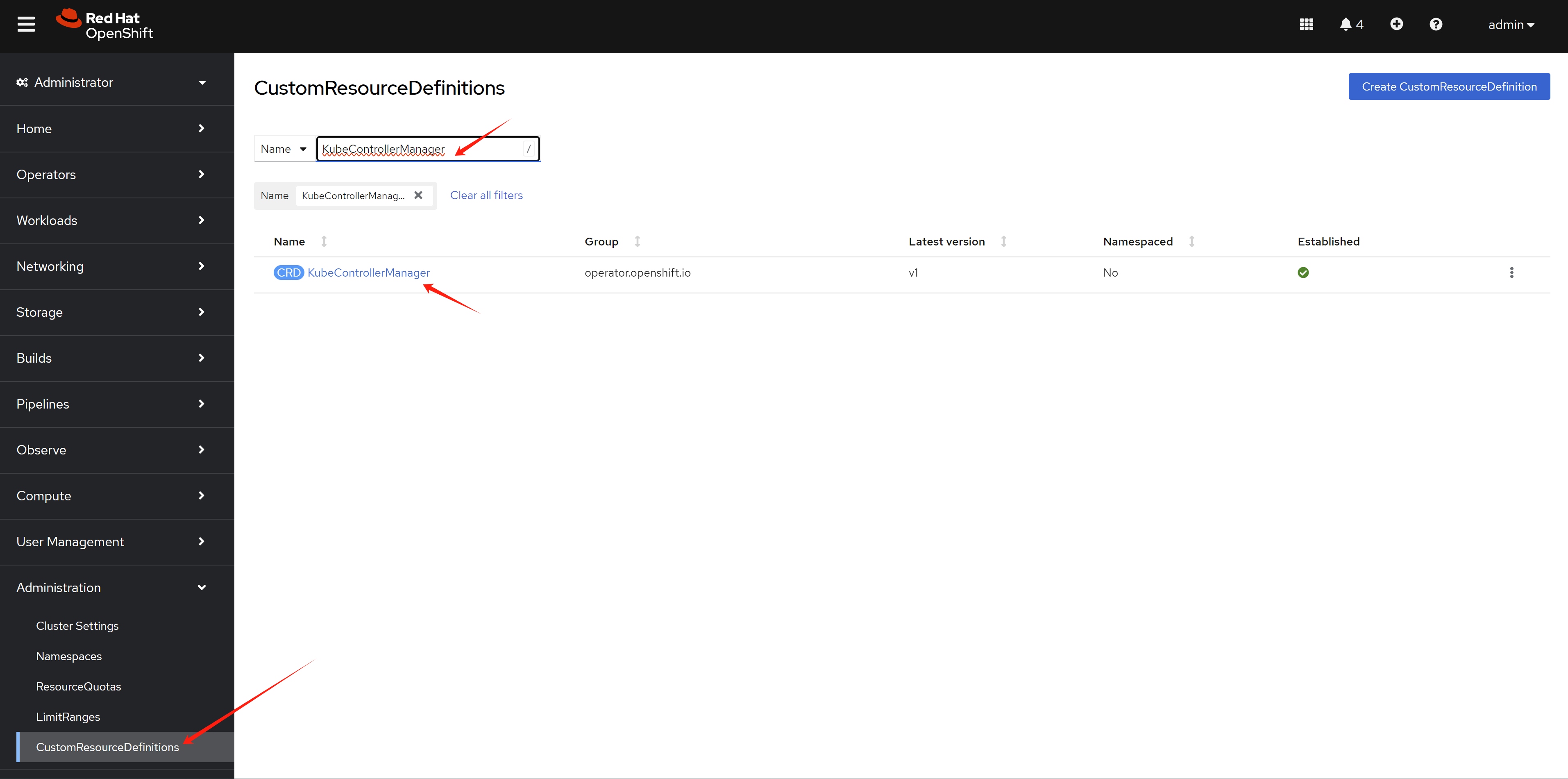

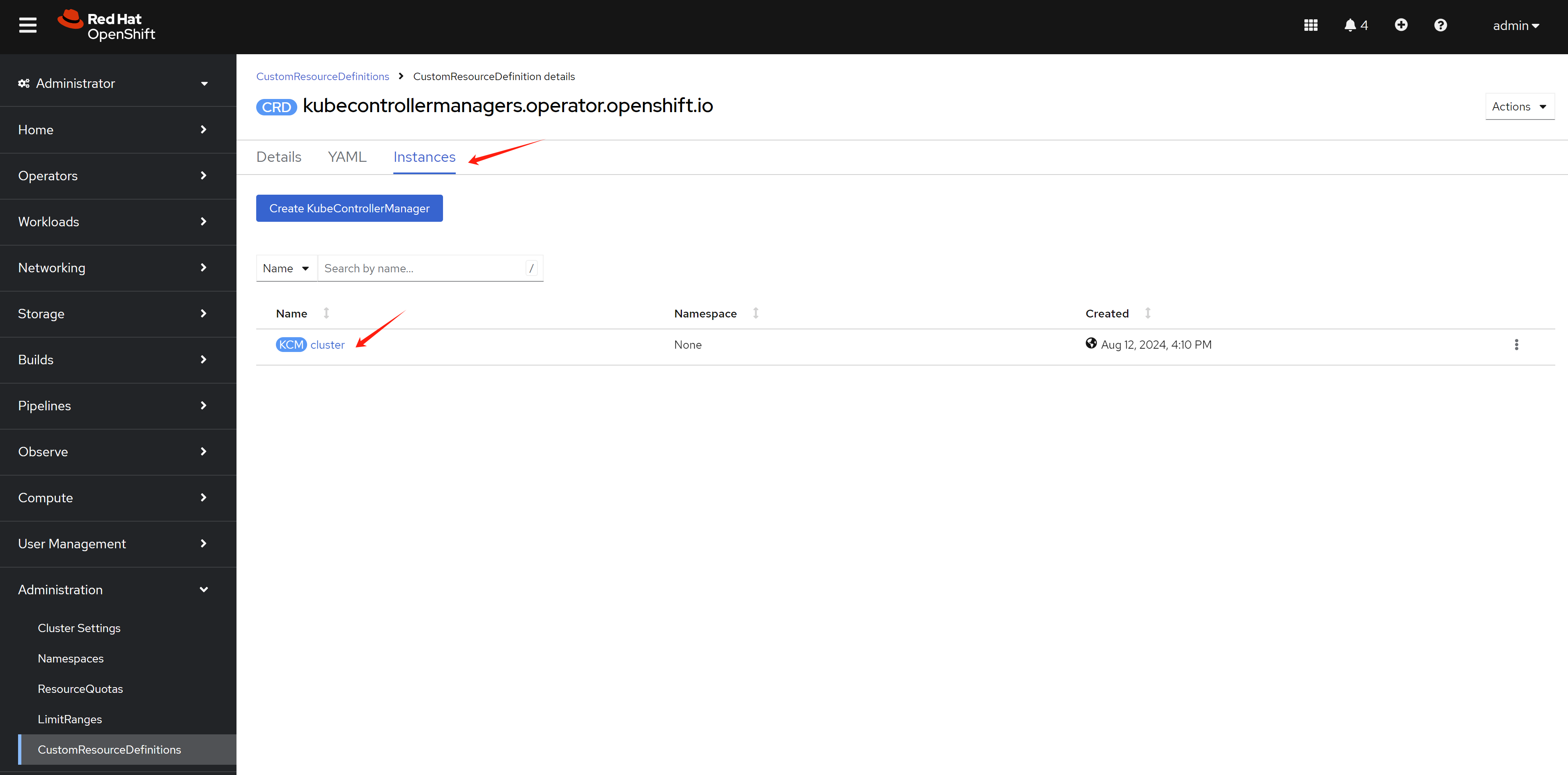

Yes, it is supported. Let’s manually patch the configuration

Apply the patch below.

apiVersion: operator.openshift.io/v1
kind: KubeControllerManager
metadata:
  name: cluster
....
spec:
  ....
  unsupportedConfigOverrides:
    extendedArguments:
      node-monitor-grace-period:
        - "20s"

After manually patch the config, check the kube-controller-manager pod again

oc exec -n openshift-kube-controller-manager $POD_NAME -- ps -ef
# UID          PID    PPID  C STIME TTY          TIME CMD
# root           1       0  3 01:14 ?        00:00:07 kube-controller-manager --openshift-config=/etc/kubernetes/static-pod-resources/configmaps/config/config.yaml --kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig --authentication-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig --authorization-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig --client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/client-ca/ca-bundle.crt --requestheader-client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/aggregator-client-ca/ca-bundle.crt -v=2 --tls-cert-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.crt --tls-private-key-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.key --allocate-node-cidrs=false --cert-dir=/var/run/kubernetes --cluster-cidr=10.132.0.0/14 --cluster-name=demo-01-rhsys-wkmd8 --cluster-signing-cert-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.crt --cluster-signing-duration=720h --cluster-signing-key-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.key --configure-cloud-routes=false --controllers=* --controllers=-bootstrapsigner --controllers=-tokencleaner --controllers=-ttl --enable-dynamic-provisioning=true --feature-gates=AdminNetworkPolicy=false --feature-gates=AlibabaPlatform=true --feature-gates=AutomatedEtcdBackup=false --feature-gates=AzureWorkloadIdentity=true --feature-gates=BuildCSIVolumes=true --feature-gates=CSIDriverSharedResource=false --feature-gates=CloudDualStackNodeIPs=true --feature-gates=ClusterAPIInstall=false --feature-gates=DNSNameResolver=false --feature-gates=DisableKubeletCloudCredentialProviders=false --feature-gates=DynamicResourceAllocation=false --feature-gates=EventedPLEG=false --feature-gates=ExternalCloudProviderAzure=true --feature-gates=ExternalCloudProviderExternal=true --feature-gates=ExternalCloudProviderGCP=true --feature-gates=GCPClusterHostedDNS=false --feature-gates=GCPLabelsTags=false --feature-gates=GatewayAPI=false --feature-gates=InsightsConfigAPI=false --feature-gates=InstallAlternateInfrastructureAWS=false --feature-gates=MachineAPIOperatorDisableMachineHealthCheckController=false --feature-gates=MachineAPIProviderOpenStack=false --feature-gates=MachineConfigNodes=false --feature-gates=ManagedBootImages=false --feature-gates=MaxUnavailableStatefulSet=false --feature-gates=MetricsServer=false --feature-gates=MixedCPUsAllocation=false --feature-gates=NetworkLiveMigration=true --feature-gates=NodeSwap=false --feature-gates=OnClusterBuild=false --feature-gates=OpenShiftPodSecurityAdmission=false --feature-gates=PrivateHostedZoneAWS=true --feature-gates=RouteExternalCertificate=false --feature-gates=SignatureStores=false --feature-gates=SigstoreImageVerification=false --feature-gates=VSphereControlPlaneMachineSet=false --feature-gates=VSphereStaticIPs=false --feature-gates=ValidatingAdmissionPolicy=false --flex-volume-plugin-dir=/etc/kubernetes/kubelet-plugins/volume/exec --kube-api-burst=300 --kube-api-qps=150 --leader-elect-renew-deadline=12s --leader-elect-resource-lock=leases --leader-elect-retry-period=3s --leader-elect=true --node-monitor-grace-period=20s --pv-recycler-pod-template-filepath-hostpath=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml --pv-recycler-pod-template-filepath-nfs=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml --root-ca-file=/etc/kubernetes/static-pod-resources/configmaps/serviceaccount-ca/ca-bundle.crt --secure-port=10257 --service-account-private-key-file=/etc/kubernetes/static-pod-resources/secrets/service-account-private-key/service-account.key --service-cluster-ip-range=172.22.0.0/16 --use-service-account-credentials=true --tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 --tls-min-version=VersionTLS12
# root         102       0  0 01:18 ?        00:00:00 ps -ef

kube-controller-manager –openshift-config=/etc/kubernetes/static-pod-resources/configmaps/config/config.yaml –kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig –authentication-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig –authorization-kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/controller-manager-kubeconfig/kubeconfig –client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/client-ca/ca-bundle.crt –requestheader-client-ca-file=/etc/kubernetes/static-pod-certs/configmaps/aggregator-client-ca/ca-bundle.crt -v=2 –tls-cert-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.crt –tls-private-key-file=/etc/kubernetes/static-pod-resources/secrets/serving-cert/tls.key –allocate-node-cidrs=false –cert-dir=/var/run/kubernetes –cluster-cidr=10.132.0.0/14 –cluster-name=demo-01-rhsys-wkmd8 –cluster-signing-cert-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.crt –cluster-signing-duration=720h –cluster-signing-key-file=/etc/kubernetes/static-pod-certs/secrets/csr-signer/tls.key –configure-cloud-routes=false –controllers=* –controllers=-bootstrapsigner –controllers=-tokencleaner –controllers=-ttl –enable-dynamic-provisioning=true –feature-gates=AdminNetworkPolicy=false –feature-gates=AlibabaPlatform=true –feature-gates=AutomatedEtcdBackup=false –feature-gates=AzureWorkloadIdentity=true –feature-gates=BuildCSIVolumes=true –feature-gates=CSIDriverSharedResource=false –feature-gates=CloudDualStackNodeIPs=true –feature-gates=ClusterAPIInstall=false –feature-gates=DNSNameResolver=false –feature-gates=DisableKubeletCloudCredentialProviders=false –feature-gates=DynamicResourceAllocation=false –feature-gates=EventedPLEG=false –feature-gates=ExternalCloudProviderAzure=true –feature-gates=ExternalCloudProviderExternal=true –feature-gates=ExternalCloudProviderGCP=true –feature-gates=GCPClusterHostedDNS=false –feature-gates=GCPLabelsTags=false –feature-gates=GatewayAPI=false –feature-gates=InsightsConfigAPI=false –feature-gates=InstallAlternateInfrastructureAWS=false –feature-gates=MachineAPIOperatorDisableMachineHealthCheckController=false –feature-gates=MachineAPIProviderOpenStack=false –feature-gates=MachineConfigNodes=false –feature-gates=ManagedBootImages=false –feature-gates=MaxUnavailableStatefulSet=false –feature-gates=MetricsServer=false –feature-gates=MixedCPUsAllocation=false –feature-gates=NetworkLiveMigration=true –feature-gates=NodeSwap=false –feature-gates=OnClusterBuild=false –feature-gates=OpenShiftPodSecurityAdmission=false –feature-gates=PrivateHostedZoneAWS=true –feature-gates=RouteExternalCertificate=false –feature-gates=SignatureStores=false –feature-gates=SigstoreImageVerification=false –feature-gates=VSphereControlPlaneMachineSet=false –feature-gates=VSphereStaticIPs=false –feature-gates=ValidatingAdmissionPolicy=false –flex-volume-plugin-dir=/etc/kubernetes/kubelet-plugins/volume/exec –kube-api-burst=300 –kube-api-qps=150 –leader-elect-renew-deadline=12s –leader-elect-resource-lock=leases –leader-elect-retry-period=3s –leader-elect=true –node-monitor-grace-period=20s –pv-recycler-pod-template-filepath-hostpath=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml –pv-recycler-pod-template-filepath-nfs=/etc/kubernetes/static-pod-resources/configmaps/recycler-config/recycler-pod.yaml –root-ca-file=/etc/kubernetes/static-pod-resources/configmaps/serviceaccount-ca/ca-bundle.crt –secure-port=10257 –service-account-private-key-file=/etc/kubernetes/static-pod-resources/secrets/service-account-private-key/service-account.key –service-cluster-ip-range=172.22.0.0/16 –use-service-account-credentials=true –tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 –tls-min-version=VersionTLS12

You can see the parameters now.

for KubeAPIServer

Our target is to set the default-not-ready-toleration-seconds to 20s

# before apply patch, check the kube-controller-manager pod
POD_NAME=`oc get pod -n openshift-kube-apiserver | grep kube-apiserver | awk '{print $1}'`

oc exec -n openshift-kube-apiserver $POD_NAME -- ps -ef
# UID          PID    PPID  C STIME TTY          TIME CMD
# root           1       0  0 00:56 ?        00:00:00 watch-termination --termination-touch-file=/var/log/kube-apiserver/.terminating --termination-log-file=/var/log/kube-apiserver/termination.log --graceful-termination-duration=15s --kubeconfig=/etc/kubernetes/static-pod-resources/configmaps/kube-apiserver-cert-syncer-kubeconfig/kubeconfig -- hyperkube kube-apiserver --openshift-config=/etc/kubernetes/static-pod-resources/configmaps/config/config.yaml --advertise-address=192.168.50.23 -v=2 --permit-address-sharing
# root          19       1 93 00:56 ?        00:35:11 kube-apiserver --openshift-config=/etc/kubernetes/static-pod-resources/configmaps/config/config.yaml --advertise-address=192.168.50.23 -v=2 --permit-address-sharing
# root          63       0  0 01:33 ?        00:00:00 ps -ef

oc exec -n openshift-kube-apiserver $POD_NAME -- cat /etc/kubernetes/static-pod-resources/configmaps/config/config.yaml
# the output is a json

Let’s see the configuration in detail

{
  "admission": {
    "pluginConfig": {
      "PodSecurity": {
        "configuration": {
          "apiVersion": "pod-security.admission.config.k8s.io/v1",
          "defaults": {
            "audit": "restricted",
            "audit-version": "latest",
            "enforce": "privileged",
            "enforce-version": "latest",
            "warn": "restricted",
            "warn-version": "latest"
          },
          "exemptions": {
            "usernames": [
              "system:serviceaccount:openshift-infra:build-controller"
            ]
          },
          "kind": "PodSecurityConfiguration"
        }
      },
      "network.openshift.io/ExternalIPRanger": {
        "configuration": {
          "allowIngressIP": false,
          "apiVersion": "network.openshift.io/v1",
          "externalIPNetworkCIDRs": null,
          "kind": "ExternalIPRangerAdmissionConfig"
        },
        "location": ""
      },
      "network.openshift.io/RestrictedEndpointsAdmission": {
        "configuration": {
          "apiVersion": "network.openshift.io/v1",
          "kind": "RestrictedEndpointsAdmissionConfig",
          "restrictedCIDRs": [
            "10.132.0.0/14",
            "172.22.0.0/16"
          ]
        }
      }
    }
  },
  "apiServerArguments": {
    "allow-privileged": [
      "true"
    ],
    "anonymous-auth": [
      "true"
    ],
    "api-audiences": [
      "https://kubernetes.default.svc"
    ],
    "audit-log-format": [
      "json"
    ],
    "audit-log-maxbackup": [
      "10"
    ],
    "audit-log-maxsize": [
      "200"
    ],
    "audit-log-path": [
      "/var/log/kube-apiserver/audit.log"
    ],
    "audit-policy-file": [
      "/etc/kubernetes/static-pod-resources/configmaps/kube-apiserver-audit-policies/policy.yaml"
    ],
    "authentication-token-webhook-config-file": [
      "/etc/kubernetes/static-pod-resources/secrets/webhook-authenticator/kubeConfig"
    ],
    "authentication-token-webhook-version": [
      "v1"
    ],
    "authorization-mode": [
      "Scope",
      "SystemMasters",
      "RBAC",
      "Node"
    ],
    "client-ca-file": [
      "/etc/kubernetes/static-pod-certs/configmaps/client-ca/ca-bundle.crt"
    ],
    "enable-admission-plugins": [
      "CertificateApproval",
      "CertificateSigning",
      "CertificateSubjectRestriction",
      "DefaultIngressClass",
      "DefaultStorageClass",
      "DefaultTolerationSeconds",
      "LimitRanger",
      "MutatingAdmissionWebhook",
      "NamespaceLifecycle",
      "NodeRestriction",
      "OwnerReferencesPermissionEnforcement",
      "PersistentVolumeClaimResize",
      "PersistentVolumeLabel",
      "PodNodeSelector",
      "PodTolerationRestriction",
      "Priority",
      "ResourceQuota",
      "RuntimeClass",
      "ServiceAccount",
      "StorageObjectInUseProtection",
      "TaintNodesByCondition",
      "ValidatingAdmissionWebhook",
      "ValidatingAdmissionPolicy",
      "authorization.openshift.io/RestrictSubjectBindings",
      "authorization.openshift.io/ValidateRoleBindingRestriction",
      "config.openshift.io/DenyDeleteClusterConfiguration",
      "config.openshift.io/ValidateAPIServer",
      "config.openshift.io/ValidateAuthentication",
      "config.openshift.io/ValidateConsole",
      "config.openshift.io/ValidateFeatureGate",
      "config.openshift.io/ValidateImage",
      "config.openshift.io/ValidateOAuth",
      "config.openshift.io/ValidateProject",
      "config.openshift.io/ValidateScheduler",
      "image.openshift.io/ImagePolicy",
      "network.openshift.io/ExternalIPRanger",
      "network.openshift.io/RestrictedEndpointsAdmission",
      "quota.openshift.io/ClusterResourceQuota",
      "quota.openshift.io/ValidateClusterResourceQuota",
      "route.openshift.io/IngressAdmission",
      "scheduling.openshift.io/OriginPodNodeEnvironment",
      "security.openshift.io/DefaultSecurityContextConstraints",
      "security.openshift.io/SCCExecRestrictions",
      "security.openshift.io/SecurityContextConstraint",
      "security.openshift.io/ValidateSecurityContextConstraints",
      "storage.openshift.io/CSIInlineVolumeSecurity"
    ],
    "enable-aggregator-routing": [
      "true"
    ],
    "enable-logs-handler": [
      "false"
    ],
    "endpoint-reconciler-type": [
      "lease"
    ],
    "etcd-cafile": [
      "/etc/kubernetes/static-pod-resources/configmaps/etcd-serving-ca/ca-bundle.crt"
    ],
    "etcd-certfile": [
      "/etc/kubernetes/static-pod-resources/secrets/etcd-client/tls.crt"
    ],
    "etcd-healthcheck-timeout": [
      "9s"
    ],
    "etcd-keyfile": [
      "/etc/kubernetes/static-pod-resources/secrets/etcd-client/tls.key"
    ],
    "etcd-prefix": [
      "kubernetes.io"
    ],
    "etcd-readycheck-timeout": [
      "9s"
    ],
    "etcd-servers": [
      "https://192.168.50.23:2379",
      "https://localhost:2379"
    ],
    "event-ttl": [
      "3h"
    ],
    "feature-gates": [
      "AdminNetworkPolicy=false",
      "AlibabaPlatform=true",
      "AutomatedEtcdBackup=false",
      "AzureWorkloadIdentity=true",
      "BuildCSIVolumes=true",
      "CSIDriverSharedResource=false",
      "CloudDualStackNodeIPs=true",
      "ClusterAPIInstall=false",
      "DNSNameResolver=false",
      "DisableKubeletCloudCredentialProviders=false",
      "DynamicResourceAllocation=false",
      "EventedPLEG=false",
      "ExternalCloudProvider=true",
      "ExternalCloudProviderAzure=true",
      "ExternalCloudProviderExternal=true",
      "ExternalCloudProviderGCP=true",
      "GCPClusterHostedDNS=false",
      "GCPLabelsTags=false",
      "GatewayAPI=false",
      "InsightsConfigAPI=false",
      "InstallAlternateInfrastructureAWS=false",
      "MachineAPIOperatorDisableMachineHealthCheckController=false",
      "MachineAPIProviderOpenStack=false",
      "MachineConfigNodes=false",
      "ManagedBootImages=false",
      "MaxUnavailableStatefulSet=false",
      "MetricsServer=false",
      "MixedCPUsAllocation=false",
      "NetworkLiveMigration=true",
      "NodeSwap=false",
      "OnClusterBuild=false",
      "OpenShiftPodSecurityAdmission=false",
      "PrivateHostedZoneAWS=true",
      "RouteExternalCertificate=false",
      "SignatureStores=false",
      "SigstoreImageVerification=false",
      "VSphereControlPlaneMachineSet=false",
      "VSphereStaticIPs=false",
      "ValidatingAdmissionPolicy=false"
    ],
    "goaway-chance": [
      "0"
    ],
    "http2-max-streams-per-connection": [
      "2000"
    ],
    "kubelet-certificate-authority": [
      "/etc/kubernetes/static-pod-resources/configmaps/kubelet-serving-ca/ca-bundle.crt"
    ],
    "kubelet-client-certificate": [
      "/etc/kubernetes/static-pod-certs/secrets/kubelet-client/tls.crt"
    ],
    "kubelet-client-key": [
      "/etc/kubernetes/static-pod-certs/secrets/kubelet-client/tls.key"
    ],
    "kubelet-preferred-address-types": [
      "InternalIP"
    ],
    "kubelet-read-only-port": [
      "0"
    ],
    "kubernetes-service-node-port": [
      "0"
    ],
    "max-mutating-requests-inflight": [
      "1000"
    ],
    "max-requests-inflight": [
      "3000"
    ],
    "min-request-timeout": [
      "3600"
    ],
    "proxy-client-cert-file": [
      "/etc/kubernetes/static-pod-certs/secrets/aggregator-client/tls.crt"
    ],
    "proxy-client-key-file": [
      "/etc/kubernetes/static-pod-certs/secrets/aggregator-client/tls.key"
    ],
    "requestheader-allowed-names": [
      "kube-apiserver-proxy",
      "system:kube-apiserver-proxy",
      "system:openshift-aggregator"
    ],
    "requestheader-client-ca-file": [
      "/etc/kubernetes/static-pod-certs/configmaps/aggregator-client-ca/ca-bundle.crt"
    ],
    "requestheader-extra-headers-prefix": [
      "X-Remote-Extra-"
    ],
    "requestheader-group-headers": [
      "X-Remote-Group"
    ],
    "requestheader-username-headers": [
      "X-Remote-User"
    ],
    "send-retry-after-while-not-ready-once": [
      "true"
    ],
    "service-account-issuer": [
      "https://kubernetes.default.svc"
    ],
    "service-account-jwks-uri": [
      "https://api.demo-01-rhsys.wzhlab.top:6443/openid/v1/jwks"
    ],
    "service-account-lookup": [
      "true"
    ],
    "service-account-signing-key-file": [
      "/etc/kubernetes/static-pod-certs/secrets/bound-service-account-signing-key/service-account.key"
    ],
    "service-node-port-range": [
      "30000-32767"
    ],
    "shutdown-delay-duration": [
      "0s"
    ],
    "shutdown-send-retry-after": [
      "true"
    ],
    "storage-backend": [
      "etcd3"
    ],
    "storage-media-type": [
      "application/vnd.kubernetes.protobuf"
    ],
    "strict-transport-security-directives": [
      "max-age=31536000,includeSubDomains,preload"
    ],
    "tls-cert-file": [
      "/etc/kubernetes/static-pod-certs/secrets/service-network-serving-certkey/tls.crt"
    ],
    "tls-private-key-file": [
      "/etc/kubernetes/static-pod-certs/secrets/service-network-serving-certkey/tls.key"
    ]
  },
  "apiVersion": "kubecontrolplane.config.openshift.io/v1",
  "authConfig": {
    "oauthMetadataFile": "/etc/kubernetes/static-pod-resources/configmaps/oauth-metadata/oauthMetadata"
  },
  "consolePublicURL": "",
  "corsAllowedOrigins": [
    "//127\\.0\\.0\\.1(:|$)",
    "//localhost(:|$)"
  ],
  "imagePolicyConfig": {
    "internalRegistryHostname": "image-registry.openshift-image-registry.svc:5000"
  },
  "kind": "KubeAPIServerConfig",
  "projectConfig": {
    "defaultNodeSelector": ""
  },
  "serviceAccountPublicKeyFiles": [
    "/etc/kubernetes/static-pod-resources/configmaps/sa-token-signing-certs",
    "/etc/kubernetes/static-pod-resources/configmaps/bound-sa-token-signing-certs"
  ],
  "servicesSubnet": "172.22.0.0/16",
  "servingInfo": {
    "bindAddress": "0.0.0.0:6443",
    "bindNetwork": "tcp4",
    "cipherSuites": [
      "TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256",
      "TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256",
      "TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384",
      "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384",
      "TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256",
      "TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256"
    ],
    "minTLSVersion": "VersionTLS12",
    "namedCertificates": [
      {
        "certFile": "/etc/kubernetes/static-pod-certs/secrets/localhost-serving-cert-certkey/tls.crt",
        "keyFile": "/etc/kubernetes/static-pod-certs/secrets/localhost-serving-cert-certkey/tls.key"
      },
      {
        "certFile": "/etc/kubernetes/static-pod-certs/secrets/service-network-serving-certkey/tls.crt",
        "keyFile": "/etc/kubernetes/static-pod-certs/secrets/service-network-serving-certkey/tls.key"
      },
      {
        "certFile": "/etc/kubernetes/static-pod-certs/secrets/external-loadbalancer-serving-certkey/tls.crt",
        "keyFile": "/etc/kubernetes/static-pod-certs/secrets/external-loadbalancer-serving-certkey/tls.key"
      },
      {
        "certFile": "/etc/kubernetes/static-pod-certs/secrets/internal-loadbalancer-serving-certkey/tls.crt",
        "keyFile": "/etc/kubernetes/static-pod-certs/secrets/internal-loadbalancer-serving-certkey/tls.key"
      },
      {
        "certFile": "/etc/kubernetes/static-pod-resources/secrets/localhost-recovery-serving-certkey/tls.crt",
        "keyFile": "/etc/kubernetes/static-pod-resources/secrets/localhost-recovery-serving-certkey/tls.key"
      }
    ]
  }
}

there is no default-not-ready-toleration-seconds in the configuration

# confirm the parameter is not there.
oc exec -n openshift-kube-apiserver $POD_NAME -- cat /etc/kubernetes/static-pod-resources/configmaps/config/config.yaml | grep default-not-ready-toleration-seconds
# no output

# and kube-apiserver support the parameter
oc exec -n openshift-kube-apiserver $POD_NAME -- kube-apiserver --help | grep default-not-ready-toleration-seconds
      # --default-not-ready-toleration-seconds int           Indicates the tolerationSeconds of the toleration for notReady:NoExecute that is added by default to every pod that does not already have such a toleration. (default 300)

Apply the patch below.

apiVersion: operator.openshift.io/v1
kind: KubeAPIServer
  name: cluster
  ....
spec:
  ....
  unsupportedConfigOverrides:
    apiServerArguments:
      default-not-ready-toleration-seconds:
        - "20"

And check the configuration again

# go back to check the configuration again, we can see the parameter now
oc exec -n openshift-kube-apiserver $POD_NAME -- cat /etc/kubernetes/static-pod-resources/configmaps/config/config.yaml | jq . | grep -A 2 default-not-ready-toleration-seconds
    # "default-not-ready-toleration-seconds": [
    #   "20"
    # ],
