openshift 4.16 integration with Azure SSO with group sync operator

OpenShift support integration with Azure SSO through OpenID. In this article, we will show you how to integrate OpenShift 4.16 with Azure SSO.

azure portal setting

In your Azure portal, go to Azure Active Directory -> App registrations -> New registration

As you can see, we create a app registration azure-ocp-sso. Let us find the redirect url for the openshift sso.

Get openshift sso callback host from openshift cli:

oc get route -n openshift-authentication

        # NAME              HOST/PORT                                       PATH   SERVICES          PORT   TERMINATION            WILDCARD

        # oauth-openshift   oauth-openshift.apps.demo-01-rhsys.wzhlab.top          oauth-openshift   6443   passthrough/Redirect   None

So the redirect url is https://oauth-openshift.apps.demo-01-rhsys.wzhlab.top/oauth2callback/azure-ocp-sso . Now we can create the app registration in Azure portal.

After the app registration is created, we can get the tenant id and client id from the Overview page. Write it down for later use.

And create a client secret in the Certificates & secrets page.

Write it down for later use.

Now, we need go add some permissions to the app registration. Go to API permissions page, click Add a permission.

Add profile and email permissions with Delegated permissions.

For group sync, we need to add Directory.Read.All GroupMember.Read.All User.Read.All permission with Application permissions.

After the permissions are added, we need to grant admin consent for the permissions.

And get the endpoint of azure, write it down.

We also create some groups and add some users to the groups.

openshift sso setting

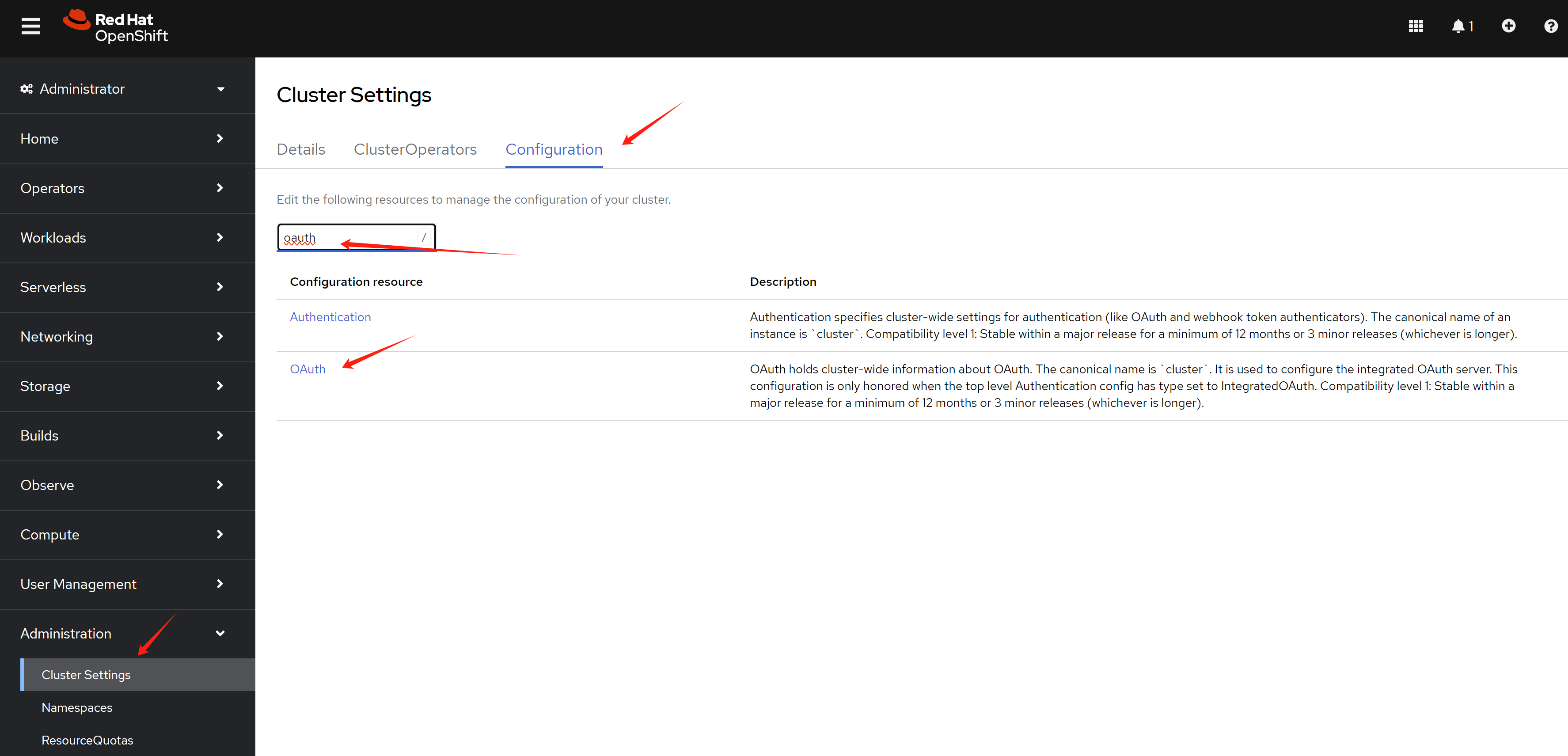

Go to openshift web console, go to Administration -> Cluster Settings -> Configuration, search for oauth.

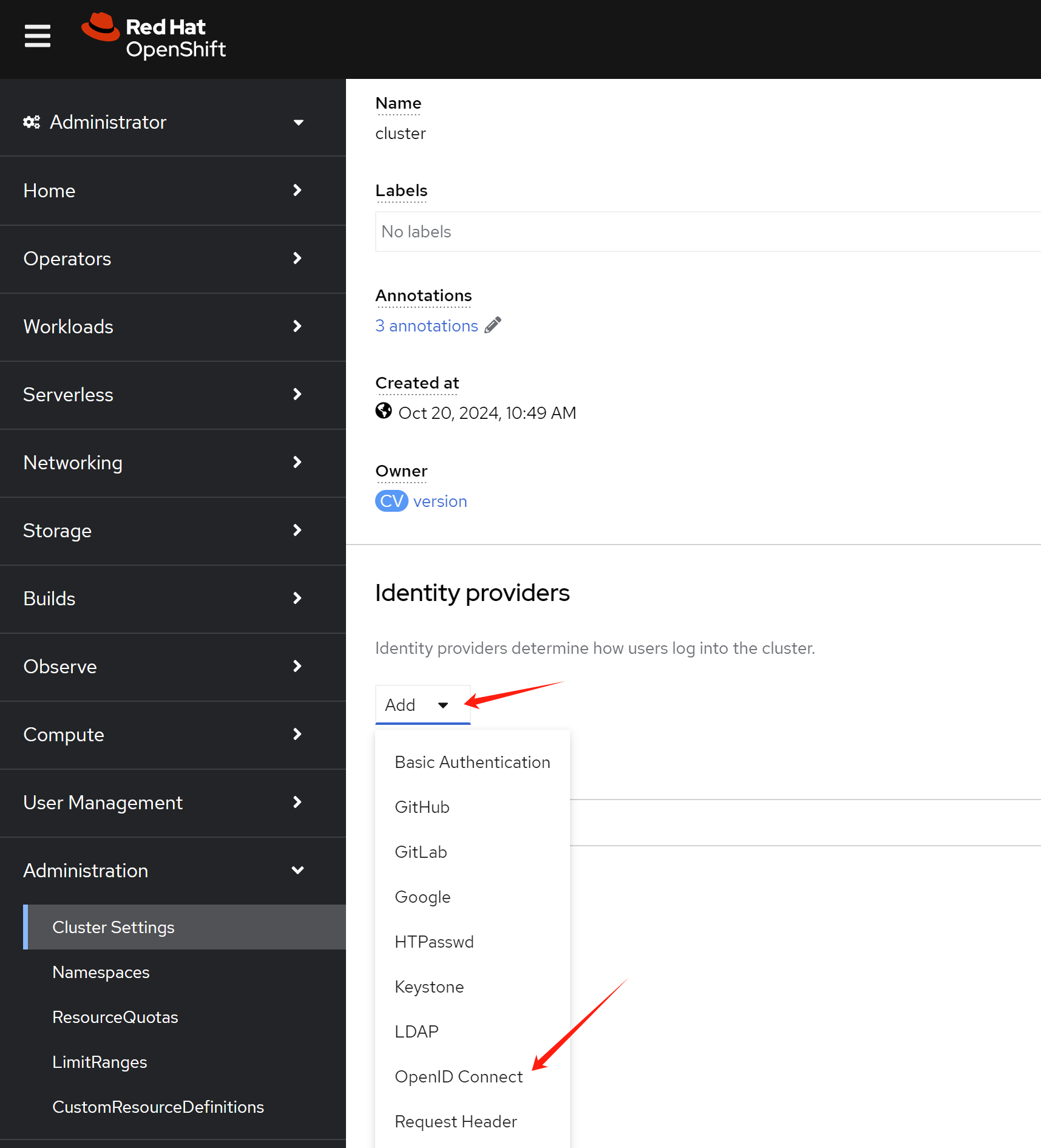

In the oauth page, click Add to add a new OpenID Connect.

Input the name client id client secret endpoint in the openshift sso page.

[!NOTE] The name must be the name of the app registration in Azure portal.

The preferred username must be upn.

If you make something wrong, and want to change the config, you can edit the oauth object in openshift.

oc edit oauth/cluster

If you want to remove a user:

oc delete user <username>

        oc delete identity <user-identity>

openshift group sync

OpenShift SSO integration with azure will create user in openshift during the first login. But the group information will not be synced. We need to use Group Sync Operator to sync the group information.

Reference:

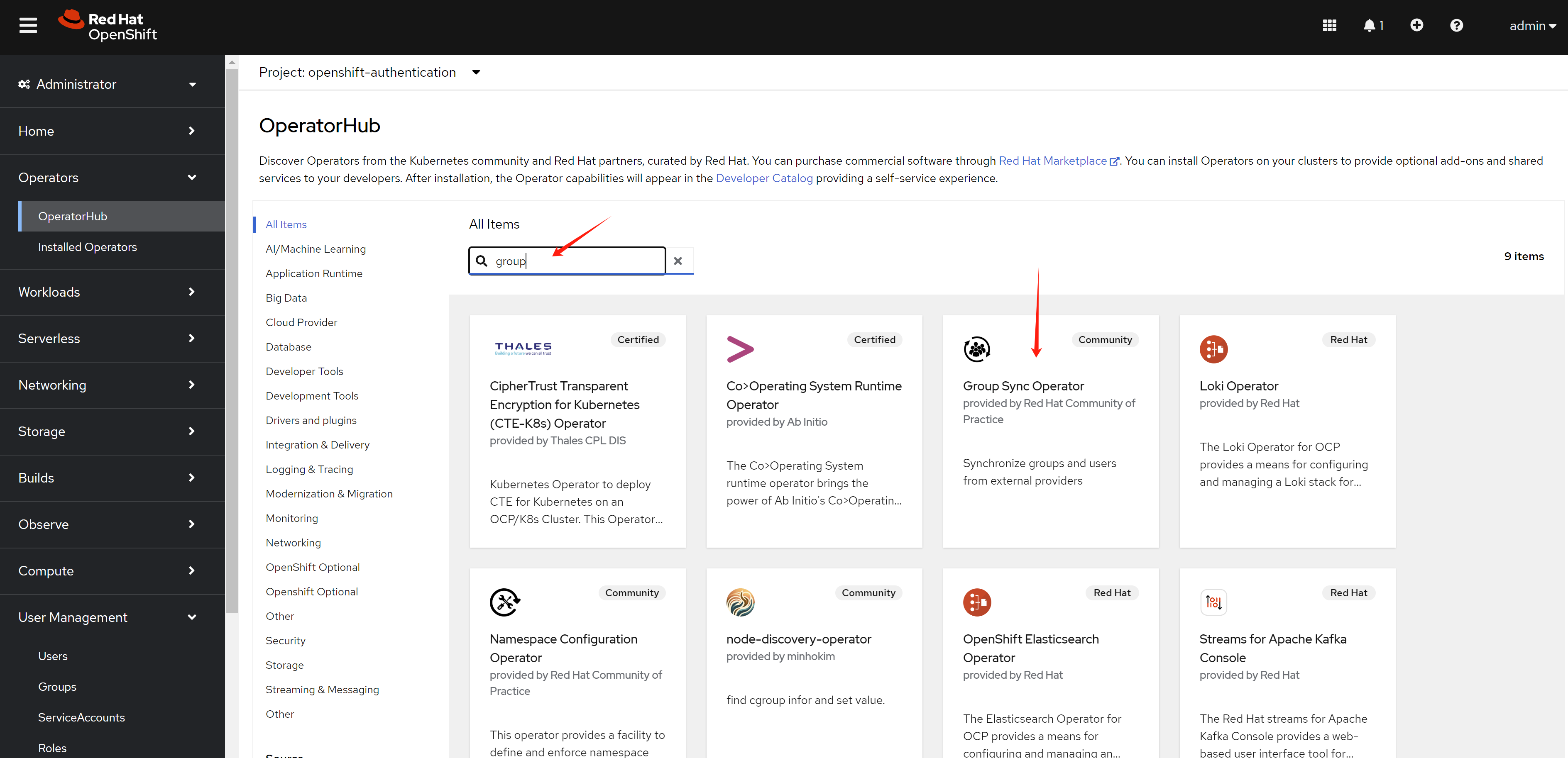

In operator hub, search group and install the Group Sync Operator.

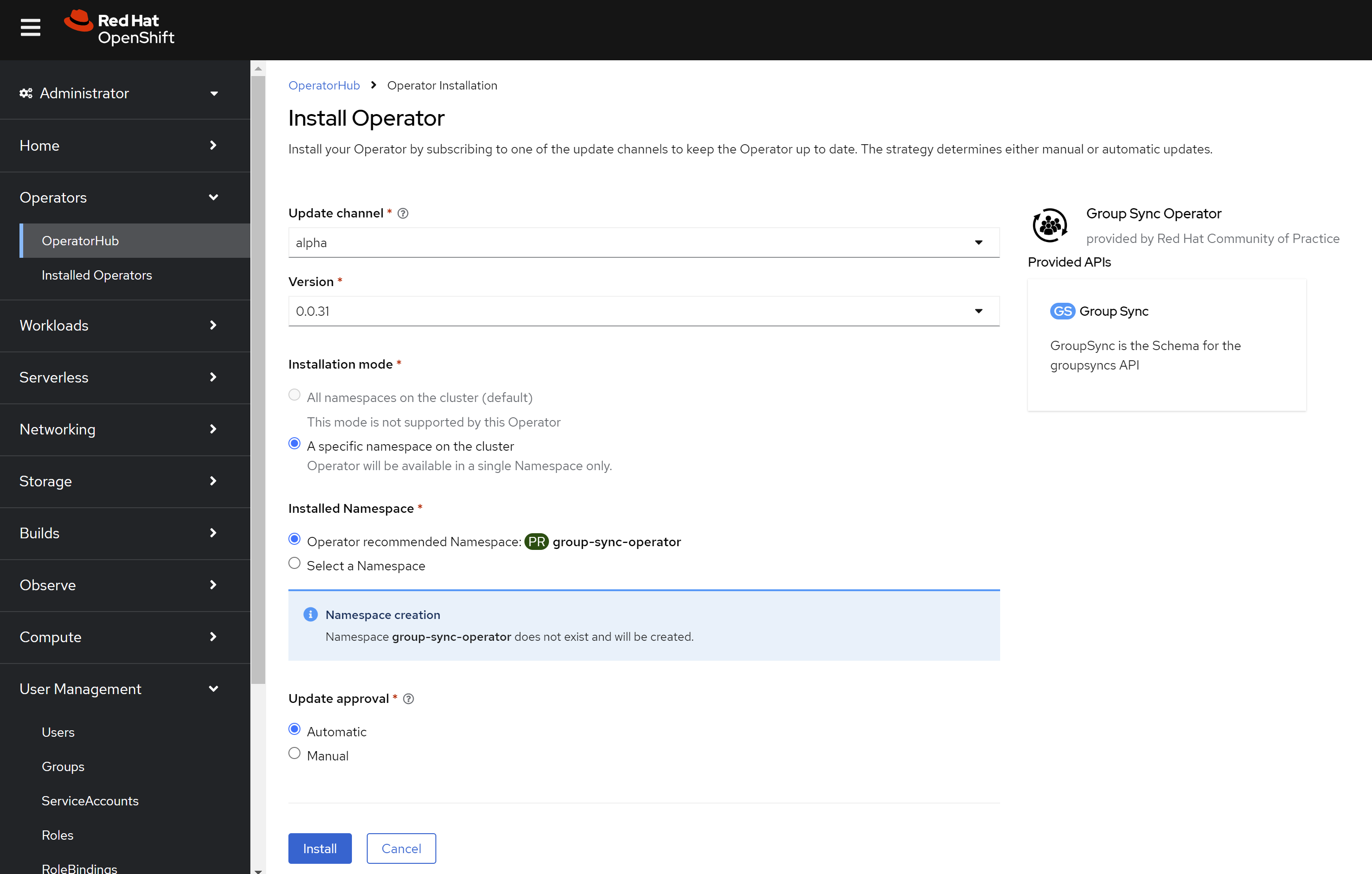

Keep the default setting, and install.

Create azure secret in openshift.

oc create secret generic azure-group-sync -n group-sync-operator \
        --from-literal=AZURE_TENANT_ID=$AZURE_TENANT_ID \
        --from-literal=AZURE_CLIENT_ID=$AZURE_CLIENT_ID \
        --from-literal=AZURE_CLIENT_SECRET=$AZURE_CLIENT_SECRET

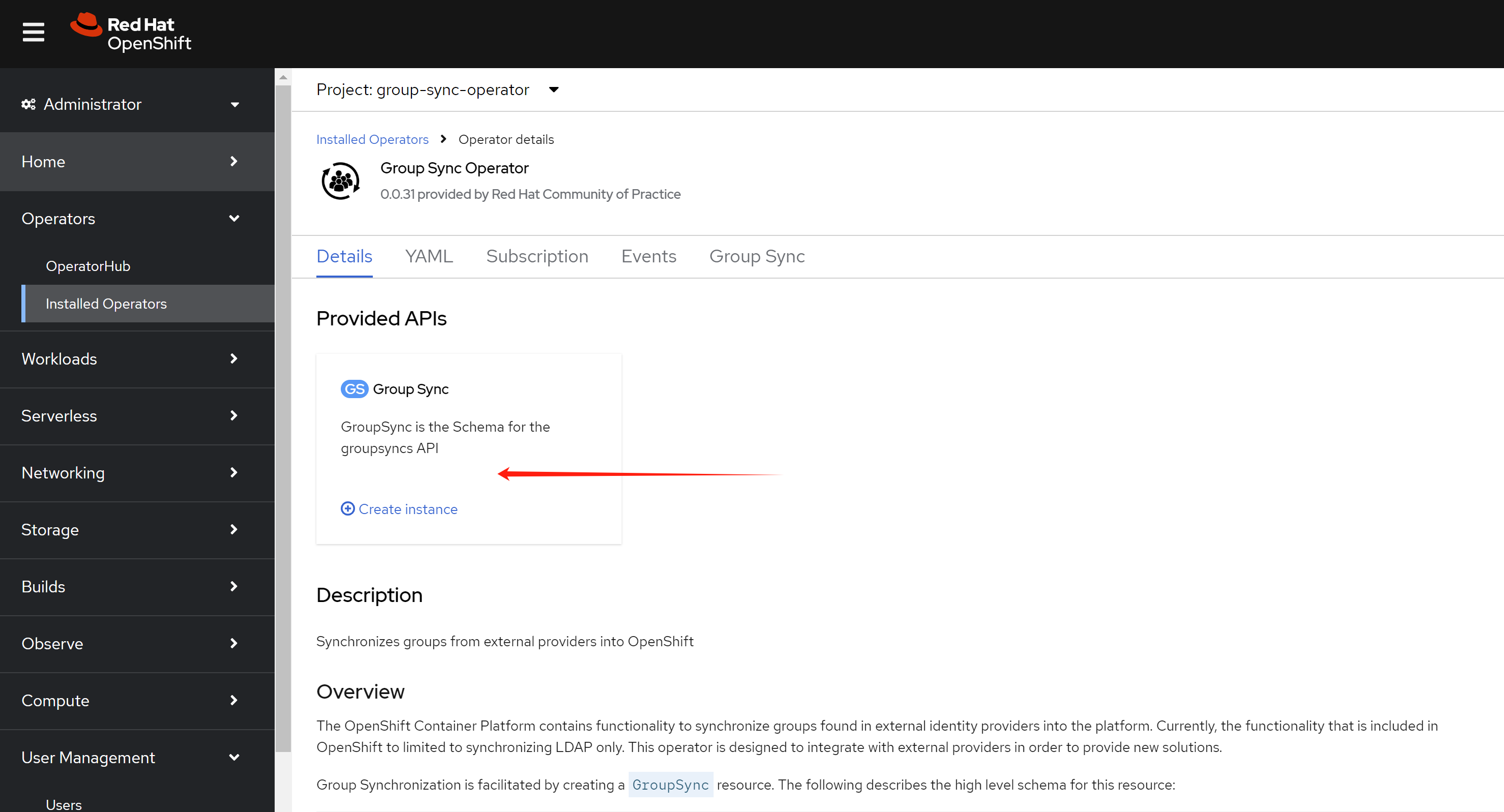

Create a GroupSync object in openshift, with the example config below.

apiVersion: redhatcop.redhat.io/v1alpha1
        kind: GroupSync
        metadata:
          name: azure-groupsync
          namespace: group-sync-operator
        spec:
          providers:
            - name: azure
              azure:
                credentialsSecret:
                  name: azure-group-sync
                  namespace: group-sync-operator
                groups:
                  - L1support
                  - L2support
                  - L3support
                  - RetalixSupport
                  - POSIMViewer
                  - POSIMSupport
                  - POSIMAdmin
                prune: false
          schedule: '* * * * *'

openshift role and rolebinding

Now, user can login, and group information is synced. We need to create role and rolebinding for the groups. So after user login, it has the correct permission.

Now, we create role for different groups. Below is an example for the roles. You can create your own roles based on your requirement.


        # create namespace for demo

        oc create ns retalix

        oc create ns posim

        # define the roles, change the rules based on your requirement

        cat << EOF > ${BASE_DIR}/data/install/demo.role.yaml
        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: ClusterRole
        metadata:
          name: l1-support-role
        rules:

        - apiGroups: [""]
          resources: ["pods", "services", "events", "namespaces"]
          verbs: ["get", "list", "watch"]

        - apiGroups: ["apps"]
          resources: ["deployments", "replicasets"]
          verbs: ["get", "list", "watch"]

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: ClusterRole
        metadata:
          name: l2-support-role
        rules:

        - apiGroups: [""]
          resources: ["pods", "services", "events", "namespaces", "configmaps", "endpoints"]
          verbs: ["get", "list", "watch", "update"]

        - apiGroups: ["apps"]
          resources: ["deployments", "replicasets", "daemonsets", "statefulsets"]
          verbs: ["get", "list", "watch", "update"]

        - apiGroups: [""]
          resources: ["pods/log", "pods/exec"]
          verbs: ["get", "list", "create"]

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: ClusterRole
        metadata:
          name: l3-support-role
        rules:

        - apiGroups: ["*"]
          resources: ["*"]
          verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

        - apiGroups: [""]
          resources: ["pods/exec", "pods/log"]
          verbs: ["create", "get", "list"]

        - apiGroups: ["security.openshift.io"]
          resources: ["securitycontextconstraints"]
          verbs: ["get", "list", "watch"]

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: Role
        metadata:
          name: retalix-support-role
          namespace: retalix
        rules:

        - apiGroups: [""]
          resources: ["pods", "pods/log", "pods/exec", "services", "endpoints", "persistentvolumeclaims", "configmaps", "secrets", "events", "namespaces"]
          verbs: ["get", "list", "watch", "create", "update", "patch"]

        - apiGroups: ["apps"]
          resources: ["deployments", "daemonsets", "replicasets", "statefulsets"]
          verbs: ["get", "list", "watch", "create", "update", "patch"]

        - apiGroups: ["batch"]
          resources: ["jobs", "cronjobs"]
          verbs: ["get", "list", "watch", "create", "update", "patch"]

        - apiGroups: ["networking.k8s.io"]
          resources: ["ingresses"]
          verbs: ["get", "list", "watch"]

        - apiGroups: ["route.openshift.io"]
          resources: ["routes"]
          verbs: ["get", "list", "watch"]

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: Role
        metadata:
          name: posim-viewer-role
          namespace: posim
        rules:

        - apiGroups: ["*"]
          resources: ["*"]
          verbs: ["get", "list", "watch"]

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: Role
        metadata:
          name: posim-support-role
          namespace: posim
        rules:

        - apiGroups: [""]
          resources: ["pods", "pods/log", "pods/exec", "services", "endpoints", "configmaps", "events", "namespaces"]
          verbs: ["get", "list", "watch", "create", "update", "patch"]

        - apiGroups: ["apps"]
          resources: ["deployments", "replicasets", "statefulsets"]
          verbs: ["get", "list", "watch", "update", "patch"]

        - apiGroups: ["batch"]
          resources: ["jobs"]
          verbs: ["get", "list", "watch", "create"]

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: Role
        metadata:
          name: posim-admin-role
          namespace: posim
        rules:

        - apiGroups: ["*"]
          resources: ["*"]
          verbs: ["*"]
        EOF

        oc apply -f ${BASE_DIR}/data/install/demo.role.yaml

        # oc delete -f ${BASE_DIR}/data/install/demo.role.yaml

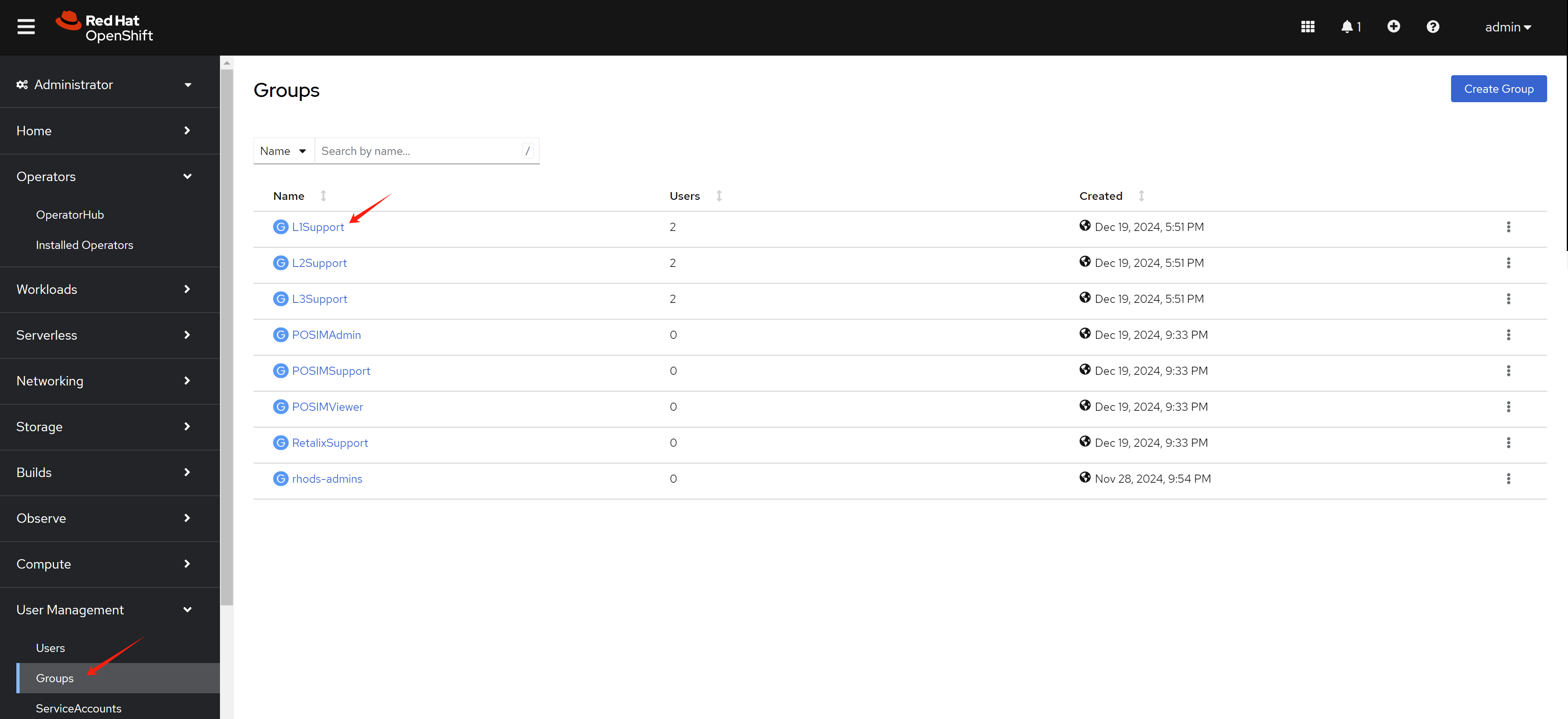

Apply the role to groups with rolebinding. First, select a group.

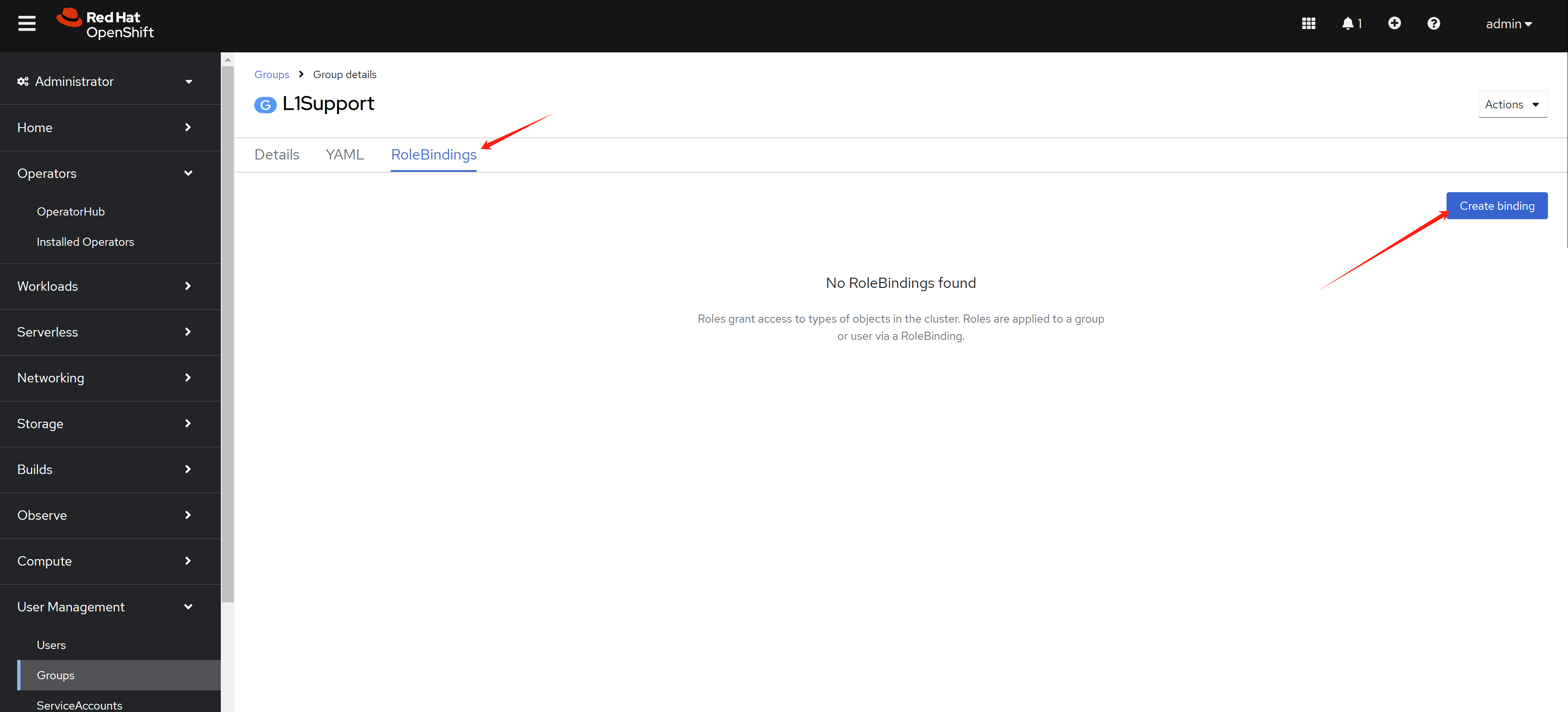

Switch to rolebinding view, and create a rolebinding for the group.

We want to define cluster role binding for the group. So we select ClusterRoleBinding in the RoleBinding page. Give it a name, and select the role we created before.

If you want to add a namespaced role to another group. Select RoleBinding in the RoleBinding page. Give it a name, find the namespace, and select the role we created before.

test with login

First, we try to login as l1.u01 user, which is in L1Support group.

Login with l1.u01 user’s user principal name and password. You can see the web console.

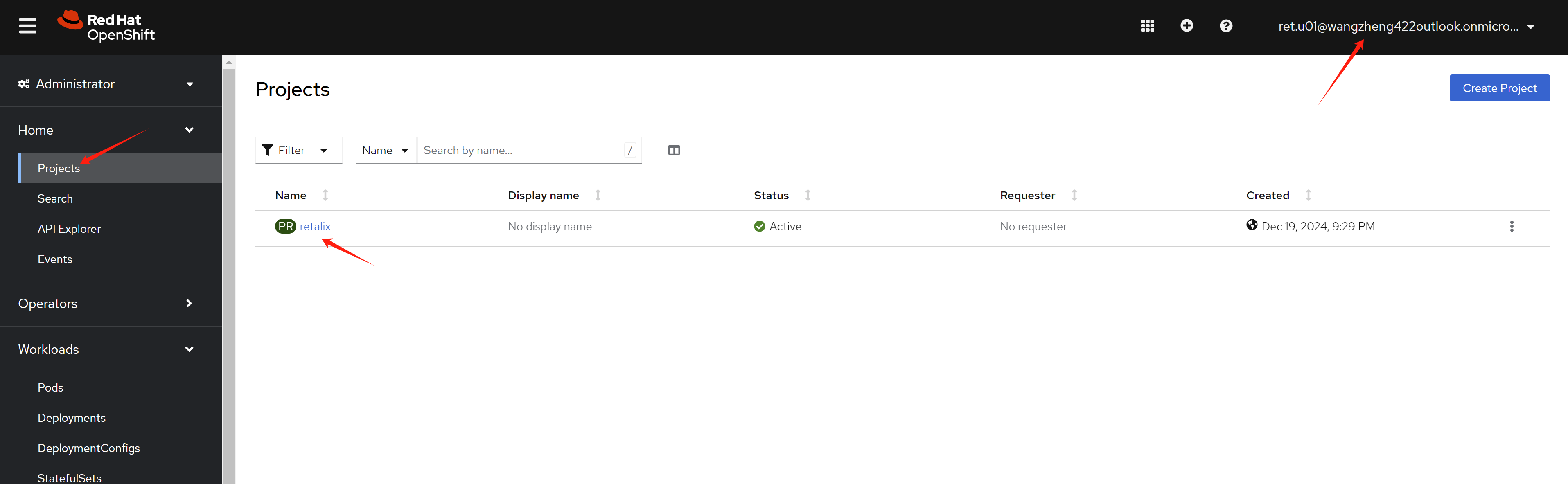

If you try to login as ret.u01 user, which is in RetalixSupport group, you can see the web console.

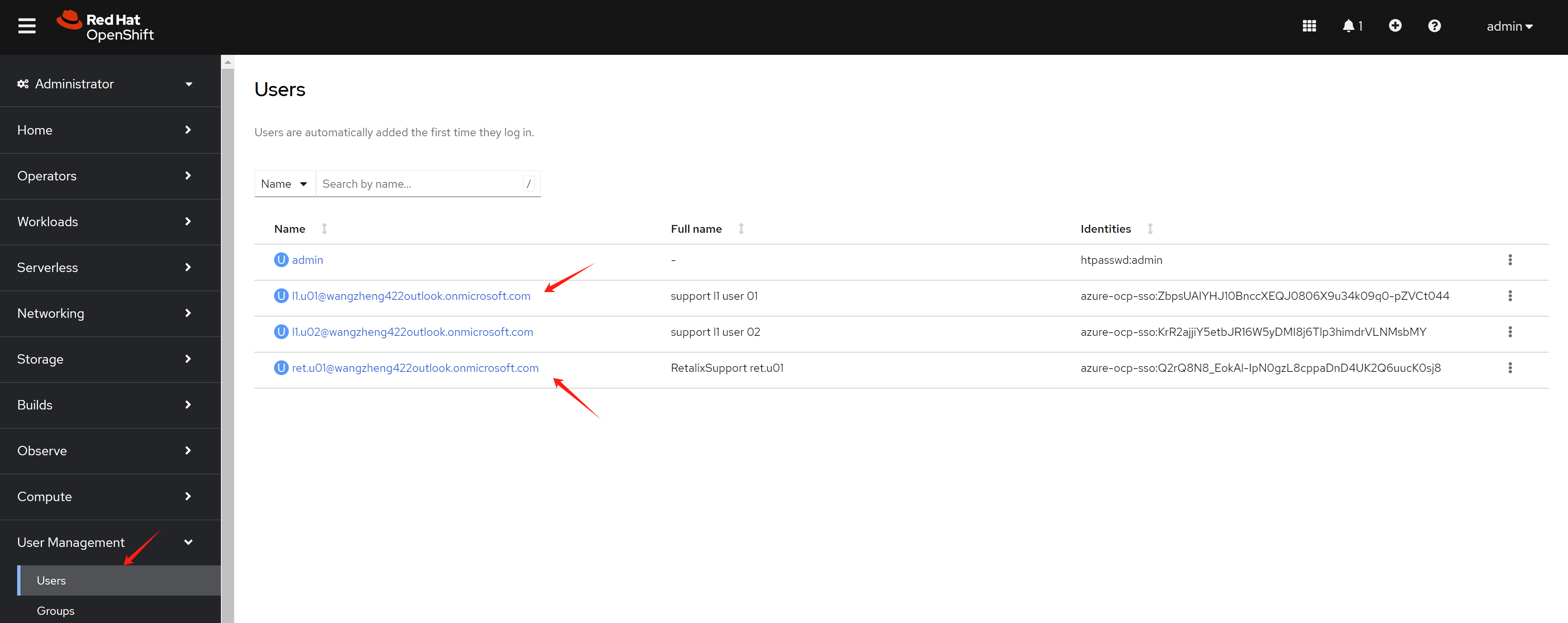

After user login, you can see the user in the User page from an administrator account.

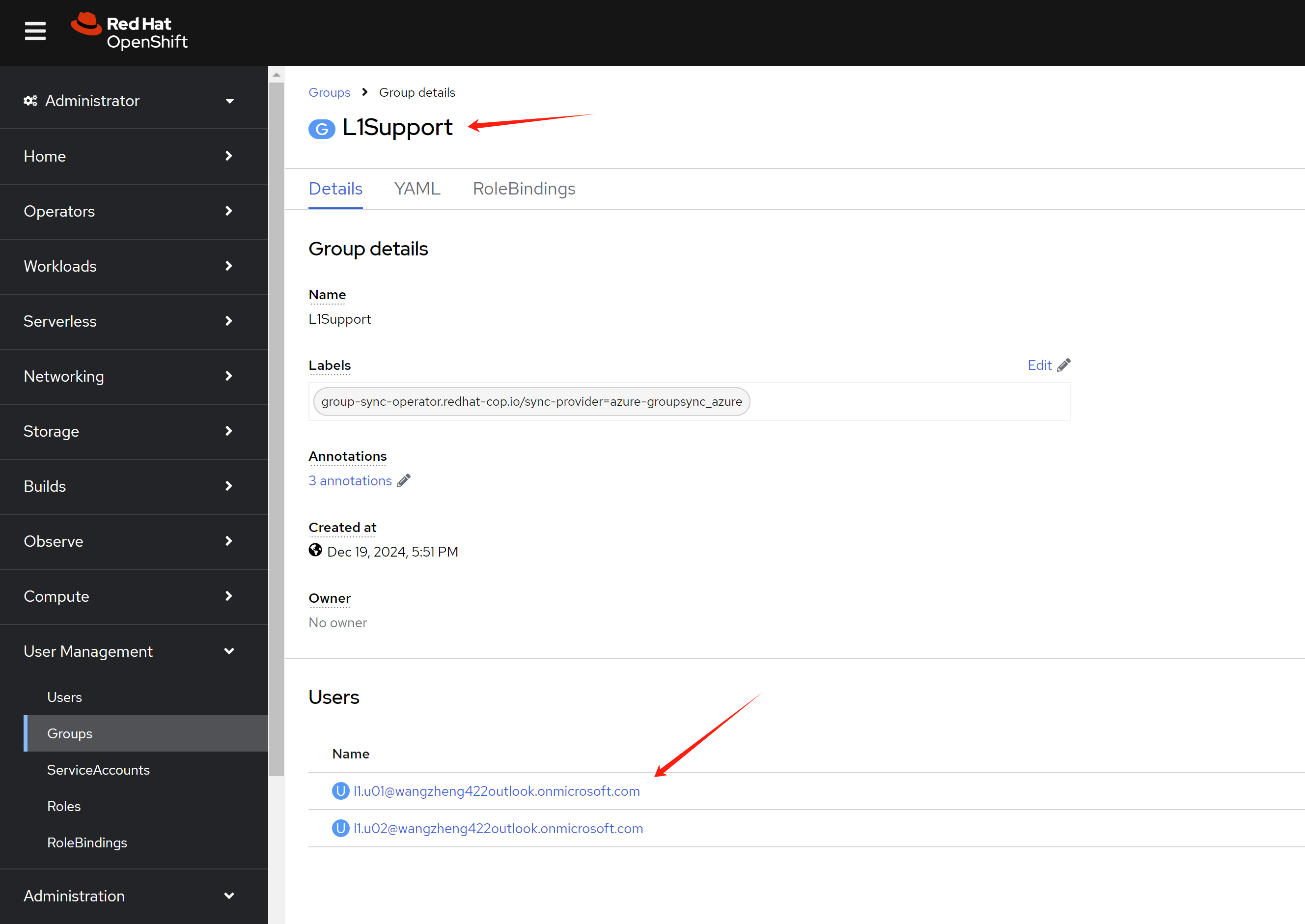

You can see group synced.

And user belongs to the group also synced.

end

oc get pod -n openshift-authentication

        oc logs -n openshift-authentication oauth-openshift-7dcdcb7c74-fvtdr

debug
