backup etcd with cronjob

There is a common use case to backup etcd data in OpenShift. The etcd data is critical for the cluster, and it is necessary to backup it regularly. In this article, we will introduce how to backup etcd data with cronjob.

First, we check out how to backup etcd in offical openshift document:

we can see, it run command oc debug node/<node-name> -- chroot /host /usr/local/bin/cluster-backup.sh /home/core/assets/backup to backup etcd data.

backup etcd with cronjob

Here, we wrap the command into a job, and run it with cronjob.


        # we will create a namespace for the backup job

        VAR_NS='demo-backup'

        oc create ns ${VAR_NS}

        # we create a service account for the backup job

        # and scc with necessary permissions

        cat << EOF > ${BASE_DIR}/data/install/etcd-backup-sa.yaml
        ---
        apiVersion: v1
        kind: ServiceAccount
        metadata:
          name: master-backup-sa
          namespace: ${VAR_NS}  # Adjust as necessary
        ---
        apiVersion: security.openshift.io/v1
        kind: SecurityContextConstraints
        metadata:
          name: custom-host-access
        allowHostDirVolumePlugin: true
        allowHostNetwork: true
        allowPrivilegedContainer: true
        allowPrivilegeEscalation: true
        allowedCapabilities:
          - '*'
        defaultAddCapabilities: []
        requiredDropCapabilities: []
        runAsUser:
          type: RunAsAny
        seLinuxContext:
          type: RunAsAny
        fsGroup:
          type: RunAsAny
        supplementalGroups:
          type: RunAsAny
        volumes:
          - '*'
        users:
          - system:serviceaccount:${VAR_NS}:master-backup-sa
        EOF

        oc apply -f ${BASE_DIR}/data/install/etcd-backup-sa.yaml

        # oc delete -f ${BASE_DIR}/data/install/etcd-backup-sa.yaml


        # we create a job to test the etcd backup

        cat << EOF > ${BASE_DIR}/data/install/etcd-backup-job.yaml
        ---
        apiVersion: batch/v1
        kind: Job
        metadata:
          name: master-node-backup
        spec:
          template:
            spec:
              serviceAccountName: master-backup-sa  # Use the created Service Account
              hostNetwork: true
              nodeSelector:
                node-role.kubernetes.io/master: ""  # Ensure the Job runs on the master node
              containers:
              - name: cluster-backup
                image: registry.redhat.io/openshift4/ose-cli:latest  # Official OpenShift CLI image
                command: ["/bin/sh", "-c"]
                args:
                  - |
                    chroot /host /usr/local/bin/cluster-backup.sh /home/core/assets/backup
                securityContext:
                  privileged: true
                  runAsUser: 0    # Run as root
                volumeMounts:
                - name: host-volume
                  mountPath: /host  # Mount the host's root filesystem
              restartPolicy: OnFailure
              volumes:
              - name: host-volume
                hostPath:
                  path: /  # Mount the root filesystem of the master node
        EOF

        oc apply -f ${BASE_DIR}/data/install/etcd-backup-job.yaml -n ${VAR_NS}

        # oc delete -f ${BASE_DIR}/data/install/etcd-backup-job.yaml -n ${VAR_NS}


        # we wrap the job into cronjob, and run it at mid-night

        cat << EOF > ${BASE_DIR}/data/install/etcd-backup-cronjob.yaml
        ---
        apiVersion: batch/v1
        kind: CronJob
        metadata:
          name: master-node-backup
        spec:
          schedule: "0 1 * * *"  # run every mid-night
          jobTemplate:
            spec:
              backoffLimit: 0  # Do not retry on failure
              template:
                spec:
                  serviceAccountName: master-backup-sa  # Use the created Service Account
                  hostNetwork: true
                  nodeSelector:
                    node-role.kubernetes.io/master: ""  # Ensure the Job runs on the master node
                  containers:
                  - name: cluster-backup
                    image: registry.redhat.io/openshift4/ose-cli:latest  # Official OpenShift CLI image
                    command: ["/bin/sh", "-c"]
                    args:
                      - |
                        chroot /host /usr/local/bin/cluster-backup.sh /home/core/assets/backup
                    securityContext:
                      privileged: true
                      runAsUser: 0    # Run as root
                    volumeMounts:
                    - name: host-volume
                      mountPath: /host  # Mount the host's root filesystem
                  restartPolicy: Never # Do not restart containers on failure
                  volumes:
                  - name: host-volume
                    hostPath:
                      path: /  # Mount the root filesystem of the master node
        EOF

        oc apply -f ${BASE_DIR}/data/install/etcd-backup-cronjob.yaml -n ${VAR_NS}

        # oc delete -f ${BASE_DIR}/data/install/etcd-backup-cronjob.yaml -n ${VAR_NS}

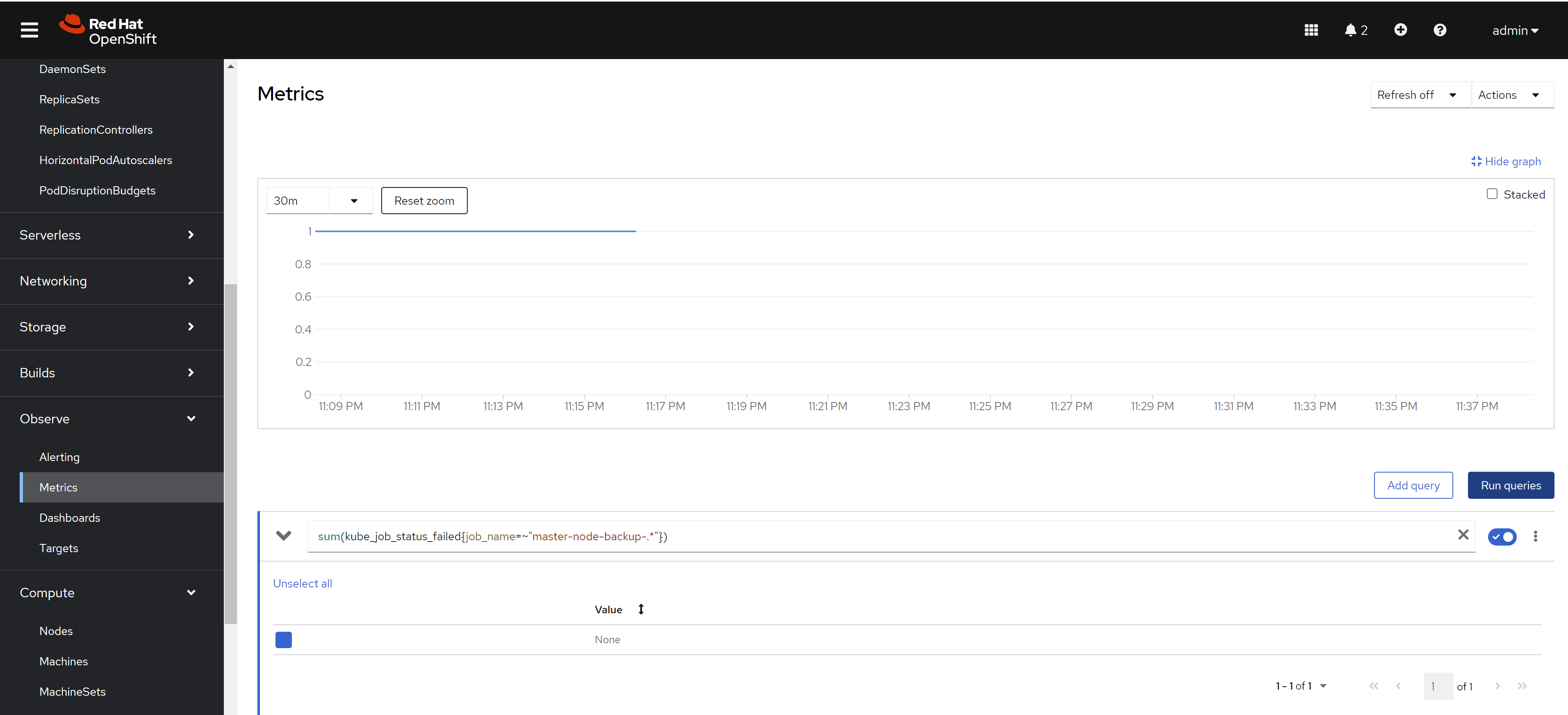

Here, we define the prometheus rule to monitor the backup job. It based on a pre-defined prometheus metrics in openshift.

apiVersion: monitoring.coreos.com/v1
        kind: PrometheusRule
        metadata:
          name: master-node-backup-cronjob-failure
          namespace: openshift-monitoring
        spec:
          groups:
          - name: cronjob-failure-alerts
            rules:
            - alert: MasterNodeBackupCronJobFailed
              expr: sum(kube_job_status_failed{job_name=~"master-node-backup-.*"}) > 0
              for: 1d
              labels:
                severity: critical
              annotations:
                summary: "CronJob 'master-node-backup' runs failed"
                description: "CronJob 'master-node-backup' The last run failed. Please check the relevant logs and resources."

deploy using acm

Here we deploy the cronjob using acm, so we can make sure every cluster has the same backup job.

We already created the demo gitops repo, you can check the source code here:

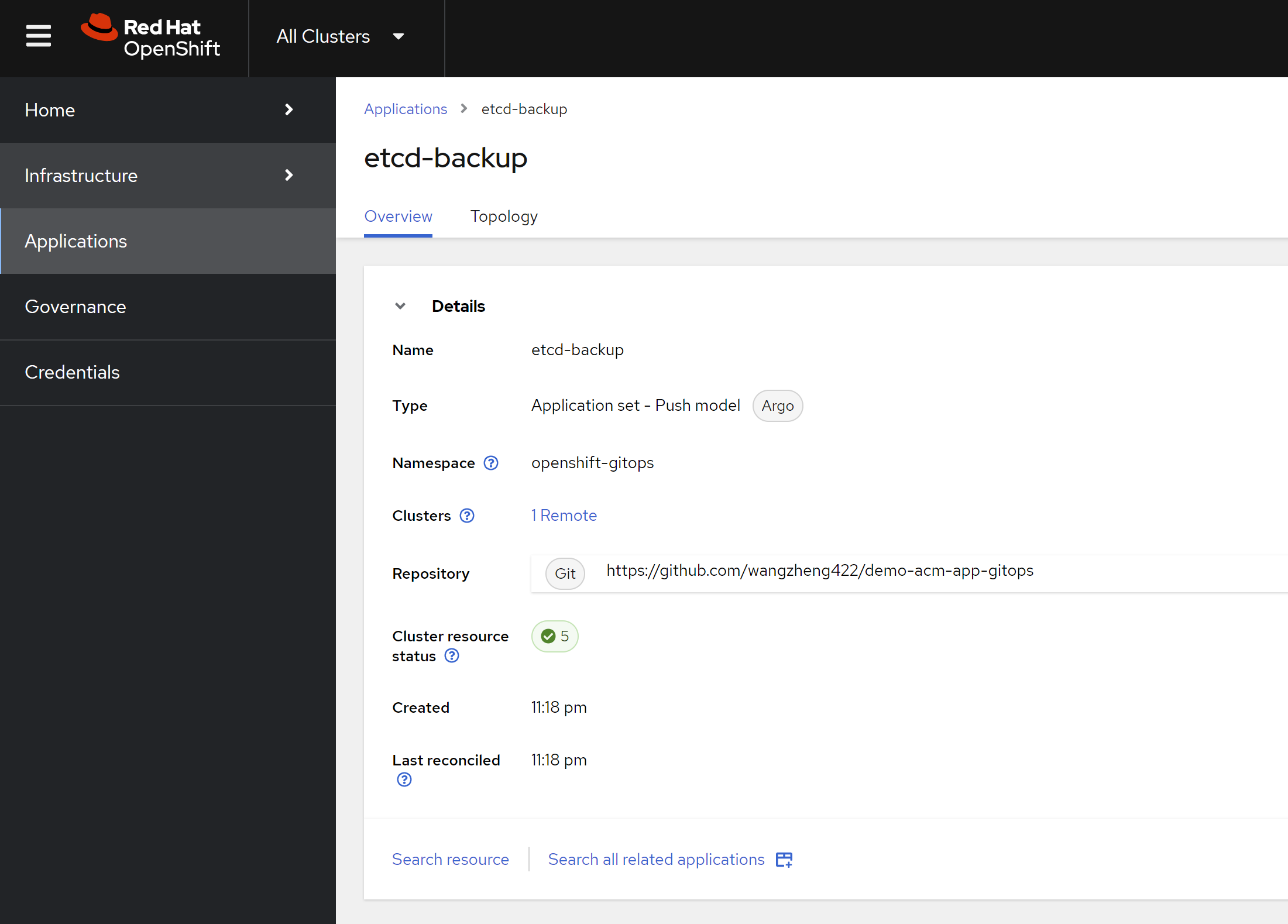

We create the application in acm, and it will deploy the job and alert rule to the cluster. Here is the acm config result.

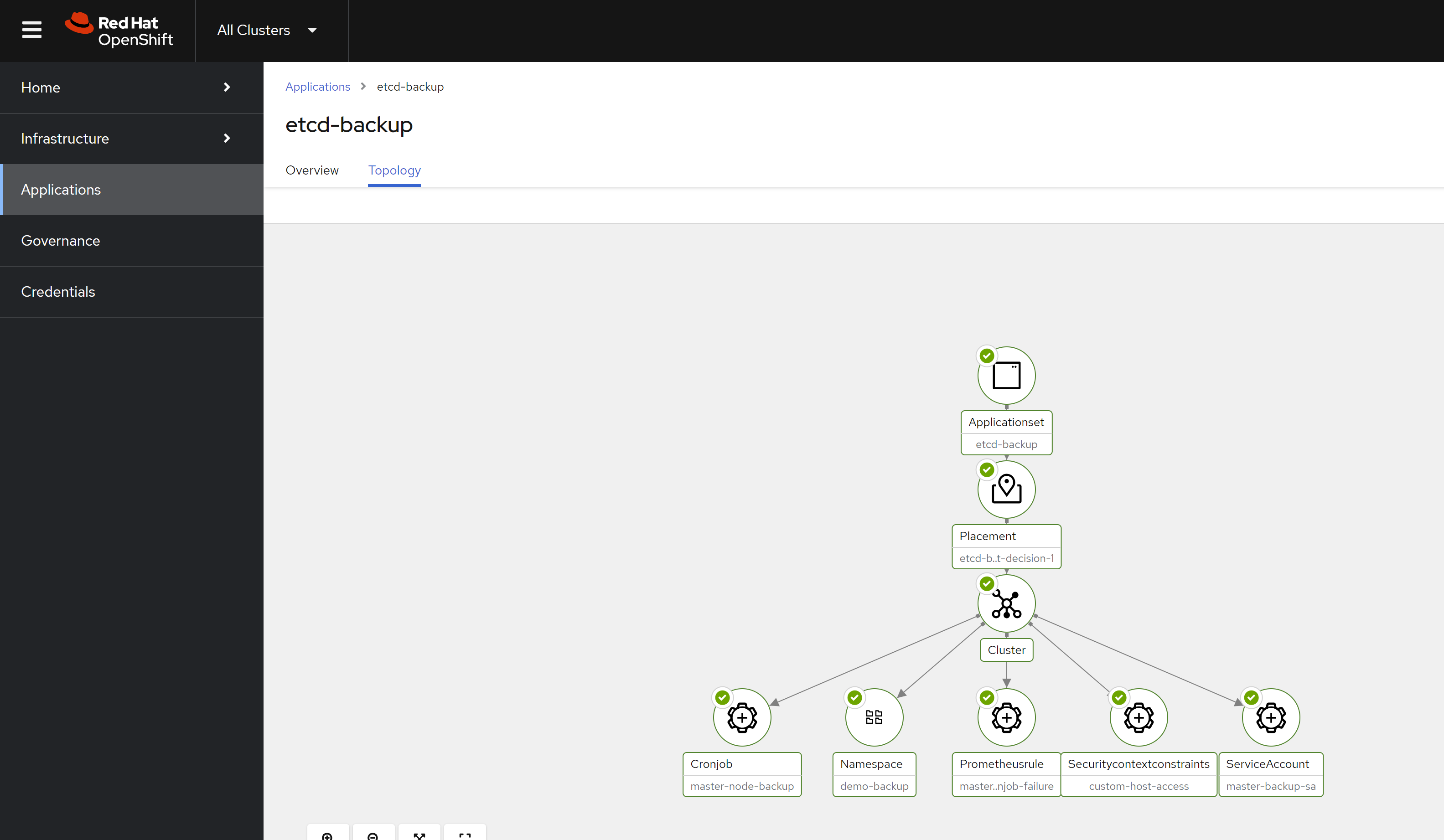

And here is the deployment result.

[!TIP] You can deploy the etcd backup job using policy as well.
