[!WARNING] This is a work in progress.

RHDH 1.4 with Conditional Policy Permission

Currently, the newest RHDH version 1.4 has a GUI for permission management. It also supports conditional policy. However, it has some bugs. This document demonstrates how it works and provides a workaround to add conditional policy permission to RHDH 1.4.

Install RHSSO/Keycloak

We will use Keycloak to manage users and use it as the OAuth2 provider for RHDH.


        oc new-project demo-keycloak



        oc delete -f ${BASE_DIR}/data/install/keycloak-db-pvc.yaml -n demo-keycloak

        cat << EOF > ${BASE_DIR}/data/install/keycloak-db-pvc.yaml
        apiVersion: v1
        kind: PersistentVolumeClaim
        metadata:
          name: postgresql-db-pvc
        spec:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 1Gi
        EOF

        oc create -f ${BASE_DIR}/data/install/keycloak-db-pvc.yaml -n demo-keycloak



        oc delete -f ${BASE_DIR}/data/install/keycloak-db.yaml -n demo-keycloak

        cat << EOF > ${BASE_DIR}/data/install/keycloak-db.yaml
        ---
        apiVersion: apps/v1
        kind: StatefulSet
        metadata:
          name: postgresql-db
        spec:
          serviceName: postgresql-db-service
          selector:
            matchLabels:
              app: postgresql-db
          replicas: 1
          template:
            metadata:
              labels:
                app: postgresql-db
            spec:
              containers:
                - name: postgresql-db
                  image: postgres:15
                  args: ["-c", "max_connections=1000"]
                  volumeMounts:
                    - mountPath: /data
                      name: cache-volume
                  env:
                    - name: POSTGRES_USER
                      value: testuser
                    - name: POSTGRES_PASSWORD
                      value: testpassword
                    - name: PGDATA
                      value: /data/pgdata
                    - name: POSTGRES_DB
                      value: keycloak
              volumes:
                - name: cache-volume
                  persistentVolumeClaim:
                    claimName: postgresql-db-pvc
        ---
        apiVersion: v1
        kind: Service
        metadata:
          name: postgres-db
        spec:
          selector:
            app: postgresql-db
          type: LoadBalancer
          ports:
          - port: 5432
            targetPort: 5432

        EOF

        oc create -f ${BASE_DIR}/data/install/keycloak-db.yaml -n demo-keycloak



        RHSSO_HOST="keycloak-demo-keycloak.apps.demo-01-rhsys.wzhlab.top"

        cd ${BASE_DIR}/data/install/

        openssl req -subj "/CN=$RHSSO_HOST/O=Test Keycloak./C=US" -newkey rsa:2048 -nodes -keyout key.pem -x509 -days 365 -out certificate.pem

        oc delete secret example-tls-secret -n demo-keycloak
        oc create secret tls example-tls-secret --cert certificate.pem --key key.pem -n demo-keycloak



        oc delete secret keycloak-db-secret -n demo-keycloak
        oc create secret generic keycloak-db-secret -n demo-keycloak \
          --from-literal=username=testuser \
          --from-literal=password=testpassword



        oc delete -f ${BASE_DIR}/data/install/keycloak.yaml -n demo-keycloak

        cat << EOF > ${BASE_DIR}/data/install/keycloak.yaml
        apiVersion: k8s.keycloak.org/v2alpha1
        kind: Keycloak
        metadata:
          name: example-kc
        spec:
          instances: 1
          db:
            vendor: postgres
            host: postgres-db
            usernameSecret:
              name: keycloak-db-secret
              key: username
            passwordSecret:
              name: keycloak-db-secret
              key: password
          http:
            tlsSecret: example-tls-secret
          # ingress:
          #   className: openshift-default
          hostname:
            hostname: $RHSSO_HOST
          proxy:
            headers: xforwarded
        EOF

        oc create -f ${BASE_DIR}/data/install/keycloak.yaml -n demo-keycloak

        # get the keycloak initial admin user and password

        oc get secret example-kc-initial-admin -n demo-keycloak -o jsonpath='{.data.username}' | base64 --decode && echo

        # temp-admin

        oc get secret example-kc-initial-admin -n demo-keycloak -o jsonpath='{.data.password}' | base64 --decode && echo

        # ef8636f3ba314481bf173e5ca2ac79a7


        # in postgresql pod terminal

        psql -U testuser -d keycloak

        # Type "help" for help.

        # keycloak=# SHOW max_connections;

        #  max_connections

        # -----------------

        #  1000

        # (1 row)

Based on the demo requirements, we need to create a realm named RHDH, which will be used for RHDH later.

Create a test user demo-user

Set password for the user

Make the password not expire.

Create a client for the RHDH, and set the redirect URL.

The redirect URL looks like this: https://<RHDH_URL>/api/auth/oidc/handler/frame

Copy the client secret, as it will be used later.

For RHDH 1.4, based on the official documentation:

When using client credentials, the access type must be set to confidential and service accounts must be enabled. You must also add the following roles from the realm-management client role:

query-groups query-users view-users

If you want to sync users and groups using the client, you need to configure the rhdh-client with these additional steps:

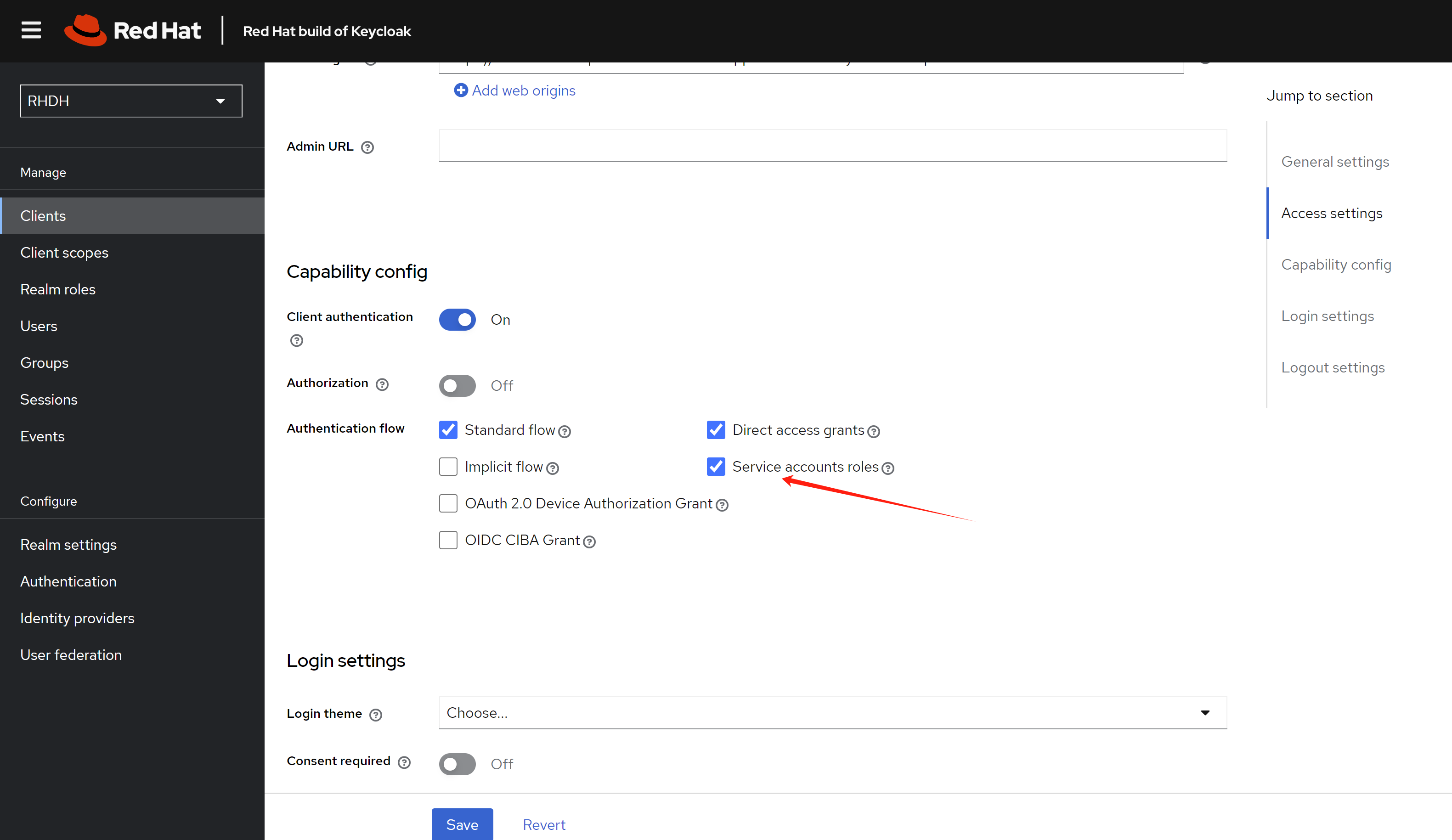

Enable service account roles

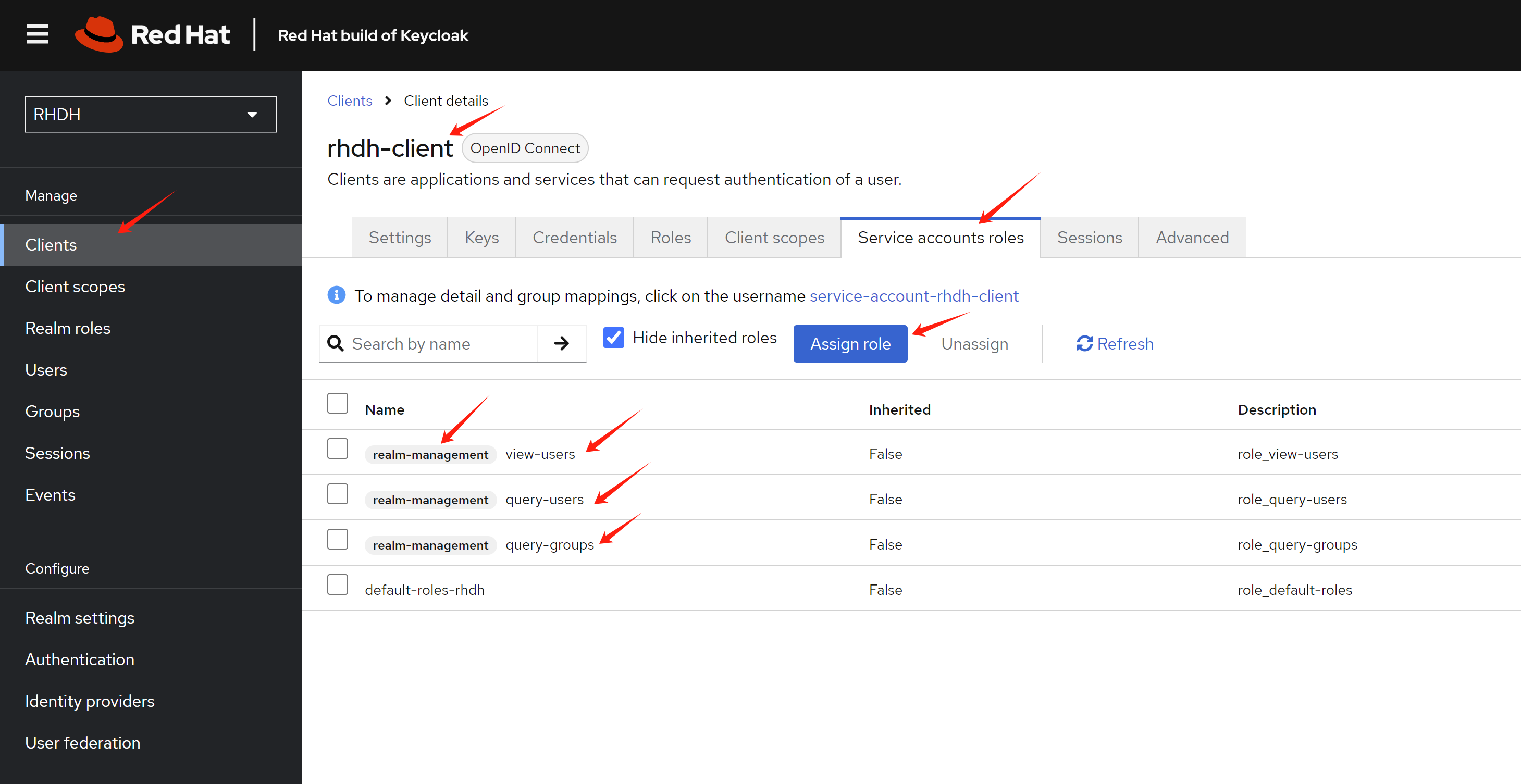

Add service account roles

Install RHDH

Create a new namespace for the RHDH deployment.

oc new-project demo-rhdh

There are currently two ways to install RHDH: using the operator or using a Helm chart. In this demonstration, we’ll use the Helm chart.

Configure RHDH

For Keycloak:

Use Chrome to access the web UI
Get the metadata URL from the realm

Now we’ll begin configuring RHDH using the CLI.


        # for k8s plugin

        # let the plugin access k8s resources

        oc delete -f ${BASE_DIR}/data/install/role-rhdh.yaml

        cat << EOF > ${BASE_DIR}/data/install/role-rhdh.yaml
        apiVersion: rbac.authorization.k8s.io/v1
        kind: ClusterRole
        metadata:
          name: backstage-read-only
        rules:
          - apiGroups:
              - '*'
            resources:
              - pods
              - configmaps
              - services
              - deployments
              - replicasets
              - horizontalpodautoscalers
              - ingresses
              - statefulsets
              - limitranges
              - resourcequotas
              - daemonsets
              - pipelineruns
              - taskruns
              - routes
            verbs:
              - get
              - list
              - watch
          - apiGroups:
              - batch
            resources:
              - jobs
              - cronjobs
            verbs:
              - get
              - list
              - watch
          - apiGroups:
              - metrics.k8s.io
            resources:
              - pods
            verbs:
              - get
              - list
        EOF
        oc apply -f ${BASE_DIR}/data/install/role-rhdh.yaml


        NAMESPACES="demo-rhdh"

        oc delete -f ${BASE_DIR}/data/install/sa-rhdh.yaml
        cat << EOF > ${BASE_DIR}/data/install/sa-rhdh.yaml
        ---
        apiVersion: v1
        kind: ServiceAccount
        metadata:
          name: backstage-read-only-sa
          namespace: $NAMESPACES  # Replace with the appropriate namespace

        ---
        apiVersion: rbac.authorization.k8s.io/v1
        kind: ClusterRoleBinding
        metadata:
          name: backstage-read-only-binding
        subjects:
          - kind: ServiceAccount
            name: backstage-read-only-sa
            namespace: $NAMESPACES  # Replace with the appropriate namespace
        roleRef:
          kind: ClusterRole
          name: backstage-read-only
          apiGroup: rbac.authorization.k8s.io

        EOF
        oc create -f ${BASE_DIR}/data/install/sa-rhdh.yaml -n $NAMESPACES


        # create pvc for rhdh plugin

        oc delete -f ${BASE_DIR}/data/install/pvc-rhdh.yaml

        cat << EOF > ${BASE_DIR}/data/install/pvc-rhdh.yaml
        kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: rhdh-plugin
        spec:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 10Gi
          # storageClassName: lvms-vg1
          volumeMode: Filesystem
        EOF

        oc apply -f ${BASE_DIR}/data/install/pvc-rhdh.yaml -n $NAMESPACES


        # create token of the sa, and save to variable, expire date is 100 years

        SA_TOKEN=`oc create token backstage-read-only-sa --duration=876000h -n $NAMESPACES`

        # SECRET_NAME=$(oc get sa backstage-read-only-sa -n $NAMESPACES -o jsonpath='{.secrets[0].name}' )

        # SA_TOKEN=$(oc get secret $SECRET_NAME -n $NAMESPACES -o jsonpath='{.data.token}'  | base64 --decode)

        echo $SA_TOKEN

        # check the expire date of the token

        echo $SA_TOKEN | cut -d '.' -f2 | base64 -d | jq -r '.exp' | xargs -I {} date -d @{}

        # Sun Jul 23 10:57:39 AM CST 2124

        # get env variable for backstage

        OCP_NAME="demo-01-rhsys"
        OCP_BASE_URL="demo-01-rhsys.wzhlab.top"
        OCP_API="https://api.$OCP_BASE_URL:6443"

        # GITLAB_BASE_HOST="gitlab-demo-gitlab.apps.$OCP_BASE_URL"

        # GITLAB_BASE_URL="https://gitlab-demo-gitlab.apps.$OCP_BASE_URL"

        # GITLAB_PAT="<your gitlab personal access token>"

        # AUTH_GITLAB_CLIENT_ID="you gitlab client id"

        # AUTH_GITLAB_CLIENT_SECRET="you gitlab client secret"

        AUTH_KEYCLOAK_CLIENT_ID="rhdh-client"
        AUTH_KEYCLOAK_CLIENT_SECRET="<your keycloak client secret>"
        KEYCLOAK_BASE_URL="https://keycloak-demo-keycloak.apps.$OCP_BASE_URL"
        KEYCLOAK_REALM="RHDH"
        KEYCLOAK_PROMPT="auto"

        SESSION_SECRET=`openssl rand -hex 32`

        # GITHUB_TOKEN="<your github personal access token>"

        # ARGOCD_NS="demo-gitops"

        # ARGOCD_INSTANCE_NAME="argocd"

        # # no ending "/"

        # ARGOCD_URL="https://$ARGOCD_INSTANCE_NAME-$ARGOCD_NS.apps.$OCP_BASE_URL"

        # # ARGOCD_SECRET="$ARGOCD_INSTANCE_NAME-cluster"

        # # ARGOCD_PASSWORD=`oc get secret $ARGOCD_SECRET -n $ARGOCD_NS -o jsonpath='{.data.admin\.password}' | base64 --decode`

        # ARGOCD_USER="alice"

        # ARGOCD_PASSWORD="redhadocp"

        # ARGOCD_TOKEN="<your argocd token>"

        # JFROG_URL="http://192.168.50.17:8082"

        # JFROG_TOKEN="<your jfrog token>"


        # create secret based on env variable

        oc delete secret wzh-rhdh-credentials -n $NAMESPACES
        oc create secret generic wzh-rhdh-credentials -n $NAMESPACES \
        --from-literal=OCP_NAME=$OCP_NAME \
        --from-literal=OCP_BASE_URL=$OCP_BASE_URL \
        --from-literal=OCP_API=$OCP_API \
        --from-literal=AUTH_KEYCLOAK_CLIENT_ID=$AUTH_KEYCLOAK_CLIENT_ID \
        --from-literal=AUTH_KEYCLOAK_CLIENT_SECRET=$AUTH_KEYCLOAK_CLIENT_SECRET \
        --from-literal=KEYCLOAK_BASE_URL=$KEYCLOAK_BASE_URL \
        --from-literal=KEYCLOAK_REALM=$KEYCLOAK_REALM \
        --from-literal=KEYCLOAK_PROMPT=$KEYCLOAK_PROMPT \
        --from-literal=SESSION_SECRET=$SESSION_SECRET \
        --from-literal=SA_TOKEN=$SA_TOKEN


        # create app config

        oc delete configmap app-config-rhdh -n $NAMESPACES

        cat << EOF > ${BASE_DIR}/data/install/app-config-rhdh.yaml
        ---
        kind: ConfigMap
        apiVersion: v1
        metadata:
          name: app-config-rhdh
        data:
          app-config-rhdh.yaml: |
            app:
              title: WZH Developer Hub

            auth:
              # environment: production

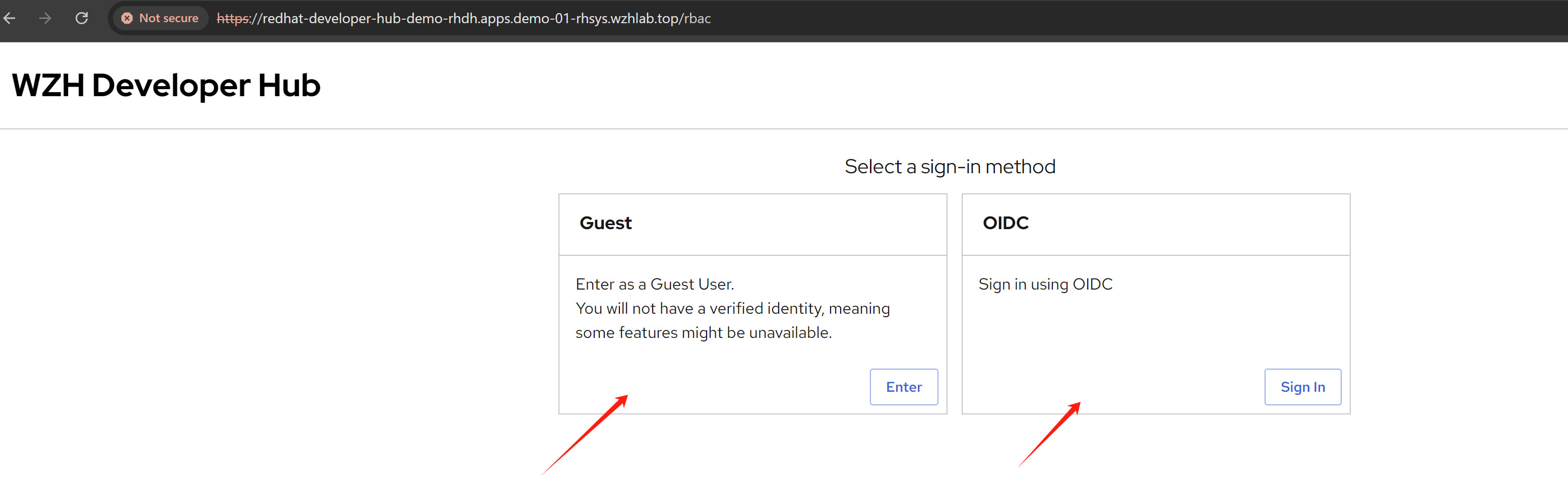

              # using development, will give you guest login options :)
              environment: development
              session:
                secret: \${SESSION_SECRET}
              providers:
                oidc:
                  # production:
                  development:
                    clientId: \${AUTH_KEYCLOAK_CLIENT_ID}
                    clientSecret: \${AUTH_KEYCLOAK_CLIENT_SECRET}
                    metadataUrl: \${KEYCLOAK_BASE_URL}/realms/\${KEYCLOAK_REALM}/.well-known/openid-configuration
                    prompt: \${KEYCLOAK_PROMPT} # recommended to use auto
                    # Uncomment for additional configuration options
                    # callbackUrl: \${KEYCLOAK_CALLBACK_URL}
                    # tokenEndpointAuthMethod: \${KEYCLOAK_TOKEN_ENDPOINT_METHOD}
                    # tokenSignedResponseAlg: \${KEYCLOAK_SIGNED_RESPONSE_ALG}
                    # scope: \${KEYCLOAK_SCOPE}
                    # If you are using the keycloak-backend plugin, use the preferredUsernameMatchingUserEntityName resolver to avoid a login error.
                    signIn:
                      resolvers:
                        - resolver: preferredUsernameMatchingUserEntityName
                guest:
                  dangerouslyAllowOutsideDevelopment: true
                  userEntityRef: user:default/static-demo-admin

            signInPage: oidc

            catalog:
              rules:
                - allow: [Component, System, API, Resource, Location, Template]

              locations:
                - target: https://github.com/wangzheng422/docker_env/blob/dev/redhat/ocp4/4.16/files/org.yaml
                  type: url
                  rules:
                    - allow: [Group, User]
                - target: https://github.com/nepdemo/rhdh-book1-templates/blob/wzh/quarkus-with-angular/template.yaml
                  type: url
                  rules:
                    - allow: [Template]
                - target: https://github.com/nepdemo/rhdh-book1-templates/blob/wzh/nestjs-with-postgres/template.yaml
                  type: url
                  rules:
                    - allow: [Template]

              providers:
                keycloakOrg:
                  default:
                    baseUrl: \${KEYCLOAK_BASE_URL}
                    loginRealm: \${KEYCLOAK_REALM}
                    realm: \${KEYCLOAK_REALM}
                    clientId: \${AUTH_KEYCLOAK_CLIENT_ID}
                    clientSecret: \${AUTH_KEYCLOAK_CLIENT_SECRET}
                    schedule: # optional; same options as in TaskScheduleDefinition
                      # supports cron, ISO duration, "human duration" as used in code
                      frequency: { minutes: 1 }
                      # supports ISO duration, "human duration" as used in code
                      timeout: { minutes: 1 }
                      initialDelay: { seconds: 15 }

            kubernetes:
              serviceLocatorMethod:
                type: "multiTenant"
              clusterLocatorMethods:
                - type: "config"
                  clusters:
                    - name: \${OCP_NAME}
                      url: \${OCP_API}
                      authProvider: "serviceAccount"
                      skipTLSVerify: true
                      serviceAccountToken: \${SA_TOKEN}
              customResources:
                - group: 'tekton.dev'
                  apiVersion: 'v1'
                  plural: 'pipelineruns'
                - group: 'tekton.dev'
                  apiVersion: 'v1'
                  plural: 'taskruns'
                - group: 'route.openshift.io'
                  apiVersion: 'v1'
                  plural: 'routes'

            permission:
              enabled: true
              rbac:
                admin:
                  users:
                    - name: user:default/static-demo-admin
                pluginsWithPermission:
                  - catalog
                  - scaffolder
                  - permission
                  - topology
                  - kubernetes

            enabled:
              kubernetes: true
              # techdocs: true
              # argocd: true
              # sonarqube: false
              keycloak: true
              keycloakOrg: true
              # ocm: true
              # github: false
              # githubOrg: false
              # gitlab: true
              # jenkins: false
              permission: true
        EOF

        oc create -f ${BASE_DIR}/data/install/app-config-rhdh.yaml -n $NAMESPACES


        oc scale deployment redhat-developer-hub --replicas=0 -n $NAMESPACES

        oc scale deployment redhat-developer-hub --replicas=1 -n $NAMESPACES

Expand Root Schema → Backstage chart schema → Backstage parameters → Extra app configuration files to inline into command arguments

upstream:
          backstage:
            extraAppConfig:
              - configMapRef: app-config-rhdh
                filename: app-config-rhdh.yaml
            # ... other Red Hat Developer Hub Hel

In addition to the above configuration, you can enable built-in plugins (which are disabled by default) by adding the following to the Helm config. Simply switch to YAML view.

First, get the digest of the plugin:


        npm view @wangzheng422/backstage-plugin-scaffolder-backend-module-wzh-custom-actions-dynamic@0.1.9 dist.integrity

        # sha512-qglFOgfep5ACQwjVmB3m+GeiOixz5JcrF/0MBiAWTbCGdp0XKIG03owGn+MDo2uxSJLSGmmRYipCQv10Um1/lA==


        npm view @wangzheng422/backstage-plugin-scaffolder-backend-module-dummy-wzh-actions-dynamic@0.1.1 dist.integrity

        # sha512-d8SGXRkjJExz2mQbzg8+gF3yOIUrgeYgX8+AJ0RR7eaQ46fvYKqiyRLdKjRGwjLVTdkX0PK8NU6C344VyamVUw==


        global:
          dynamic:
            plugins:
              # rbac
              - package: ./dynamic-plugins/dist/backstage-community-plugin-rbac
                disabled: false

              # keycloak
              - package: ./dynamic-plugins/dist/backstage-community-plugin-catalog-backend-module-keycloak-dynamic
                disabled: false

              # for teckton
              - package: ./dynamic-plugins/dist/backstage-community-plugin-tekton
                disabled: false

              # for k8s
              - package: ./dynamic-plugins/dist/backstage-plugin-kubernetes-backend-dynamic
                disabled: false

              # for topology, which integrate ocp webui
              # https://janus-idp.io/plugins/topology/
              - package: ./dynamic-plugins/dist/backstage-community-plugin-topology
                disabled: false

              # for custom actions demo, wrap with dynamic plugin
              # custom action demo ok
              # - package: "@wangzheng422/backstage-plugin-scaffolder-backend-module-wzh-custom-actions-dynamic@0.1.9"
              #   disabled: false
              #   integrity: sha512-qglFOgfep5ACQwjVmB3m+GeiOixz5JcrF/0MBiAWTbCGdp0XKIG03owGn+MDo2uxSJLSGmmRYipCQv10Um1/lA==

In summary, you can patch the Helm config like this:

global:
          dynamic:
            plugins:
              ......
          # patch the base url
          clusterRouterBase: apps.demo-01-rhsys.wzhlab.top
        upstream:
          backstage:
            # patch for app config
            extraAppConfig:
              - configMapRef: app-config-rhdh
                filename: app-config-rhdh.yaml
            # patch for secrets
            extraEnvVarsSecrets:
              - wzh-rhdh-credentials
            extraEnvVars:
              # for https self certificate
              - name: NODE_TLS_REJECT_UNAUTHORIZED
                value: '0'
              # enable debug output
              - name: LOG_LEVEL
                value: debug
            # extraVolumes:
            #   # patch for static pvc
            #   - name: dynamic-plugins-root
            #     persistentVolumeClaim:
            #       claimName: rhdh-plugin

Testing with Conditional Policy

User and Group Requirements and Workaround

Currently, there are bugs in RHDH 1.4 where conditional policy doesn’t work if a user doesn’t belong to a group. For example, catalog entities won’t display if conditional policy is configured.

To work around this issue, we need to set up several users and assign them to groups.

Conditional Policy

During login, you’ll see two login options as configured. One option (guest) is for testing admin access - you can log in without any password, which is ideal when something is broken and you need to access the system to troubleshoot. The other option is for normal user login testing. After initial configuration, the guest login should be removed.

We log in using the guest option, which is linked to the admin user and role. In the policy section, we can see that a built-in policy has already been created and it is not editable.

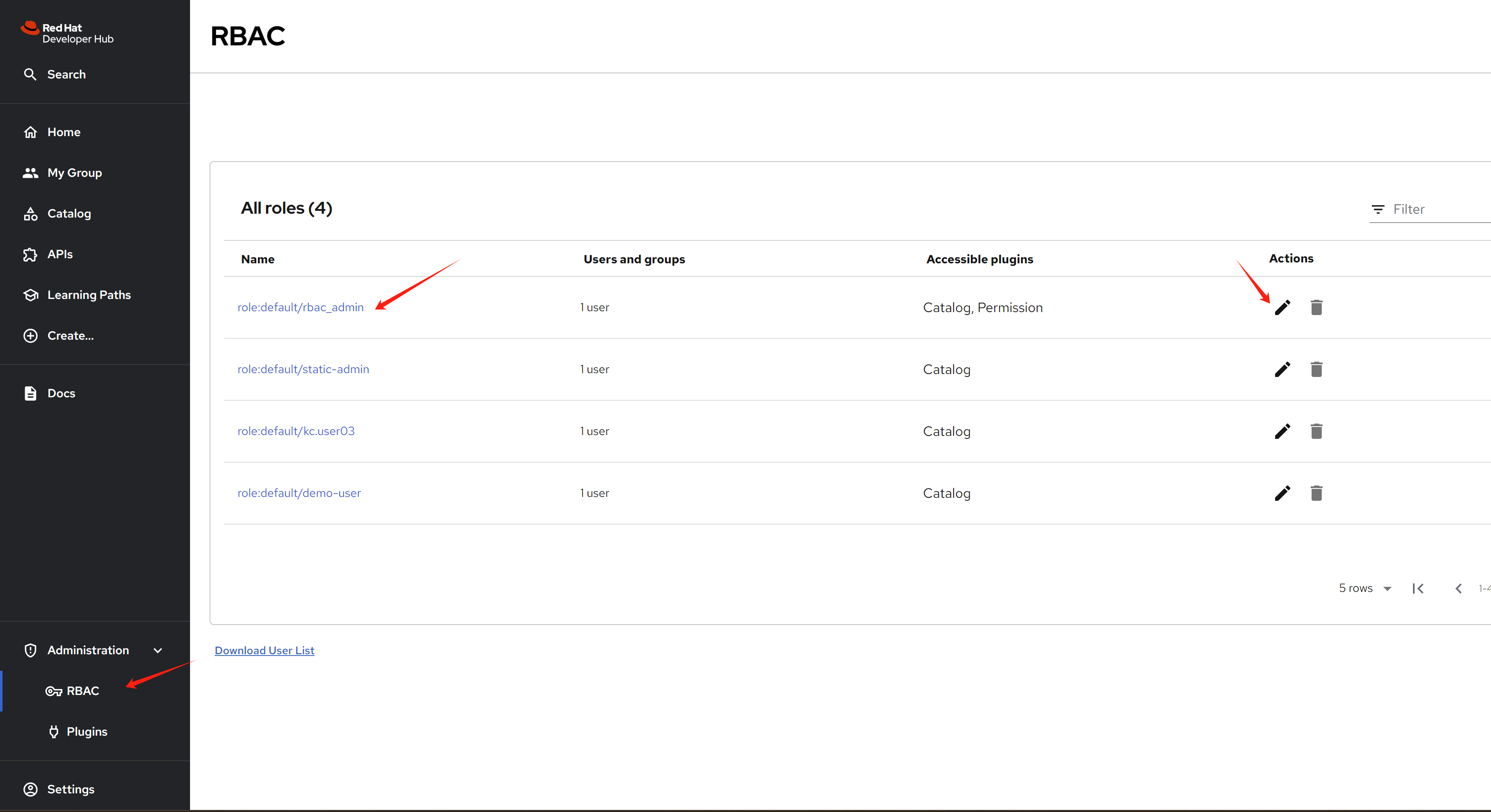

You can see the two policies that have been created.

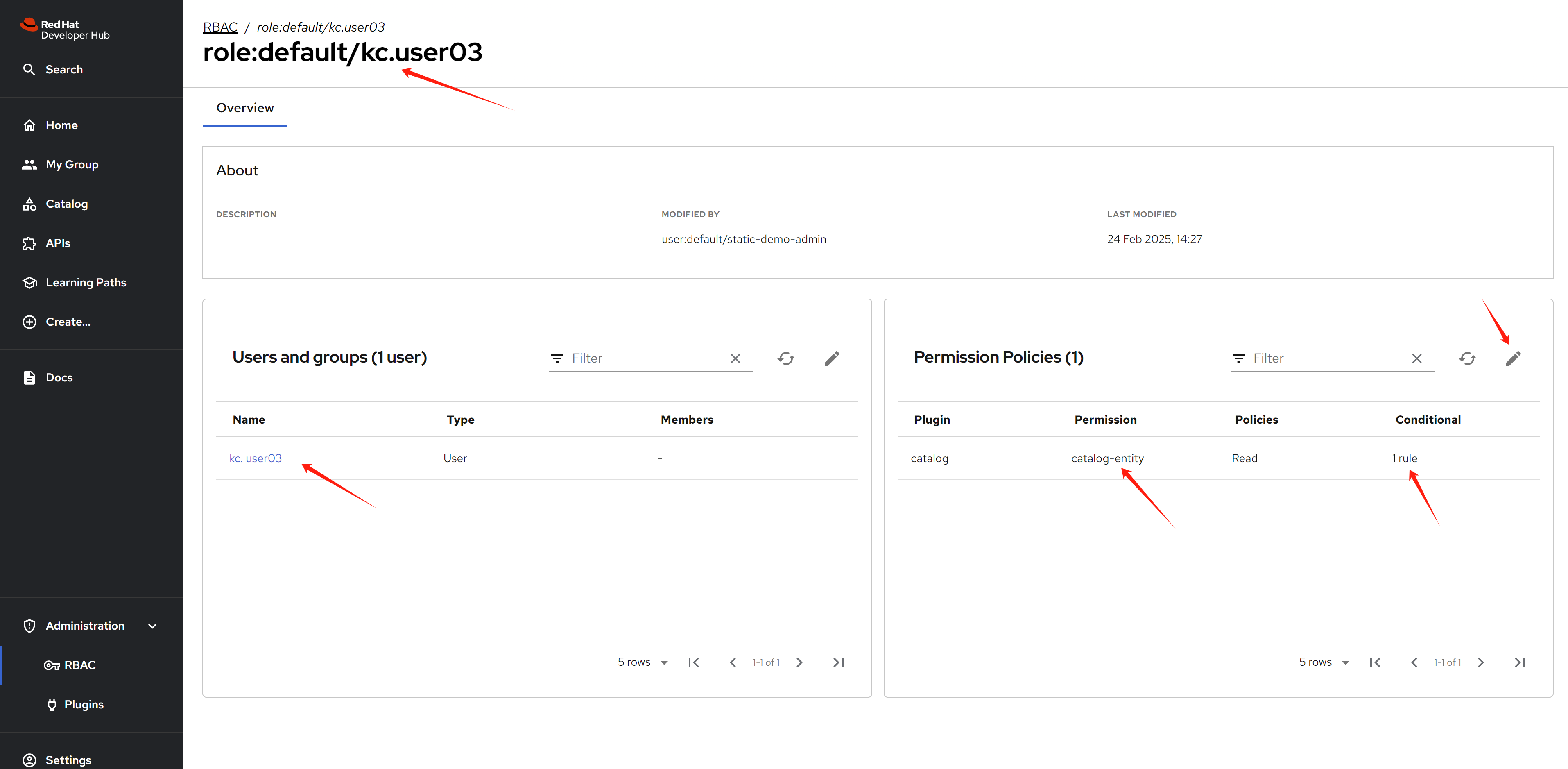

We can create additional policies with access rules. When opening a rule, we can see it contains name, description, user/group, and permission settings.

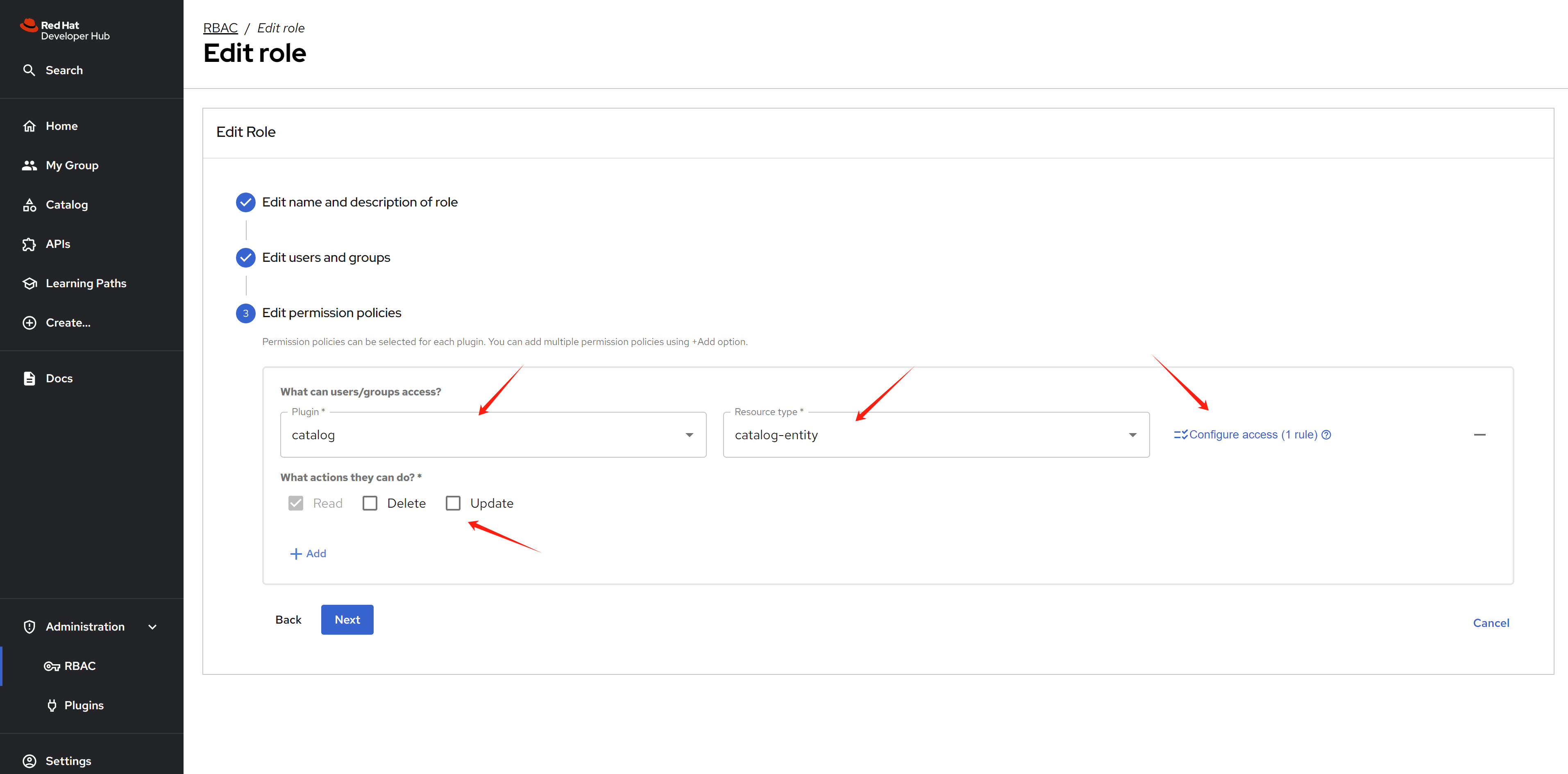

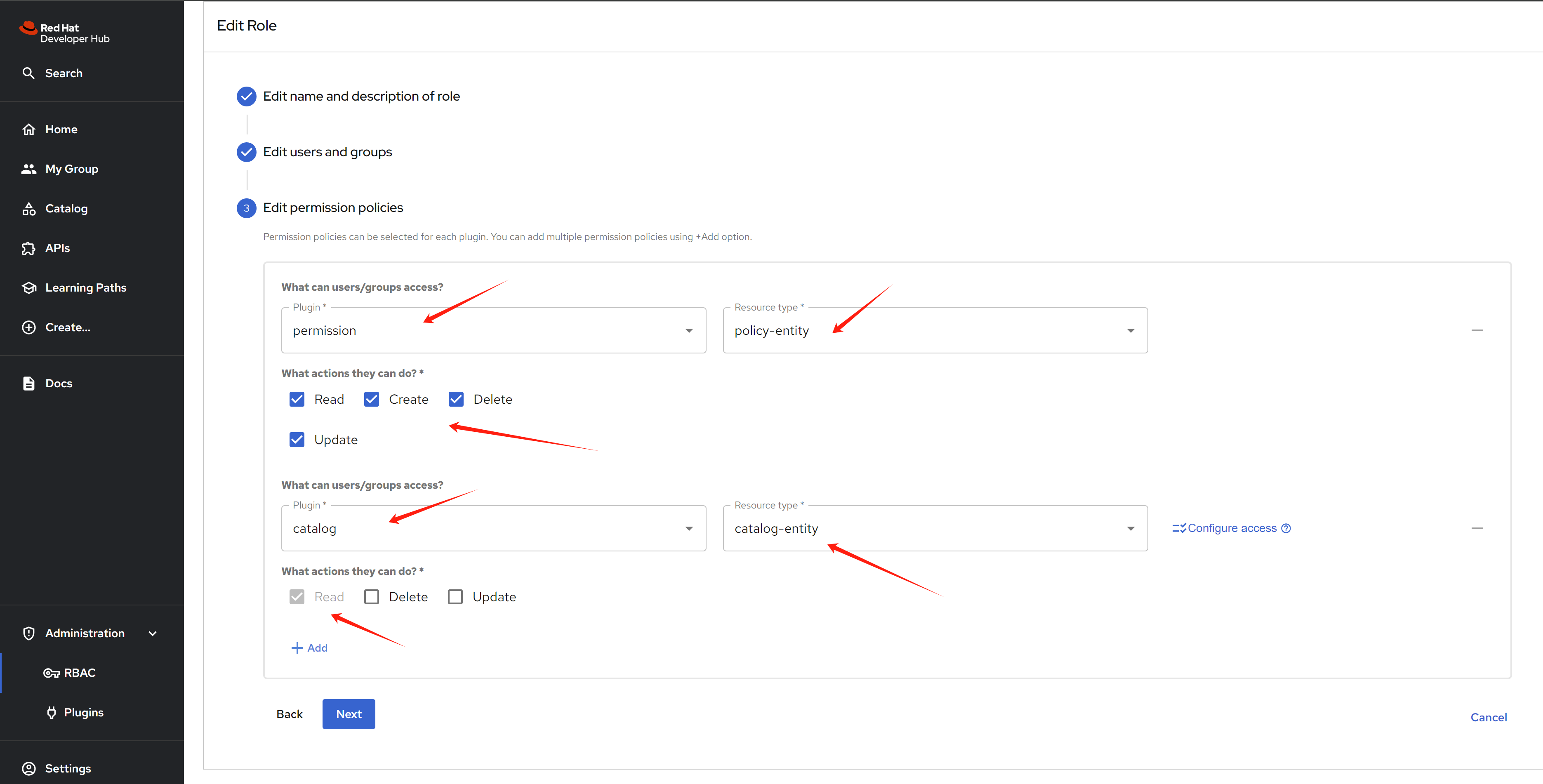

When editing the permission, you can select which target plugin resources to control and what kinds of actions users can perform.

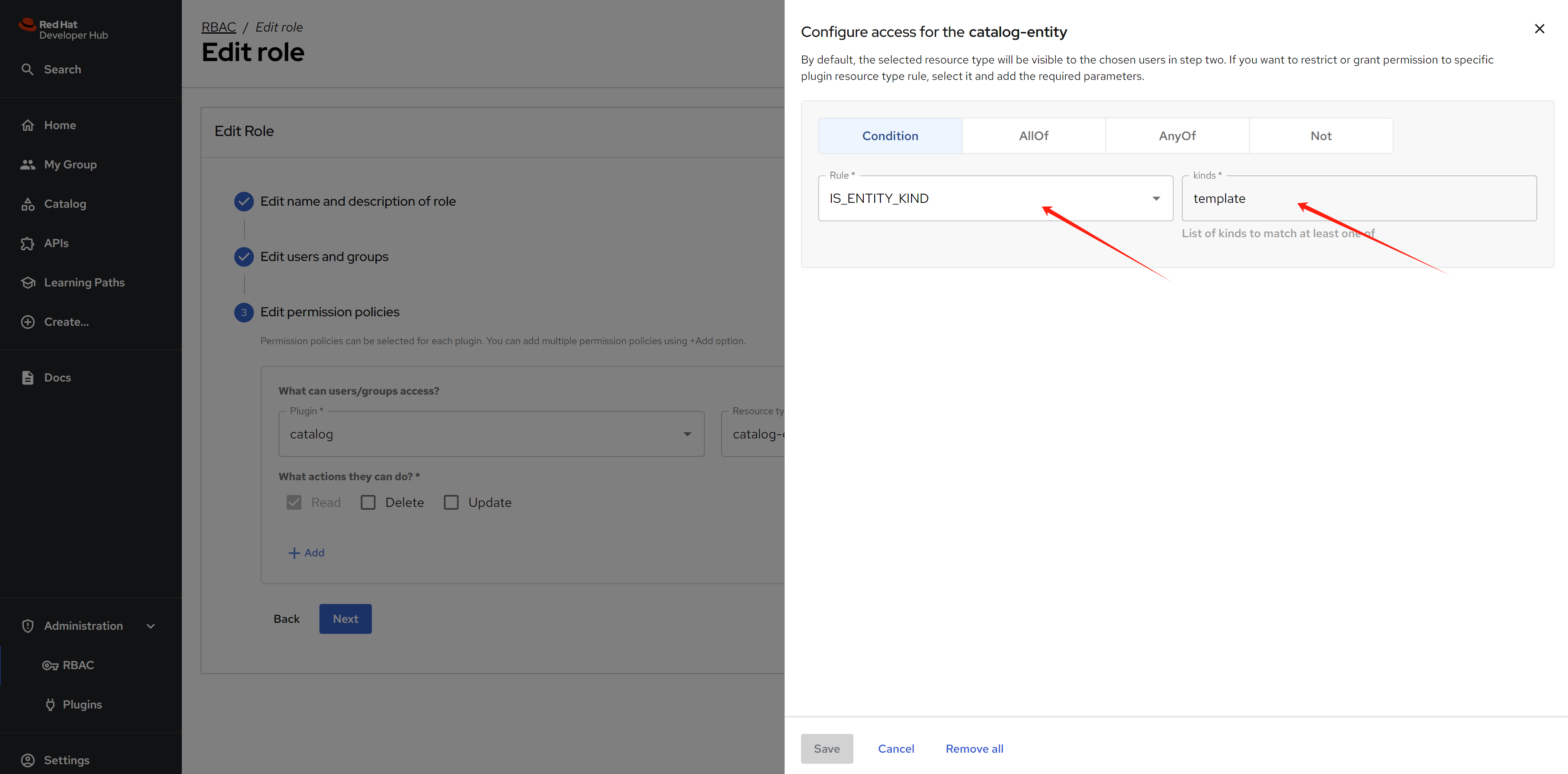

For conditions, you can control which specific resources users or groups can access.

Results

After permissions are granted, users will be able to see (or not see) resources in the catalog based on the configured policies.
