OpenShift Virtualization Disaster Recovery with Storage Replication

1. Introduction and Strategy

The Challenge

Red Hat OpenShift Virtualization (OCP-V) does not include a native, built-in disaster recovery (DR) solution. The official recommendation from Red Hat is to leverage the DR capabilities of OpenShift Data Foundation (ODF), which provides robust, integrated disaster recovery mechanisms. ODF typically uses Ceph or IBM Flash Storage as its backend.

However, many enterprise environments utilize third-party storage solutions from vendors like Dell, EMC, or Hitachi. In these scenarios, a different approach is required to implement a reliable DR strategy for virtual machines running on OpenShift Virtualization.

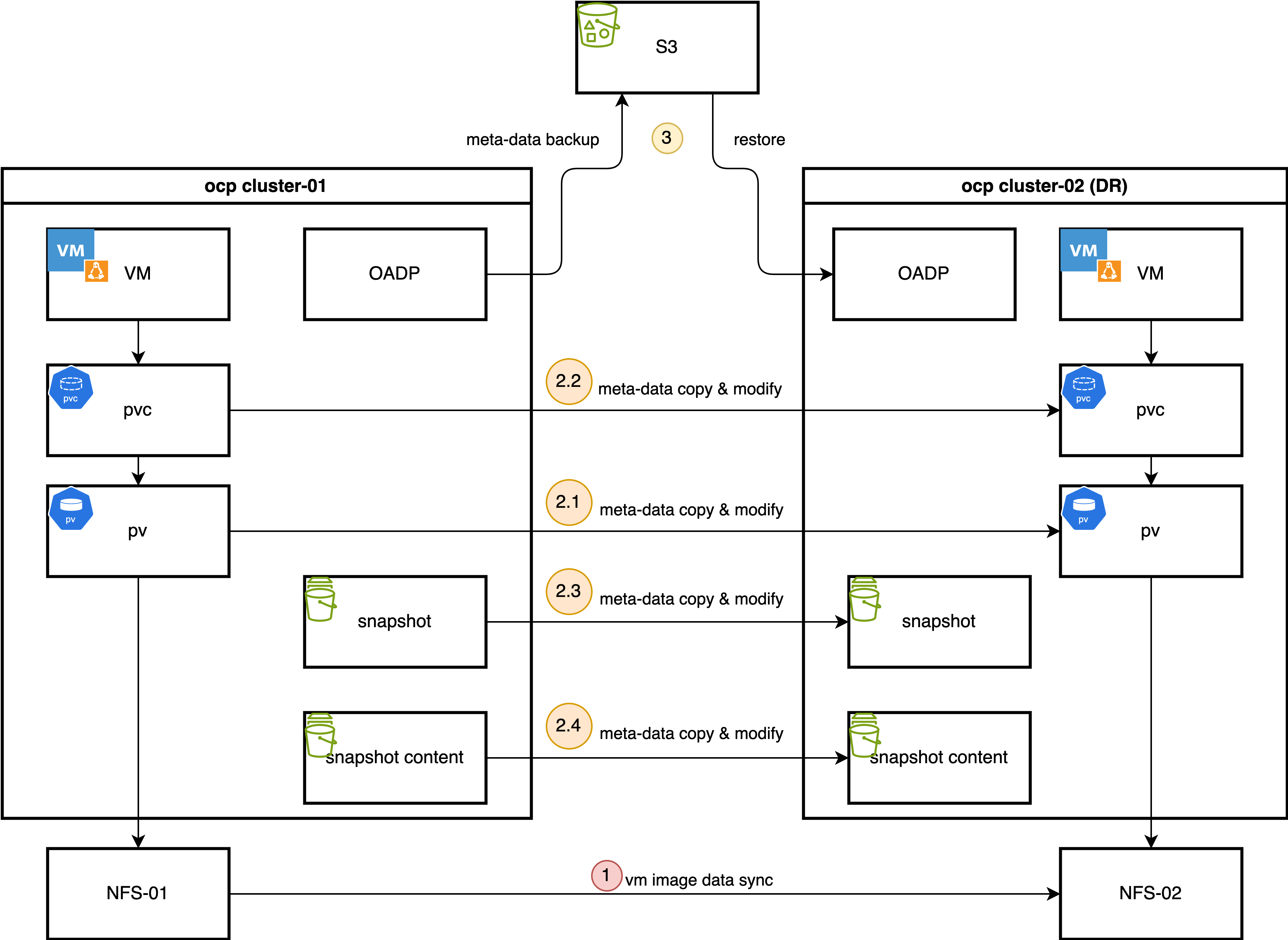

Our Solution: OADP + Storage Replication

This document details a DR strategy that combines the strengths of OpenShift’s native backup tools with the power of underlying storage replication. The core components of this solution are:

OpenShift API for Data Protection (OADP): We use OADP (based on the upstream Velero project) to perform metadata-only backups. This captures the essential Kubernetes and OpenShift Virtualization object configurations, such as Virtual Machine (VM) specifications, Persistent Volume Claims (PVCs), and other related resources. We deliberately exclude the actual volume data from the OADP backup to avoid the slow process of data compression, transfer to S3, and decompression during restore.
Storage-Level Replication: The actual VM disk data (contained within Persistent Volumes) is replicated from the primary site to the DR site using the storage array’s native remote replication capabilities. This method is highly efficient and significantly faster for large volumes compared to OADP’s data movers.

The Failover Process

In the event of a disaster at the primary site, a manual or automated failover process is initiated:

Quiesce Primary Site: VMs at the primary site are shut down, and the underlying storage volumes are set to a read-only state to ensure data consistency.
Synchronize Storage: The storage replication is finalized to ensure the DR site has the latest copy of the data.
Prepare DR Site Storage: The replicated volumes (LUNs or NFS shares) are presented to the DR OpenShift cluster.
Re-map Persistent Volumes: A crucial step involves manually creating or modifying the PersistentVolume (PV) objects on the DR cluster. The restored PV definitions are updated to point to the correct storage resources at the DR site (e.g., new NFS server IP, different LUN ID).
Restore Metadata: The OADP metadata backup is restored to the DR cluster.
Start VMs: With the metadata restored and the storage correctly mapped, the virtual machines can be started on the DR cluster.

The process for failing back from the DR site to the primary site follows the same logic in reverse.

This document uses a simple NFS storage backend to simulate the process, first demonstrating the manual steps and then outlining a path toward full automation using Ansible.

2. Prerequisites: Operator Installation

Install OpenShift Virtualization

This guide focuses on the disaster recovery of virtual machines, so the OpenShift Virtualization operator is a primary requirement. Install it from the OperatorHub in your OpenShift cluster.

Since we are using a custom NFS storage solution, we must create a StorageProfile to inform the Containerized Data Importer (CDI) component of OpenShift Virtualization how to interact with it. This profile defines the supported accessModes and volumeMode.

cat << EOF > $BASE_DIR/data/install/cnv-sp.yaml
        apiVersion: cdi.kubevirt.io/v1beta1
        kind: StorageProfile
        metadata:
          name: nfs-dynamic
        spec:
          claimPropertySets:
          - accessModes:
            - ReadWriteMany
            volumeMode: Filesystem
        EOF

        oc apply -f $BASE_DIR/data/install/cnv-sp.yaml

Install OADP Operator

We use the OpenShift API for Data Protection (OADP) operator for metadata backup and restore. Install the OADP operator on both the primary (cluster-01) and DR (cluster-02) clusters.

Next, configure a Kubernetes Secret containing the credentials for your S3-compatible object storage bucket, which will store the metadata backups.


        # Create a credentials file for MinIO or any S3-compatible storage

        cat << EOF > $BASE_DIR/data/install/credentials-minio
        [default]
        aws_access_key_id = rustfsadmin
        aws_secret_access_key = rustfsadmin
        EOF

        # Create the secret in the openshift-adp namespace

        oc create secret generic minio-credentials \
        --from-file=cloud=$BASE_DIR/data/install/credentials-minio \
        -n openshift-adp

Finally, create a DataProtectionApplication (DPA) custom resource. This configures the OADP instance, specifying the S3 backup location and enabling the necessary plugins for OpenShift, KubeVirt (for VMs), and CSI.


        # Define the OADP instance (DataProtectionApplication)

        cat << EOF > $BASE_DIR/data/install/oadp.yaml
        apiVersion: oadp.openshift.io/v1alpha1
        kind: DataProtectionApplication
        metadata:
          name: velero-instance
          namespace: openshift-adp
        spec:
          # 1. Define the S3 backup storage location
          backupLocations:
            - name: default
              velero:
                provider: aws
                default: true
                objectStorage:
                  bucket: ocp
                  prefix: velero # Backups will be stored under the 'velero/' prefix
                config:
                  # For non-AWS S3, provide the endpoint URL
                  s3Url: http://192.168.99.1:9001
                  region: us-east-1
                # Reference the secret containing S3 credentials
                credential:
                  name: minio-credentials
                  key: cloud

          # 2. Configure Velero plugins and features
          configuration:
            nodeAgent:
              enable: true
              uploaderType: kopia
            velero:
              # Enable default plugins for OpenShift, KubeVirt, CSI, and AWS
              defaultPlugins:
                - openshift
                - kubevirt
                - csi
                - aws
              featureFlags:
                - EnableCSI

            # 3. Configure volume snapshots and data movers (DataMover/Kopia) here
            # csi:
            #   enable: false
            # datamover:
            #   enable: false
        EOF

        oc apply -f $BASE_DIR/data/install/oadp.yaml

3. Primary Site: Performing the Backup

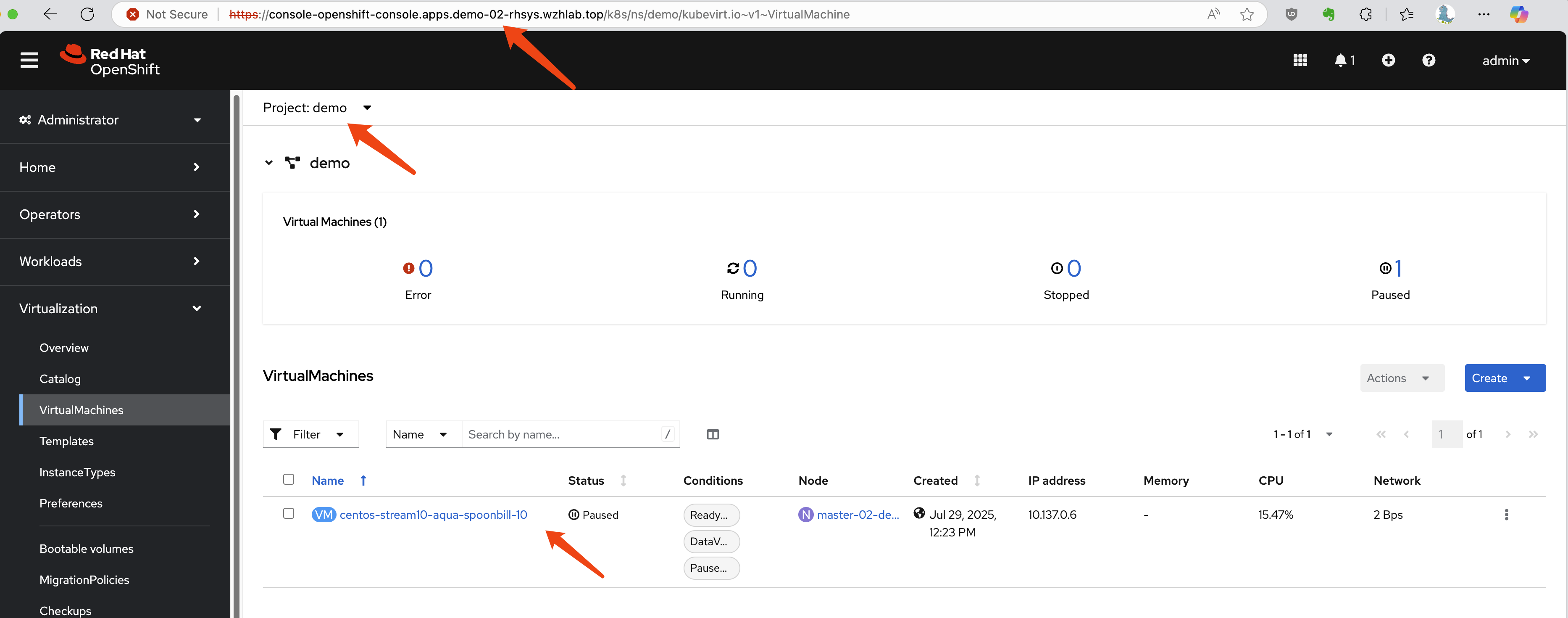

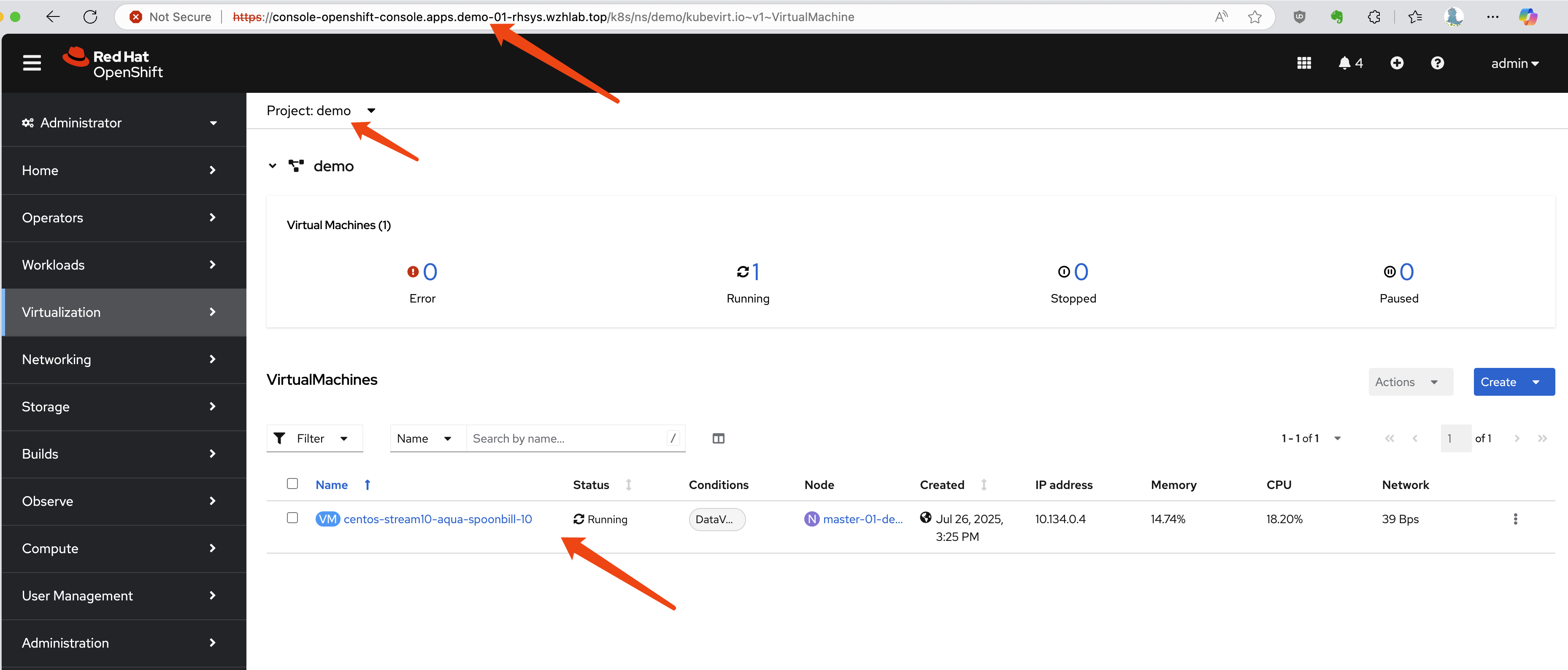

Assume we have a project named demo on the primary site (cluster-01) containing a running virtual machine.

First, let’s identify the VM and its associated PVC and PV.


        # Get the VM name

        oc get vm -n demo

        # NAME                                AGE    STATUS    READY

        # centos-stream10-aqua-spoonbill-10   3d5h   Running   True

        # Get the PVC name associated with the VM

        oc get vm centos-stream10-aqua-spoonbill-10 -n demo -o jsonpath='{.spec.template.spec.volumes[*].dataVolume.name}' && echo

        # centos-stream10-aqua-spoonbill-10-volume

        # Get the PV name bound to the PVC

        oc get pvc centos-stream10-aqua-spoonbill-10-volume -n demo -o jsonpath='{.spec.volumeName}' && echo

        # pvc-7147333f-2db5-4b3f-9320-aac8da5170e2

Now, we create a Velero Backup object. The key configuration here is snapshotVolumes: false, which instructs OADP to back up only the resource definitions (YAML) and not the data within the volumes.

cat << EOF > $BASE_DIR/data/install/oadp-backup.yaml
        apiVersion: velero.io/v1
        kind: Backup
        metadata:
          name: vm-full-metadata-backup-03
          namespace: openshift-adp
        spec:
          # 1. Specify the namespace to back up
          includedNamespaces:
            - demo

          # 2. Ensure cluster-scoped resources like PVs are included in the metadata backup
          # While Velero typically includes PVs linked to PVCs automatically, setting this
          # to 'true' makes the behavior explicit.
          includeClusterResources: true

          # 3. CRITICAL: Disable volume snapshots
          # This tells Velero to NOT create data snapshots of the PVs.
          # It will only save the PV and PVC object definitions.
          snapshotVolumes: false
          snapshotMoveData: false
          defaultVolumesToFsBackup: false

          # 4. Specify the S3 storage location defined in the DPA
          storageLocation: default

          # 5. Set a Time-To-Live (TTL) for the backup object
          ttl: 720h0m0s # 30 days
        EOF

        oc apply -f $BASE_DIR/data/install/oadp-backup.yaml

4. DR Site: Recovery Process

Step 1: Synchronize Storage Data

At the DR site, the first action is to ensure the data is synchronized. This is handled by the storage system. For our NFS simulation, we use rsync to copy the volume data from the primary NFS server to the DR NFS server.


        # Simulate storage replication by copying the PV directory

        sudo rsync -avh --progress /srv/nfs/openshift-01/demo-centos-stream10-aqua-spoonbill-10-volume-pvc-7147333f-2db5-4b3f-9320-aac8da5170e2 /srv/nfs/openshift-02/

Step 2: Manually Create PV and PVC on DR Cluster

This is a critical manual step. We do not restore the PV and PVC from the OADP backup because that would cause the DR cluster to try and dynamically provision new, empty volumes. Instead, we manually create the PV and PVC to map them to the pre-replicated data.

First, define the PersistentVolume. The YAML is based on the PV from the primary site, but the nfs.path (or other storage-specific parameters) is modified to point to the location on the DR site’s storage.


        # pv-dr.yaml

        kind: PersistentVolume
        apiVersion: v1
        metadata:
          name: pvc-7147333f-2db5-4b3f-9320-aac8da5170e2
        spec:
          capacity:
            storage: '36071014400'
          nfs:
            server: 192.168.99.1
            # IMPORTANT: Path points to the replicated data on the DR NFS server
            path: /srv/nfs/openshift-02/demo-centos-stream10-aqua-spoonbill-10-volume-pvc-7147333f-2db5-4b3f-9320-aac8da5170e2
          accessModes:
            - ReadWriteMany
          persistentVolumeReclaimPolicy: Delete
          storageClassName: nfs-dynamic
          volumeMode: Filesystem

Next, create the PersistentVolumeClaim that will bind to this manually created PV.


        # pvc-dr.yaml

        kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: centos-stream10-aqua-spoonbill-10-volume
        spec:
          accessModes:
            - ReadWriteMany
          resources:
            requests:
              storage: '36071014400'
          # This explicitly binds the PVC to our manually created PV
          volumeName: pvc-7147333f-2db5-4b3f-9320-aac8da5170e2
          storageClassName: nfs-dynamic
          volumeMode: Filesystem

Apply both YAML files to the DR cluster.

Step 3: Restore Metadata with OADP

Now, create a Velero Restore object on the DR cluster. This restore will recreate the VM and other resources from the backup. Crucially, we exclude PVs and PVCs from the restore process, as we have already created them manually.

cat << EOF > $BASE_DIR/data/install/oadp-restore.yaml
        apiVersion: velero.io/v1
        kind: Restore
        metadata:
          name: restore-metadata-excluding-pvs-03
          namespace: openshift-adp
        spec:
          # 1. Specify the backup to restore from
          backupName: vm-full-metadata-backup-03

          # 2. CRITICAL: Exclude PVs and PVCs from the restore
          # This prevents Velero from overwriting our manually created volumes.
          excludedResources:
            - persistentvolumes
            - persistentvolumeclaims
            - snapshot
            - snapshotcontent
            - virtualMachineSnapshot
            - virtualMachineSnapshotContent
            - VolumeSnapshot
            - VolumeSnapshotContent

          # 3. Set the resource conflict policy
          # 'update' will overwrite existing resources (like the VM definition if a restore is re-run).
          existingResourcePolicy: 'update'
        EOF

        oc apply -f $BASE_DIR/data/install/oadp-restore.yaml

After the restore completes, the VM will be created on the DR cluster and connected to the replicated data. In our resource-constrained demo environment, the VM may appear as Paused, but the process is successful.

Troubleshooting a Failed Restore

If the VM fails to start correctly, a common recovery step is to delete the restored VM object and then re-apply the Restore manifest to try the metadata restoration again.


        # Delete the problematic VM before re-running the restore

        oc delete vm centos-stream10-aqua-spoonbill-10 -n demo

5. Automating Backups with Schedules

In a production environment, backups should be performed automatically on a regular schedule. OADP supports this via the Schedule custom resource. The following example creates a schedule to perform a metadata-only backup every hour at 22 minutes past the hour.

cat << EOF > $BASE_DIR/data/install/oadp-schedule.yaml
        apiVersion: velero.io/v1
        kind: Schedule
        metadata:
          name: daily-metadata-backup-schedule
          namespace: openshift-adp
        spec:
          # 1. Define the backup schedule using a Cron expression
          # This example runs at 22 minutes past every hour
          schedule: 22 * * * *

          # 2. Define the backup specification template
          # This template is identical to the manual 'Backup' object
          template:
            spec:
              includedNamespaces:
                - demo
              includeClusterResources: true
              # CRITICAL: Only back up metadata
              snapshotVolumes: false
              storageLocation: default
              # Set the retention policy for backups created by this schedule
              ttl: 720h0m0s # (30 days * 24 hours = 720 hours)
        EOF

        oc apply -f $BASE_DIR/data/install/oadp-schedule.yaml

OADP will automatically create Backup objects based on this schedule (e.g., daily-metadata-backup-schedule-20250730012200) and delete them when their TTL expires.

6. Advanced Scenario: Testing with NFS-CSI

The previous tests used a basic in-tree NFS provisioner. This section documents the process using the more modern NFS-CSI driver, which introduces complexities related to CSI snapshots.

Manual Failover with NFS-CSI

During manual testing, restoring the VM and its PV/PVC was successful, but VirtualMachineSnapshot objects required special handling.

Simulate Storage Replication: Copy both the PV data and the snapshot data directories.


        # Copy PV and snapshot data from primary to DR NFS server

        sudo rsync -avh --progress /srv/nfs/openshift-01/pvc-72c7d2e2-ab8e-46dc-887f-2f6d6e2d0343 /srv/nfs/openshift-02/
        sudo rsync -avh --progress /srv/nfs/openshift-01/snapshot-0bdcb6bd-2793-4760-b29a-2949980c34f9 /srv/nfs/openshift-02/

Create PV on DR Site: The PV definition for CSI includes a volumeHandle and volumeAttributes that must be updated to reflect the DR site’s configuration. Set persistentVolumeReclaimPolicy to Retain.

kind: PersistentVolume
        apiVersion: v1
        metadata:
          name: pvc-72c7d2e2-ab8e-46dc-887f-2f6d6e2d0343
        spec:
          capacity:
            storage: 34400Mi
          csi:
            driver: nfs.csi.k8s.io
            # Update volumeHandle to point to the DR NFS server and share
            volumeHandle: 192.168.99.1#openshift-02#pvc-72c7d2e2-ab8e-46dc-887f-2f6d6e2d0343##
            volumeAttributes:
              server: 192.168.99.1
              share: /openshift-02 # Update to DR share
              subdir: pvc-72c7d2e2-ab8e-46dc-887f-2f6d6e2d0343
          accessModes:
            - ReadWriteMany
          persistentVolumeReclaimPolicy: Retain # IMPORTANT
          storageClassName: nfs-csi
          volumeMode: Filesystem

Create PVC on DR Site: Create the PVC to bind to the PV.

kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: centos-stream10-gold-piranha-40-volume
          namespace: demo
        spec:
          accessModes:
            - ReadWriteMany
          resources:
            requests:
              storage: '36071014400'
          volumeName: pvc-72c7d2e2-ab8e-46dc-887f-2f6d6e2d0343
          storageClassName: nfs-csi
          volumeMode: Filesystem

Manually Recreate Snapshot Objects: The most complex part is recreating the Kubernetes snapshot objects (VolumeSnapshot and VolumeSnapshotContent) on the DR site to point to the replicated snapshot data. This requires updating handles and references within the object specs.

Create the snapshot.

apiVersion: snapshot.storage.k8s.io/v1
        kind: VolumeSnapshot
        metadata:
          name: vmsnapshot-6f75ec40-ca02-4f3c-9d07-ab84fc73d446-volume-rootdisk
          namespace: demo
        spec:
          volumeSnapshotClassName: nfs-csi-snapclass
          source:
            volumeSnapshotContentName: snapcontent-0bdcb6bd-2793-4760-b29a-2949980c34f9 # Point to the vsc name you plan to restore to

Create the snapshot content.

apiVersion: snapshot.storage.k8s.io/v1
        kind: VolumeSnapshotContent
        metadata:
          name: snapcontent-0bdcb6bd-2793-4760-b29a-2949980c34f9
        spec:
          deletionPolicy: Retain # Key point 1: Set to Retain
          driver: nfs.csi.k8s.io
          source:
            snapshotHandle: 192.168.99.1#openshift-02#snapshot-0bdcb6bd-2793-4760-b29a-2949980c34f9#snapshot-0bdcb6bd-2793-4760-b29a-2949980c34f9#pvc-72c7d2e2-ab8e-46dc-887f-2f6d6e2d0343 # Make sure to point to nfs02
          sourceVolumeMode: Filesystem
          volumeSnapshotClassName: nfs-csi-snapclass # Key point 2: ClassName must be specified
          volumeSnapshotRef:
            apiVersion: snapshot.storage.k8s.io/v1
            kind: VolumeSnapshot
            name: vmsnapshot-6f75ec40-ca02-4f3c-9d07-ab84fc73d446-volume-rootdisk
            namespace: demo
            uid: c7f932c1-4083-49fe-8715-a4f12e2c88f2 # get uid after above vs object created

Restore and Fixup: After performing the OADP restore (excluding PVs/PVCs/Snapshots), the VirtualMachineSnapshot object may enter an error state (e.g., VolumeSnapshots missing). This often requires manually creating another set of VolumeSnapshot and VolumeSnapshotContent objects with corrected names and UIDs to satisfy the restored VirtualMachineSnapshot’s expectations.

Conclusion: Manually failing over CSI snapshots is complex and error-prone. This highlights the need for a more robust, automated solution or an alternative strategy.

7. Alternative Strategy: Restore Snapshot to a New Volume

Given the complexities of replicating and restoring CSI snapshots, an alternative workflow is to restore a VM snapshot to a new PVC on the primary site before failover. This new PVC can then be replicated and used for recovery.

Trade-offs

This approach presents significant trade-offs:

Pro: It simplifies the DR process by converting a point-in-time snapshot into a standard, replicable volume.
Con: It requires additional storage space on the primary site for the restored volume. Storage-level deduplication can mitigate this, but it’s a key consideration.
Con: It changes the user experience. Instead of restoring a “VM Snapshot” on the DR site, users would need to attach the replicated disk (the restored PVC) to a new or existing VM. This workflow must be clearly documented.

Implementation Steps

Restore Snapshot to PVC on Primary Site: Create a new PersistentVolumeClaim on the primary cluster, using the desired VolumeSnapshot as its dataSource.

cat << EOF > $BASE_DIR/data/install/pv-restore.yaml
        apiVersion: v1
        kind: PersistentVolumeClaim
        metadata:
          name: restored-vm-disk-from-snapshot-demo-01
          namespace: demo
        spec:
          dataSource:
            name: vmsnapshot-312f1d32-90d2-493a-81dc-ec3020eb10cb-volume-rootdisk
            kind: VolumeSnapshot
            apiGroup: snapshot.storage.k8s.io
          accessModes:
            - ReadWriteMany
          resources:
            requests:
              # Size must be >= the original volume size
              # you can find the value from the snapshot, and find the referenced original pv -> status: capacity: storage: '1207078749'
              # you can also get the value from referenced original pv -> spec: resources: requests: storage: '1207078749'
              storage: 1207078749
          storageClassName: nfs-csi
        EOF

        oc apply -f $BASE_DIR/data/install/pv-restore.yaml

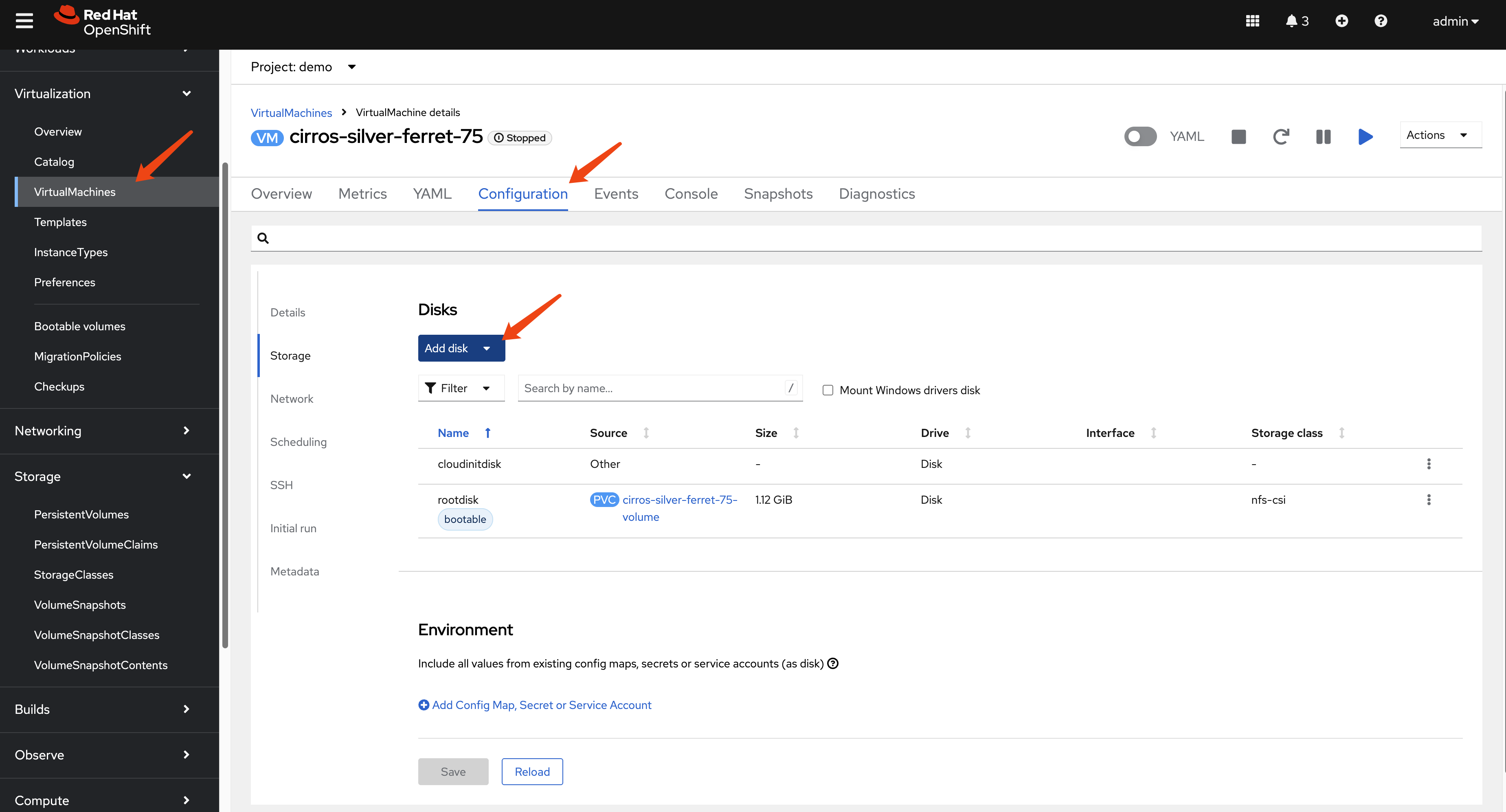

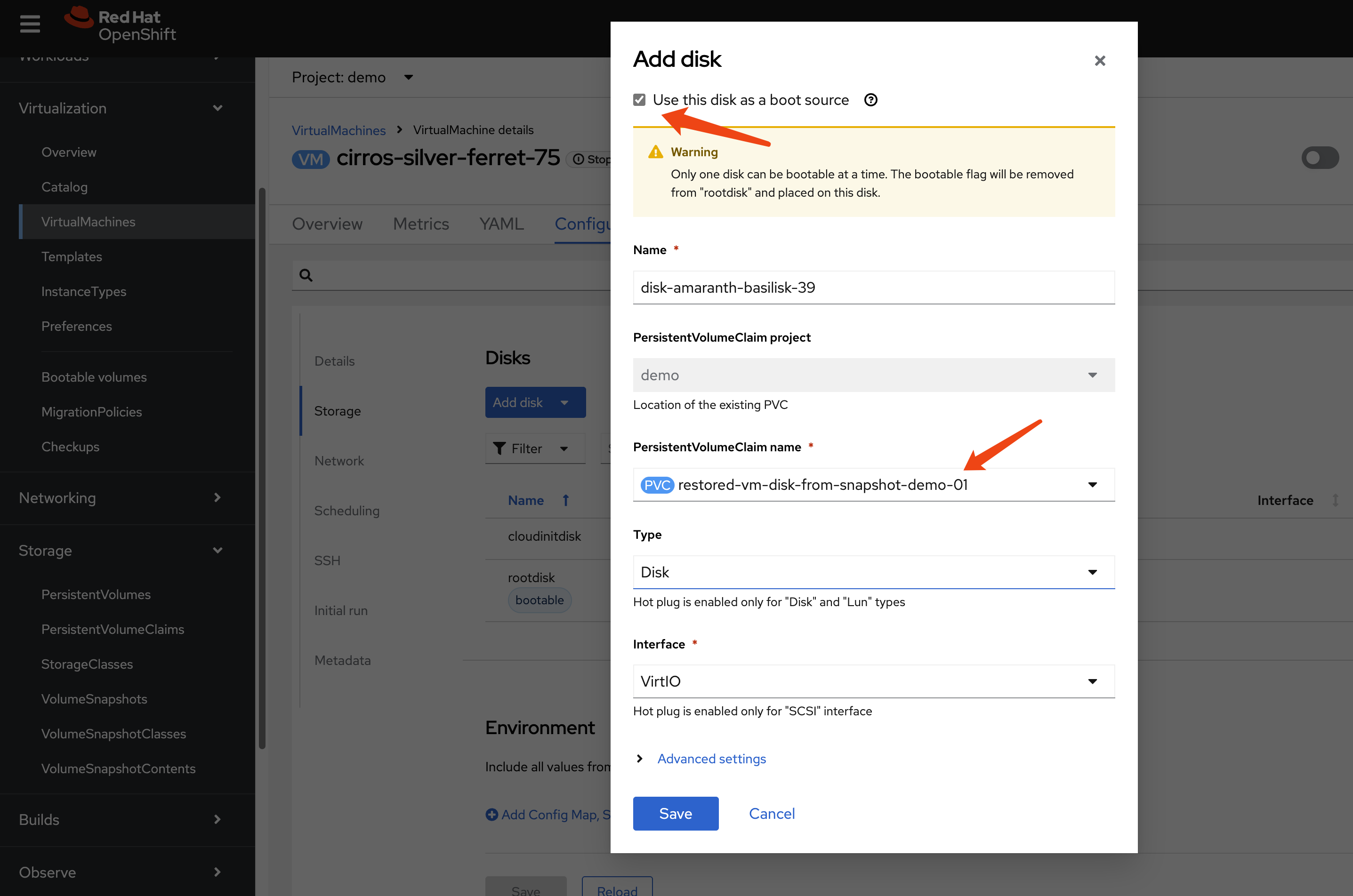

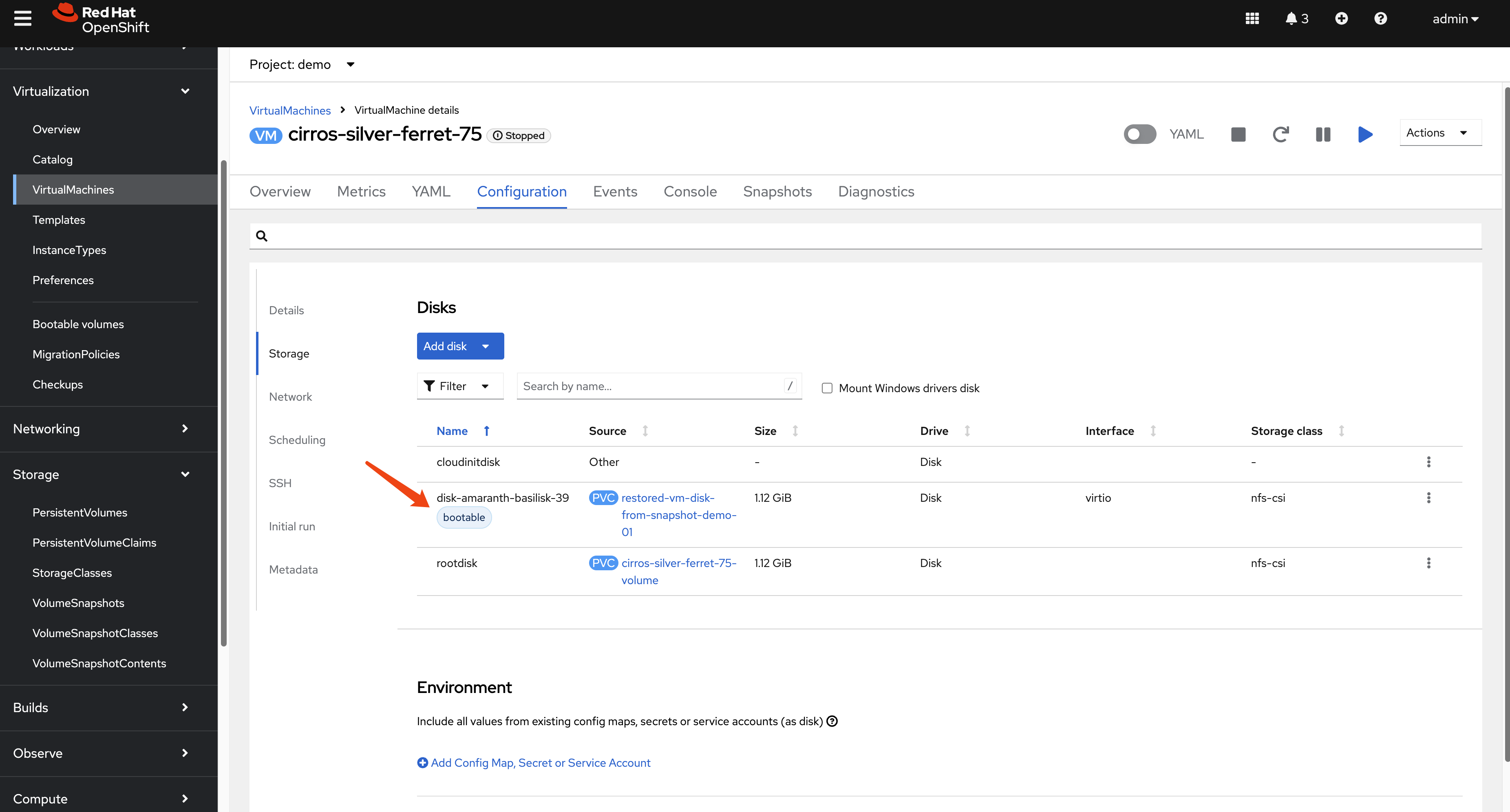

(Optional) Attach and Verify: Attach the newly created PVC to the original VM as a second disk to verify its contents. Set the new disk as bootable to confirm it works.

Replicate and Recover: The new PVC (restored-vm-disk-from-snapshot-demo-01) is now a standard volume. Replicate its data to the DR site using storage replication. Then, follow the standard manual recovery process: create the corresponding PV and PVC on the DR cluster, and then run the OADP metadata restore.


        # first sync nfs data from nfs01 to nfs02

        sudo rsync -avh --progress /srv/nfs/openshift-01/pvc-2d8cc130-07a8-45cd-8ee6-ef2d6908942d /srv/nfs/openshift-02/

On the DR site, create the PV.

kind: PersistentVolume
        apiVersion: v1
        metadata:
          name: pvc-2d8cc130-07a8-45cd-8ee6-ef2d6908942d
        spec:
          capacity:
            storage: 1207078749
          csi:
            driver: nfs.csi.k8s.io
            volumeHandle: 192.168.99.1#openshift-02#pvc-2d8cc130-07a8-45cd-8ee6-ef2d6908942d## # Make sure to point to nfs02
            volumeAttributes:
              server: 192.168.99.1
              share: /openshift-02 # Make sure to point to nfs02
              subdir: pvc-2d8cc130-07a8-45cd-8ee6-ef2d6908942d
          accessModes:
            - ReadWriteMany
          persistentVolumeReclaimPolicy: Retain # Key point 1: Set to Retain
          storageClassName: nfs-csi
          mountOptions:
            - hard
            - nfsvers=4.2
            - rsize=1048576
            - wsize=1048576
            - noatime
            - nodiratime
            - actimeo=60
            - timeo=600
            - retrans=3
          volumeMode: Filesystem

Create the PVC.

kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: restored-vm-disk-from-snapshot-demo-01
          namespace: demo
        spec:
          accessModes:
            - ReadWriteMany
          resources:
            requests:
              storage: '1207078749'
          volumeName: pvc-2d8cc130-07a8-45cd-8ee6-ef2d6908942d
          storageClassName: nfs-csi
          volumeMode: Filesystem

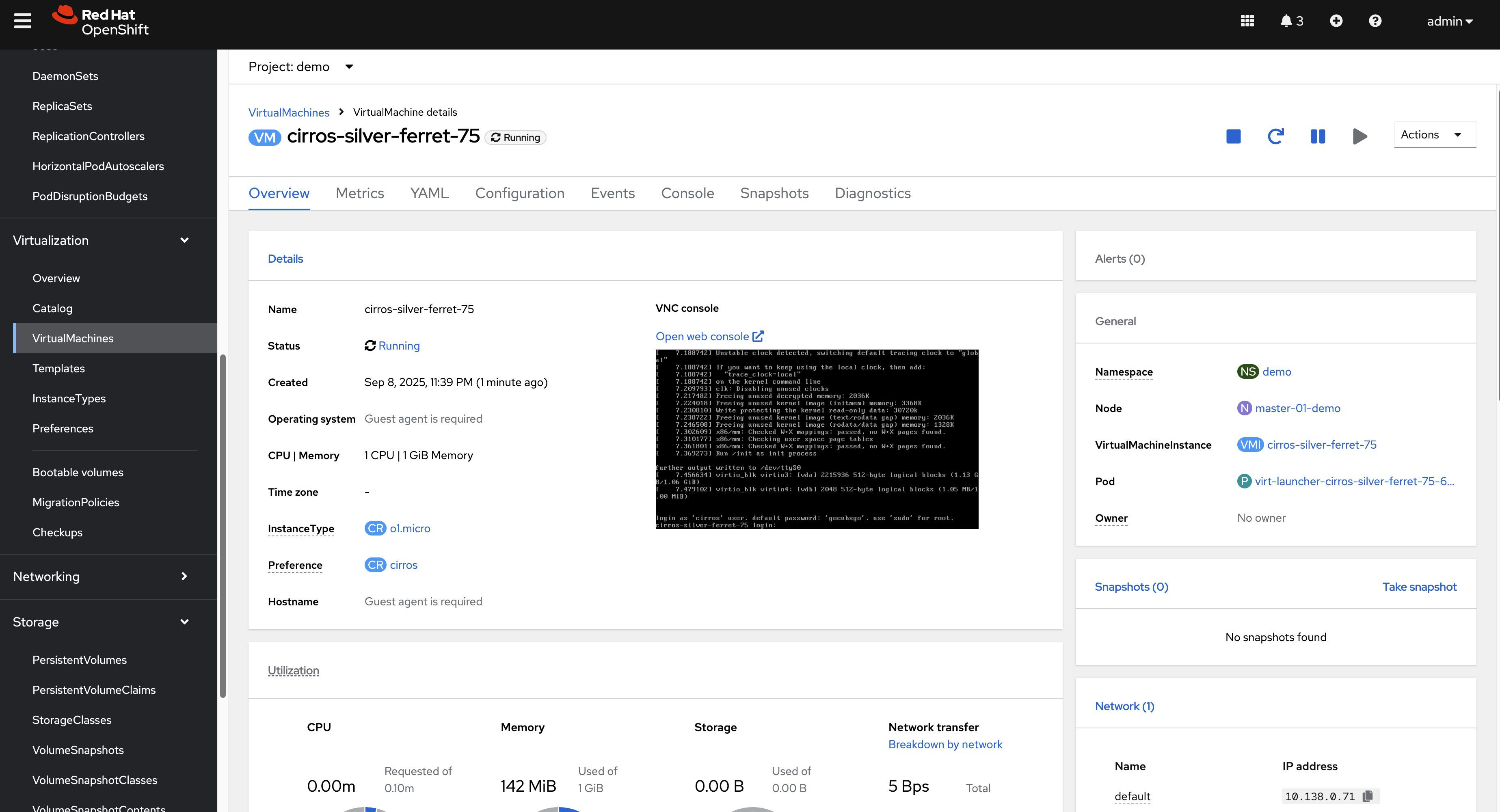

The restored VM will come back online using this replicated, snapshot-restored disk.

8. Path to Automation

The manual steps outlined in this document form the basis for a fully automated disaster recovery workflow. The high-level logic for an automation script (e.g., an Ansible playbook) would be:

Scheduled Metadata Backup: An OADP Schedule runs on the primary cluster to regularly back up VM metadata to S3.
DR Site Sync Script: A scheduled job on the DR site (or a central automation controller like AAP) performs the following:
- Downloads the latest backup from S3.
- Parses the backup contents to identify all PVs and their associated storage details (e.g., NFS paths, LUN IDs).
- For each PV, triggers the storage system’s API to synchronize the data to the DR site.
- Generates modified PV and PVC manifests with DR-specific storage parameters.
- Applies these manifests to the DR cluster, pre-staging the volumes in a “ready” state.
Failover Execution: In a disaster, a failover is triggered by running a final OADP Restore on the DR cluster. This restore brings the VMs online, connecting them to the already replicated and pre-staged persistent volumes.

Setting up Ansible Automation Platform (AAP)

As a first step toward automation, we can install AAP on the DR cluster.

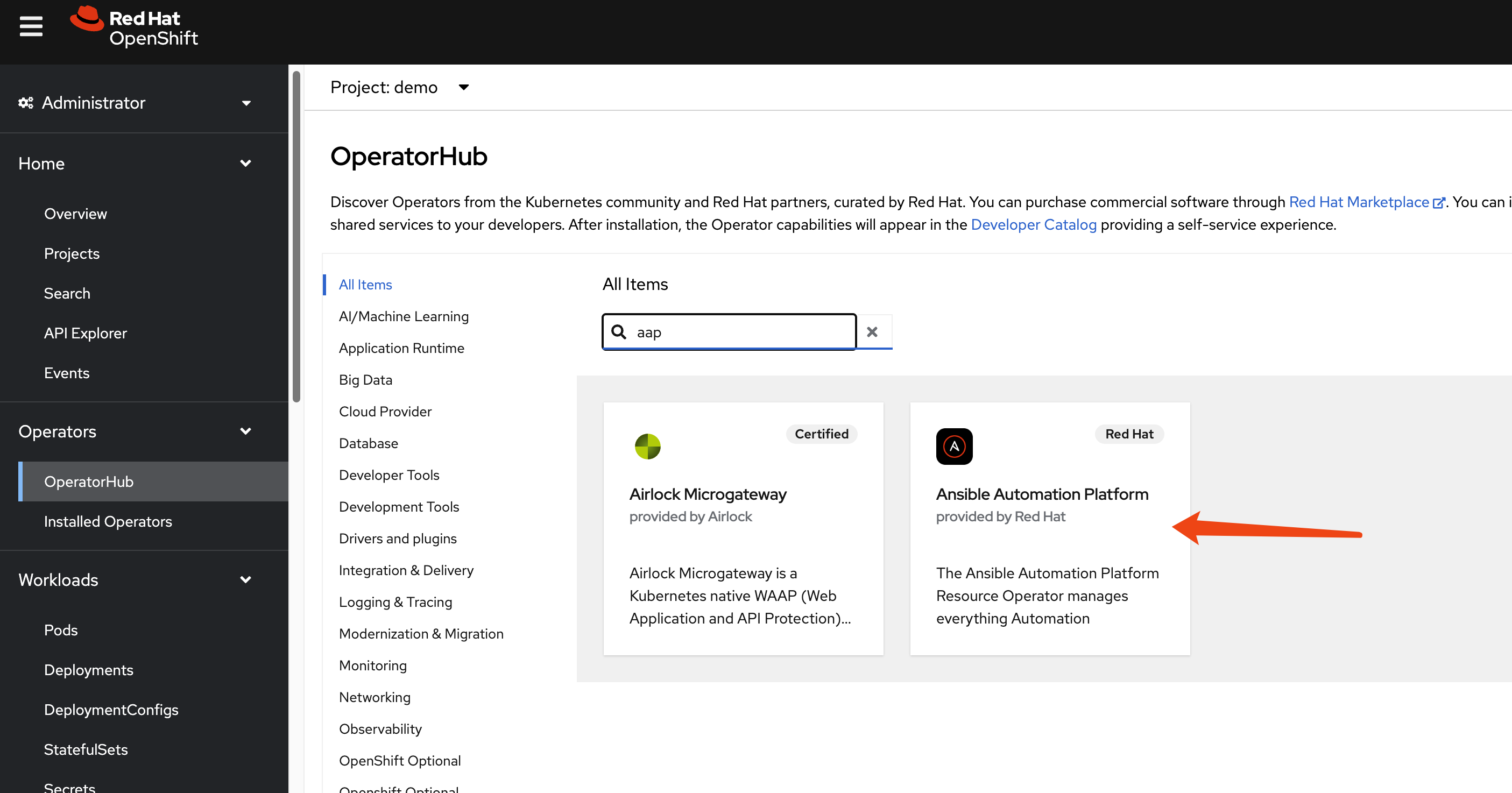

Install the Ansible Automation Platform operator from the OperatorHub.

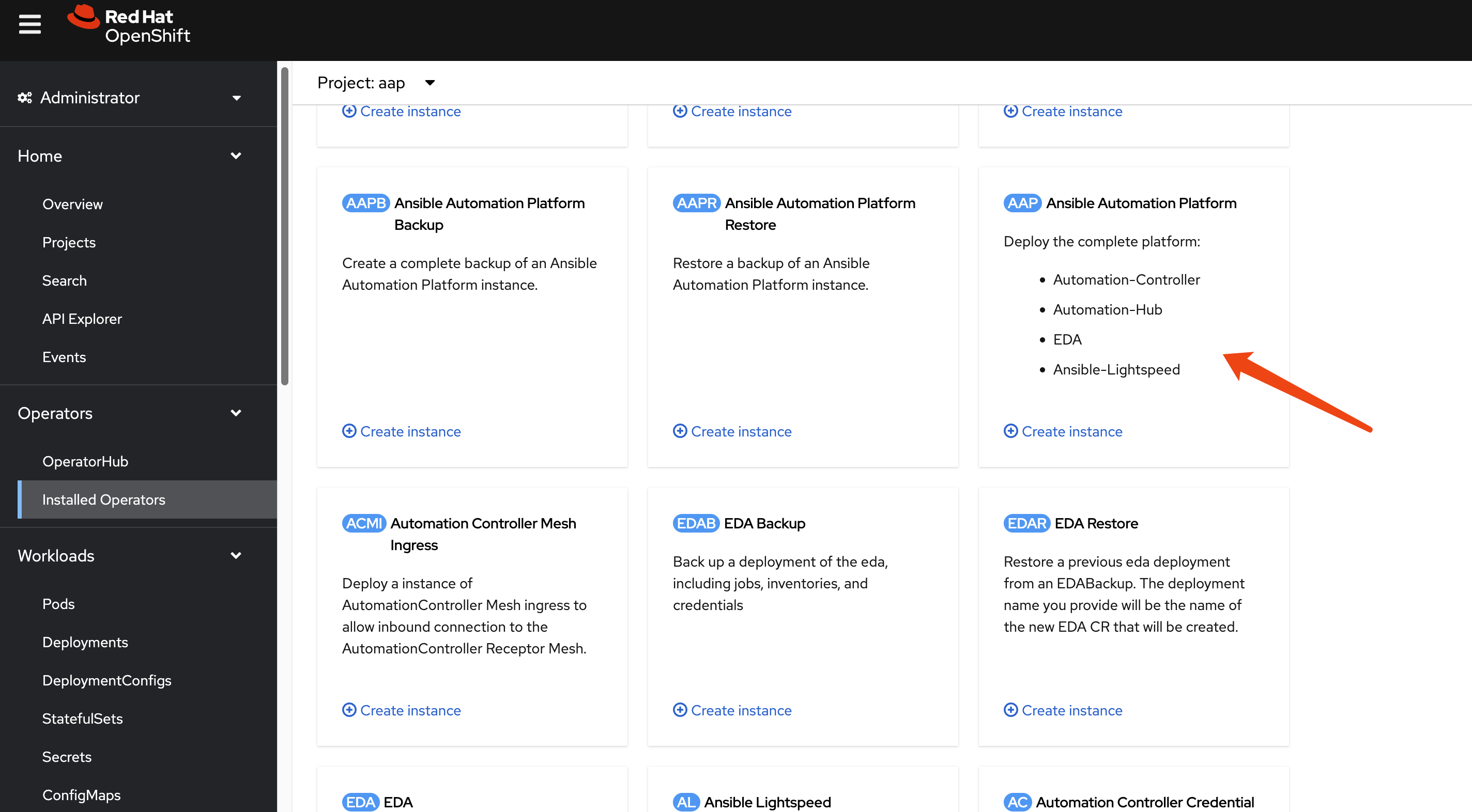

Create an AutomationController instance with default settings.

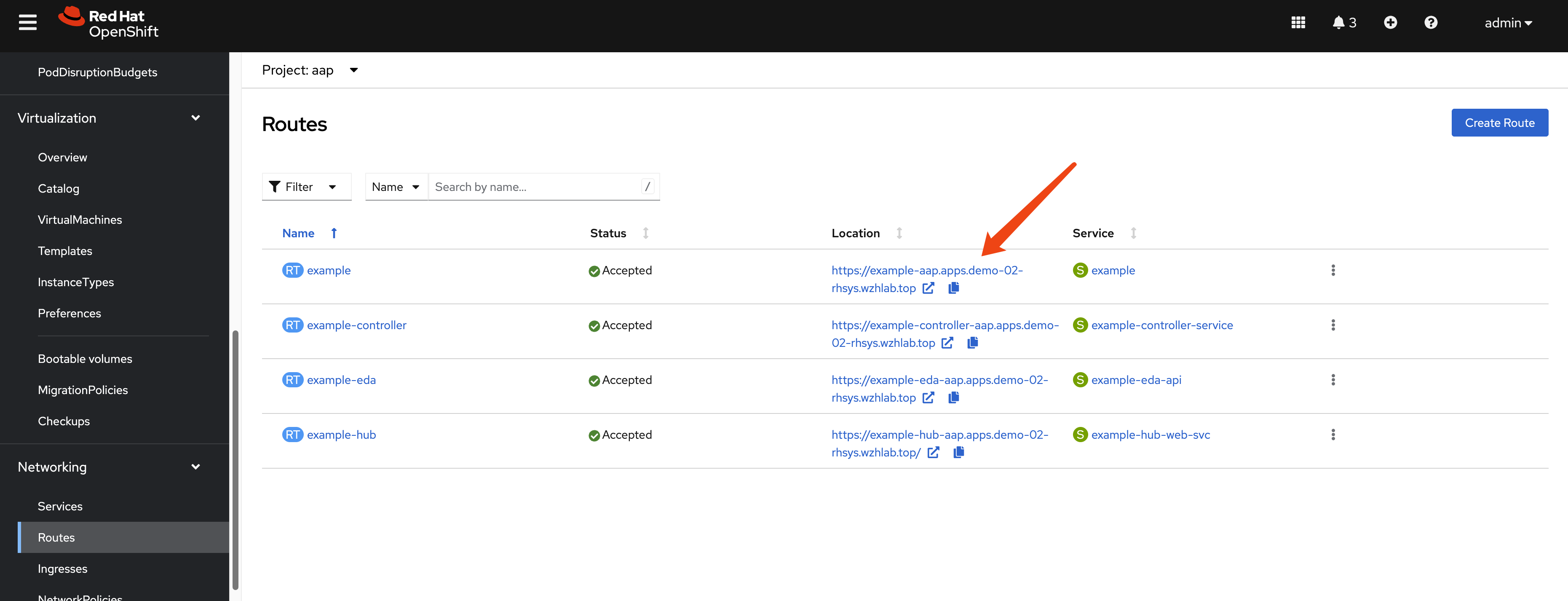

Retrieve the default admin password.

oc get secret example-admin-password -n aap -o jsonpath='{.data.password}' | base64 --decode && echo

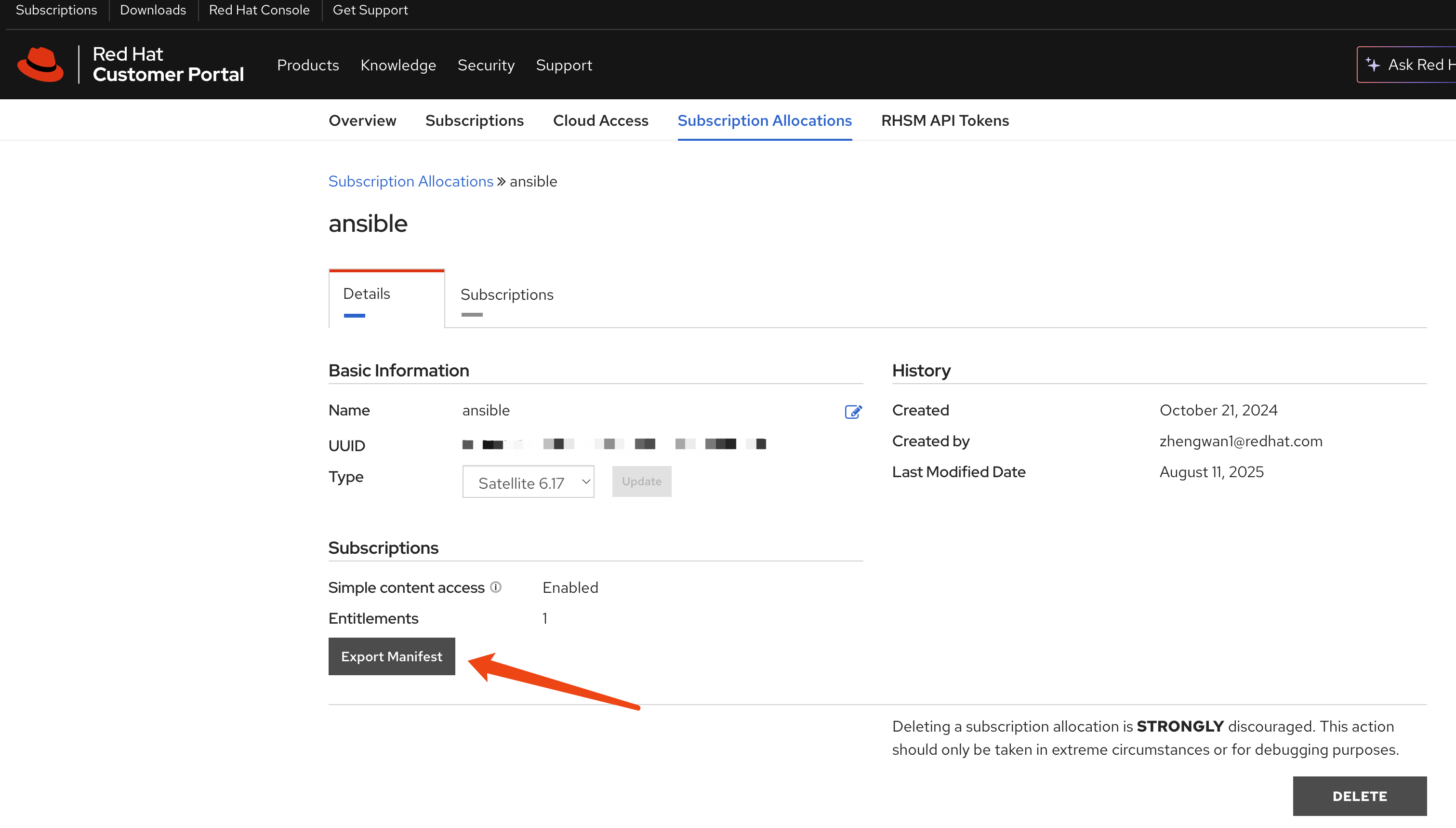

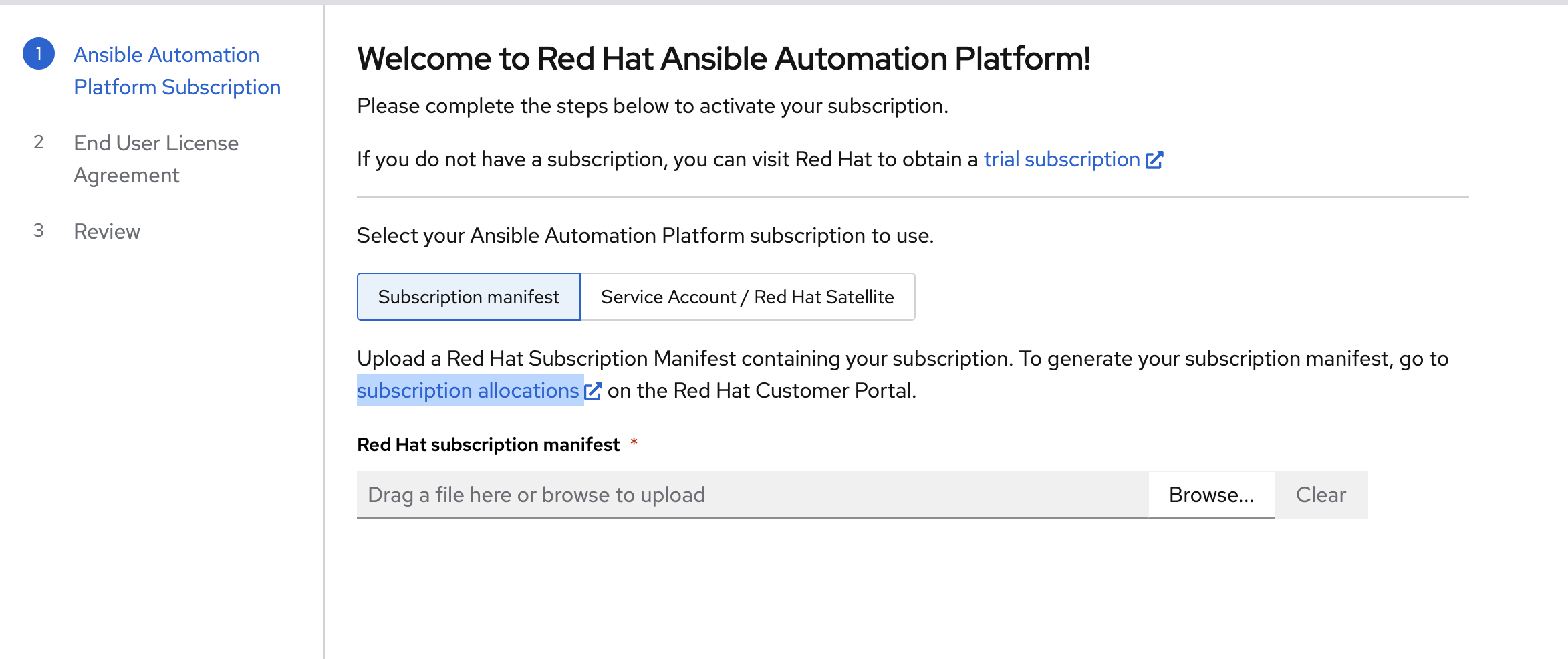

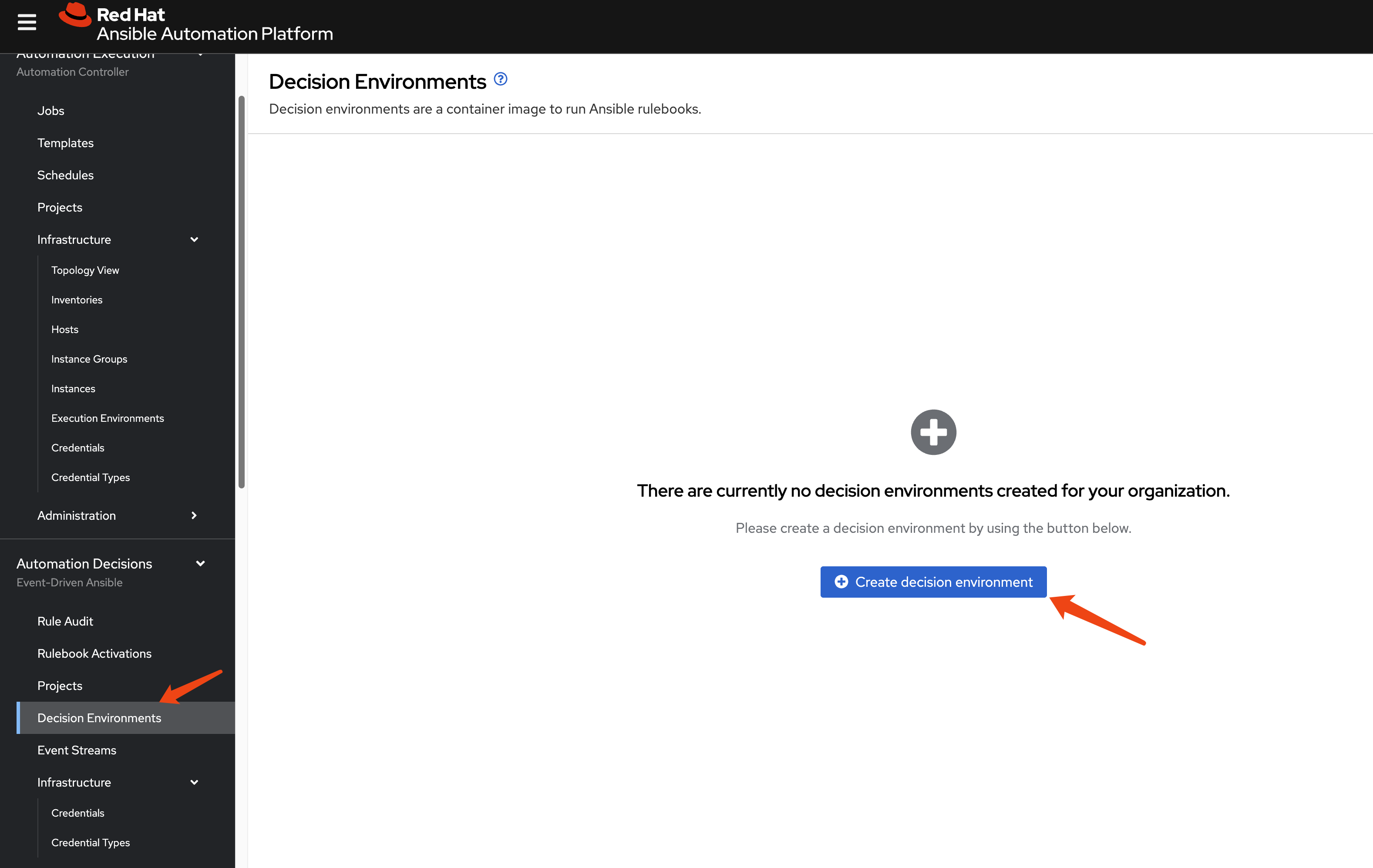

To extend the session timeout for easier management, patch the AutomationController resource: ```yaml spec: extra_settings: - setting: SESSION_COOKIE_AGE value: ‘86400’ - setting: AUTH_TOKEN_MAX_AGE value: ‘86400’
