OpenShift Virtualization Disaster Recovery with Storage Replication and OADP Plugins

1. Introduction and Strategy

The Challenge: Native DR Gaps in OpenShift Virtualization

Red Hat OpenShift Virtualization (OCP-V) is a powerful platform for running virtual machines alongside containers, but it does not include a native, built-in disaster recovery (DR) solution. The official recommendation from Red Hat is to leverage the DR capabilities of OpenShift Data Foundation (ODF), which provides robust, integrated disaster recovery mechanisms. ODF is typically backed by Ceph or IBM Flash Storage, offering a tightly integrated ecosystem.

However, many enterprise environments have standardized on third-party storage solutions from vendors like Dell, EMC, or Hitachi. In these heterogeneous storage scenarios, a different approach is required to implement a reliable and efficient DR strategy for virtual machines running on OpenShift Virtualization.

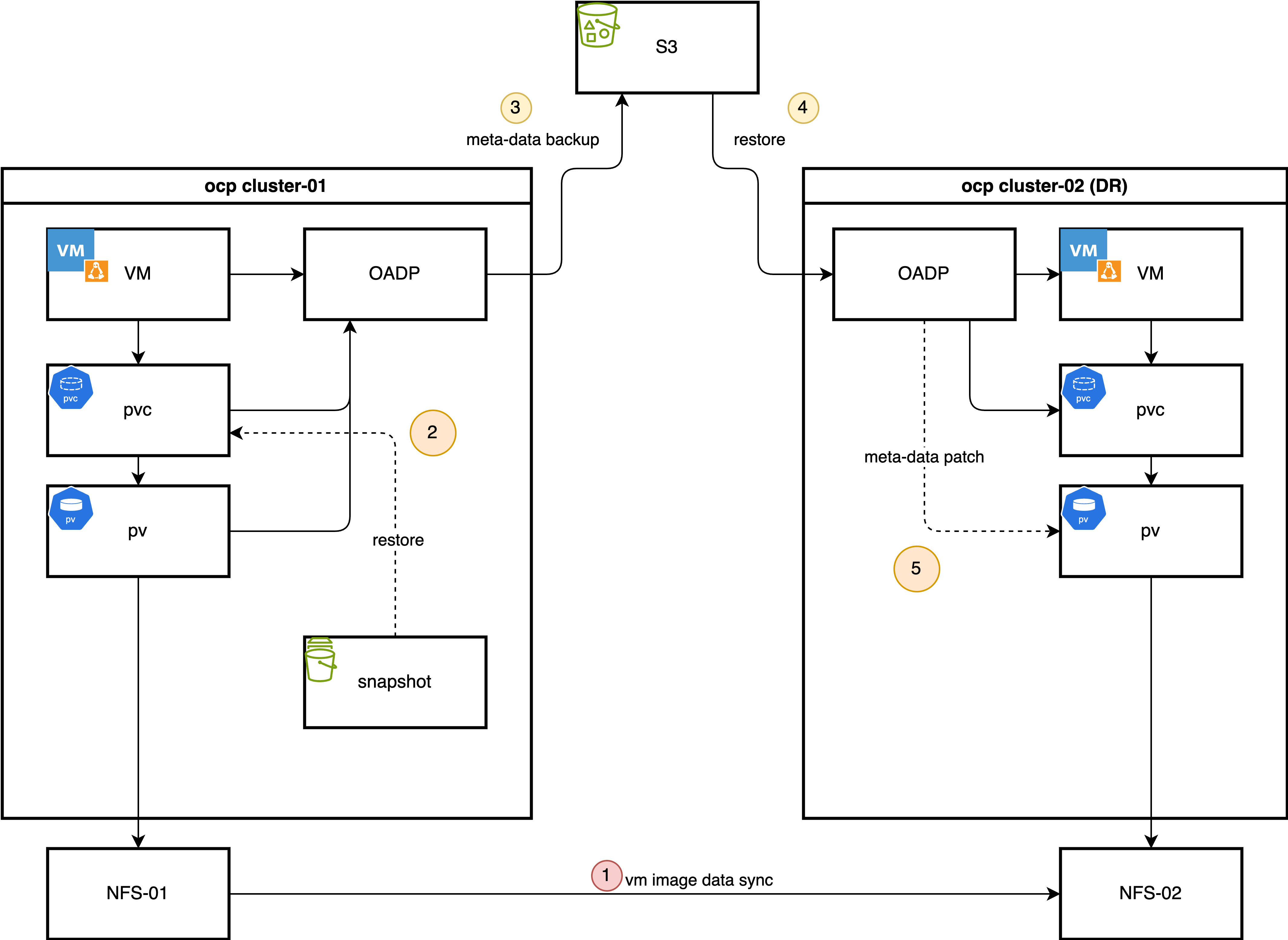

Our Solution: A Hybrid Approach with OADP and Storage Replication

This document details a DR strategy that combines the strengths of OpenShift’s native backup tools with the power of underlying storage replication. This hybrid model optimizes for both speed and consistency. The core components of this solution are:

OpenShift API for Data Protection (OADP): We use OADP (based on the upstream Velero project) to perform metadata-only backups. This captures the essential Kubernetes and OpenShift Virtualization object configurations, such as Virtual Machine (VM) specifications, Persistent Volume Claims (PVCs), and other related resources. We deliberately exclude the actual volume data from the OADP backup to avoid the time-consuming process of data compression, transfer to S3, and decompression during restore.
Storage-Level Replication: The actual VM disk data, contained within Persistent Volumes (PVs), is replicated from the primary site to the DR site using the storage array’s native remote replication capabilities. This method is highly efficient and significantly faster for large volumes compared to OADP’s file-based data movers.
Custom OADP Plugins: To bridge the gap between the metadata backup and the physically replicated storage, we employ two custom plugins:
- Snapshot-to-PVC Plugin (Backup Time): Since some storage systems (like the Hitachi model in our use case) do not support replicating snapshots directly, this plugin activates during the backup process. It creates a new PVC from a volume snapshot, effectively materializing the snapshot as a replicable volume. This new PVC is then included in the OADP metadata backup.
- PV Patching Plugin (Restore Time): During a restore at the DR site, this plugin intercepts the PersistentVolume objects. It dynamically modifies their definitions—for example, by changing storage server IPs or volume paths—to match the configuration of the DR site’s storage infrastructure. This ensures that the restored PVs can correctly map to the replicated storage LUNs.

The Daily Backup Process

In a typical operational cycle, the primary site performs automated backups at a regular interval (e.g., once per hour).

Metadata Backup Initiation: OADP triggers a scheduled backup of all specified Kubernetes object metadata and stores it in an S3-compatible object store.
Snapshot-to-PVC Promotion: The custom plugin identifies volume snapshots associated with the VMs being backed up. For each snapshot, it creates a new, corresponding PVC. This new PVC is instantly provisioned from the snapshot’s data.
Inclusion of New PVCs/PVs: The OADP backup process continues, adding the newly created PVCs and their associated PVs to the metadata backup set. This ensures the backup contains a complete, consistent, and replicable state of the application.

The Failover Process

In the event of a disaster at the primary site, a manual or automated failover process is initiated:

Quiesce Primary Site: VMs at the primary site are shut down, and the underlying storage volumes are set to a read-only state to ensure data consistency.
Finalize Storage Synchronization: The storage replication is finalized to ensure the DR site has the latest consistent copy of the data.
Present Storage at DR Site: The replicated volumes (LUNs or NFS shares) are made available and presented to the DR OpenShift cluster.
Restore Metadata with PV Patching: The OADP metadata backup is restored to the DR cluster. During this process, the custom PV patching plugin automatically modifies the PV definitions to point to the correct storage resources at the DR site.
Start VMs: With the metadata restored and the storage correctly mapped, the virtual machines can be started on the DR cluster, resuming operations.

The process for failing back from the DR site to the primary site follows the same logic in reverse.

This document uses a simple NFS storage backend to simulate the process, first demonstrating the manual steps and then outlining a path toward full automation using Ansible.

2. Prerequisites: Operator Installation

Provisioning the NFS CSI Driver

For demonstration purposes, we will use the NFS CSI driver as the storage backend.

First, deploy the NFS CSI driver to your cluster.

curl -skSL https://raw.githubusercontent.com/kubernetes-csi/csi-driver-nfs/v4.12.1/deploy/install-driver.sh | bash -s v4.12.1 --

Next, create the StorageClass and VolumeSnapshotClass.

[!NOTE] The reclaimPolicy must be set to Retain. Otherwise, the OADP plugin for PV modification will not be triggered during the restore process.

apiVersion: storage.ks.io/v1
        kind: StorageClass
        metadata:
          name: nfs-csi
          annotations:
            storageclass.kubernetes.io/is-default-class: "true"
        provisioner: nfs.csi.k8s.io
        parameters:
          server: 192.168.99.1
          share: /openshift-01
        reclaimPolicy: Retain # Must be Retain for this DR strategy
        volumeBindingMode: Immediate
        allowVolumeExpansion: true
        mountOptions:
          - hard
          - nfsvers=4.2 # Recommended to use NFSv4
          - rsize=1048576 # Increasing read/write block size can improve performance
          - wsize=1048576
          - noatime
          - nodiratime
          - actimeo=60 # Cache attributes for 60 seconds
          # --- Lock and timeout optimizations to handle "lost lock" issues ---
          - timeo=600     # Timeout in tenths of a second (600 = 60s). Increases tolerance for network latency.
          - retrans=3     # Number of retransmissions.

        ---
        apiVersion: snapshot.storage.k8s.io/v1
        kind: VolumeSnapshotClass
        metadata:
          name: nfs-csi-snapclass
        driver: nfs.csi.k8s.io
        deletionPolicy: Delete

Install OpenShift Virtualization

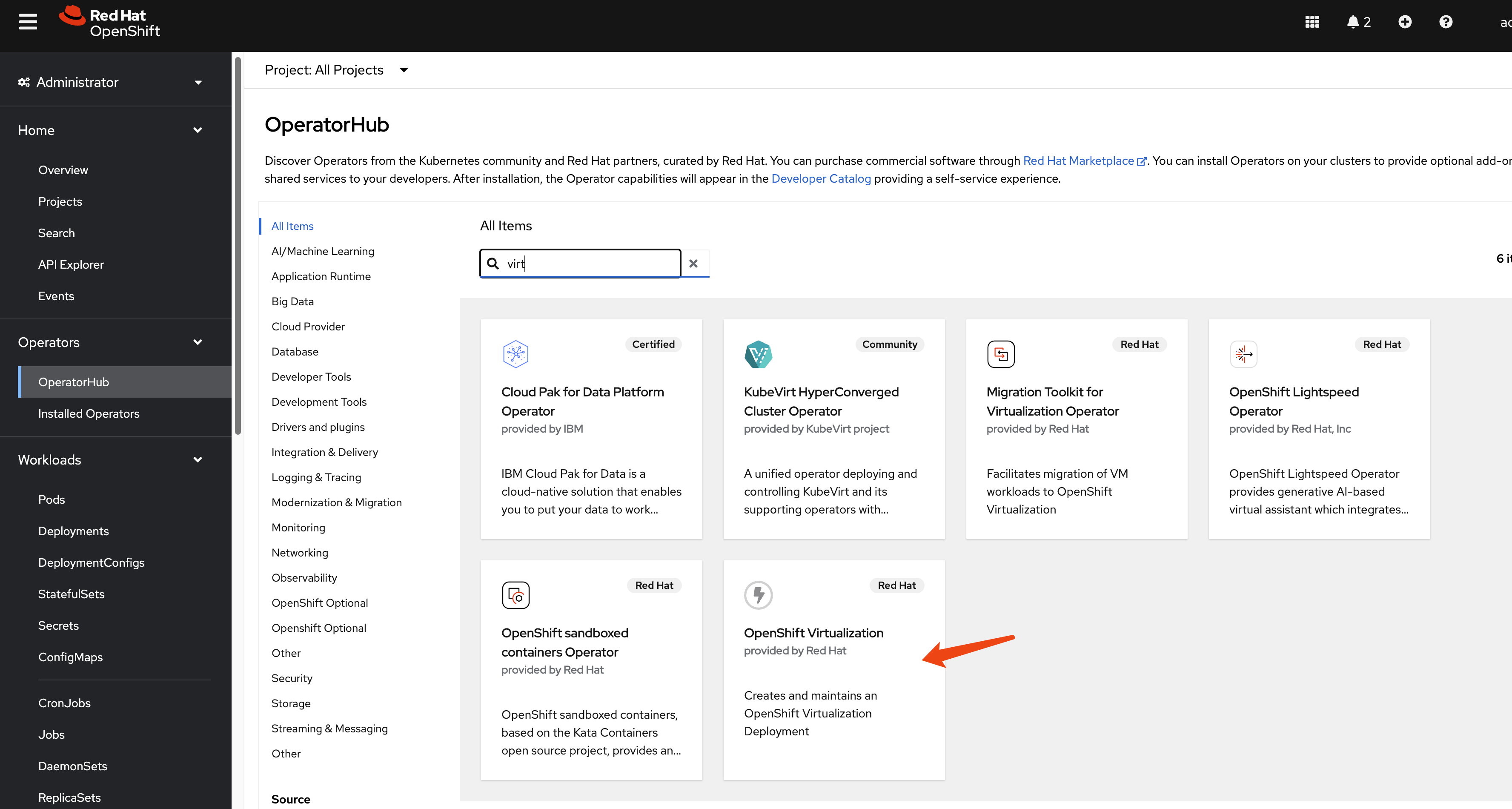

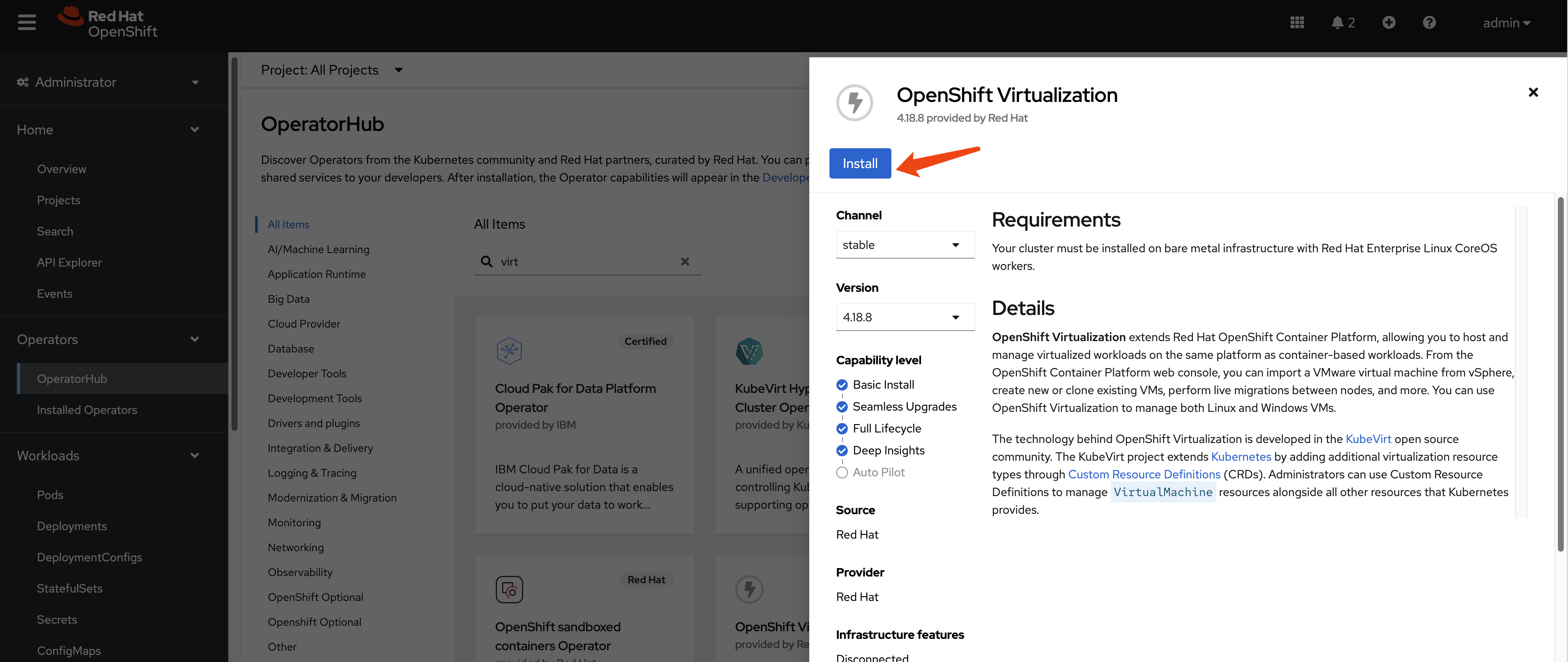

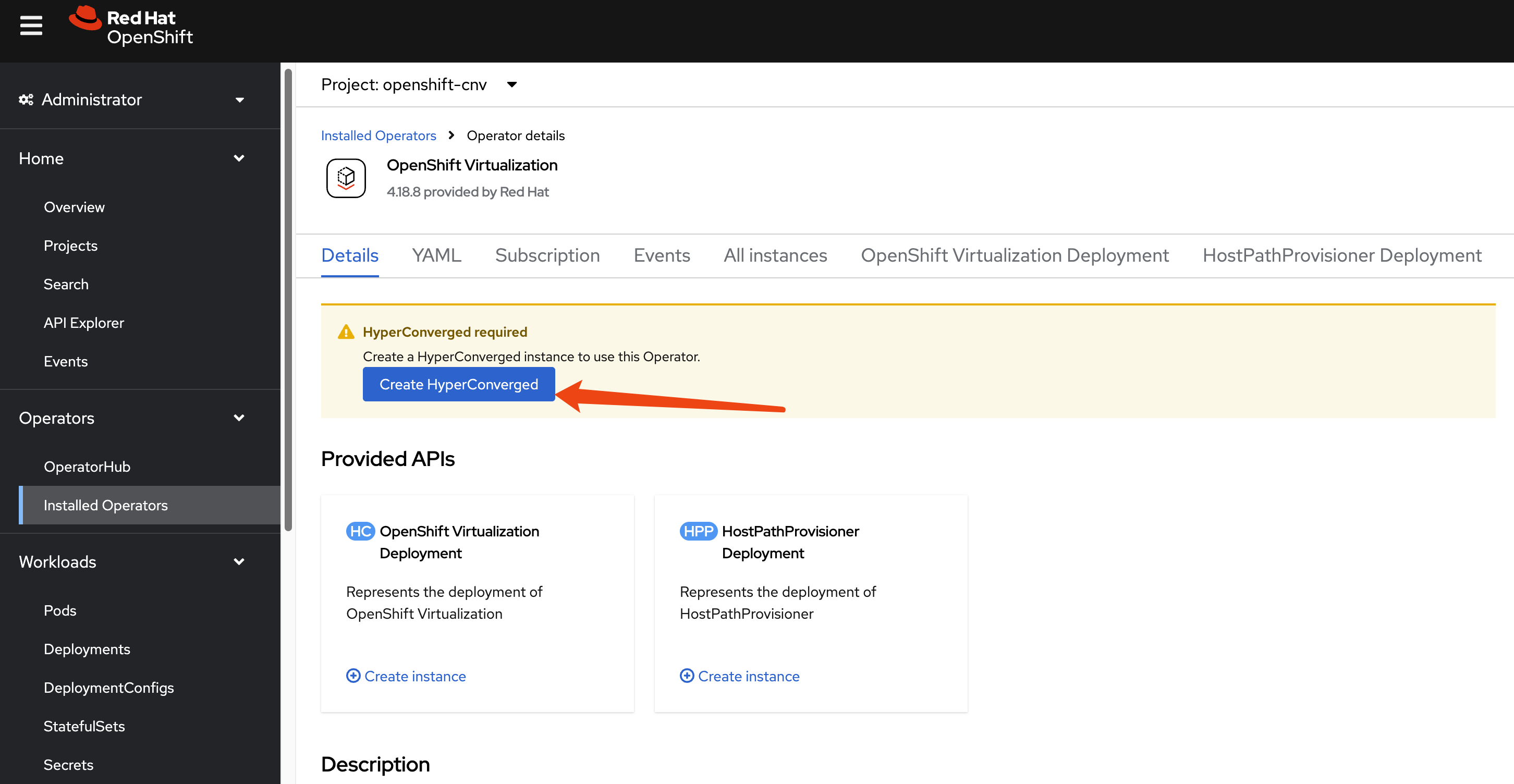

This guide focuses on the disaster recovery of virtual machines, so the OpenShift Virtualization operator is a primary requirement. Install it from the OperatorHub in your OpenShift cluster.

Install OADP Operator

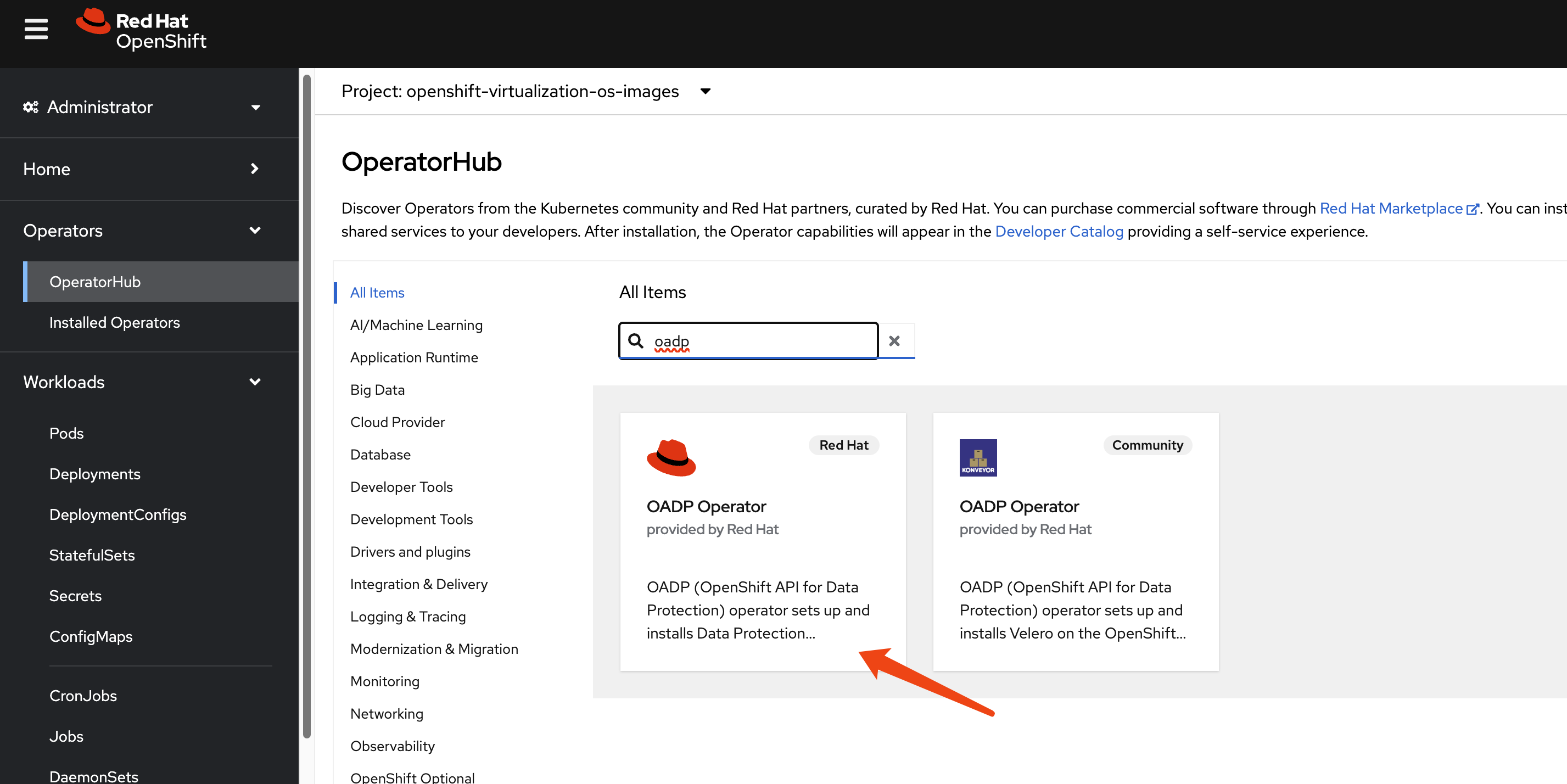

We use the OpenShift API for Data Protection (OADP) operator for metadata backup and restore. Install the OADP operator on both the primary (cluster-01) and DR (cluster-02) clusters.

Next, configure a Kubernetes Secret containing the credentials for your S3-compatible object storage bucket, which will store the metadata backups.


        # Create a credentials file for MinIO or any S3-compatible storage

        cat << EOF > $BASE_DIR/data/install/credentials-minio
        [default]
        aws_access_key_id = rustfsadmin
        aws_secret_access_key = rustfsadmin
        EOF

        # Create the secret in the openshift-adp namespace

        oc create secret generic minio-credentials \
        --from-file=cloud=$BASE_DIR/data/install/credentials-minio \
        -n openshift-adp

Finally, create a DataProtectionApplication (DPA) custom resource. This configures the OADP instance, specifying the S3 backup location and enabling the necessary plugins for OpenShift, KubeVirt, CSI, and our custom DR logic.


        # Define the OADP instance (DataProtectionApplication)

        cat << EOF > $BASE_DIR/data/install/oadp.yaml
        apiVersion: oadp.openshift.io/v1alpha1
        kind: DataProtectionApplication
        metadata:
          name: velero-instance
          namespace: openshift-adp
        spec:
          # 1. Define the S3 backup storage location
          backupLocations:
            - name: default
              velero:
                provider: aws
                default: true
                objectStorage:
                  bucket: ocp
                  prefix: velero # Backups will be stored under the 'velero/' prefix
                config:
                  # For non-AWS S3, provide the endpoint URL
                  s3Url: http://192.168.99.1:9001
                  region: us-east-1
                # Reference the secret containing S3 credentials
                credential:
                  name: minio-credentials
                  key: cloud

          # 2. Configure Velero plugins and features
          configuration:
            nodeAgent:
              enable: true
              uploaderType: kopia
            velero:
              # Enable default plugins for OpenShift, KubeVirt, CSI, and AWS
              defaultPlugins:
                - openshift
                - kubevirt
                - csi
                - aws
              featureFlags:
                - EnableCSI
              customPlugins: # Add custom plugins
              # This plugin will patch the PV during OADP restore
              - name: csi-volume-dr # A unique name for the plugin
                image: quay.io/wangzheng422/qimgs:velero-plugin-oadp-dr-2025.11.05-v01
              # This plugin will restore a PVC from a snapshot during OADP backup
              - name: snapshot-dr # A unique name for the plugin
                image: quay.io/wangzheng422/qimgs:velero-plugin-snapshot-2025.11.12-v01

            # 3. Volume snapshot and data mover configuration is not needed for this metadata-only strategy
            # csi:
            #   enable: false
            # datamover:
            #   enable: false
        EOF

        oc apply -f $BASE_DIR/data/install/oadp.yaml

As you can see, we use two custom OADP plugins:

1. PV Patching Plugin (`velero-plugin-oadp-dr`)

The source code is available here: https://github.com/wangzheng422/openshift-velero-plugin/blob/wzh-oadp-1.5/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go

This plugin activates during a restore operation. It reads a ConfigMap named velero-plugin-regex-map which contains rules for finding and replacing strings within PV definitions. This allows it to dynamically adapt PVs to the DR site’s storage environment.

Here is an example of the velero-plugin-regex-map ConfigMap configuration:

apiVersion: v1
        kind: ConfigMap
        metadata:
          # The ConfigMap must be created in the Velero installation namespace
          namespace: openshift-adp
          name: velero-plugin-regex-map
        data:
          # --- Rule 1: Modify volumeHandle ---
          # path: Specifies the complete path to the field to be modified
          rule1.path: "spec.csi.volumeHandle"
          # find: Regular expression used for searching
          rule1.find: "openshift-01"
          # replace: Target string to replace with. You can use $1, $2, etc. to reference regex capture groups
          rule1.replace: "openshift-02"

          # --- Rule 2: Modify volumeAttributes.share ---
          rule2.path: "spec.csi.volumeAttributes.share"
          rule2.find: "openshift-01"
          rule2.replace: "openshift-02"

          # --- You can continue adding more rules as needed ---
          # rule3.path: "..."
          # rule3.find: "..."
          # rule3.replace: "..."

Configuration Parameters Explained:

path: The JSON path to the field within the PersistentVolume specification that needs to be modified. Common paths include:
- spec.csi.volumeHandle - The CSI volume identifier
- spec.csi.volumeAttributes.share - NFS share path
- spec.csi.volumeAttributes.server - Storage server address
find: A regular expression pattern to match the value that needs to be replaced. This supports standard regex syntax, allowing for complex pattern matching.
replace: The replacement string. You can use capture groups from the find regex (e.g., $1, $2) to preserve parts of the original value.

Example Use Cases:

Changing NFS server paths: Replace /openshift-01 with /openshift-02 in the share path
Updating server IPs: Replace 192.168.1.100 with 192.168.2.100 in volumeHandle
Modifying storage array identifiers: Update LUN IDs or volume identifiers for different storage systems

The plugin processes these rules sequentially during the restore operation, applying each transformation to the PersistentVolume objects before they are created in the DR cluster.

The logic is as follows:

flowchart TD
            subgraph Initialization and Rule Loading
                A[Start PV Restore Process] --> B{Fetch velero-plugin-regex-map<br/>ConfigMap};
                B -- "Success" --> C{Parse ConfigMap<br/>Extract Replacement Rules};
                B -- "Failure" --> D[Log Error and Skip Modification];
                C -- "No Valid Rules" --> E[Log Warning and Skip Modification];
                C -- "Rules Parsed" --> F[Get Current PV Spec Content];
            end

            subgraph Rule Application Loop
                F --> G{Iterate Through All Rules};
                G -- "Loop Start" --> H{Find Value in PV Spec<br/>Based on Rule Path};
                H -- "Not Found or Path Error" --> I[Skip Current Rule];
                H -- "Value Found" --> J{Compile 'find' Regex from Rule};
                J -- "Compilation Failed" --> I;
                J -- "Compilation Succeeded" --> K{Check if Field Value Matches Regex};
                K -- "No Match" --> I;
                K -- "Match" --> L[Perform Replacement<br/>Generate New Value];
                L --> M{Update Field in PV Spec};
                M -- "Update Failed" --> I;
                M -- "Update Succeeded" --> N[Mark PV as Modified];
                I --> O{Are there more rules?};
                N --> O;
                O -- "Yes" --> G;
            end

            subgraph Finalization
                G -- "Loop End" --> O;
                O -- "No" --> P[Log Final Modification Status of PV];
                P --> Q[Complete<br/>Return PV Object];
                D --> Q;
                E --> Q;
            end

            style D fill:#FADBD8,stroke:#C0392B
            style E fill:#FEF9E7,stroke:#F1C40F
            style Q fill:#D5F5E3,stroke:#27AE60

2. Snapshot-to-PVC Plugin (`velero-plugin-snapshot`)

The source code is available here: https://github.com/wangzheng422/openshift-velero-plugin/blob/wzh-odap-1.5-snapshot/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go

This plugin activates during a backup operation. It scans for VolumeSnapshot objects. If a snapshot is found, the plugin creates a new PVC that restores data from that snapshot. It then waits for the new PVC to become bound to a PV. This is essential for storage systems like Hitachi that do not support replicating snapshots directly.

The logic of this plugin is as follows:

flowchart TD
            subgraph "Initialization"
                A[Velero Backs Up a VolumeSnapshot]
            end

            subgraph "Snapshot Pre-processing"
                B{Does Snapshot Have a Source PVC?}
                A --> B
                B -- "No" --> C[Skip This Snapshot]
                B -- "Yes" --> D[Get Source PVC Name]
            end

            subgraph "Source PVC Validation"
                E{Does Source PVC Exist?}
                D --> E
                E -- "No" --> F[Log Warning and Skip]
                E -- "Yes" --> G[Read Source PVC Configuration<br/>AccessModes, Resources, etc.]
            end

            subgraph "Create New PVC"
                H[Define New PVC Object<br/>Based on Source PVC and Snapshot]
                G --> H
                I{Create New PVC API Call}
                H --> I
                I -- "Failure" --> J[Log Error and Skip]
                I -- "Success" --> K[New PVC Created Successfully]
            end

            subgraph "Wait for PVC to Bind"
                L[Poll New PVC Status]
                K --> L
                M{Is PVC Status 'Bound'?}
                L --> M
                M -- "No, Status is 'Pending'" --> L
                M -- "Timeout or Error" --> N[Log Error and Skip]
                M -- "Yes" --> O[PVC Successfully Bound]
            end

            subgraph "Completion"
                P[Add the Newly Created PVC<br/>to the Backup Resource List]
                O --> P
                Q[Back Up Original VolumeSnapshot<br/>and the New PVC]
                P --> Q
                R[End]
                Q --> R
                C --> R
                F --> R
                J --> R
                N --> R
            end

            style A fill:#D6EAF8,stroke:#3498DB
            style Q fill:#D5F5E3,stroke:#2ECC71
            style R fill:#D5F5E3,stroke:#2ECC71
            style C fill:#FADBD8,stroke:#E74C3C
            style F fill:#FADBD8,stroke:#E74C3C
            style J fill:#FADBD8,stroke:#E74C3C
            style N fill:#FADBD8,stroke:#E74C3C

3. Verifying Plugin Registration

After deploying the DataProtectionApplication resource with the custom plugin images, it is essential to verify that Velero has successfully loaded and registered them. This confirmation step ensures that both the default OADP plugins and our two custom plugins (csi-volume-dr and snapshot-dr) are active and ready to participate in the backup and restore workflows.

To list all currently active plugins, you can execute the following command inside the Velero pod. For convenience, we first create a shell alias.


        # Create a temporary alias for easier access to the Velero CLI

        alias velero='oc -n openshift-adp exec deployment/velero -c velero -it -- ./velero'

        # List all registered plugins

        velero get plugins

        # NAME                                                          KIND

        # kubevirt-velero-plugin/backup-datavolume-action               BackupItemAction

        # kubevirt-velero-plugin/backup-datavolume-action               BackupItemAction

        # kubevirt-velero-plugin/backup-virtualmachine-action           BackupItemAction

        # kubevirt-velero-plugin/backup-virtualmachine-action           BackupItemAction

        # kubevirt-velero-plugin/backup-virtualmachineinstance-action   BackupItemAction

        # kubevirt-velero-plugin/backup-virtualmachineinstance-action   BackupItemAction

        # openshift.io/01-common-backup-plugin                          BackupItemAction

        # openshift.io/01-common-backup-plugin                          BackupItemAction

        # openshift.io/02-serviceaccount-backup-plugin                  BackupItemAction

        # openshift.io/02-serviceaccount-backup-plugin                  BackupItemAction

        # openshift.io/03-pv-backup-plugin                              BackupItemAction

        # openshift.io/03-pv-backup-plugin                              BackupItemAction

        # openshift.io/04-imagestreamtag-backup-plugin                  BackupItemAction

        # openshift.io/04-imagestreamtag-backup-plugin                  BackupItemAction

        # openshift.io/07-pod-backup-plugin                             BackupItemAction

        # openshift.io/07-pod-backup-plugin                             BackupItemAction

        # openshift.io/08-deploymentconfig-backup-plugin                BackupItemAction

        # openshift.io/08-deploymentconfig-backup-plugin                BackupItemAction

        # openshift.io/09-replicationcontroller-backup-plugin           BackupItemAction

        # openshift.io/09-replicationcontroller-backup-plugin           BackupItemAction

        # openshift.io/19-is-backup-plugin                              BackupItemAction

        # openshift.io/19-is-backup-plugin                              BackupItemAction

        # openshift.io/25-configmap-backup-plugin                       BackupItemAction

        # openshift.io/25-configmap-backup-plugin                       BackupItemAction

        # velero.io/crd-remap-version                                   BackupItemAction

        # velero.io/crd-remap-version                                   BackupItemAction

        # velero.io/pod                                                 BackupItemAction

        # velero.io/pod                                                 BackupItemAction

        # velero.io/pv                                                  BackupItemAction

        # velero.io/pv                                                  BackupItemAction

        # velero.io/service-account                                     BackupItemAction

        # velero.io/service-account                                     BackupItemAction

        # wzhlab.top/create-pvc-from-snapshot-action                    BackupItemAction

        # wzhlab.top/create-pvc-from-snapshot-action                    BackupItemAction

        # velero.io/csi-pvc-backupper                                   BackupItemActionV2

        # velero.io/csi-volumesnapshot-backupper                        BackupItemActionV2

        # velero.io/csi-volumesnapshotclass-backupper                   BackupItemActionV2

        # velero.io/csi-volumesnapshotcontent-backupper                 BackupItemActionV2

        # velero.io/csi-volumesnapshot-delete                           DeleteItemAction

        # velero.io/csi-volumesnapshotcontent-delete                    DeleteItemAction

        # velero.io/dataupload-delete                                   DeleteItemAction

        # velero.io/aws                                                 ObjectStore

        # kubevirt-velero-plugin/restore-pod-action                     RestoreItemAction

        # kubevirt-velero-plugin/restore-pod-action                     RestoreItemAction

        # kubevirt-velero-plugin/restore-pvc-action                     RestoreItemAction

        # kubevirt-velero-plugin/restore-pvc-action                     RestoreItemAction

        # kubevirt-velero-plugin/restore-vm-action                      RestoreItemAction

        # kubevirt-velero-plugin/restore-vm-action                      RestoreItemAction

        # kubevirt-velero-plugin/restore-vmi-action                     RestoreItemAction

        # kubevirt-velero-plugin/restore-vmi-action                     RestoreItemAction

        # openshift.io/01-common-restore-plugin                         RestoreItemAction

        # openshift.io/01-common-restore-plugin                         RestoreItemAction

        # openshift.io/02-serviceaccount-restore-plugin                 RestoreItemAction

        # openshift.io/02-serviceaccount-restore-plugin                 RestoreItemAction

        # openshift.io/03-pv-restore-plugin                             RestoreItemAction

        # openshift.io/03-pv-restore-plugin                             RestoreItemAction

        # openshift.io/04-pvc-restore-plugin                            RestoreItemAction

        # openshift.io/04-pvc-restore-plugin                            RestoreItemAction

        # openshift.io/05-route-restore-plugin                          RestoreItemAction

        # openshift.io/05-route-restore-plugin                          RestoreItemAction

        # openshift.io/06-build-restore-plugin                          RestoreItemAction

        # openshift.io/06-build-restore-plugin                          RestoreItemAction

        # openshift.io/07-pod-restore-plugin                            RestoreItemAction

        # openshift.io/07-pod-restore-plugin                            RestoreItemAction

        # openshift.io/08-deploymentconfig-restore-plugin               RestoreItemAction

        # openshift.io/08-deploymentconfig-restore-plugin               RestoreItemAction

        # openshift.io/09-replicationcontroller-restore-plugin          RestoreItemAction

        # openshift.io/09-replicationcontroller-restore-plugin          RestoreItemAction

        # openshift.io/10-job-restore-plugin                            RestoreItemAction

        # openshift.io/10-job-restore-plugin                            RestoreItemAction

        # openshift.io/11-daemonset-restore-plugin                      RestoreItemAction

        # openshift.io/11-daemonset-restore-plugin                      RestoreItemAction

        # openshift.io/12-replicaset-restore-plugin                     RestoreItemAction

        # openshift.io/12-replicaset-restore-plugin                     RestoreItemAction

        # openshift.io/13-deployment-restore-plugin                     RestoreItemAction

        # openshift.io/13-deployment-restore-plugin                     RestoreItemAction

        # openshift.io/14-statefulset-restore-plugin                    RestoreItemAction

        # openshift.io/14-statefulset-restore-plugin                    RestoreItemAction

        # openshift.io/15-service-restore-plugin                        RestoreItemAction

        # openshift.io/15-service-restore-plugin                        RestoreItemAction

        # openshift.io/16-cronjob-restore-plugin                        RestoreItemAction

        # openshift.io/16-cronjob-restore-plugin                        RestoreItemAction

        # openshift.io/17-buildconfig-restore-plugin                    RestoreItemAction

        # openshift.io/17-buildconfig-restore-plugin                    RestoreItemAction

        # openshift.io/18-secret-restore-plugin                         RestoreItemAction

        # openshift.io/18-secret-restore-plugin                         RestoreItemAction

        # openshift.io/19-is-restore-plugin                             RestoreItemAction

        # openshift.io/19-is-restore-plugin                             RestoreItemAction

        # openshift.io/20-SCC-restore-plugin                            RestoreItemAction

        # openshift.io/20-SCC-restore-plugin                            RestoreItemAction

        # openshift.io/21-role-bindings-restore-plugin                  RestoreItemAction

        # openshift.io/21-role-bindings-restore-plugin                  RestoreItemAction

        # openshift.io/22-cluster-role-bindings-restore-plugin          RestoreItemAction

        # openshift.io/22-cluster-role-bindings-restore-plugin          RestoreItemAction

        # openshift.io/23-imagetag-restore-plugin                       RestoreItemAction

        # openshift.io/23-imagetag-restore-plugin                       RestoreItemAction

        # openshift.io/24-horizontalpodautoscaler-restore-plugin        RestoreItemAction

        # openshift.io/24-horizontalpodautoscaler-restore-plugin        RestoreItemAction

        # openshift.io/25-configmap-restore-plugin                      RestoreItemAction

        # openshift.io/25-configmap-restore-plugin                      RestoreItemAction

        # velero.io/add-pv-from-pvc                                     RestoreItemAction

        # velero.io/add-pv-from-pvc                                     RestoreItemAction

        # velero.io/add-pvc-from-pod                                    RestoreItemAction

        # velero.io/add-pvc-from-pod                                    RestoreItemAction

        # velero.io/admission-webhook-configuration                     RestoreItemAction

        # velero.io/admission-webhook-configuration                     RestoreItemAction

        # velero.io/apiservice                                          RestoreItemAction

        # velero.io/apiservice                                          RestoreItemAction

        # velero.io/change-image-name                                   RestoreItemAction

        # velero.io/change-image-name                                   RestoreItemAction

        # velero.io/change-pvc-node-selector                            RestoreItemAction

        # velero.io/change-pvc-node-selector                            RestoreItemAction

        # velero.io/change-storage-class                                RestoreItemAction

        # velero.io/change-storage-class                                RestoreItemAction

        # velero.io/cluster-role-bindings                               RestoreItemAction

        # velero.io/cluster-role-bindings                               RestoreItemAction

        # velero.io/crd-preserve-fields                                 RestoreItemAction

        # velero.io/crd-preserve-fields                                 RestoreItemAction

        # velero.io/dataupload                                          RestoreItemAction

        # velero.io/dataupload                                          RestoreItemAction

        # velero.io/init-restore-hook                                   RestoreItemAction

        # velero.io/init-restore-hook                                   RestoreItemAction

        # velero.io/job                                                 RestoreItemAction

        # velero.io/job                                                 RestoreItemAction

        # velero.io/pod                                                 RestoreItemAction

        # velero.io/pod                                                 RestoreItemAction

        # velero.io/pod-volume-restore                                  RestoreItemAction

        # velero.io/pod-volume-restore                                  RestoreItemAction

        # velero.io/role-bindings                                       RestoreItemAction

        # velero.io/role-bindings                                       RestoreItemAction

        # velero.io/secret                                              RestoreItemAction

        # velero.io/secret                                              RestoreItemAction

        # velero.io/service                                             RestoreItemAction

        # velero.io/service                                             RestoreItemAction

        # velero.io/service-account                                     RestoreItemAction

        # velero.io/service-account                                     RestoreItemAction

        # wzhlab.top/modify-csi-volume-handle-action                    RestoreItemAction

        # wzhlab.top/modify-csi-volume-handle-action                    RestoreItemAction

        # openshift.io/04-imagestreamtag-restore-plugin                 RestoreItemActionV2

        # velero.io/csi-pvc-restorer                                    RestoreItemActionV2

        # velero.io/csi-volumesnapshot-restorer                         RestoreItemActionV2

        # velero.io/csi-volumesnapshotclass-restorer                    RestoreItemActionV2

        # velero.io/csi-volumesnapshotcontent-restorer                  RestoreItemActionV2

        # velero.io/aws                                                 VolumeSnapshotter

3. Primary Site: Performing the Backup

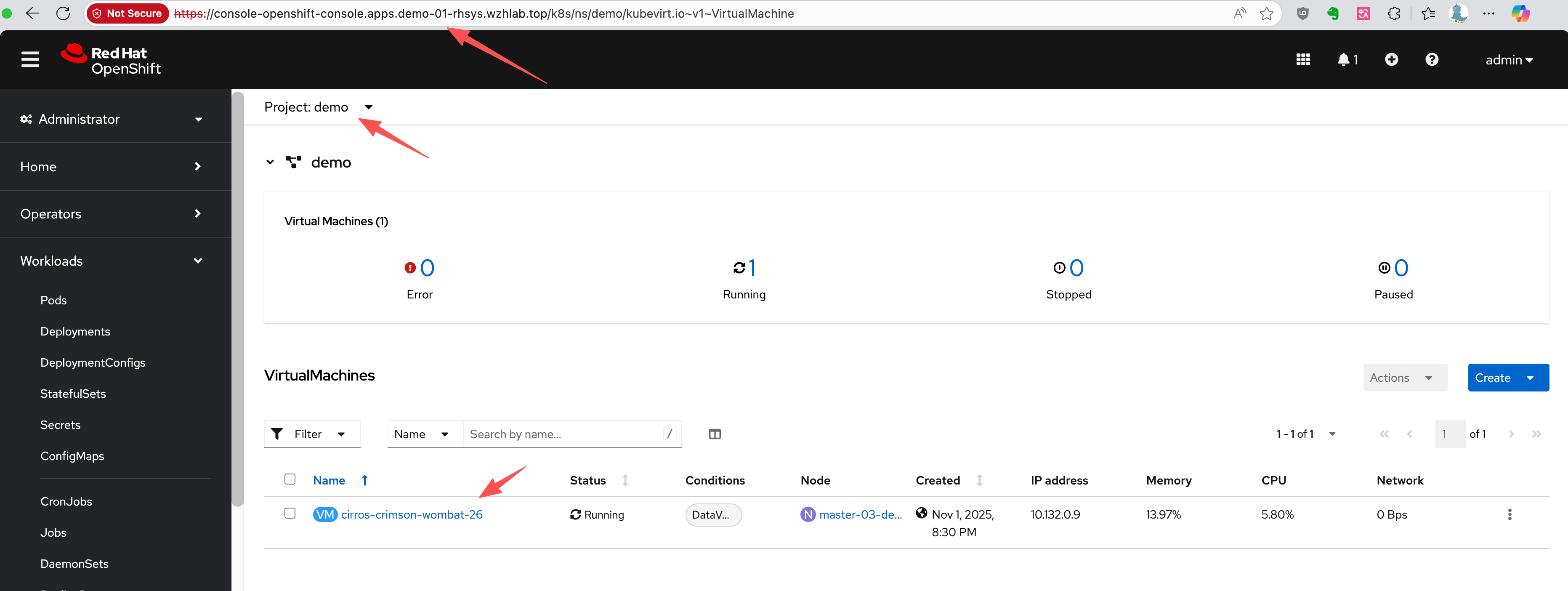

Assume we have a project named demo on the primary site (cluster-01) containing a running virtual machine.

First, let’s identify the VM and its associated PVC, PV, and VolumeSnapshot.


        # Get the VM name

        oc get vm -n demo

        # NAME                       AGE     STATUS    READY

        # cirros-crimson-wombat-26   3d20h   Running   True

        # Get the PVC name associated with the VM

        oc get vm cirros-crimson-wombat-26 -n demo -o jsonpath='{.spec.template.spec.volumes[*].dataVolume.name}' && echo

        # cirros-crimson-wombat-26-volume

        # Get the PV name bound to the PVC

        oc get pvc cirros-crimson-wombat-26-volume -n demo -o jsonpath='{.spec.volumeName}' && echo

        # pvc-7147333f-2db5-4b3f-9320-aac8da5170e2

        # Get the snapshot from the vm/pvc

        oc get volumesnapshot -n demo -o jsonpath='{.items[?(@.spec.source.persistentVolumeClaimName=="cirros-crimson-wombat-26-volume")].metadata.name}' && echo

        # vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk

Now, we create a Velero Backup object. The key configuration here is snapshotVolumes: false, which instructs OADP to back up only the resource definitions (YAML) and not the data within the volumes.

cat << EOF > $BASE_DIR/data/install/oadp-backup.yaml
        apiVersion: velero.io/v1
        kind: Backup
        metadata:
          name: vm-full-metadata-backup-03
          namespace: openshift-adp
        spec:
          # 1. Specify the namespace to back up
          includedNamespaces:
            - demo

          # 2. Ensure cluster-scoped resources like PVs are included in the metadata backup.
          # While Velero typically includes PVs linked to PVCs automatically, setting this
          # to 'true' makes the behavior explicit.
          includeClusterResources: true

          # 3. CRITICAL: Disable Velero's native volume snapshots.
          # This tells Velero to NOT create data snapshots of the PVs.
          # It will only save the PV and PVC object definitions.
          snapshotVolumes: false
          snapshotMoveData: false
          defaultVolumesToFsBackup: false

          # 4. Specify the S3 storage location defined in the DPA
          storageLocation: default

          # 5. Set a Time-To-Live (TTL) for the backup object
          ttl: 720h0m0s # 30 days
        EOF

        oc apply -f $BASE_DIR/data/install/oadp-backup.yaml

Inspecting the PVC and PV Metadata

Here is the metadata for the original PVC.

kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: cirros-crimson-wombat-26-volume
          namespace: demo
          # ......
        spec:
          accessModes:
            - ReadWriteMany
          resources:
            requests:
              storage: '235635999'
          volumeName: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
          storageClassName: nfs-csi
          volumeMode: Filesystem
          dataSource:
            apiGroup: cdi.kubevirt.io
            kind: VolumeCloneSource
            name: volume-clone-source-916cf253-27ae-4f9a-8456-1e61d775206d
          dataSourceRef:
            apiGroup: cdi.kubevirt.io
            kind: VolumeCloneSource
            name: volume-clone-source-916cf253-27ae-4f9a-8456-1e61d775206d

        # .....

And here is the corresponding PV metadata. Note that it points to the NFS share on /openshift-01.

kind: PersistentVolume
        apiVersion: v1
        metadata:
          name: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
          # ......
        spec:
          capacity:
            storage: '235635999'
          csi:
            driver: nfs.csi.k8s.io
            volumeHandle: 192.168.99.1#openshift-01#pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d##
            volumeAttributes:
              csi.storage.k8s.io/pv/name: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
              csi.storage.k8s.io/pvc/name: tmp-pvc-43d11600-7b1c-4a3f-997c-8e99526bdd32
              csi.storage.k8s.io/pvc/namespace: openshift-virtualization-os-images
              server: 192.168.99.1
              share: /openshift-01
              storage.kubernetes.io/csiProvisionerIdentity: 1761996473487-3594-nfs.csi.k8s.io
              subdir: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
          accessModes:
            - ReadWriteMany
          claimRef:
            namespace: demo
            name: cirros-crimson-wombat-26-volume
            uid: 43d11600-7b1c-4a3f-997c-8e99526bdd32
            resourceVersion: '126830'
          persistentVolumeReclaimPolicy: Retain
          storageClassName: nfs-csi
          mountOptions:
            - hard
            - nfsvers=4.2
            - rsize=1048576
            - wsize=1048576
            - noatime
            - nodiratime
            - actimeo=60
            - timeo=600
            - retrans=3
          volumeMode: Filesystem

        # ......

Verifying the New PVC Restored from Snapshot

The snapshot-to-PVC plugin creates a new PVC. Note the name, which is a concatenation of the original PVC name and the snapshot name, as defined by the plugin’s logic.

kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: cirros-crimson-wombat-26-volume-vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk
          namespace: demo
          # ......
        spec:
          accessModes:
            - ReadWriteMany
          resources:
            requests:
              storage: '235635999'
          volumeName: pvc-5183c8de-817f-4d45-947c-a02ccc18d422
          storageClassName: nfs-csi
          volumeMode: Filesystem
          dataSource:
            apiGroup: snapshot.storage.k8s.io
            kind: VolumeSnapshot
            name: vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk
          dataSourceRef:
            apiGroup: snapshot.storage.k8s.io
            kind: VolumeSnapshot
            name: vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk

        # .....

Checking the OADP Plugin Logs

You can verify the plugin’s execution by checking the Velero pod logs. The logs show the plugin processing the snapshot and creating the new PVC.

oc logs -n openshift-adp -l app.kubernetes.io/name=velero --tail=-1 | grep create-pvc-from-snapshot.go

        # time="2025-11-05T11:59:58Z" level=info msg="Starting CreatePvcFromSnapshotAction for VolumeSnapshot..." backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:55" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T11:59:58Z" level=info msg="Processing VolumeSnapshot demo/vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk" backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:62" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T11:59:58Z" level=info msg="Source PVC for snapshot is demo/cirros-crimson-wombat-26-volume" backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:70" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T11:59:58Z" level=info msg="Attempting to create new PVC demo/cirros-crimson-wombat-26-volume-vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk from snapshot vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk" backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:107" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T11:59:58Z" level=info msg="Successfully created new PVC demo/cirros-crimson-wombat-26-volume-vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk." backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:117" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T11:59:58Z" level=info msg="Waiting for PVC demo/cirros-crimson-wombat-26-volume-vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk to become bound..." backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:120" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T11:59:58Z" level=info msg="PVC demo/cirros-crimson-wombat-26-volume-vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk is still in phase Pending, waiting..." backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:146" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T12:00:03Z" level=info msg="PVC demo/cirros-crimson-wombat-26-volume-vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk is now bound." backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:142" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

        # time="2025-11-05T12:00:03Z" level=info msg="Returning original VolumeSnapshot and adding new PVC cirros-crimson-wombat-26-volume-vmsnapshot-f1cafd2b-beb7-47a1-8f9c-c9c0d52569c5-volume-rootdisk to the backup." backup=openshift-adp/vm-full-metadata-backup-03 cmd=/plugins/velero-plugins-wzhlab-top-restore-pvc-from-snapshot logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-restore-pvc-from-snapshot/create-pvc-from-snapshot.go:162" pluginName=velero-plugins-wzhlab-top-restore-pvc-from-snapshot

4. DR Site: Recovery Process

Step 1: Synchronize Storage Data

At the DR site, the first action is to ensure the data is synchronized. This is handled by the storage system. For our NFS simulation, we use rsync to copy the volume data from the primary NFS server to the DR NFS server.


        # Simulate storage replication by copying the PV directory

        sudo rsync -avh --progress /srv/nfs/openshift-01/pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d /srv/nfs/openshift-02/

Step 2: Restore Metadata with OADP

Now, create a Velero Restore object on the DR cluster. This restore will recreate the VM and other resources from the backup. The PV Patching plugin will automatically handle the re-mapping of storage.

cat << EOF > $BASE_DIR/data/install/oadp-restore.yaml
        apiVersion: velero.io/v1
        kind: Restore
        metadata:
          name: restore-metadata-excluding-pvs-03
          namespace: openshift-adp
        spec:
          # 1. Specify the backup to restore from
          backupName: vm-full-metadata-backup-03

          # 2. Whitelist the resources to restore. This provides granular control.
          includedResources:
            # KubeVirt / OCP-V VM resources
            - virtualmachines.kubevirt.io
            - virtualmachineinstances.kubevirt.io
            - datavolumes.cdi.kubevirt.io
            - virtualmachineclusterinstancetypes.instancetype.kubevirt.io
            - virtualmachineclusterpreferences.instancetype.kubevirt.io
            - controllerrevisions.apps

            # Standard Kubernetes workload resources
            - pods
            - deployments
            - statefulsets
            - daemonsets
            - jobs
            - cronjobs

            # OpenShift-specific workload resources
            - deploymentconfigs
            - buildconfigs

            # Application networking configuration
            - services
            - routes.route.openshift.io
            - ingresses

            # Application configuration and storage claims (including PVs)
            - configmaps
            - secrets
            - persistentvolumeclaims
            - persistentvolumes

          # 3. CRITICAL: Exclude snapshot-related resources
          # We are restoring from a materialized PVC, not the snapshot itself.
          excludedResources:
            - snapshot
            - snapshotcontent
            - virtualMachineSnapshot
            - virtualMachineSnapshotContent
            - VolumeSnapshot
            - VolumeSnapshotContent

          # 4. Set the resource conflict policy
          # 'update' will overwrite existing resources if a restore is re-run.
          existingResourcePolicy: 'update'

          # 5. Ensure PVs are restored so the plugin can patch them.
          restorePVs: true

        EOF

        oc apply -f $BASE_DIR/data/install/oadp-restore.yaml

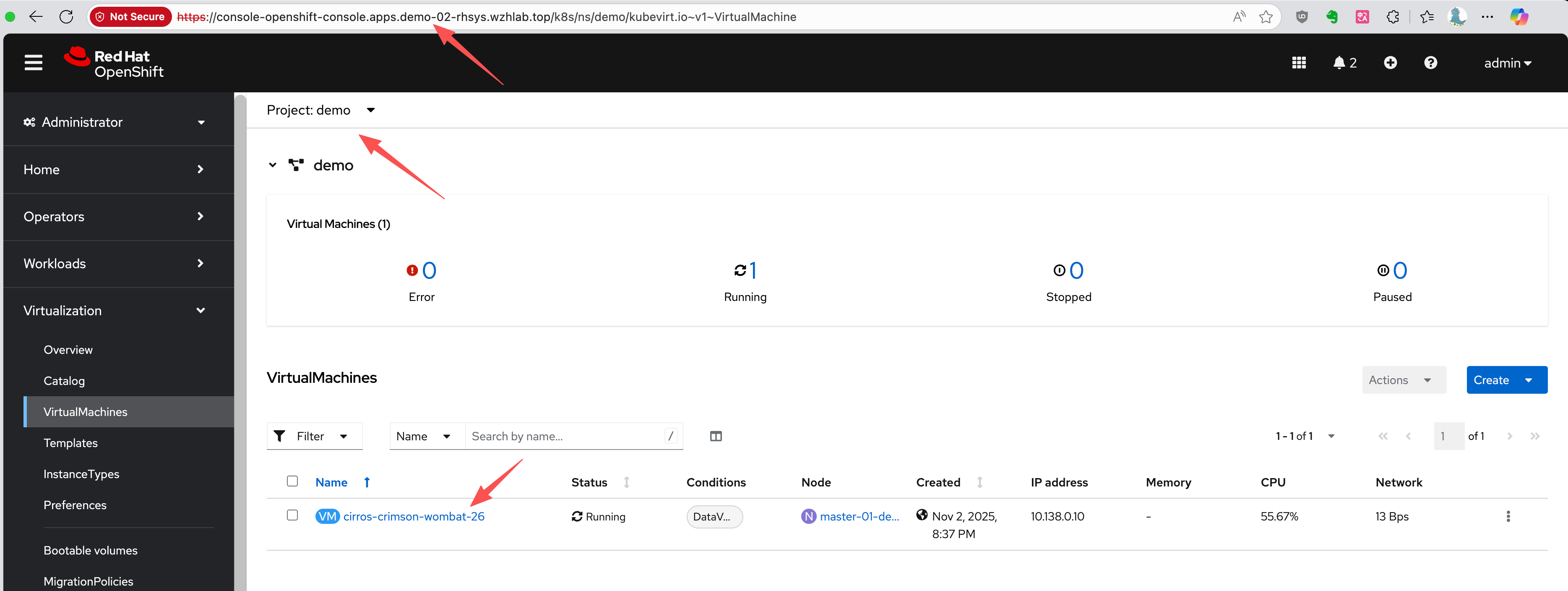

After the restore completes, the VM will be created on the DR cluster and connected to the replicated data.

Verifying the Restored PVC and PV Metadata

The restored PVC metadata shows that it is bound to the same PV name as on the primary site.

kind: PersistentVolumeClaim
        apiVersion: v1
        metadata:
          name: cirros-crimson-wombat-26-volume
          namespace: demo
          # ......
        spec:
          accessModes:
            - ReadWriteMany
          resources:
            requests:
              storage: '235635999'
          volumeName: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
          storageClassName: nfs-csi
          volumeMode: Filesystem

        # ......

The restored PV metadata shows the effect of the patching plugin. The share and volumeHandle now point to the DR site’s NFS server directory (/openshift-02), thanks to the plugin’s logic.

kind: PersistentVolume
        apiVersion: v1
        metadata:
          name: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
          # ......
        spec:
          capacity:
            storage: '235635999'
          csi:
            driver: nfs.csi.k8s.io
            volumeHandle: 192.168.99.1#openshift-02#pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d##
            volumeAttributes:
              csi.storage.k8s.io/pv/name: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
              csi.storage.k8s.io/pvc/name: tmp-pvc-43d11600-7b1c-4a3f-997c-8e99526bdd32
              csi.storage.k8s.io/pvc/namespace: openshift-virtualization-os-images
              server: 192.168.99.1
              share: /openshift-02
              storage.kubernetes.io/csiProvisionerIdentity: 1761996473487-3594-nfs.csi.k8s.io
              subdir: pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d
          accessModes:
            - ReadWriteMany
          claimRef:
            kind: PersistentVolumeClaim
            namespace: demo
            name: cirros-crimson-wombat-26-volume
            uid: 4150f267-fc79-4234-a188-9dbd0b993fc2
            apiVersion: v1
            resourceVersion: '138499'
          persistentVolumeReclaimPolicy: Retain
          storageClassName: nfs-csi
          mountOptions:
            - hard
            - nfsvers=4.2
            - rsize=1048576
            - wsize=1048576
            - noatime
            - nodiratime
            - actimeo=60
            - timeo=600
            - retrans=3
          volumeMode: Filesystem

Checking the OADP Plugin Logs

The Velero pod logs on the DR cluster confirm that the PV patching plugin executed successfully.

oc logs -n openshift-adp -l app.kubernetes.io/name=velero --tail=-1 | grep modify-pv-handle.go

        # time="2025-11-05T11:41:57Z" level=info msg="Starting ModifyPVFieldsAction for PV..." cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:66" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="Applying rule for path: spec.csi.volumeAttributes.share" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:98" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="PV pvc-5183c8de-817f-4d45-947c-a02ccc18d422: Match found for path spec.csi.volumeAttributes.share. Changing from '/openshift-01' to '/openshift-02'" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:126" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="Applying rule for path: spec.csi.volumeHandle" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:98" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="PV pvc-5183c8de-817f-4d45-947c-a02ccc18d422: Match found for path spec.csi.volumeHandle. Changing from '192.168.99.1#openshift-01#pvc-5183c8de-817f-4d45-947c-a02ccc18d422##' to '192.168.99.1#openshift-02#pvc-5183c8de-817f-4d45-947c-a02ccc18d422##'" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:126" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="PV pvc-5183c8de-817f-4d45-947c-a02ccc18d422 was modified." cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:139" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="Starting ModifyPVFieldsAction for PV..." cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:66" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="Applying rule for path: spec.csi.volumeAttributes.share" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:98" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="PV pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d: Match found for path spec.csi.volumeAttributes.share. Changing from '/openshift-01' to '/openshift-02'" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:126" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="Applying rule for path: spec.csi.volumeHandle" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:98" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="PV pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d: Match found for path spec.csi.volumeHandle. Changing from '192.168.99.1#openshift-01#pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d##' to '192.168.99.1#openshift-02#pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d##'" cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:126" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

        # time="2025-11-05T11:41:57Z" level=info msg="PV pvc-b6d75156-0c58-422f-8bf8-6e40ed054c5d was modified." cmd=/plugins/velero-plugins-wzhlab-top-pv-patch logSource="/src/github.com/konveyor/openshift-velero-plugin/velero-plugins-wzhlab-top-pv-patch/modify-pv-handle.go:139" pluginName=velero-plugins-wzhlab-top-pv-patch restore=openshift-adp/restore-metadata-excluding-pvs-03

5. Automating Backups with Schedules

In a production environment, backups should be performed automatically on a regular schedule. OADP supports this via the Schedule custom resource. The following example creates a schedule to perform a metadata-only backup every hour at 22 minutes past the hour.

cat << EOF > $BASE_DIR/data/install/oadp-schedule.yaml
        apiVersion: velero.io/v1
        kind: Schedule
        metadata:
          name: daily-metadata-backup-schedule
          namespace: openshift-adp
        spec:
          # 1. Define the backup schedule using a Cron expression
          # This example runs at 22 minutes past every hour
          schedule: 22 * * * *

          # 2. Define the backup specification template
          # This template is identical to the manual 'Backup' object
          template:
            spec:
              includedNamespaces:
                - demo
              includeClusterResources: true
              # CRITICAL: Only back up metadata
              snapshotVolumes: false
              storageLocation: default
              # Set the retention policy for backups created by this schedule
              ttl: 720h0m0s # (30 days * 24 hours = 720 hours)
        EOF

        oc apply -f $BASE_DIR/data/install/oadp-schedule.yaml

OADP will automatically create Backup objects based on this schedule (e.g., daily-metadata-backup-schedule-20250730012200) and delete them when their TTL expires.

6. Path to Automation

The manual steps outlined in this document form the basis for a fully automated disaster recovery workflow. An automation tool like Ansible can orchestrate the entire process. The high-level logic for an automation playbook would include:

Primary Site Cleanup: On the primary site, a periodic task should run to clean up stale resources. If a snapshot is deleted and the PVC created from it is no longer referenced by any VM, that PVC should be automatically deleted to reclaim storage.
Backup Validation: The automation should check the status of each OADP backup. Due to the plugin’s logic, a backup might be marked as PartiallyFailed if it finds that a PVC from a snapshot has already been created by a previous run. The script should verify that this is the only cause of failure and that no other critical resources failed to back up.
Failover Execution: In a disaster scenario, the playbook would trigger the final OADP Restore on the DR cluster. This restore brings the VMs online, connecting them to the already replicated and pre-staged persistent volumes.
Post-Failover Cleanup: After a successful restore, the automation should perform a reconciliation. If a PVC was deleted on the primary site before the disaster, it should also be removed from the DR site to maintain consistency.
PV Garbage Collection: Since the StorageClass uses a Retain policy, PVs are not automatically deleted. The automation should include steps to safely identify and remove orphaned PVs on both the primary and DR sites after failback and cleanup operations are complete.

7. Summary

In this document, we introduce a disaster recovery strategy that separates the backup and restore of Kubernetes/OpenShift metadata from the data volumes (PV/PVC). We utilize OADP for metadata operations, while leveraging the storage system’s native snapshot and replication capabilities for the data volumes. A key component is the OADP plugin, which modifies PV metadata during the restore process to ensure that the data volumes point to the correct storage location at the DR site.

OpenShift Virtualization Disaster Recovery with Storage Replication and OADP Plugins

1. Introduction and Strategy

The Challenge: Native DR Gaps in OpenShift Virtualization

Our Solution: A Hybrid Approach with OADP and Storage Replication

The Daily Backup Process

The Failover Process

2. Prerequisites: Operator Installation

Provisioning the NFS CSI Driver

Install OpenShift Virtualization

Install OADP Operator

1. PV Patching Plugin (velero-plugin-oadp-dr)

2. Snapshot-to-PVC Plugin (velero-plugin-snapshot)

3. Verifying Plugin Registration

3. Primary Site: Performing the Backup

Inspecting the PVC and PV Metadata

Verifying the New PVC Restored from Snapshot

Checking the OADP Plugin Logs

4. DR Site: Recovery Process

Step 1: Synchronize Storage Data

Step 2: Restore Metadata with OADP

Verifying the Restored PVC and PV Metadata

Checking the OADP Plugin Logs

5. Automating Backups with Schedules

6. Path to Automation

7. Summary

1. PV Patching Plugin (`velero-plugin-oadp-dr`)

2. Snapshot-to-PVC Plugin (`velero-plugin-snapshot`)
