Deep Dive: BGP-Based Egress Service in OpenShift 4.19 with OVN-Kubernetes

Overview

In OpenShift 4.19, the Egress Service provides a sophisticated mechanism for managing outbound traffic from applications. Unlike traditional Egress IPs, which are manually assigned to namespaces, the Egress Service leverages LoadBalancer Service types to dynamically allocate Egress IPs and integrates seamlessly with BGP (via MetalLB and FRR-K8s) for route advertisement. This document explores the architectural implementation, environment setup, and a deep-dive verification of the traffic flow using OVS flows and nftables.

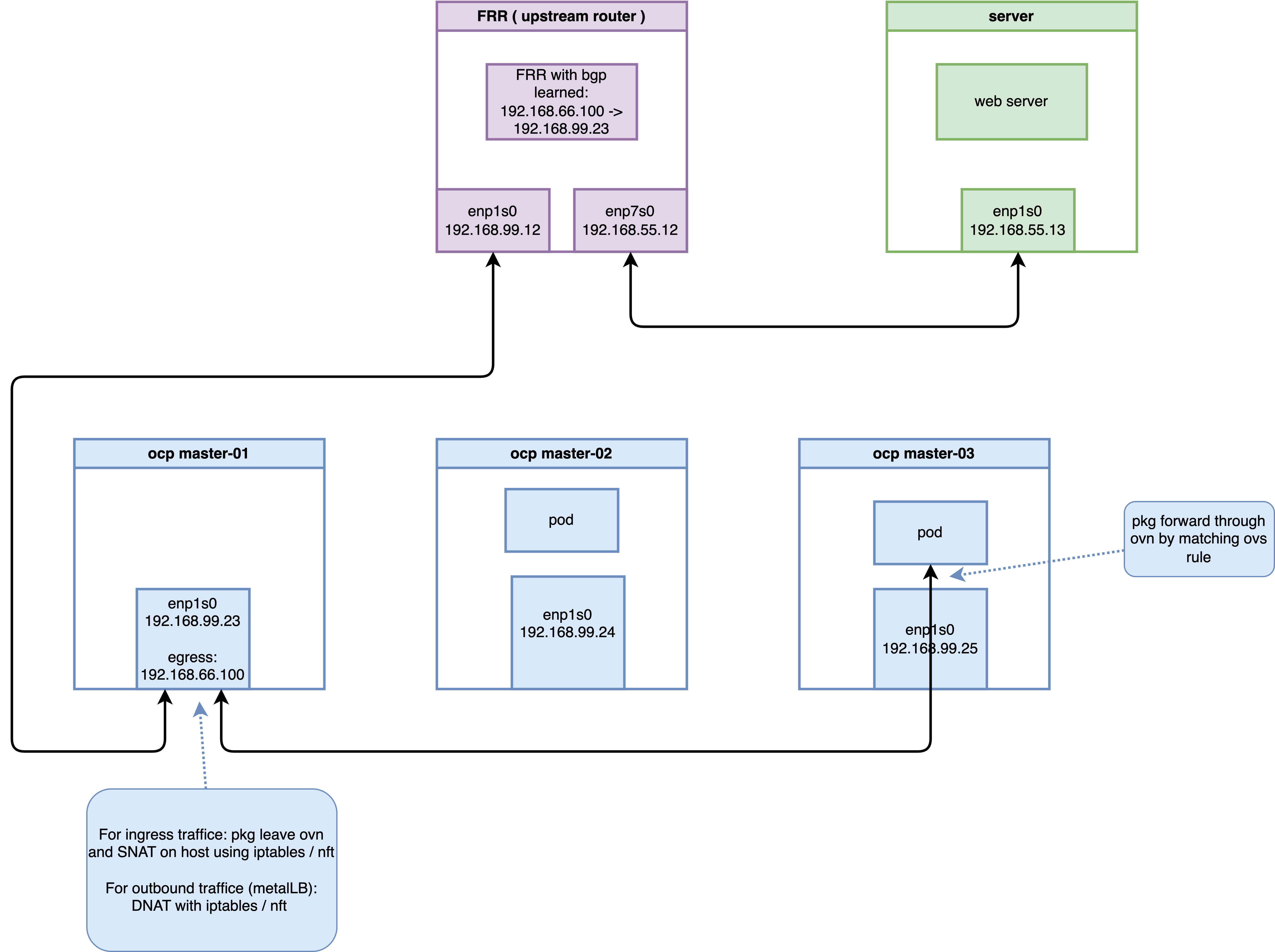

1. Laboratory Environment and Validation Topology

To demonstrate the validity and feasibility of this technology, a verification environment was constructed using native Linux virtual machines (KVM/libvirt) on a CentOS 9 bare-metal host. The host bridge br-ocp uses the subnet 192.168.99.0/24 (Host IP: 192.168.99.1).

1.1 Environment Specifications

  1. OpenShift 4.19 Virtual Cluster:
    • Consists of 3 nodes (Compact nodes acting as both Master and Worker).
    • Network interfaces are attached to br-ocp.
    • Uses OVN-Kubernetes as the default CNI with MetalLB Operator installed.
    • Node IPs: 192.168.99.23 ~ 192.168.99.25
    • Egress IP Range: 192.168.66.100/24
  2. KVM Router Node (CentOS 9):
    • Simulates a Data Center Core Switch running Software FRR for BGP routing.
    • eth0 (Connected to br-ocp): 192.168.99.12
    • eth1 (External network simulator): 192.168.55.12
  3. KVM Server Node (CentOS 9):
    • Acts as an external application server to verify SNAT.
    • eth0 (Connected to Router eth1): 192.168.55.13, with default gateway pointing to 192.168.55.12.

1.2 Router (FRR) Node Configuration

The Router node must have IP forwarding enabled and FRR configured to listen for BGP advertisements from the OpenShift cluster nodes.


        # 1. Install base routing components

        sudo dnf install -y frr

        # Explicitly enable bgpd in the daemons file before starting

        sudo sed -i 's/^bgpd=no/bgpd=yes/' /etc/frr/daemons

        sudo systemctl enable --now frr

        # 2. Enable IPv4 kernel forwarding

        echo "net.ipv4.ip_forward = 1" | sudo tee -a /etc/sysctl.d/99-ipforward.conf
        sudo sysctl -p /etc/sysctl.d/99-ipforward.conf

        # 3. Configure the core FRR configuration file

        cat <<EOF | sudo tee /etc/frr/frr.conf
        frr defaults traditional
        log syslog informational
        no ipv6 forwarding
        !
        router bgp 64512
         bgp router-id 192.168.99.12

         ! Configure iBGP neighbors for each OCP cluster node
         neighbor 192.168.99.23 remote-as 64512
         neighbor 192.168.99.24 remote-as 64512
         neighbor 192.168.99.25 remote-as 64512

         ! Configure iBGP ECMP and network advertisement within the address-family
         address-family ipv4 unicast
          network 192.168.55.0/24
          maximum-paths ibgp 4
         exit-address-family
        !
        line vty
        !
        EOF

        # 4. Reload FRR to apply changes

        sudo systemctl restart frr

1.3 Server Node Configuration (Traffic Endpoint)

The Server node acts as the target for egress traffic. It requires a route back to the Egress IP range via the Router.


        # Configure route to the Egress IP pool via the Router

        sudo ip route add 192.168.66.100 via 192.168.55.12

        # Verify routing table

        ip r

        # Output should look like:

        # default via 192.168.99.1 dev enp1s0 proto static metric 100

        # 192.168.55.0/24 dev enp1s0 proto kernel scope link src 192.168.55.13 metric 100

        # 192.168.66.100 via 192.168.55.12 dev enp1s0

        # 192.168.99.0/24 dev enp1s0 proto kernel scope link src 192.168.99.13 metric 100

        # Start background listeners to verify connectivity

        # (Listening on ports 80 and 8080 to prove Egress IP is not restricted by Service ports)

        nohup python3 -m http.server 80 &
        nohup python3 -m http.server 8080 &

        # Monitor incoming traffic to observe the Egress IP (192.168.66.100)

        sudo tcpdump -i any 'tcp port 80 or tcp port 8080' -n

2. OpenShift Cluster Configuration

The following steps were performed using the oc client on a control terminal.

2.1 Preparing Host Interfaces

Ensure the secondary IP range is reachable by adjusting the Node network configuration if necessary.


        # Removing auxiliary IP addresses to the br-ex interface on nodes for testing/routing purposes

        oc debug node/master-01-demo -- chroot /host /bin/bash -c "nmcli connection modify enp1s0 -ipv4.addresses 192.168.66.23/24"
        oc debug node/master-02-demo -- chroot /host /bin/bash -c "nmcli connection modify enp1s0 -ipv4.addresses 192.168.66.24/24"
        oc debug node/master-03-demo -- chroot /host /bin/bash -c "nmcli connection modify enp1s0 -ipv4.addresses 192.168.66.25/24"

        # Enable additional routing capabilities and route advertisement in OVN-Kubernetes

        oc patch Network.operator.openshift.io cluster --type=merge -p \
        '{
          "spec": {
            "additionalRoutingCapabilities": {
              "providers": ["FRR"]
            },
            "defaultNetwork": {
              "ovnKubernetesConfig": {
                "routeAdvertisements": "Enabled"
              }
            }
          }
        }'

2.2 BGP Configuration with FRR-K8s

Define the FRRConfiguration to establish BGP peering with the external Router.

这里配置错误，一个节点上，只能有一个FRRConfiguration配置。


        # apiVersion: frrk8s.metallb.io/v1beta1

        # kind: FRRConfiguration

        # metadata:

        #   name: bgp-core-router

        #   namespace: openshift-frr-k8s

        #   # labels:

        #   #   use-for-advertisements: 'true'  # 供 OVN-K 路由发布使用

        # spec:

        #   bgp:

        #     bfdProfiles:

        #       - name: fast-bfd

        #         detectMultiplier: 3  # 检测倍数：连续 3 次未收到报文则判定链路故障

        #     routers:

        #     - asn: 64512 # OCP 集群私有 AS 号

        #       neighbors:

        #       - address: 192.168.99.12 # 物理路由器(FRR VM)邻居 IP

        #         asn: 64512

        #         disableMP: true  # 必须设为 true（IPv4/IPv6 单独建会话）

        #         bfdProfile: fast-bfd  # 使用上面定义的 BFD 配置文件

        #         toAdvertise:

        #           allowed:

        #             mode: all

        #         toReceive:

        #           allowed:

        #             mode: filtered # 开启过滤模式

        #             prefixes:

        #             - prefix: 192.168.55.0/24 # 【白名单】只收这一条

        #       # prefixes:

        #       # - 192.168.66.100/32  # 必须显式允许此前缀发往外部路由器

2.3 MetalLB and Egress Service Deployment

Configure MetalLB to provide the IP pool and deploy the EgressService resource.

apiVersion: metallb.io/v1beta1
        kind: MetalLB
        metadata:
          name: metallb
          namespace: metallb-system

        # 1. Initialize MetalLB IP Address Pool

        apiVersion: metallb.io/v1beta1
        kind: IPAddressPool
        metadata:
          name: egress-pool
          namespace: metallb-system
        spec:
          addresses:
          - 192.168.66.100-192.168.66.100
        ---

        # 2. Deploy Service and EgressService

        apiVersion: v1
        kind: Service
        metadata:
          name: egress-identity
          namespace: demo-egress
          annotations:
            metallb.universe.tf/address-pool: egress-pool
        spec:
          type: LoadBalancer
          selector:
            app: requester
          ports:
            - name: http
              protocol: TCP
              port: 8080
              targetPort: 8080
        ---
        apiVersion: k8s.ovn.org/v1
        kind: EgressService
        metadata:
          name: egress-identity
          namespace: demo-egress
        spec:
          sourceIPBy: "LoadBalancerIP"
          nodeSelector:
            matchLabels:
              node-role.kubernetes.io/master: ""

2.4 BGP Advertisement for Egress IP

Configure the cluster to advertise the specific Egress IP prefix through BGP.

apiVersion: frrk8s.metallb.io/v1beta1
        kind: FRRConfiguration
        metadata:
          name: bgp-advertise-egress-identity-bgp
          namespace: openshift-frr-k8s
          labels:
            use-for-advertisements: 'true'  # 供 OVN-K 路由发布使用
        spec:
          bgp:
            bfdProfiles:
              - name: fast-bfd
                detectMultiplier: 3  # 检测倍数：连续 3 次未收到报文则判定链路故障
            routers:
            - asn: 64512 # OCP 集群私有 AS 号
              neighbors:
              - address: 192.168.99.12 # 物理路由器(FRR VM)邻居 IP
                asn: 64512
                disableMP: true  # 必须设为 true（IPv4/IPv6 单独建会话）
                bfdProfile: fast-bfd  # 使用上面定义的 BFD 配置文件
                toAdvertise:
                  allowed:
                    mode: all
                toReceive:
                  allowed:
                    mode: filtered # 开启过滤模式
                    prefixes:
                    - prefix: 192.168.55.0/24 # 【白名单】只收这一条
              prefixes:
              - 192.168.66.100/32  # 必须显式允许此前缀发往外部路由器
          nodeSelector:
            matchLabels:
              egress-service.k8s.ovn.org/demo-egress-egress-identity: ""

3. Results and Verification

3.1 Connectivity Test

Deploy test Pods and verify outbound traffic source IP.


        # Deployment of test Pods

        cat <<EOF | oc apply -f -
        apiVersion: apps/v1
        kind: Deployment
        metadata:
          name: edge-request-deployment
          namespace: demo-egress
        spec:
          replicas: 2
          selector:
            matchLabels:
              app: requester
          template:
            metadata:
              labels:
                app: requester
            spec:
              affinity:
                nodeAffinity:
                  requiredDuringSchedulingIgnoredDuringExecution:
                    nodeSelectorTerms:
                    - matchExpressions:
                      - key: kubernetes.io/hostname
                        operator: In
                        values:
                        - master-02-demo
                        - master-03-demo
              containers:
              - name: toolkit
                image: quay.io/wangzheng422/qimgs:centos9-test-2025.12.18.v01
                command: ["sleep", "infinity"]
        EOF

        # Execute curl from test Pods

        # (Example using Node 3 Pod)

        oc exec -it $NODE3_POD -n demo-egress -- curl -I http://192.168.55.13 --connect-timeout 2

        # on external server, you can

        # curl -vvv http://192.168.66.100:8080

        # on ocp node, there is DNAT defined.

        iptables -L -v -n -t nat | grep DNAT
            # 0     0 DNAT       tcp  --  *      *       0.0.0.0/0            192.168.66.100       tcp dpt:8080 to:172.22.74.226:8080

3.2 Routing Verification (External Router)

On the external FRR router, verify the BGP route learned from the cluster.

oc get EgressService/egress-identity -n demo-egress -o yaml

        # apiVersion: k8s.ovn.org/v1

        # kind: EgressService

        # metadata:

        #   creationTimestamp: "2026-03-01T15:28:00Z"

        #   generation: 1

        #   name: egress-identity

        #   namespace: demo-egress

        #   resourceVersion: "185799"

        #   uid: 27180cdd-5010-4eb5-b716-98682a4296c4

        # spec:

        #   nodeSelector:

        #     matchLabels:

        #       node-role.kubernetes.io/master: ""

        #   sourceIPBy: LoadBalancerIP

        # status:

        #   host: master-01-demo

        vtysh -c 'show ip route bgp'

        # Codes: K - kernel route, C - connected, S - static, R - RIP,

        #        O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,

        #        T - Table, v - VNC, V - VNC-Direct, F - PBR,

        #        f - OpenFabric,

        #        > - selected route, * - FIB route, q - queued, r - rejected, b - backup

        #        t - trapped, o - offload failure

        # B>* 192.168.66.100/32 [200/0] via 192.168.99.23, enp1s0, weight 1, 00:18:37

Comment: The route 192.168.66.100/32 is correctly advertised by the node (192.168.99.23) currently hosting the egress gateway.

4. Deep-Dive: Interception and SNAT Mechanism Analysis

In the OVN-Kubernetes architecture (OCP 4.14+), EgressService has moved away from traditional OVN Logical Router policies and iptables MASQUERADE. It now utilizes OVS OpenFlow registers for redirection and native Linux nftables dynamic maps for SNAT.

4.1 Stage 1: OVS Interception on Source Node (master-03)

When a packet from a Pod (10.133.0.3) enters br-int, it matches a high-priority OpenFlow rule.


        # Query OVS flows on the source node (master-03)

        oc exec -n openshift-ovn-kubernetes $OVN_NODE_03_POD -c ovn-controller -- ovs-ofctl dump-flows br-int | grep "10.133.0.3"

Observation (Table 25):

 cookie=0x3e1ba399, duration=6354.264s, table=25, n_packets=0, n_bytes=0, idle_age=6354, priority=101,ip,metadata=0x5,nw_src=10.133.0.3 actions=load:0x64580004->NXM_NX_XXREG0[96..127],load:0x64580002->NXM_NX_XXREG1[64..95],mod_dl_src:0a:58:64:58:00:02,load:0x1->NXM_NX_REG15[],load:0x1->NXM_NX_REG10[0],load:0->OXM_OF_PKT_REG4[32..47],load:0x1->OXM_OF_PKT_REG4[9],resubmit(,26)

Analysis: The OVS load instruction modifies the XXREG registers to redirect the packet into a Geneve tunnel (port 6081) towards the designated Egress node (master-01).

Deep-Dive: Register and MAC Address Decoding

To understand the “magic” behind these values, we can decode the 16-bit hex values into their decimal IP equivalents:

Verification Command (Discovery of Transit IPs):


        # Verify the transit IP assignments across the cluster

        oc get nodes -o custom-columns=NAME:.metadata.name,TRANSIT_IP:.metadata.annotations.'k8s\.ovn\.org/node-transit-switch-port-ifaddr'

        # NAME             TRANSIT_IP

        # master-01-demo   {"ipv4":"100.88.0.4/16"}

        # master-02-demo   {"ipv4":"100.88.0.3/16"}

        # master-03-demo   {"ipv4":"100.88.0.2/16"}

4.2 Stage 2: SNAT Transformation on Egress Node (master-01)

On the host node master-01, we can observe the packet “transformation” as it exits the Geneve tunnel and leaves the physical interface.

Terminal 1 (Monitoring master-01):

oc debug node/master-01-demo -- bash -c "tcpdump -i any -n 'host 192.168.55.13' 2>/dev/null"

Terminal 2 (Sending Ping from master-03 Pod):

oc exec -it $NODE3_POD -n demo-egress -- ping -c 1 192.168.55.13

Trace Results on master-01:


        # Packet emerges from Geneve tunnel with its original Pod IP (10.133.0.3)

        13:28:40.907255 ovn-k8s-mp0 In  IP 10.133.0.3 > 192.168.55.13: ICMP echo request, id 4, seq 1, length 64

        # Host kernel performs SNAT; when exiting br-ex, the source IP is now the Egress IP (192.168.66.100)

        13:28:40.907295 br-ex Out IP 192.168.66.100 > 192.168.55.13: ICMP echo request, id 4, seq 1, length 64

4.3 Stage 3: The Engine - nftables Dynamic Maps

The SNAT rule is implemented using a high-performance nftables map managed by OVN-Kubernetes on the host.


        # Inspect nftables ruleset on master-01

        oc debug node/master-01-demo -- chroot /host /bin/bash -c "nft list ruleset | grep 'egress-service-snat-v4' -A 5 -B 5"

The Final Truth:

        map egress-service-snat-v4 {
                        type ipv4_addr : ipv4_addr
                        # OVN automatically maps Pod IPs to the selected Egress IP
                        elements = { 10.132.0.13 comment "demo-egress/egress-identity" : 192.168.66.100, 10.133.0.3 comment "demo-egress/egress-identity" : 192.168.66.100 }
                }

                chain egress-services {
                        type nat hook postrouting priority srcnat; policy accept;
                        # Perform SNAT if a match is found in the dynamic map
                        snat ip to ip saddr map @egress-service-snat-v4
                }

Conclusion

The EgressService in OpenShift 4.19 represents a shift towards cloud-native networking efficiency. By combining OVS XXREG register redirection to steer traffic across the cluster via tunnels and nftables maps for localized SNAT on the egress host, it achieves high throughput and predictability without the overhead of complex logical routing policies. Integration with BGP ensures that external firewalls and routers always see a consistent source IP, regardless of which node acts as the current egress gateway.
