Technical Deep Dive: MetalLB BGP Ingress Traffic Flow in OpenShift 4.19

1. Overview

In OpenShift 4.19, using MetalLB with the FRR-K8s driver enables high-performance, high-availability BGP-based service publication (Ingress). Unlike Egress IPs, which focus on the outbound path, Ingress traffic deals with how to bring external traffic into the cluster via dynamic route advertisements and distribute it evenly across backend Pods.

This document reveals the complete processing chain through empirical analysis, from BGP route advertisement, to host-level Iptables interception, and finally to OVN/OVS logical flow forwarding, covering both Cluster and Local traffic policies.

2. Validation Topology

This validation is based on a 3-node compact OpenShift cluster.

3. Infrastructure Configuration

3.1 Test Workload Preparation

First, deploy a simple Python HTTP service as a backend, fixed to specific nodes via nodeAffinity for tracking purposes.

# 1. Deploy test Deployment
cat <<EOF | oc apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: edge-request-deployment
  namespace: demo-egress
spec:
  replicas: 2
  selector:
    matchLabels:
      app: requester
  template:
    metadata:
      labels:
        app: requester
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/hostname
                operator: In
                values:
                - master-02-demo
                - master-03-demo
      containers:
      - name: toolkit
        image: quay.io/wangzheng422/qimgs:centos9-test-2025.12.18.v01
        command: ["bash", "-c", "python3 -m http.server 8080"]
EOF

# 2. Create LoadBalancer Service
cat <<EOF | oc apply -f -
apiVersion: v1
kind: Service
metadata:
  name: egress-identity
  namespace: demo-egress
  annotations:
    metallb.universe.tf/address-pool: egress-pool
spec:
  type: LoadBalancer
  selector:
    app: requester
  ports:
    - name: http
      protocol: TCP
      port: 8080
      targetPort: 8080
EOF

3.2 MetalLB BGP Configuration

In OCP 4.19, MetalLB uses the BGP protocol to communicate with upstream devices.

# BGPPeer: Defines neighbor relationships
apiVersion: metallb.io/v1beta2
kind: BGPPeer
metadata:
  name: peer-sample1
  namespace: metallb-system
spec:
  peerAddress: 192.168.99.12
  peerASN: 64512
  myASN: 64512
  peerPort: 179

---
# IPAddressPool: Defines the address pool
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: egress-pool
  namespace: metallb-system
spec:
  addresses:
  - 192.168.66.100-192.168.66.100

---
# BGPAdvertisement: Advertisement strategy
apiVersion: metallb.io/v1beta1
kind: BGPAdvertisement
metadata:
  name: egress-identity-bgp-adv
  namespace: metallb-system
spec:
  ipAddressPools:
  - egress-pool
  nodeSelectors:
  - matchLabels:
      node-role.kubernetes.io/master: ""

4. Routing & BGP Verification

4.1 Confirm FRRConfiguration Generation

MetalLB translates configurations into FRRConfiguration objects, which are consumed by the underlying frr-k8s daemon.

oc get FRRConfiguration -n openshift-frr-k8s

Output:

NAME                     AGE
metallb-master-01-demo   4h19m
metallb-master-02-demo   4h19m
metallb-master-03-demo   4h19m

Verify the advertised prefixes:

oc get FRRConfiguration metallb-master-01-demo -n openshift-frr-k8s -o yaml

Key Fragment:

spec:
  bgp:
    routers:
    - asn: 64512
      neighbors:
      - address: 192.168.99.12
        toAdvertise:
          allowed:
            mode: filtered
            prefixes:
            - 192.168.66.100/32

4.2 Upstream Router Perspective

On the upstream router (192.168.99.12), you can see Equal-Cost Multi-Path (ECMP) routes to the VIP.

vtysh -c 'show ip bgp'

Output:

BGP table version is 5, local router ID is 192.168.99.12, vrf id 0
Default local pref 100, local AS 64512
Status codes:  s suppressed, d damped, h history, * valid, > best, = multipath,
               i internal, r RIB-failure, S Stale, R Removed
Nexthop codes: @NNN nexthop's vrf id, < announce-nh-self
Origin codes:  i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

    Network          Next Hop            Metric LocPrf Weight Path
*> 192.168.55.0/24  0.0.0.0                  0         32768 i
*=i192.168.66.100/32
                    192.168.99.25            0    100      0 i
*=i                 192.168.99.24            0    100      0 i
*>i                 192.168.99.23            0    100      0 i

5. Traffic Deep Dive: Cluster Policy

By default, externalTrafficPolicy is set to Cluster. Traffic can enter any node and be routed across nodes to backend Pods.

5.1 Pipeline Visualization

5.2 Core Stages Evidence

1. Host-level Iptables Interception

At the host level, OVN-Kube pre-installs rules to map the VIP to the ClusterIP.

oc debug node/master-01-demo -- chroot /host bash -c 'iptables -t nat -S | grep 192.168.66.100'

Output:

-A OVN-KUBE-EXTERNALIP -d 192.168.66.100/32 -p tcp -m tcp --dport 8080 -j DNAT --to-destination 172.22.88.148:8080

2. OVN Gateway Router (GR) SNAT —— Inbound Source Address Masquerading

After DNAT, traffic enters GR_master-01-demo via br-ex. The GR is responsible for performing a second DNAT on the ClusterIP and performing SNAT on the source IP (masquerading it as the Join IP).

2.1 DNAT + force_snat Mark in GR Logical Flows

In the GR’s lr_in_dnat (table=9) flow table, the load balancing rule for VIP 192.168.66.100 is as follows:

oc exec -n openshift-ovn-kubernetes $OVN_POD -c ovn-controller -- ovn-sbctl lflow-list GR_master-01-demo | grep -i snat | grep "192.168.66.100"
# Output:
# table=9 (lr_in_dnat         ), priority=120  , match=(ct.new && !ct.rel && ip4 && ip4.dst == 192.168.66.100 && tcp && tcp.dst == 8080), action=(flags.force_snat_for_lb = 1; ct_lb_mark(backends=10.132.0.39:8080,10.133.0.4:8080; force_snat);)

Key Action Analysis:

• flags.force_snat_for_lb = 1: Sets the “Force SNAT” flag.
• ct_lb_mark(...; force_snat): Performs load balancing, translates the destination IP, and marks force_snat in CT Mark.

2.2 SNAT Execution in GR Logical Flows (lr_out_snat)

This is where SNAT actually happens! In the GR’s outbound SNAT pipeline lr_out_snat (table=3):

oc exec -n openshift-ovn-kubernetes $OVN_POD -c ovn-controller -- ovn-sbctl lflow-list GR_master-01-demo | grep "lr_out_snat" | grep "force_snat_for_lb"
# Output:
# table=3 (lr_out_snat        ), priority=110  , match=(flags.force_snat_for_lb == 1 && flags.network_id == 0 && ip4 && outport == "rtoe-GR_master-01-demo"), action=(ct_snat(192.168.99.23);)
# table=3 (lr_out_snat        ), priority=110  , match=(flags.force_snat_for_lb == 1 && flags.network_id == 0 && ip4 && outport == "rtoj-GR_master-01-demo"), action=(ct_snat(100.64.0.4);)
# table=3 (lr_out_snat        ), priority=105  , match=(flags.force_snat_for_lb == 1 && ip4 && outport == "rtoe-GR_master-01-demo"), action=(ct_snat(192.168.99.23);)
# table=3 (lr_out_snat        ), priority=105  , match=(flags.force_snat_for_lb == 1 && ip4 && outport == "rtoj-GR_master-01-demo"), action=(ct_snat(100.64.0.4);)

3. OVN Logical Flow (ls_in_lb)

The ls_in_lb table handles the request once it enters OVN.

# Find the corresponding logical flow on master-01
OVN_NODE_01_POD=$(oc get po -n openshift-ovn-kubernetes -l app=ovnkube-node -o wide | grep "master-01-demo" | awk '{print $1}')
oc exec -n openshift-ovn-kubernetes $OVN_NODE_01_POD -c sbdb -- ovn-sbctl --uuid lflow-list | grep -B 1 "172.22.88.148"

Evidence:

uuid=0x93f7000bc19e7616196191...
table=13(ls_in_lb), priority=120, match=(ct.new && ip4.dst == 172.22.88.148 && tcp.dst == 8080), action=(reg4 = 172.22.88.148; reg2[0..15] = 8080; ct_lb_mark(backends=10.132.0.39:8080,10.133.0.4:8080);)

4. OVS Flow Translation (The “Cookie” Secret)

The ovn-controller writes the first 8 digits of the UUID (0x93f7000b) into the OVS flow table’s cookie field.

oc exec -n openshift-ovn-kubernetes $OVN_NODE_01_POD -c ovn-controller -- ovs-ofctl dump-flows br-int | grep "cookie=0x93f7000b"

Output:

cookie=0x93f7000b, table=21, n_packets=12, n_bytes=840, priority=120,ct_state=+new+trk,tcp,metadata=0x2,nw_dst=172.22.88.148,tp_dst=8080 actions=load:0xac165894->NXM_NX_XXREG1[96..127],load:0x1f90->NXM_NX_XXREG0[32..47],group:133

Check group:133 to confirm backend distribution:

oc exec -n openshift-ovn-kubernetes $OVN_NODE_01_POD -c ovn-controller -- ovs-ofctl dump-groups br-int | grep "group_id=133"

group_id=133,type=select,selection_method=dp_hash,bucket=bucket_id:0,weight:100,actions=ct(commit,table=22,zone=NXM_NX_REG13[0..15],nat(dst=10.132.0.39:8080),exec(load:0x1->NXM_NX_CT_MARK[1])),bucket=bucket_id:1,weight:100,actions=ct(commit,table=22,zone=NXM_NX_REG13[0..15],nat(dst=10.133.0.4:8080),exec(load:0x1->NXM_NX_CT_MARK[1]))

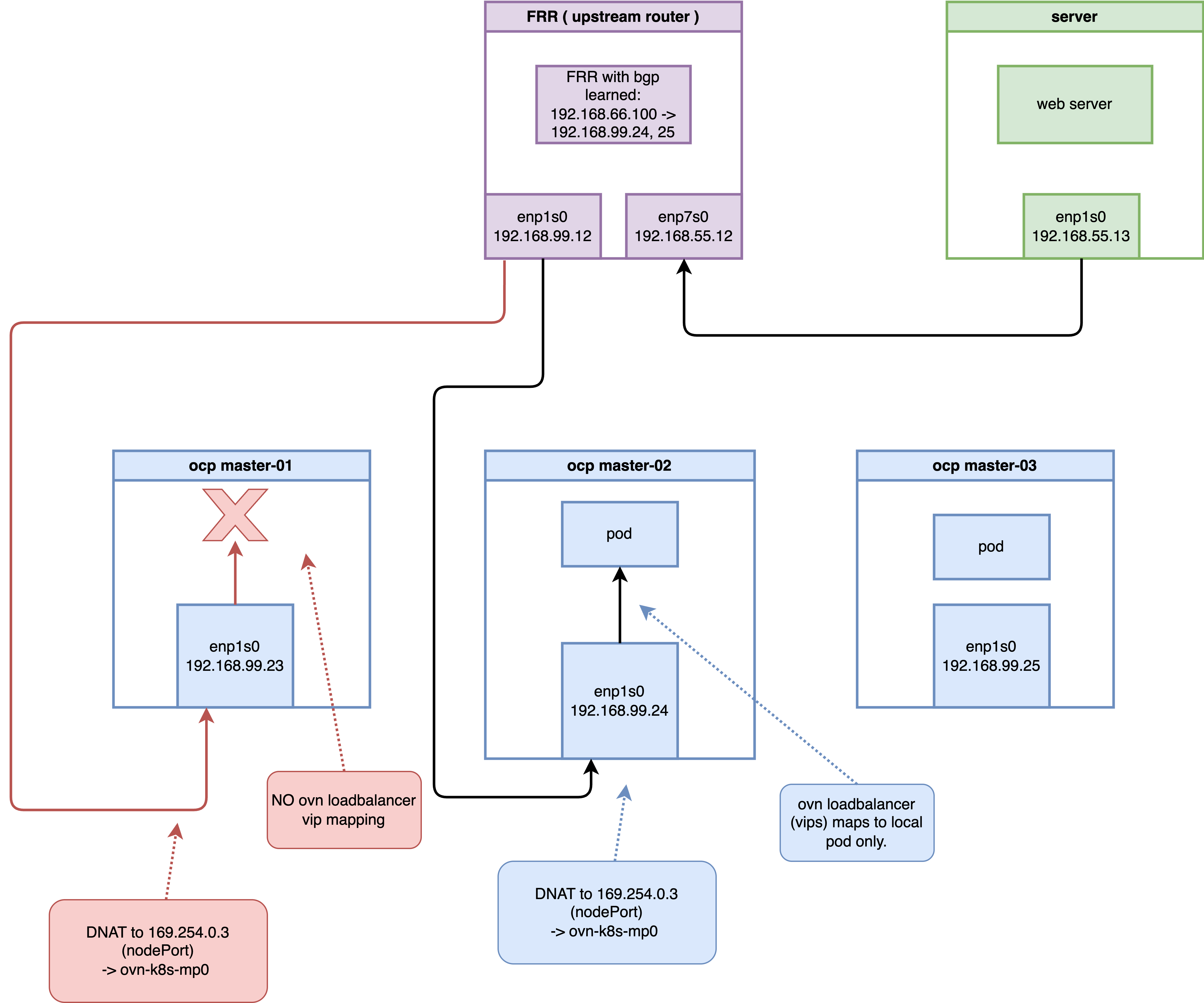

6. Advanced Scenario: Local Policy and Internal Masquerade IP

When a Service is configured with externalTrafficPolicy: Local, behavior changes significantly:

1. BGP Advertisement: Only nodes running backend Pods advertise the VIP route.
2. Traffic Redirection: Traffic must be directed to local Pods once it enters a node.

6.1 BGP Routing Perspective: Reduction of ECMP Routes

When externalTrafficPolicy is set to Local, on the upstream FRR router, you can observe that the routing entries have changed from 3 ECMP routes to only 2 (corresponding only to master-02 and master-03 which run the backend Pods):

vtysh -c 'show ip route'
# Codes: K - kernel route, C - connected, S - static, R - RIP,
#        O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
#        T - Table, v - VNC, V - VNC-Direct, F - PBR,
#        f - OpenFabric,
#        > - selected route, * - FIB route, q - queued, r - rejected, b - backup
#        t - trapped, o - offload failure

# K>* 0.0.0.0/0 [0/100] via 192.168.99.1, enp1s0, 00:45:03
# C>* 192.168.55.0/24 is directly connected, enp7s0, 00:45:03
# K * 192.168.55.0/24 [0/101] is directly connected, enp7s0, 00:45:03
# B>* 192.168.66.100/32 [200/0] via 192.168.99.24, enp1s0, weight 1, 00:00:08
#   *                           via 192.168.99.25, enp1s0, weight 1, 00:00:08
# C>* 192.168.99.0/24 [0/100] is directly connected, enp1s0, 00:45:03

6.2 The Mystery of 169.254.0.3

In Local mode, host Iptables DNATs to a special reserved address: 169.254.0.3.

# Check on master-02 (the node running Pods)
oc debug node/master-02-demo -- chroot /host bash -c 'iptables -t nat -S | grep 192.168.66.100'

Core Output:

-A OVN-KUBE-ETP -d 192.168.66.100/32 -p tcp -m tcp --dport 8080 -j DNAT --to-destination 169.254.0.3:32736

Why 169.254.0.3?

This is the OVN-Kubernetes Internal Masquerade IP. It acts as a “signpost” for OVN: “Use the load balancer containing only local endpoints.”

Routing Support

oc debug node/master-02-demo -- chroot /host bash -c 'ip route show | grep 169.254.0.3'

169.254.0.3 via 10.132.0.1 dev ovn-k8s-mp0

6.2 Differentiated LB in OVN

LB View for Node master-01 (No Pod):

OVN_NODE_01_POD=$(oc get po -n openshift-ovn-kubernetes -l app=ovnkube-node -o wide | grep "master-01-demo" | awk '{print $1}')
oc exec -it -n openshift-ovn-kubernetes $OVN_NODE_01_POD -- ovn-nbctl find load_balancer name="Service_demo-egress/egress-identity_TCP_node_switch_master-01-demo"

VVIP Content:

vips: {
    "192.168.66.100:8080" : "10.132.0.39:8080,10.133.0.4:8080",
    "192.168.77.23:32736" : "10.132.0.39:8080,10.133.0.4:8080",
    "192.168.99.21:32736" : "10.132.0.39:8080,10.133.0.4:8080"
}

Note: master-01’s VIPS list does not contain 169.254.0.3:32736, as there are no local endpoints.

LB View for Node master-02 (With Pod):

OVN_NODE_02_POD=$(oc get po -n openshift-ovn-kubernetes -l app=ovnkube-node -o wide | grep "master-02-demo" | awk '{print $1}')
oc exec -it -n openshift-ovn-kubernetes $OVN_NODE_02_POD -- ovn-nbctl find load_balancer name="Service_demo-egress/egress-identity_TCP_node_switch_master-02-demo"

vips: {
    "169.254.0.3:32736" : "10.132.0.39:8080",
    "192.168.66.100:8080" : "10.132.0.39:8080,10.133.0.4:8080"
}

Entering traffic matches 169.254.0.3, enforcing local distribution.

6.3 Negative Validation: Bypassing Advertised Nodes

Force traffic to master-01 (no local Pods) via static route:

# Add static route on router
vtysh -c 'conf t' -c 'ip route 192.168.66.100/32 192.168.99.23'

# Verify route
vtysh -c 'show ip route 192.168.66.100/32'

Output:

Routing entry for 192.168.66.100/32
  Known via "static", distance 1, metric 0, best
  Last update 00:00:03 ago
  * 192.168.99.23, via enp1s0, weight 1
...

# Test access
curl -vvv http://192.168.66.100:8080

Result: Connection refused Analysis: master-01 has no local backend mapping for the masquerade IP request, ensuring the integrity of the Local policy.

7. Conclusion

OpenShift 4.19’s MetalLB + OVN solution demonstrates complex but efficient collaboration:

1. Layered DNAT: Iptables handles VIP “claiming,” while OVN manages logic and tracking.
2. Traceability: UUID-to-Cookie mapping bridges logical and physical troubleshooting.
3. Local Isolation: The 169.254.0.3 masquerade address enables node-level traffic governance.
