如何添加 http_proxy 来下载镜像

我们的部署环境，如果有一个image proxy，那么可以配置集群，使用这个proxy去下载镜像。

关键是crio的环境变量，所以给这个目录添加一个环境变量进去，/etc/systemd/system/crio.service.d/

cat << EOF > crio-env.conf
        [Service]
        Environment=HTTP_PROXY=http://v.redhat.ren:8080
        Environment=HTTPS_PROXY=http://v.redhat.ren:8080
        Environment=NO_PROXY=redhat.ren,10.254.0.0/16,172.30.0.0/16
        EOF

        config_source=$(cat ./crio-env.conf | python3 -c "import sys, urllib.parse; print(urllib.parse.quote(''.join(sys.stdin.readlines())))"  )

        cat <<EOF > 50-crio-env-conf.yaml
        apiVersion: machineconfiguration.openshift.io/v1
        kind: MachineConfig
        metadata:
          labels:
            machineconfiguration.openshift.io/role: worker
          name: 50-crio-env-conf
        spec:
          config:
            ignition:
              version: 2.2.0
            storage:
              files:
              - contents:
                  source: data:text/plain,${config_source}
                  verification: {}
                filesystem: root
                mode: 0420
                path: /etc/systemd/system/crio.service.d/20-wzh-env.conf
              - contents:
                  source: data:text/plain,${config_source}
                  verification: {}
                filesystem: root
                mode: 0420
                path: /etc/systemd/system/kubelet.service.d/20-wzh-env.conf
              - contents:
                  source: data:text/plain,${config_source}
                  verification: {}
                filesystem: root
                mode: 0420
                path: /etc/systemd/system/machine-config-daemon-host.service.d/20-wzh-env.conf
              - contents:
                  source: data:text/plain,${config_source}
                  verification: {}
                filesystem: root
                mode: 0420
                path: /etc/systemd/system/pivot.service.d/20-wzh-env.conf
        EOF
        oc apply -f 50-crio-env-conf.yaml -n openshift-config

等待集群重启以后，测试一下

cat << EOF > test-local-dc.yaml
        kind: DeploymentConfig
        apiVersion: apps.openshift.io/v1
        metadata:
          name: busybox
          labels:
            run: busybox
        spec:
          replicas: 1
          template:
            metadata:
              labels:
                run: busybox
            spec:
              containers:
                - name: busybox
                  image: 'docker.io/busybox:1.28.0-glibc'
                  command:
                    - sleep
                    - '36000'

        EOF
        oc apply -f test-local-dc.yaml

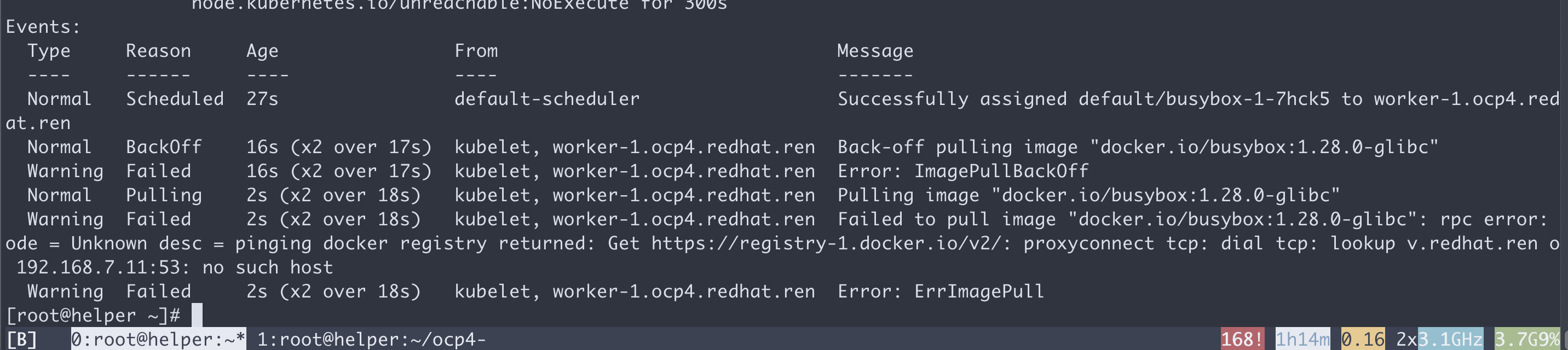

虽然实验环境网络问题，没下载成功，但是看到下载是在走proxy了。

以下是弯路

这样就可以通过内网的proxy server去pull image了。

调优 /etc/crio/crio.conf 的方法不可以，因为查过源代码以后，发现下面链接说的操作，源代码里面也就支持3个选项，其他选项都不支持。 https://www.redhat.com/en/blog/red-hat-openshift-container-platform-4-now-defaults-cri-o-underlying-container-engine

然后从源代码里面，高兴的发现，/etc/systemd/system/crio.service.d/10-default-env.conf 是可以通过proxy的配置生效的。 https://github.com/openshift/machine-config-operator/blob/master/templates/common/_base/files/etc-systemd-system-crio.service.d-10-default-env.conf.yaml

配置一个proxy https://access.redhat.com/solutions/3442811

apiVersion: config.openshift.io/v1
        kind: Proxy
        metadata:
          name: cluster
        spec:
          httpProxy: http://v.redhat.ren:8080
          httpsProxy: http://v.redhat.ren:8080
          noProxy: example.com
cat << EOF > proxy.yaml
        apiVersion: config.openshift.io/v1
        kind: Proxy
        metadata:
          name: cluster
        spec:
          httpProxy: http://v.redhat.ren:8080
          httpsProxy: http://v.redhat.ren:8080
          readinessEndpoints:
          - http://www.google.com
          noProxy: example.com
          trustedCA:
            name: ca.for.proxy
        EOF
        oc apply -f proxy.yaml

        cat << EOF > proxy.yaml
        apiVersion: config.openshift.io/v1
        kind: Proxy
        metadata:
          name: cluster
        spec: {}
        EOF
        oc apply -f proxy.yaml

        cat /etc/systemd/system/crio.service.d/10-default-env.conf

        cat << EOF > ca.yaml
        apiVersion: v1
        kind: ConfigMap
        metadata:
          name: ca.for.proxy
          namespace: openshift-config
        data:
          ca-bundle.crt: |
            -----BEGIN PRIVATE KEY-----
            MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQCpRqAtwkQsmdA5
            qDyAV7ABoRmZdDh7aaH9OY+gHRVtMDYbEH1e3u4oIJ5CoAK4EiZ/AZA2Pb5xFO+5
            63YwMFEucg0TcCAs20yFbhkRXac1UxsGmx3zUSfex6/A6yxwyx14/HBoli6Trqpr
            oPxUFDFoHHe6zIqgQkdjdYttL/vwrVg2yH2Z3IS1qQ/uN8UpyL/yY48VRimQsGjX
            9FmRusONsUdRYh29gbOI76hJ7ooCNGvgbXq/6L6OGu6by+g6MgqHtBWMjnObWkWV
            ln1lRRfmhwlGO0136lURt58diJSIWPXOpSO4Ulc2JMH9D+pgAD59JU4pm1PvGotc
            e+WIxvJ9AgMBAAECggEACpulcBirgwwEk4hqejSEkCWTYB17aKh/AUp5KLSJ4jTS
            PzHyWV6pGBSrNkumv/hLN0xWyD9oTtfcCg+qcWylub5l+WDec1Eu43G52m+/CcVy
            fSB9aQEd+YUUC4fxWgQwjaNsO/Gla5XXkjUdevtk+TxHeIpW6aIdrSrxmN8X78Yj
            F0FIPYSAM4Lh2ZdykFS9igbteRN27WGlypKF6D7efDfbh4TLuVtSMRyehjewyy3U
            DAYkkMm1SD/TH4HJQU8eU3Gp3ZZmP4uSTESfBc/6lrSy/ooXqtc/x8dv0SQtky0I
            FQu/bTdrSjz3gOKZVfaLsG4LMiMo7M4SekyU2EGulQKBgQDUobsMXV0WrwVF4JFF
            ug3PxXwcatlnesrlcOPQQdhZz4ngk3z49GxPrXykzFQ5KtMCsgyOhNpXOVu6vqew
            0QmxJvF8Mo0GhwIOANlrQSn/Flt5s5GIPqteAE//RxSsAhRm6fDnxKik2aT5XOYl
            9GQvFvPDtjSR0nBHQg5BuBgtbwKBgQDLzSDr61tbU02/bV/td6CkVMSSpGHpfUU+
            0rGC9/JzBmBDr/mC5fDUN0bno1zq35HURxzhk306BJSbMMwnwmUFgWxPuJwlVo2V
            Zs3x41eYzTj7JOPZ/AphR+6pdpXlsoxpXUQRgWq1j8hq0wUqDL8s0ltzoDJFMxri
            J9N7fv6A0wKBgQChFk3Q1kKZ1sqV38XvHz8rcx/Nn51I6hwgqt/MfLXdhH+eJd59
            9R7BVluhtjLwhGMMHbuplTic8BVwatQ7/oHrNeepAdsZYNrLpRUSTnH0kQmIL+RH
            ZcMKGg6BBWbB0WmHdiBOVgy1pzV2vUyW4ImtqyPN15IID3eEZKTMYR3f/QKBgFke
            QBEp/+71hH/64gHDV/nEH5lITJB/ePI5y+nLZrepyBqRLvhweFk0Oss8Anuqe+hp
            mFWD2zStoBYkxoF0XhyENcq+nXkuWgdExzXJBhsJUqtvvDssHZXgkJqGApJI+2Fv
            qT5Ga1UtpKQh1pZGsKp26gqruI/OAyl15OKR69SFAoGADAOAADooY3Qcn9AWH1e8
            ebSDdimi4j1H9yFvcByaJkNrGhNgKwYYYeLsCvwxGLjRontoH6xOJAVdwmadV/CH
            6Ket3yJLWRIuu1N1IKvfLEqLsp2sbWKInhohEfh5yZmvCeTUjJKkz62DYS20JsN0
            1+gdBRElKgEz14GTvj7lpas=
            -----END PRIVATE KEY-----
            -----BEGIN CERTIFICATE-----
            MIIDVzCCAj+gAwIBAgIJANzkXo7TCVYVMA0GCSqGSIb3DQEBCwUAMEIxCzAJBgNV
            BAYTAlhYMRUwEwYDVQQHDAxEZWZhdWx0IENpdHkxHDAaBgNVBAoME0RlZmF1bHQg
            Q29tcGFueSBMdGQwHhcNMjAwMjIyMDMxOTMxWhcNMjEwMjIxMDMxOTMxWjBCMQsw
            CQYDVQQGEwJYWDEVMBMGA1UEBwwMRGVmYXVsdCBDaXR5MRwwGgYDVQQKDBNEZWZh
            dWx0IENvbXBhbnkgTHRkMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA
            qUagLcJELJnQOag8gFewAaEZmXQ4e2mh/TmPoB0VbTA2GxB9Xt7uKCCeQqACuBIm
            fwGQNj2+cRTvuet2MDBRLnINE3AgLNtMhW4ZEV2nNVMbBpsd81En3sevwOsscMsd
            ePxwaJYuk66qa6D8VBQxaBx3usyKoEJHY3WLbS/78K1YNsh9mdyEtakP7jfFKci/
            8mOPFUYpkLBo1/RZkbrDjbFHUWIdvYGziO+oSe6KAjRr4G16v+i+jhrum8voOjIK
            h7QVjI5zm1pFlZZ9ZUUX5ocJRjtNd+pVEbefHYiUiFj1zqUjuFJXNiTB/Q/qYAA+
            fSVOKZtT7xqLXHvliMbyfQIDAQABo1AwTjAdBgNVHQ4EFgQUaTkD399lxrjHrHkl
            Mq1se4L+yr0wHwYDVR0jBBgwFoAUaTkD399lxrjHrHklMq1se4L+yr0wDAYDVR0T
            BAUwAwEB/zANBgkqhkiG9w0BAQsFAAOCAQEAkuBFWQV2dFfwVChhVGKxynQ3JD48
            tT27b8G0YHMIM1WGkYIO7jWOx4Vvpo0ykqvwP1r7gVLHectPynCt55c1/lN9FxuV
            o+VTGN2ObA8AyEr4pPUJf7rav9GBlyJlIGL2IM4A9b0aCqfwIg0OyTSQzI5E5Cv8
            SDj1XTCPwkZT+Vq8aXorpej4dNhz//0AA872pAtwp9ex+KPOVRRZM4cQfQof3saB
            oPSkc8R2sA1TYNweeF4cWctWz2G0Vy/uo0fwcTb9NJwpzZlRBclg2S9WA9dMwnV8
            LVnyLpo2cf4R2z8zDcfDoQV7i6JxzfTQCeUO1Zy4zPTbtKt1k8g3dYfF0w==
            -----END CERTIFICATE-----
        EOF
        oc apply -f ca.yaml
apiVersion: machineconfiguration.openshift.io/v1
        kind: ContainerRuntimeConfig
        metadata:
         name: set-log-and-pid
        spec:
         machineConfigPoolSelector:
           matchLabels:
             debug-crio: config1
         containerRuntimeConfig:
           conmon_env: "[ HTTP_PROXY=http://v.redhat.ren:8080, HTTPS_PROXY=http://v.redhat.ren:8080 ]"
cat << EOF > crio.yaml
        apiVersion: machineconfiguration.openshift.io/v1
        kind: ContainerRuntimeConfig
        metadata:
         name: set-log-and-pid
        spec:
         machineConfigPoolSelector:
           matchLabels:
             debug-crio: config1
         containerRuntimeConfig:
           conmon_env: '[HTTP_PROXY=http://v.redhat.ren:8080,HTTPS_PROXY=http://v.redhat.ren:8080]'
        EOF

        oc apply -f crio.yaml

        oc delete -f crio.yaml

        oc edit MachineConfigPool/worker

        oc get ContainerRuntimeConfig -o yaml

        oc get MachineConfigs

        python3 -c "import sys, urllib.parse; print(urllib.parse.unquote(sys.argv[1]))" $(oc get MachineConfig/rendered-worker-a01b5da25ec85d2f0ffabfeb1fbe996d -o YAML | grep -B4 crio.conf | grep source | tail -n 1 | cut -d, -f2) | grep conmon
