openshift4 离线升级服务 / disconnected update service

openshift4默认的集群管理界面，会向公网的升级服务请求升级信息，如果在离线安装的情况，这个升级信息是拿不到的，于是集群的管理界面就会一堆报错，很难看。现在openshift4有一个update server operator，这个可以在集群内部创建一个离线的update server，提供升级信息，这样集群的管理界面就不会那么难看啦。

本次实验的部署架构：

视频讲解:

based on:

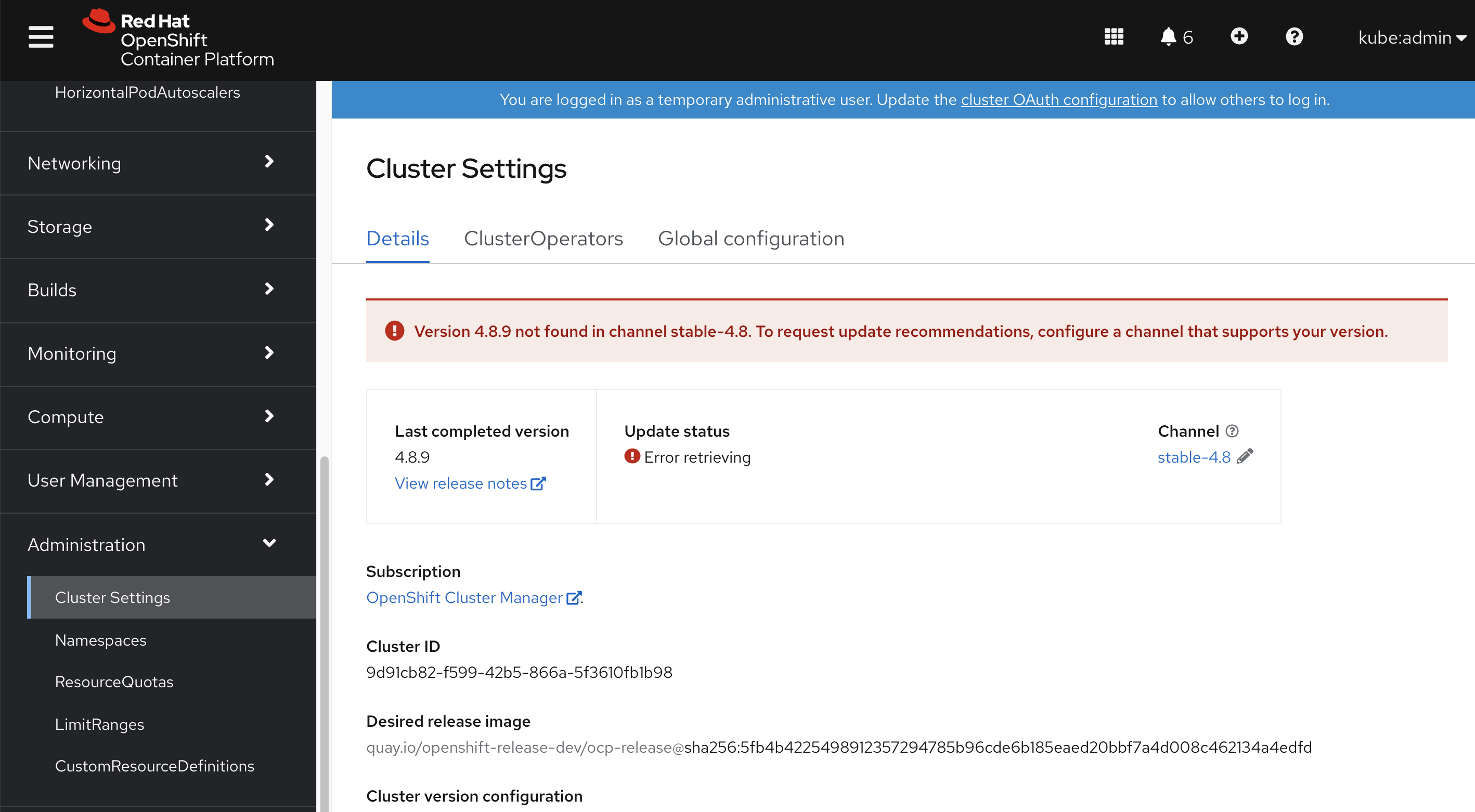

离线安装以后，不配置的话，系统管理页面是这个鬼样子：


        # search OpenShift Update Service in operator hub, and install

        # build a update container

        mkdir -p /data/update
        cd /data/update
        cat << EOF > /data/update/Dockerfile
        FROM registry.access.redhat.com/ubi8

        RUN curl -L -o cincinnati-graph-data.tar.gz https://github.com/openshift/cincinnati-graph-data/archive/master.tar.gz

        CMD exec /bin/bash -c "tar xvzf cincinnati-graph-data.tar.gz -C /var/lib/cincinnati/graph-data/ --strip-components=1"
        EOF

        var_date=$(date '+%Y-%m-%d-%H%M')
        echo $var_date

        buildah bud -f ./Dockerfile -t quay.io/wangzheng422/graph-data-image:$var_date
        podman push quay.io/wangzheng422/graph-data-image:$var_date

        echo quay.io/wangzheng422/graph-data-image:$var_date

        # quay.io/wangzheng422/graph-data-image:2021-09-07-0709

        cat << EOF > /data/install/update.yaml
        apiVersion: updateservice.operator.openshift.io/v1
        kind: UpdateService
        metadata:
          namespace: openshift-update-service
          name: sample
        spec:
          graphDataImage: 'nexus.ocp4.redhat.ren:8083/wangzheng422/graph-data-image:2021-09-07-0709'
          releases: 'registry.ocp4.redhat.ren:5443/ocp4/release'
          replicas: 1
        EOF
        oc create -f /data/install/update.yaml

        # to restore

        oc delete -f /data/install/update.yaml

        # 部署完了update service 以后，发现报错

        # 发现update service operator依赖有password的registry

        # 我们之前默认安装的registry是没有密码的，就不行

        # 所以重新部署一个需要密码认证的registry就可以了。

        oc get secret/pull-secret -n openshift-config -o json | jq '.data.".dockerconfigjson"' | jq -r . | base64 -d | jq .

        # {

        #   "auths": {

        #     "registry.ocp4.redhat.ren:5443": {

        #       "username": "admin",

        #       "password": "redhat",

        #       "auth": "YWRtaW46cmVkaGF0",

        #       "email": "admin@redhat.ren"

        #     }

        #   }

        # }

        oc delete cm ca.for.registry -n openshift-config
        oc create configmap ca.for.registry -n openshift-config \
            --from-file=registry.ocp4.redhat.ren..5443=/etc/crts/redhat.ren.ca.crt \
            --from-file=updateservice-registry=/etc/crts/redhat.ren.ca.crt

        oc patch image.config.openshift.io/cluster -p '{"spec":{"additionalTrustedCA":{"name":"ca.for.registry"}}}'  --type=merge

        # oc patch image.config.openshift.io/cluster -p '{"spec":{"additionalTrustedCA":{"name":"ca.for.registry"}}}'  --type=merge

        # our router's https certs is self-sign,

        # update service will report error on this certs

        # so we create a http route, to avoid this error

        cat << EOF > /data/install/update-wzh-route.yaml
        kind: Route
        apiVersion: route.openshift.io/v1
        metadata:
          name: update-wzh
          namespace: openshift-update-service
          labels:
            app: sample-policy-engine
        spec:
          to:
            kind: Service
            name: sample-policy-engine
            weight: 100
          port:
            targetPort: policy-engine
        EOF
        oc create -f /data/install/update-wzh-route.yaml

        oc patch clusterversion version --type='json' -p='[{"op": "replace", "path": "/spec/upstream", "value": "http://update-wzh-openshift-update-service.apps.ocp4.redhat.ren/api/upgrades_info/v1/graph"}]'

        oc get clusterversion version -o yaml | more

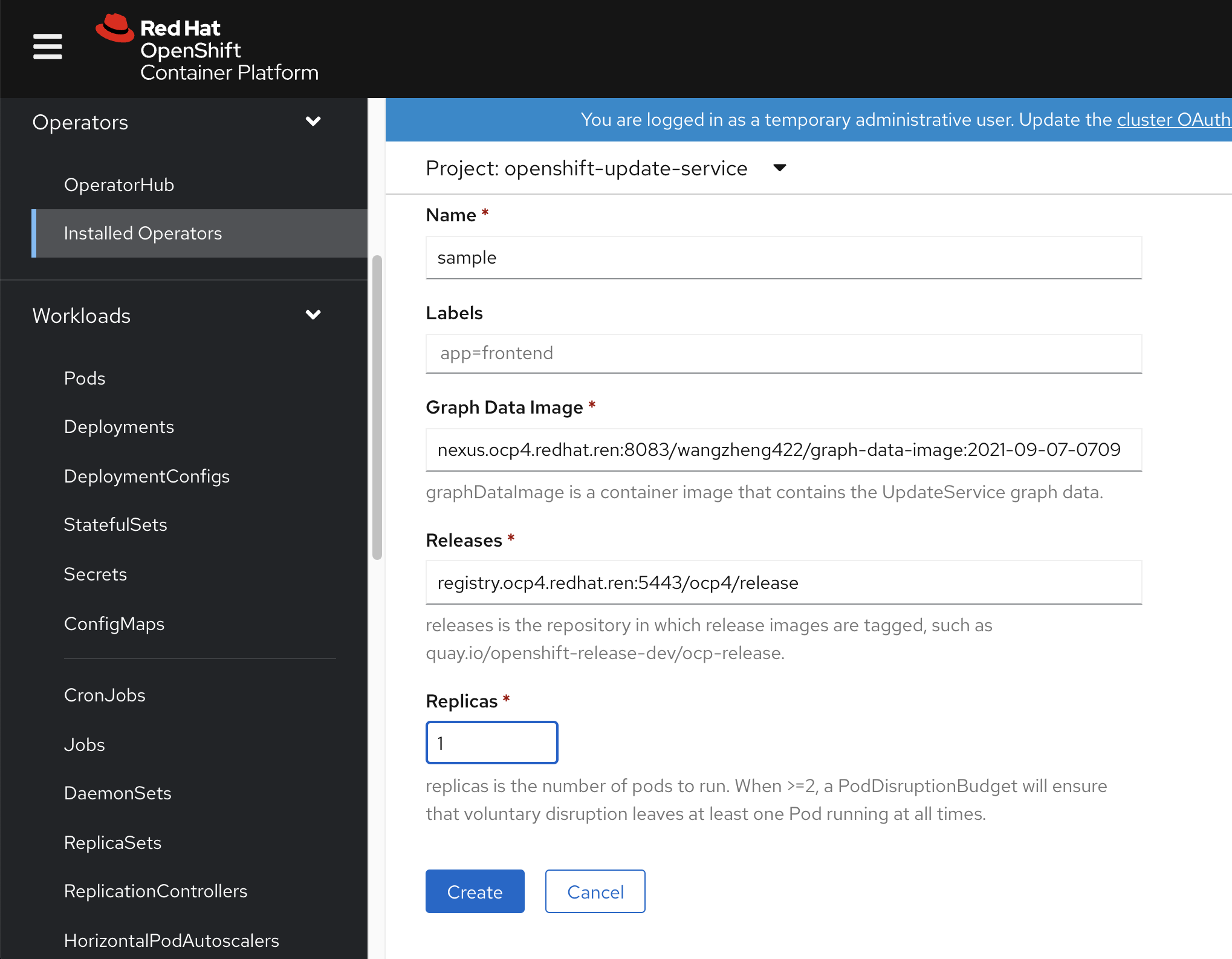

可以在operator的图形界面中，配置离线的update service参数

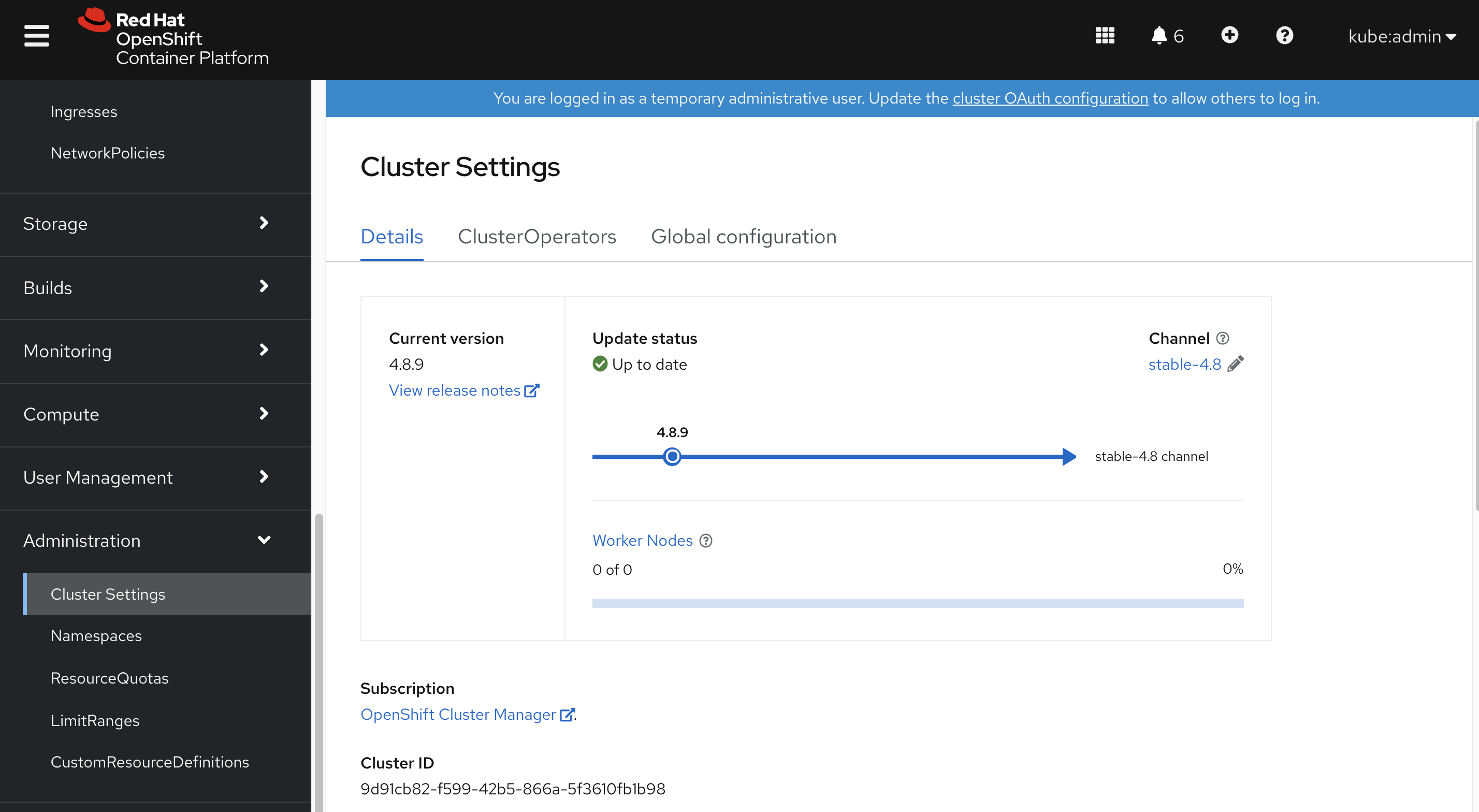

离线update service配置好了以后，看上去就非常舒适了。
